SFP-10/25G-LR-S= - Cisco SFP28 Module|LinkNewNet

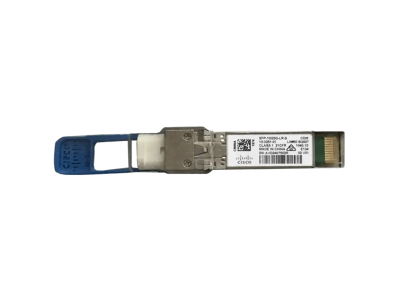

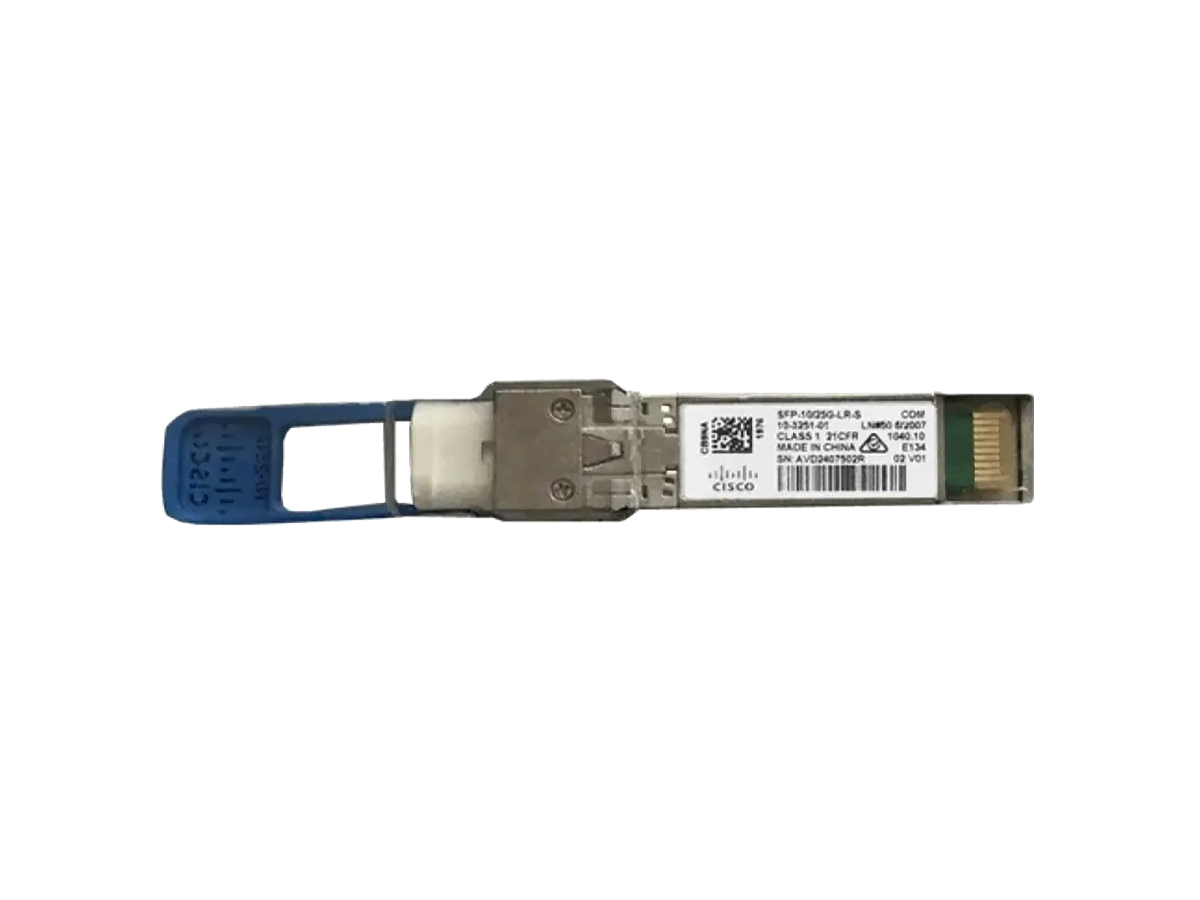

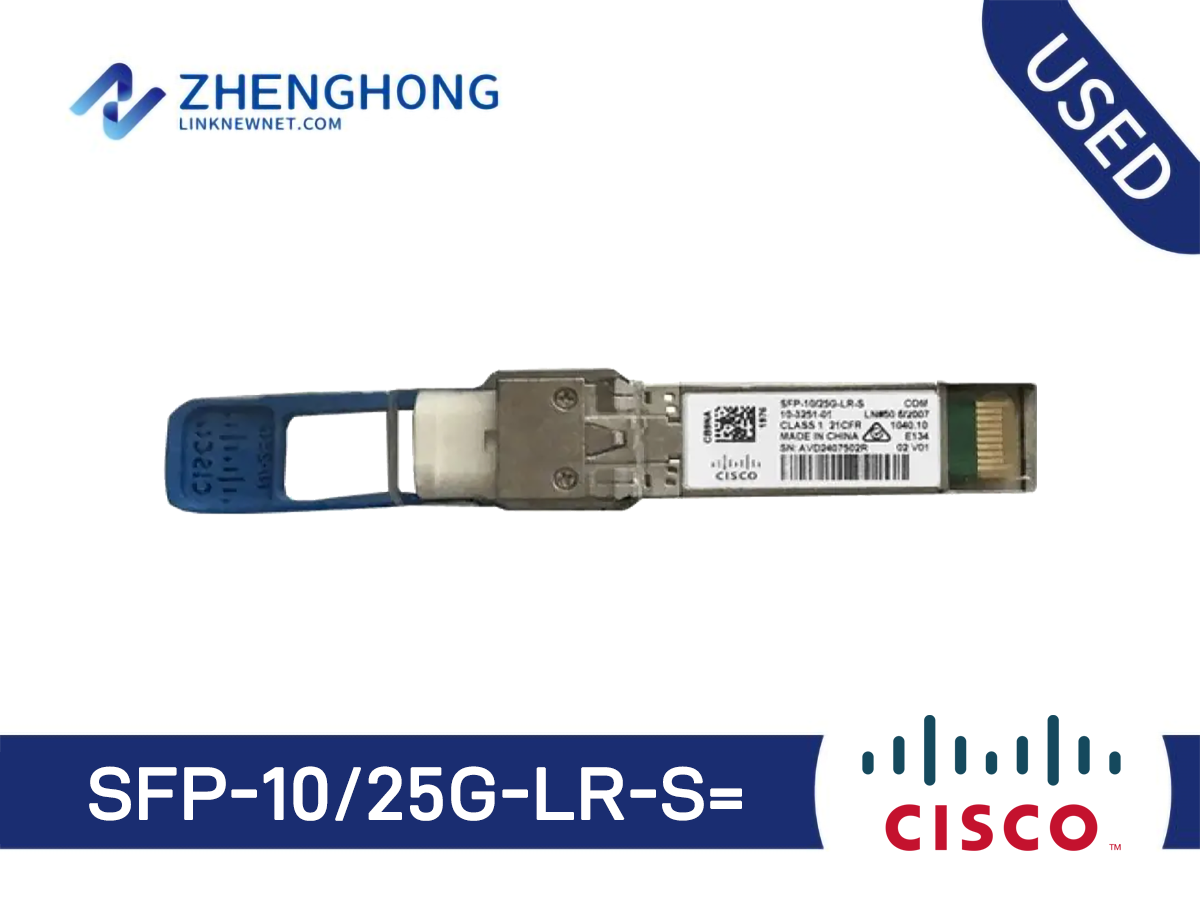

SFP-10/25G-LR-S= - Cisco SFP28 Module

Model: SFP-10/25G-LR-S=

Detail: 10/25GBASE-LR SFP28 Module

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

SFP-10/25G-LR-S= Specification
Description		Cisco 10/25GBASE-LR SFP28 Module for SMF
25G Port cabling specifications
Cable Distance		10km
Max Power Consumption (W)		1.3
Pull Tab Color		Blue
SFP28 port cabling specifications
Wavelength (nm)		1310
Cable Type		SMF
Core Size (Microns)		G.652
Modal Bandwidth		\
Cable Distance		10km
Optical transmit and receive specifications
Type	Transmit Power (dBm)	Receive Power (dBm)	Transmit and Receive Wavelength (nm)
10G	Max:+0.5 Min:-8.2	Max:+0.5 Min:-14.4	1260 to 1355 (10G)
25G	Max:+0.5 Min:-14.4	Max:+2 Min:-13.3	1295 to 1325 (25G)
Environmental Conditions and Power Requirements
Commercial temperature		0 to 70°C (32 to 158°F)
Storage temperature		-40 to 85°C (-40 to 185°F)
Regulatory and Standards compliance
Standards		•SFF-8402: SFP+ 28 Gb/s 1x Pluggable Transceiver Solution (SFP28) - Rev 1.0 March 30, 2014 •SFF-8472: Diagnostic Monitoring Interface for Optical Transceivers - Rev 12 August 29, 2014 •IEEE 802.3™- 2015 IEEE Standard for Ethernet •IEEE P802.3by™- 2016 Amendment 2: Media Access Control Parameters, Physical Layers, and Management Parameters for 25 Gb/s Operation •IEEE P802.3cc™ - 2017 Amendment 11: Physical Layer and Management Parameters for Serial 25 Gb/s Ethernet Operation Over Single-Mode Fiber •RoHS 6
Safety		• Laser Class 1 21CFR-1040 LN#50 7/2001 •Laser Class 1 IEC60825-1 •Cable jacket of SFP copper modules is UL E116441 Compliant •SFP copper cables are ELV Compliant

Q&A

What are common troubleshooting steps for the SFP-10/25G-LR-S= module?

Common steps include verifying proper installation, checking the connection status, ensuring compatibility with network devices, and consulting Cisco's troubleshooting guides.

What accessories are available for the SFP-10/25G-LR-S= module?

Accessories include fiber optic cables (single-mode LC), compatible Cisco switches and routers, and protective dust caps.

How does the SFP-10/25G-LR-S= compare with similar modules?

The SFP-10/25G-LR-S= offers dual-rate support and 10km reach, making it versatile compared to single-rate modules like the 10GBASE-LR or 25GBASE-LR.

What are the typical use cases for the SFP-10/25G-LR-S= module?

Typical use cases include interconnecting data centers, extending enterprise LAN backbones, and supporting high-speed connections in metropolitan area networks.

How cost-effective is the SFP-10/25G-LR-S= module?

The SFP-10/25G-LR-S= provides a cost-effective 10/25GBASE-LR solution, offering high-speed connectivity at a competitive price point.

What are the key features of the SFP-10/25G-LR-S= module?

Key features include dual-rate support for both 10G and 25G applications, long-range communication up to 10km, and compatibility with various Cisco switches and routers.

What are the ideal application scenarios for the SFP-10/25G-LR-S= module?

The SFP-10/25G-LR-S= is ideal for high-speed data center interconnections, enterprise networks, and service provider transport networks requiring up to 10km reach.

How do I install the SFP-10/25G-LR-S= module?

The SFP-10/25G-LR-S= can be installed by inserting it into compatible SFP28 slots on your Cisco switches or routers and making sure to secure it properly.

Does the SFP-10/25G-LR-S= module require firmware upgrades?

Generally, the SFP-10/25G-LR-S= module does not require standalone firmware upgrades, but it's essential to keep the host device's firmware up to date.

Are there alternative products to the SFP-10/25G-LR-S= module?

Yes, alternatives include other Cisco 25G optical modules like the SFP-25G-LR-S and third-party compatible modules.
