Huawei S5700 Series Switches S5735S-L48P4S-A1|LinkNewNet

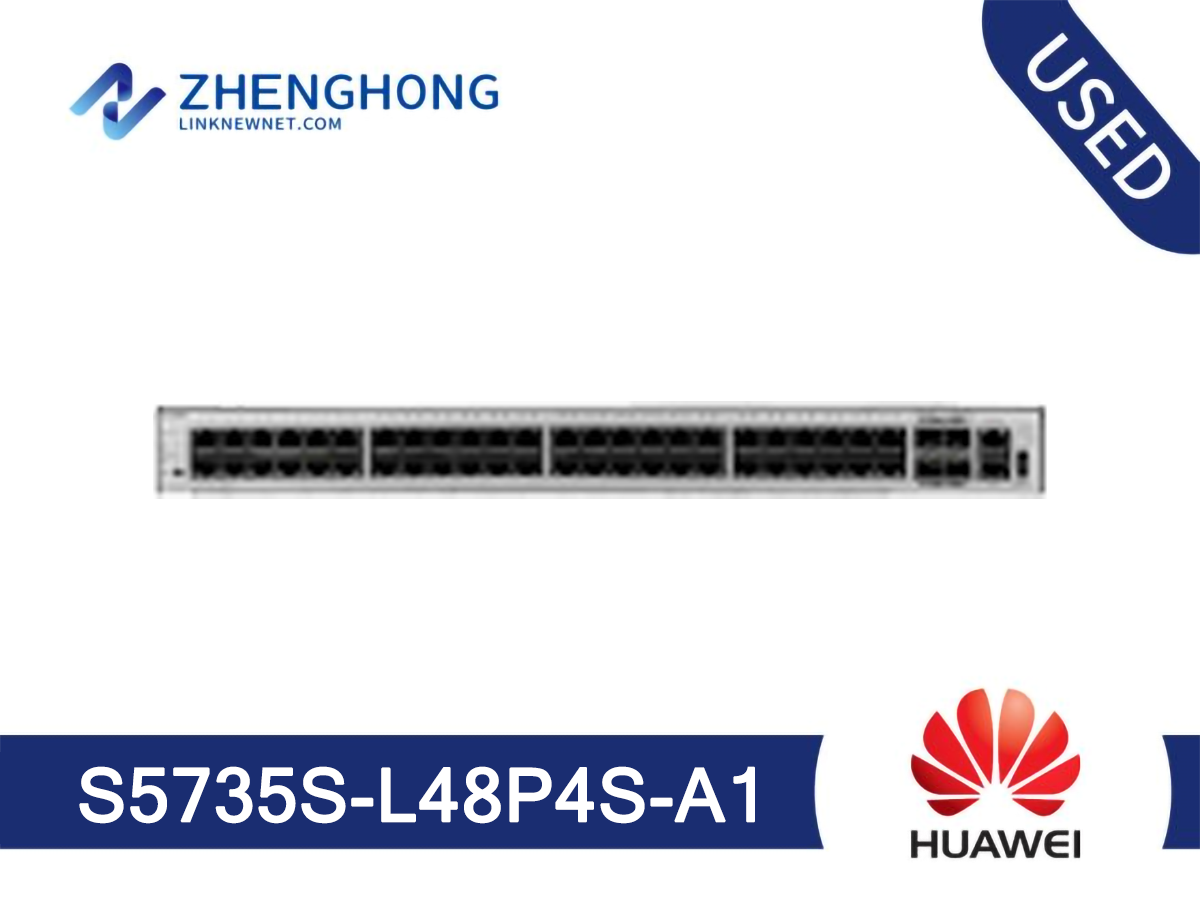

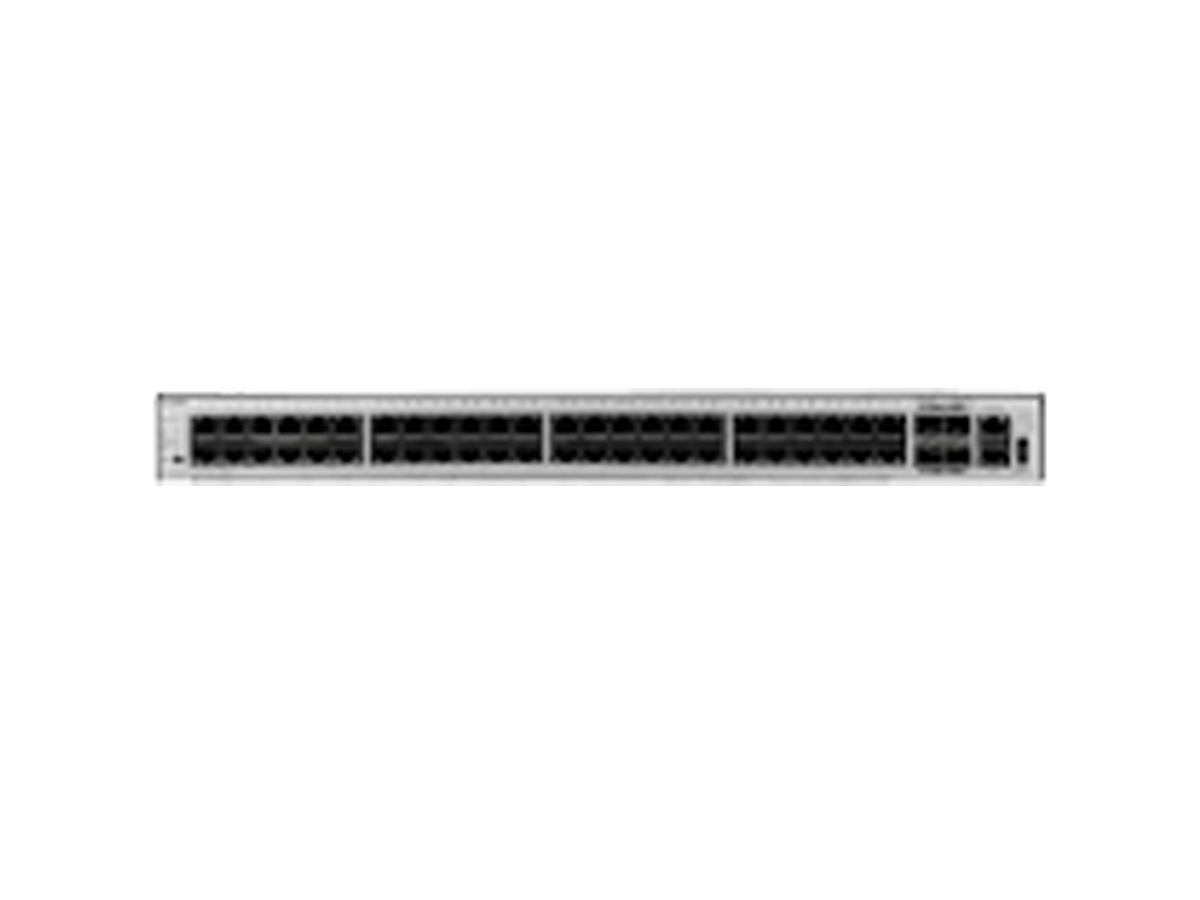

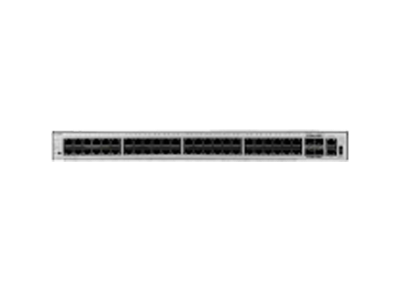

Huawei S5700 Series Switches S5735S-L48P4S-A1

Model: S5735S-L48P4S-A1

Detail: 48x 10/100/1000BASE-T Ethernet ports, 4x Gigabit SFP, PoE+, AC power.

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

S5735S-L48P4S-A1 Specification
Typical power consumption [W]	58.7 W
Typical heat dissipation [BTU/hour]	200.29 BTU/hour
Maximum power consumption [W]	· Not providing the PoE function: 76.1 W 100% PoE loads: 456.1 W (PoE: 380 W)
Maximum heat dissipation [BTU/hour]	· Not providing the PoE function: 259.66 100% PoE loads: 1556.26
MTBF [year]	44.9 year
MTTR [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	50 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	38.2 dB(A)
Number of card slots	0
Number of power slots	0
Number of fans modules	2
Power supply mode	AC built-in
Rated input voltage [V]	· AC input: 100 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC
Input voltage range [V]	· AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz High-Voltage DC input: 190 V DC to 290 V DC
Maximum input current [A]	6 A
Memory	512 MB
Flash memory	512 MB
Console port	RJ45
Eth Management port	Not supported
USB	Supported
RTC	Not supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: ±7 kV
Power supply surge protection [kV]	±6 kV in differential mode, ±6 kV in common mode
Types of fans	Built-in
Heat dissipation mode	Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction	Air intake from left and front, air exhaustion from right
PoE	Supported
Certification	EMC certification Safety certification Manufacturing certification

Q&A

Q Why can't I access the WLAN view on the switch?

A As-mode disable needs to be used to enable WLAN feature.

Q Why are Switch Ports down and faulty due to power over current?

A No faults with the switch, so we need to check the IP Phones. Power overcurrent: indicates that the current of the PD connected to the interface exceeds the maximum current of the interface.

Q What is the difference between Cisco and Huawei?

A Huawei uses only open standard protocols whereas Cisco uses a mixture of open and proprietary.

Q Why are Switch Ports down and faulty due to power over current?

A No faults with the switch, so we need to check the IP Phones. Power overcurrent: indicates that the current of the PD connected to the interface exceeds the maximum current of the interface.
