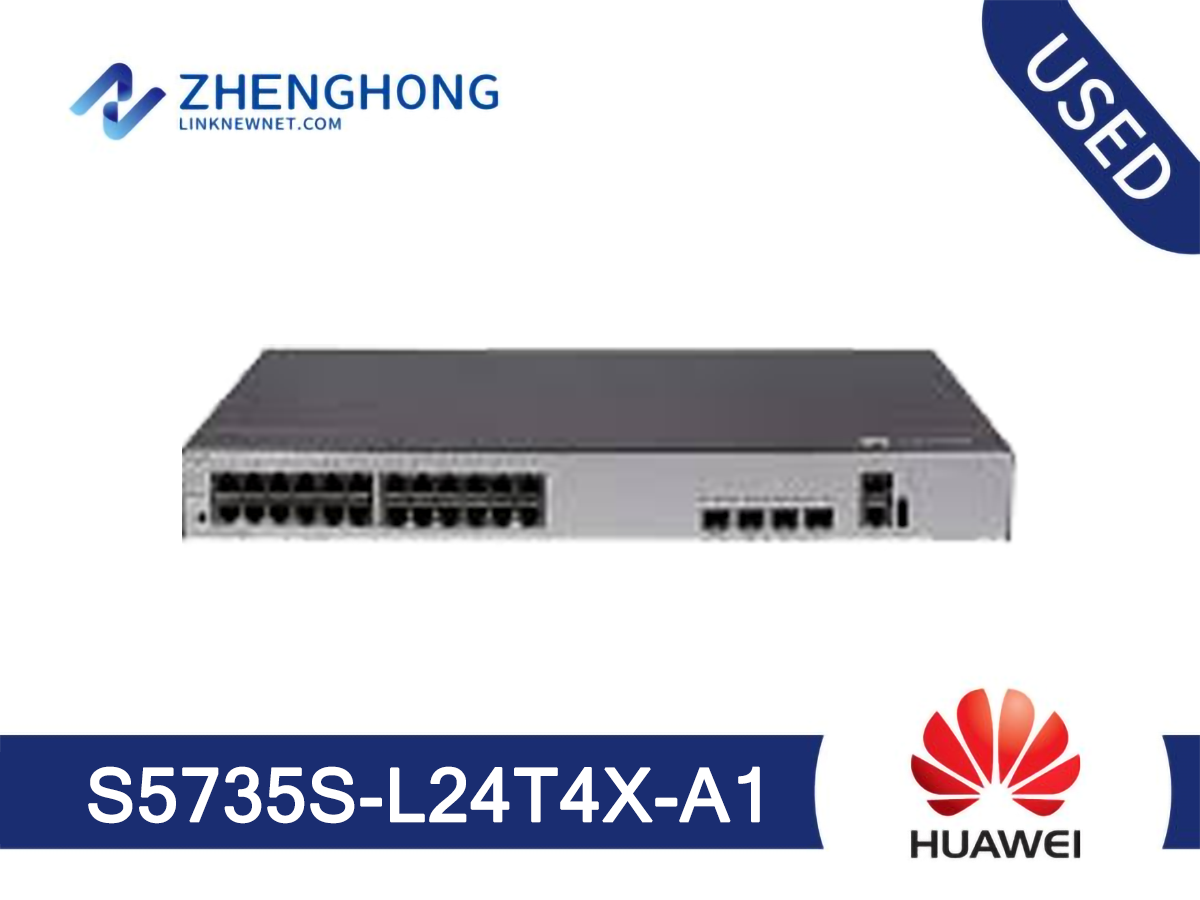

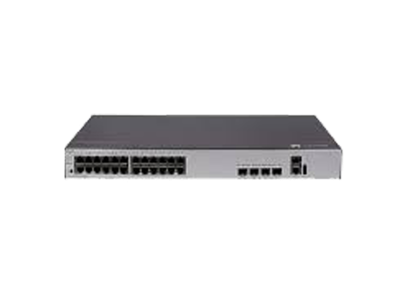

S5735S-L24T4X-A1 Specification | |
Typical power consumption [W] | 32.7 W |
Typical heat dissipation [BTU/hour] | 111.58 BTU/hour |
Maximum power consumption [W] | 47.6 W |
Maximum heat dissipation [BTU/hour] | 162.42 BTU/hour |
MTBF [year] | 64.3 year |
MTTR [hour] | 2 hour |
Availability | >0.99999 |
Noise at normal temperature (acoustic power) [dB(A)] | 39 dB(A) |
Noise at normal temperature (acoustic pressure) [dB(A)] | 27.2 dB(A) |
Number of fans modules | 1 |
Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). The operating temperature ranges from -5°C to +45°C (23°F to 113°F) when optical modules with transmission distances greater than or equal to 70 km are used. |
Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
Power supply mode | AC built-in |
Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz |
Input voltage range [V] | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |
Maximum input current [A] | 2 A |
Memory | 512 MB |
Flash memory | 512 MB |
Console port | RJ45 |
Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
Airflow direction | Air intake from left and front, air exhaustion from right |
