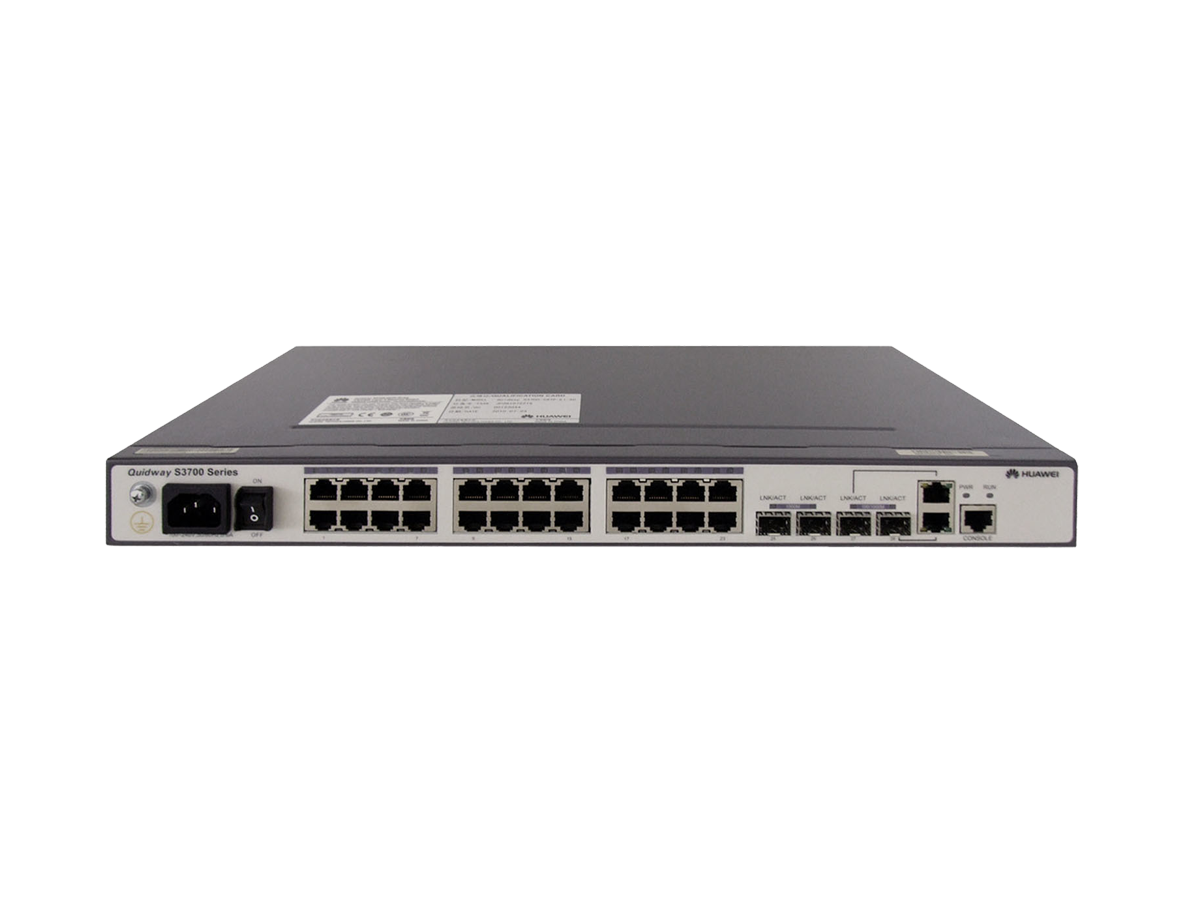

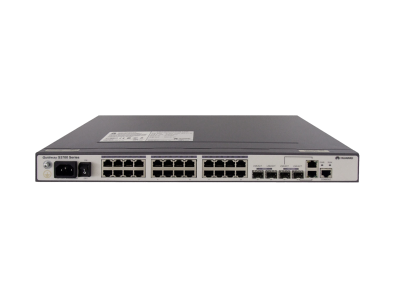

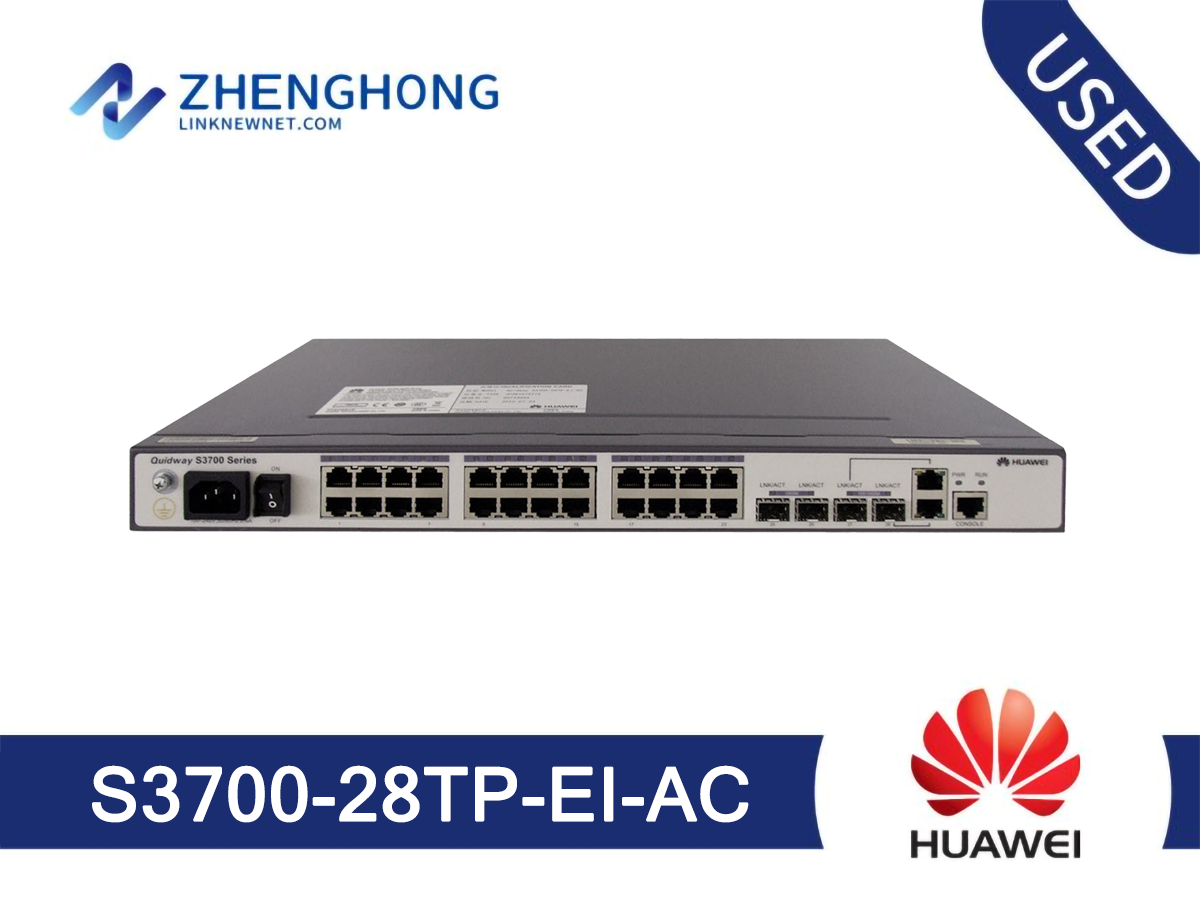

S3700-28TP-EI-AC Specifications | |
Manufacturer | Huawei |
Manufacturer Part Number | S3700-28TP-EI-AC |
Form Factor | Fixed, Stackable |
Switch Port | 24 FE ports, 2 GE Combo ports and 2 GE SFP ports |
Power Over Ethernet (PoE) | Non-POE |
Performance | |
Forwarding performance | 9.6 Mpps |
MAC address table | IEEE 802.1d compliance |
16 K MAC address entries | |
MAC address learning and aging | |
Static, dynamic, and blackhole MAC address entries | |
Packet filtering based on source MAC addresses | |
VLAN | 4K VLANs |
Reliability | RRPP ring topology and RRPP multi-instance |
Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover | |
SEP | |
STP, RSTP, and MSTP | |
BPDU protection, root protection, and loop protection | |
Security | User privilege management and password protection |
DoS attack defense, ARP attack defense, and ICMP attack defense | |
Binding of the IP address, MAC address, interface, and VLAN | |
Port isolation, port security, and sticky MAC | |
Blackhole MAC address entries | |
Limit on the number of learned MAC addresses | |
802.1x authentication and limit on the number of users on an interface | |
AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC | |
SSH v2.0 | |
Hypertext Transfer Protocol Secure (HTTPS) | |
CPU defense | |
Blacklist and whitelist |
