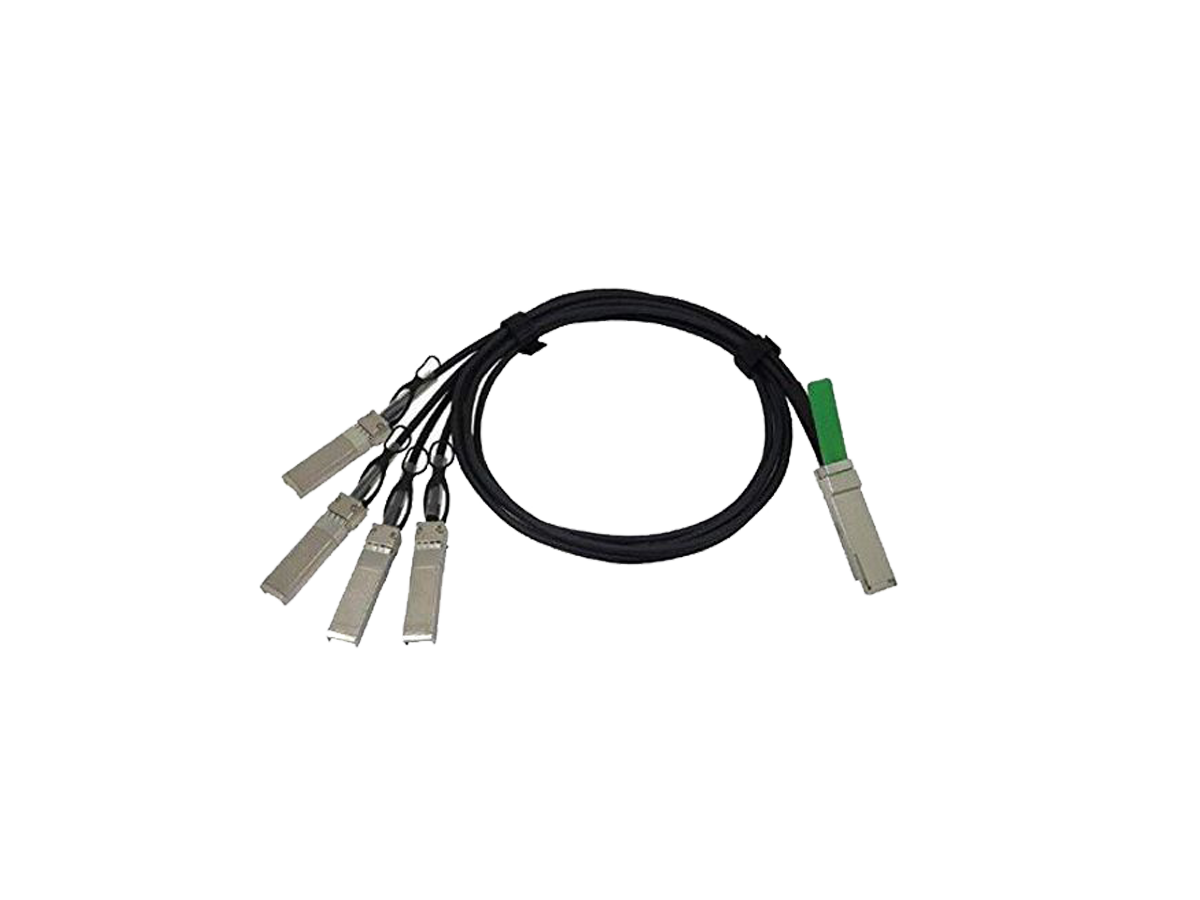

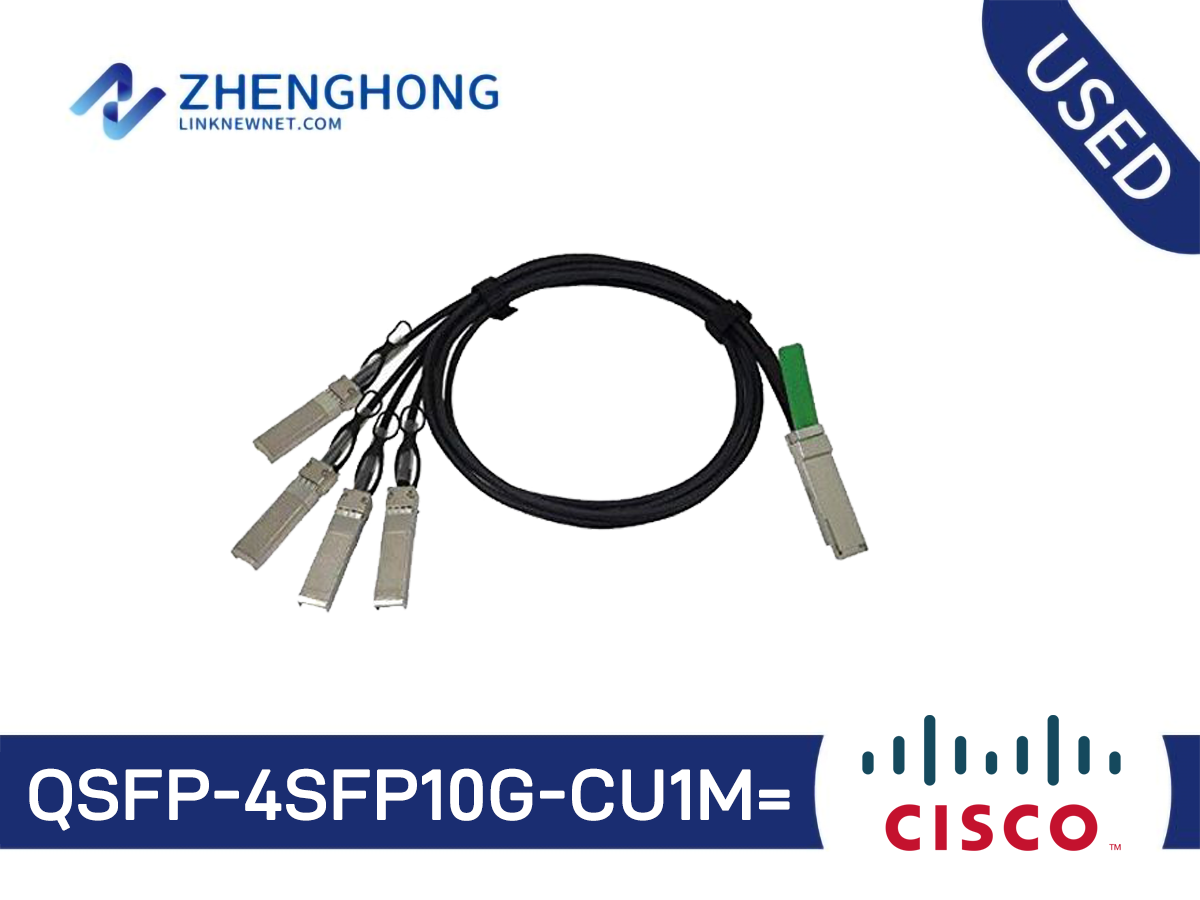

QSFP-4SFP10G-CU1M= - Cisco QSFP+ Module|LinkNewNet

WS-X4712-SFP-E - Cisco Catalyst 4500E Series SFP Line Cards

Model: WS-X4712-SFP-E

Detail: Cisco Catalyst 4500E Series 12-Port GE (SFP)

Condition: USED

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

WS-X4712-SFP-E Specifications
Port Information
Type	E-Series Gigabit Ethernet SFP Line Cards
Number of Ports	12
Port Speed	1GbE/100Mbps
Port Type	Pluggables
Wire Rate	1:1
Feature
Standards	● Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 803.3at, IEEE 802.3af, IEEE 802.3az ● 1000BASE-X (GBIC), 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, CWDM
EtherChannel Technology	● Gigabit EtherChannel: All 1000 Mbps ports ● 10 Gigabit EtherChannel: All 10Gbps ports ● IEEE 802.3ad (Link Aggregation Control Protocol): All 1000 Mbps ports ● Port Aggregation Protocol (PagP): Yes ● Number of ports per tuple: 8 ● EtherChannel and IEEE 802.3ad technology across line cards: Yes
Physical Dimensions	● Occupies one slot in the Cisco Catalyst 4500 Series platform ● Dimensions (H x W x D): 1.2 x 14.25 x 10.75 in. (3.0 x 36.2 x 27.3 cm)
Environmental Conditions	● Operating temperature: 32° to 104°F (0° to 40°C) ● Storage temperature: -40° to 167°F (-40° to 75°C) ● Relative humidity: 10 to 90%, noncondensing ● Operating altitude: -60 to 3000m
Safety Conditions	Fiber optic lasers: Class 1 laser products
Safety Certifications	● UL 1950 ● EN 60950 ● CSA-C22.2 no 950 ● IEC 950 ● IEC 60950-1, 2nd Ed. EN 60950-1, 2nd Ed. UL 60950-1, 2nd Ed. CAN/CSA-C22.2 No. 60950-1 2nd Ed.11
Electromagnetic Emissions Certifications	● FCC 15J Class A ● VCCI Class A ● CE Marking ● EN 55022 Class A ● EN 55024 Class A ● CISPR 22 Class A ● AS/NZ 3548 ● NEBS Level 3 (GR-1089-CORE, GR-63-CORE) ● ETSI ETS-300386-2 ● EN 50121-4
ROHS Compliance	ROHS5
Power and MTBF Information
Max Rated Power (W)	45
Rated MTBF (Hours)	1,329,480

Q&A

What troubleshooting steps can be taken if the WS-X4712-SFP-E malfunctions?

Ensure the module is properly seated, check port configurations, and update firmware if needed. Refer to Cisco support for advanced issues.

What accessories are available for the WS-X4712-SFP-E?

Compatible SFP modules and fiber optic cables are the primary accessories required to utilize the WS-X4712-SFP-E fully.

How does the WS-X4712-SFP-E compare to other similar products?

Compared to other modules, the WS-X4712-SFP-E provides a balance of port density and performance, especially suited for medium to large networks.

Can you expand the network using WS-X4712-SFP-E?

Yes, you can easily expand your network by adding more WS-X4712-SFP-E line cards to increase the number of available SFP ports within a Cisco 4500 series switch.

How cost-effective is the WS-X4712-SFP-E?

The WS-X4712-SFP-E offers excellent value with its 12-port SFP configuration, balancing high performance with cost efficiency for network expansions.

What are the main features of the WS-X4712-SFP-E?

The WS-X4712-SFP-E includes 12 SFP ports, 1G speed per port, and is compatible with Cisco Catalyst 4500 E-Series switches, ensuring reliable performance.

What are the typical application scenarios for the WS-X4712-SFP-E?

The WS-X4712-SFP-E is ideal for medium to large enterprises needing expanded network capacity, data center connectivity, and high-speed data transfer.

How do I install the WS-X4712-SFP-E in my network?

Install the WS-X4712-SFP-E into a compatible Cisco Catalyst 4500 E-Series chassis, following Cisco's installation guidelines to ensure proper seating and connectivity.

Does the WS-X4712-SFP-E require regular upgrades?

The WS-X4712-SFP-E itself does not require regular upgrades, but keeping your Catalyst 4500 E-Series chassis software updated ensures optimal performance.

Are there alternative products to the WS-X4712-SFP-E?

Alternatives include other Cisco Catalyst 4500 line cards with differing port configurations, such as the WS-X4748-RJ45-E for 10/100/1000 Ethernet connectivity.

What common troubleshooting steps are there for the WS-X4712-SFP-E?

Check for correct module seating, ensure firmware is updated, verify SFP transceiver compatibility, and consult Cisco's troubleshooting guides if issues arise.

What accessories are available for the WS-X4712-SFP-E?

Accessories include compatible SFP transceivers, patch cables, and rack mounts, enabling flexible networking solutions and easy deployment.

How does the WS-X4712-SFP-E compare to similar products?

Compared to similar line cards, the WS-X4712-SFP-E provides a specific advantage in its 1G SFP port density, suitable for scenarios requiring multiple fiber connections.

Is the WS-X4712-SFP-E suitable for data center environments?

Yes, the WS-X4712-SFP-E is suitable for data centers requiring reliable, high-speed fiber connectivity with manageable port density for efficient network growth.

How cost-effective is the WS-X4712-SFP-E?

The WS-X4712-SFP-E offers excellent value with 12-port SFP 1G connectivity, ideal for expanding network capacity without significant costs.

What are the main features of the WS-X4712-SFP-E?

It features 12 SFP ports, compatibility with Cisco 4500 E-Series switches, and supports up to 1G Ethernet, providing flexibility and scalability.

In what scenarios is the WS-X4712-SFP-E used?

The WS-X4712-SFP-E is perfect for enterprise environments requiring scalable and reliable high-speed data connections.

How do you install the WS-X4712-SFP-E?

To install, simply insert the WS-X4712-SFP-E into an available slot in a Cisco 4500 E-Series chassis and secure it appropriately.

Does the WS-X4712-SFP-E require upgrades?

Firmware upgrades may be necessary to ensure compatibility and security. Always check Cisco's support for the latest updates.

Are there alternative products to WS-X4712-SFP-E?

Yes, alternatives include other Cisco 4500 series line cards like WS-X4748-RJ45-E, which offers different port configurations.

What troubleshooting steps can be taken if the WS-X4712-SFP-E malfunctions?

Ensure the module is properly seated, check port configurations, and update firmware if needed. Refer to Cisco support for advanced issues.

What accessories are available for the WS-X4712-SFP-E?

Compatible SFP modules and fiber optic cables are the primary accessories required to utilize the WS-X4712-SFP-E fully.

How does the WS-X4712-SFP-E compare to other similar products?

Compared to other modules, the WS-X4712-SFP-E provides a balance of port density and performance, especially suited for medium to large networks.

Can you expand the network using WS-X4712-SFP-E?

Yes, you can easily expand your network by adding more WS-X4712-SFP-E line cards to increase the number of available SFP ports within a Cisco 4500 series switch.
