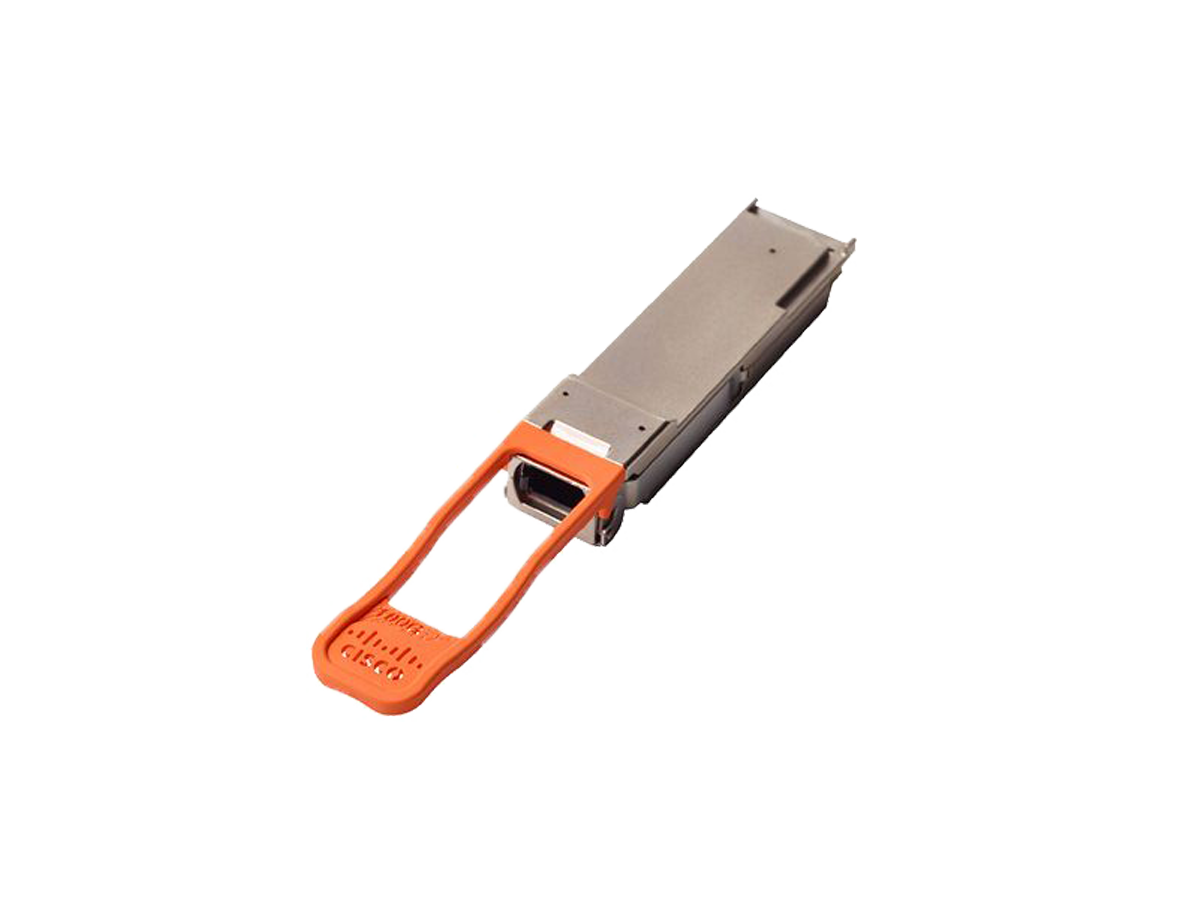

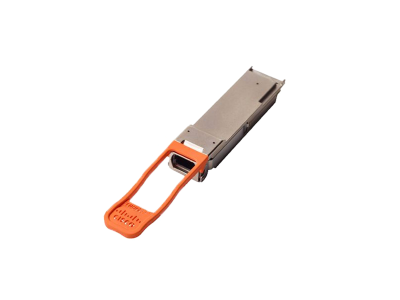

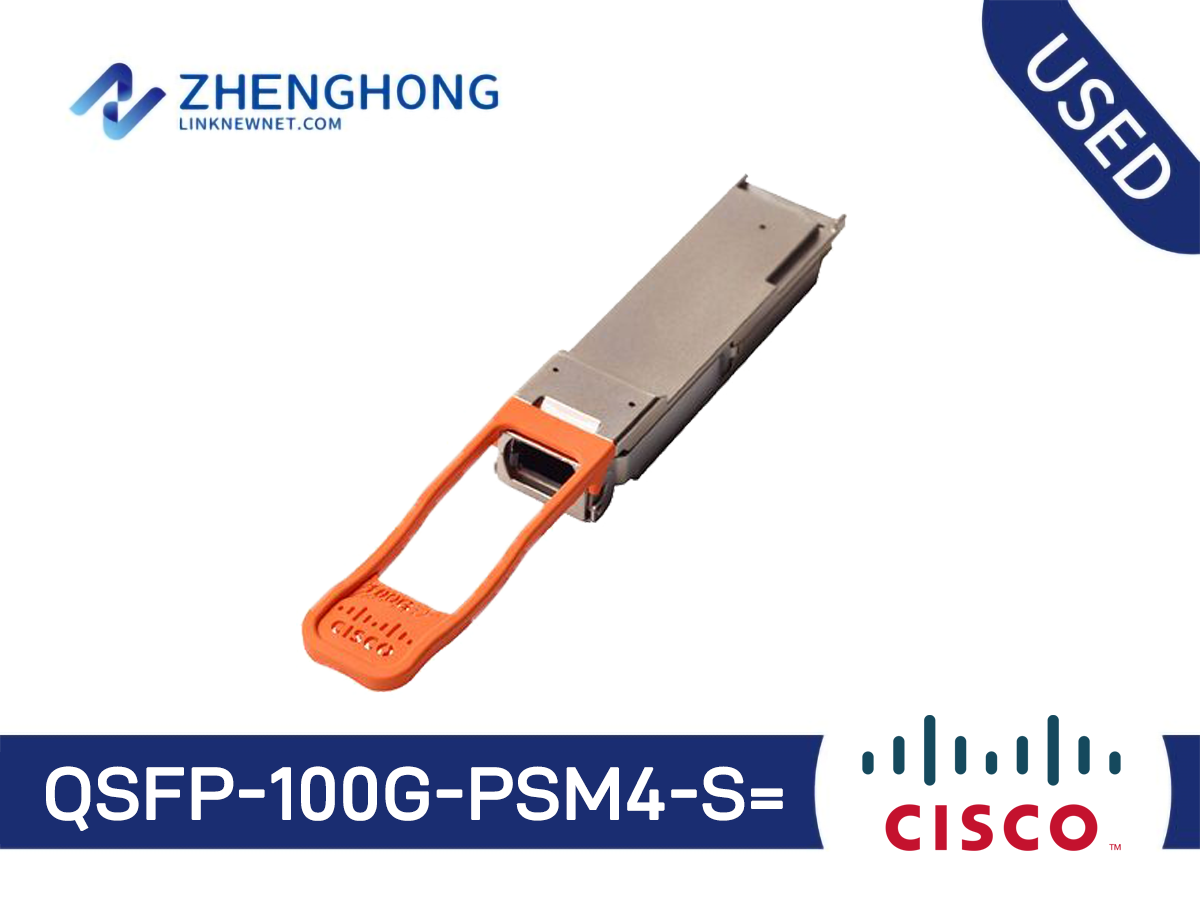

QSFP-100G-PSM4-S= - Cisco QSFP28 Module

Model: QSFP-100G-PSM4-S=

Detail: 100GBASE PSM4 QSFP Transceiver, MPO, 500m over SMF

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

QSFP-100G-PSM4-S= Specification
Description	100GBASE PSM4 QSFP Transceiver, MPO, 500m over SMF
Dimensions	13.5 x 18.4 x 72.4 mm
QSFP Port cabling specifications
Nominal Wavelength (nm)	1310
Cable Type	SMF
Core Size (Microns)	G.652
Modal Bandwidth (MHzkm)¹	\
Cable Distance	500m
Power Consumption (W)	3.5
Pull Tab Color	Orange
*¹ Specified at transmission wavelength. For QSFP-40/100-SRBD, Modal Bandwidth is specified at 850nm
Optical characteristics
*Transmit Power (dBm) per lane^2**	Max:+2.0 Min:-9.4
*Receive Power (dBm) per lane^23*	Max:+2.0 Min: -12.66
Receive Power (dBm) per lane	1295 to 1325
^2 Transmitter and receiver power is average optical power, unless specified ^3 Optical power at RX is informative only. A received power within this range is required but does not ensure operation
Environmental Conditions and Power Requirements
Commercial temperature	0 to 70°C (32 to 158°F)
Storage temperature	-40 to 85°C (-40 to 185°F)
Regulatory and Standards compliance
Standards	•SFF-8665: QSFP+ 28 Gb/s 4X Pluggable Transceiver Solution (QSFP28) - Rev 1.8 May 10, 2013 •SFF-8636: Common Management Interface - DRAFT Rev 1.9 May 12, 2014 •802.3™-2012 IEEE Standard for Ethernet •IEEE 802.3ba Amendment of IEEE Std 802.3-2012 •IEEE 802.3bm Amendment of IEEE Std 802.3-2012 (D3.1, 1st August 2014) •GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable •GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies •GR-468-CORE: Generic Requirements for Optoelectronic Devices Used in Telecommunications Equipment •GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors •RoHS 6
Safety	•Cable jacket of QSFP copper modules is UL E116441 Compliant •QSFP copper cables are ELV compliant

Q&A

What common troubleshooting steps are there for the QSFP-100G-PSM4-S=?

Ensure proper seating in the port, check for compatibility, and verify the integrity of the connecting fibers.

What accessories are available for the QSFP-100G-PSM4-S=?

Accessories include MPO patch cables and adapters compatible with 100G QSFP transceivers.

How does the QSFP-100G-PSM4-S= compare to the QSFP-100G-SR4-S=?

The QSFP-100G-PSM4-S= is designed for up to 500m over SMF while the QSFP-100G-SR4-S= supports up to 70m over MMF.

What is the warranty on the QSFP-100G-PSM4-S=?

The QSFP-100G-PSM4-S= typically comes with a standard warranty of 1 year, but it can vary by vendor.

How cost-effective is QSFP-100G-PSM4-S=?

The QSFP-100G-PSM4-S= offers a cost-effective solution for 100Gbps data transmission over single-mode fiber (SMF) up to 500 meters.

What are the key features of the QSFP-100G-PSM4-S=?

The QSFP-100G-PSM4-S= features 100Gbps data rate, an MPO connector, and supports up to 500m over SMF, making it ideal for high-speed data connections.

What is the application scenario for QSFP-100G-PSM4-S=?

The QSFP-100G-PSM4-S= is best suited for data centers and high-performance computing networks needing 100Gbps connectivity.

How do I install the QSFP-100G-PSM4-S?

To install the QSFP-100G-PSM4-S=, simply insert it into a compatible QSFP28 port in your switch or router until it clicks into place.

Does the QSFP-100G-PSM4-S= require firmware upgrades?

Generally, the QSFP-100G-PSM4-S= does not require firmware upgrades, but always check your network device documentation.

Are there any alternative products to the QSFP-100G-PSM4-S=?

Alternatives include other 100GBASE QSFP transceivers like the QSFP-100G-SR4-S= for different distance requirements.

What common troubleshooting steps are there for the QSFP-100G-PSM4-S=?

Ensure proper seating in the port, check for compatibility, and verify the integrity of the connecting fibers.

What accessories are available for the QSFP-100G-PSM4-S=?

Accessories include MPO patch cables and adapters compatible with 100G QSFP transceivers.

How does the QSFP-100G-PSM4-S= compare to the QSFP-100G-SR4-S=?

The QSFP-100G-PSM4-S= is designed for up to 500m over SMF while the QSFP-100G-SR4-S= supports up to 70m over MMF.

What is the warranty on the QSFP-100G-PSM4-S=?

The QSFP-100G-PSM4-S= typically comes with a standard warranty of 1 year, but it can vary by vendor.
