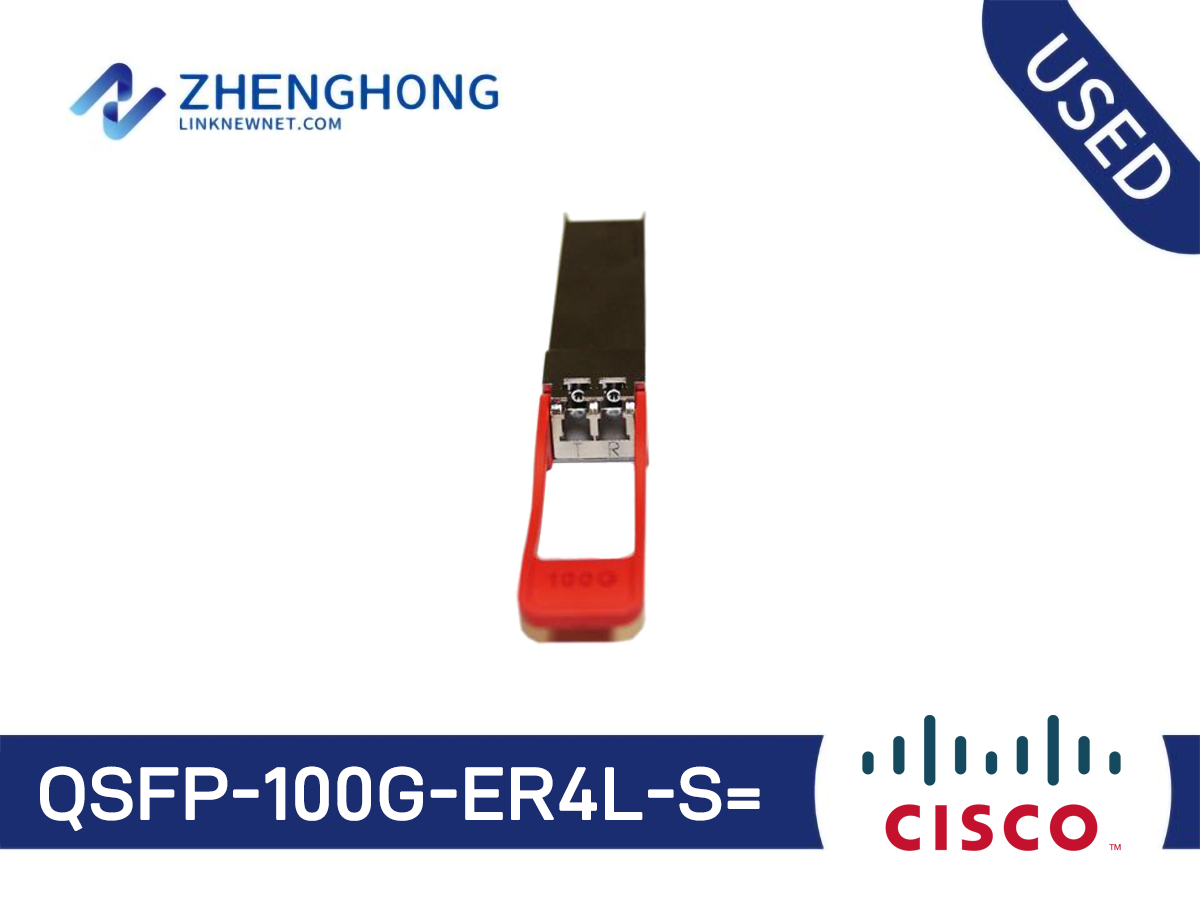

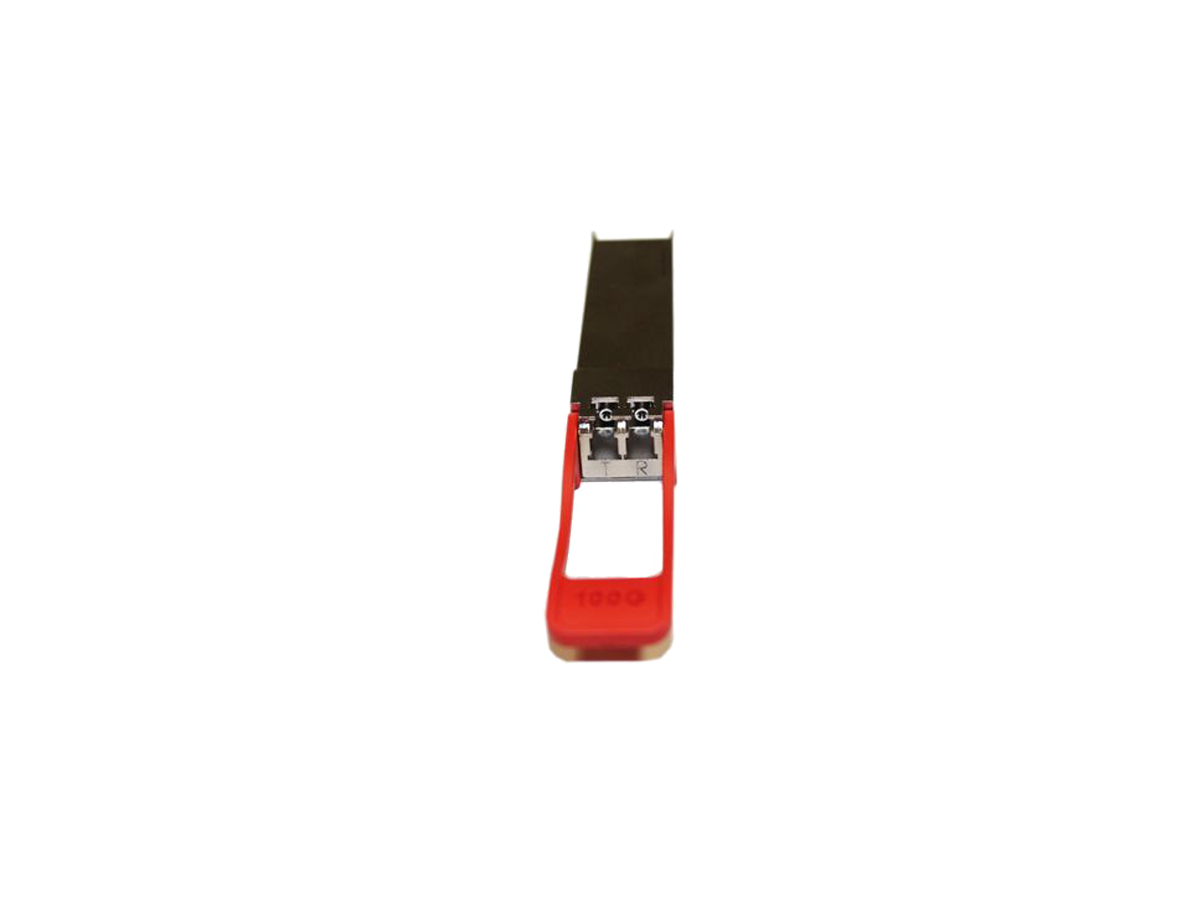

QSFP-100G-ER4L-S= - Cisco QSFP28 Module

QSFP-100G-ER4L-S= - Cisco QSFP28 Module

Model: QSFP-100G-ER4L-S=
Detail: 100GBASE QSFP Transceiver, 40KM reach over SMF, Duplex LC

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details


QSFP-100G-ER4L-S= Specification

Description

Cisco 100GBASE QSFP Transceiver, 40KM reach over SMF, Duplex LC

Dimensions

13.5 x 18.4 x 72.4 mm

 QSFP Port cabling specifications

Nominal Wavelength (nm)

1295, 1300, 1304, 1309

Cable Type

SMF

Core Size (Microns)

G.652

Modal Bandwidth (MHz*km)*1

\

Cable Distance

40km (with host FEC)

30km (without host FEC)

Power Consumption (W)

4.5

Pull Tab Color

Rad

*1 Specified at transmission wavelength. For QSFP-40/100-SRBD, Modal Bandwidth is specified at 850nm

Optical characteristics

Product

QSFP-100G-ER4L-S*4

Transmit Power (dBm) per lane*2

Max:+6.5

Min:-2.5

Receive Power (dBm) per lane*2*3

Max:-3.5

Min: -20.5*5 (with FEC)

-17*5 (without FEC)

Receive Power (dBm) per lane

Four lanes: 1295, 1300, 1304, 1309

*2 Transmitter and receiver power is average optical power, unless specified

*3 Optical power at RX is informative only. A received power within this range is required but does not ensure operation

*4 Minimum channel insertion loss is 6.4dB for QSFP-100G-ER4L-S

*5 V01 of QSFP-100G-ER4L-S allows Tx Power range with +4.5 (Max) to -2.9 (Min) and Rx Power range with -4.9 (Max) to -19.9 (Min)

Environmental Conditions and Power Requirements

Commercial temperature

0 to 70°C (32 to 158°F)

Storage temperature

-40 to 85°C (-40 to 185°F)

Regulatory and Standards compliance

Standards

•SFF-8665: QSFP+ 28 Gb/s 4X Pluggable Transceiver Solution (QSFP28) - Rev 1.8 May 10, 2013

•SFF-8636: Common Management Interface - DRAFT Rev 1.9 May 12, 2014

•802.3™-2012 IEEE Standard for Ethernet

•IEEE 802.3ba Amendment of IEEE Std 802.3-2012

•IEEE 802.3bm Amendment of IEEE Std 802.3-2012 (D3.1, 1st August 2014)

•GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable

•GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies

•GR-468-CORE: Generic Requirements for Optoelectronic Devices Used in Telecommunications Equipment

•GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors

•RoHS 6

Safety

•Cable jacket of QSFP copper modules is UL E116441 Compliant

•QSFP copper cables are ELV compliant
