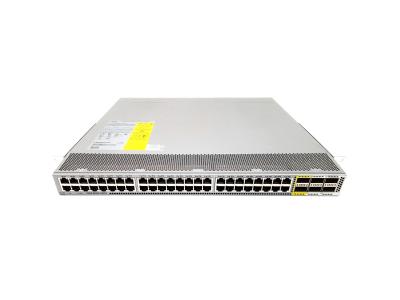

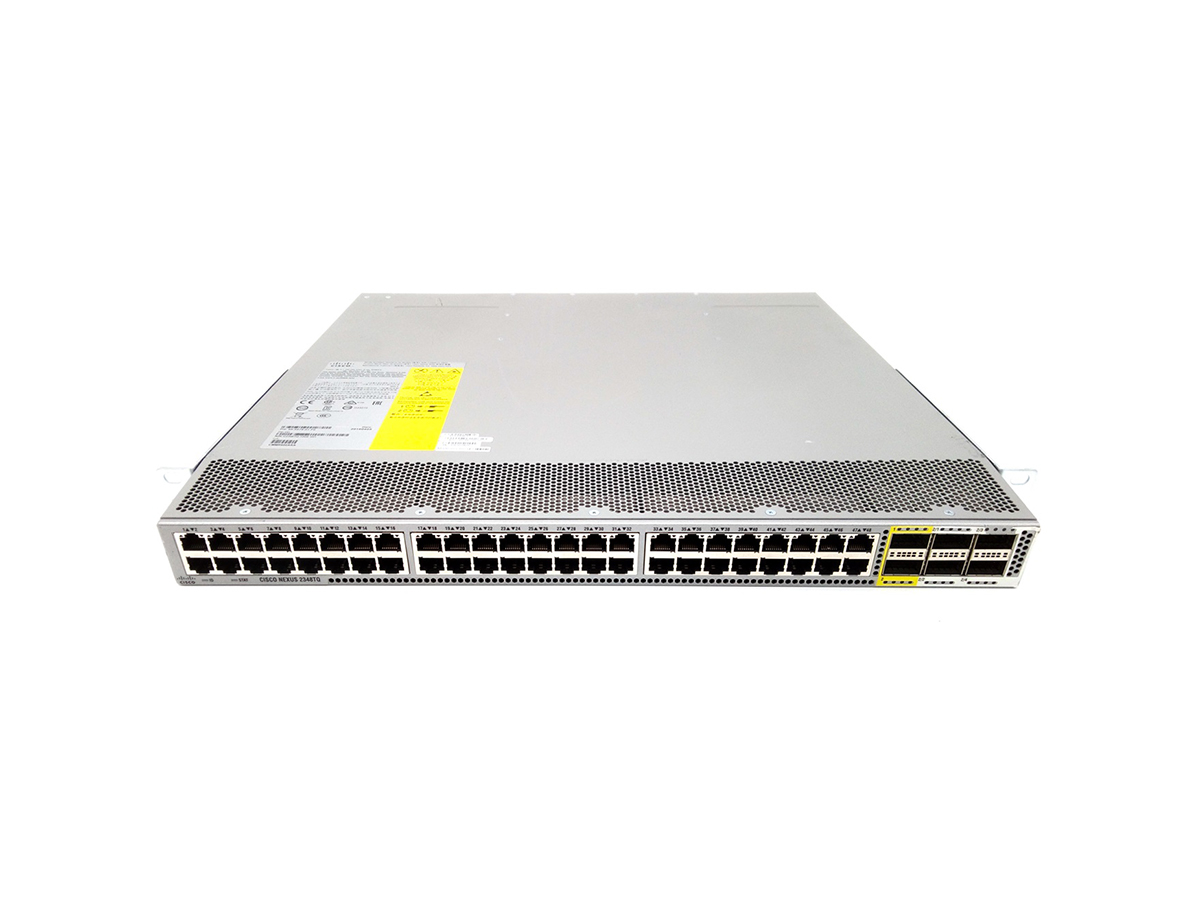

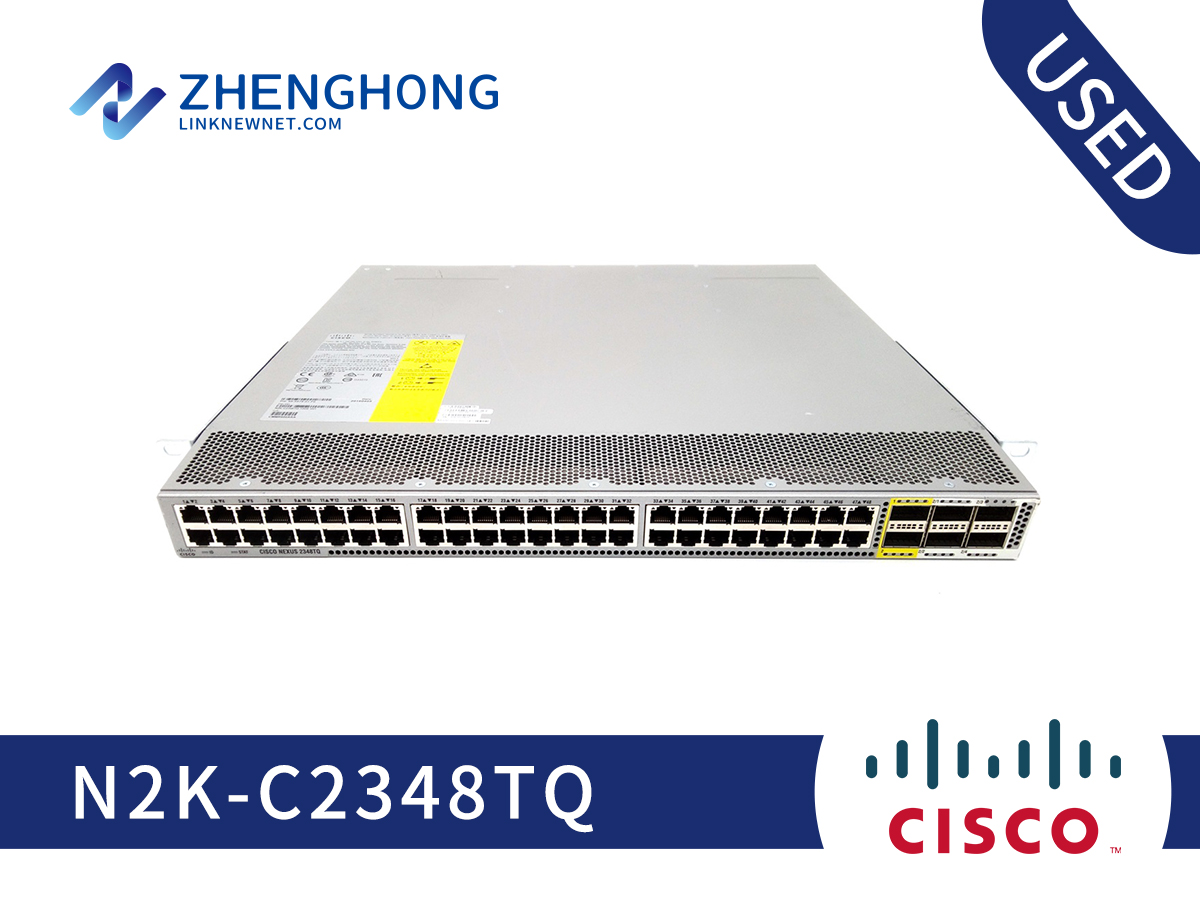

Cisco Nexus 2000 Series N2K-C2348TQ

Model: N2K-C2348TQ

Detail: Nexus 2300 Platform Chassis, Nexus 2348TQ 10G BASE T Fabric Extender,48x100M/1/10GT (RJ45) + 6x40G QSFP+(req QSFP+)

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

N2K-C2348TQ Specification
Fabric speed	Up to 240 Gbps in each direction (480-Gbps full duplex)
Dimensions (H x W x D)	1.72 x 17.3 x 17.07 in. (4.37 x 43.94 x 43.36 cm)
Weight	17.7 lbs. (8.0 kg)
Fabric extender host interface type	48 100M/1/10GBASE-T ports: RJ-45 connectors
Fabric extender fabric interfaces	6 x 40 Gigabit Ethernet QSFP (24 x 10 Gigabit Ethernet)
Fabric speed	Up to 240 Gbps in each direction (480-Gbps full duplex)
Oversubscription	Up to 2:1
Performance	Hardware forwarding at 1440 Gbps or 2160 mpps
FCoE	FCoE support up to 30m with Category 6a and 7 cables (Cisco Nexus 5500 and 5600 platforms and 6000 Series)
Cisco parent switch	Cisco Nexus 5500 and 5600 platforms Cisco Nexus 6000 Series Cisco Nexus 7000 Series and 7700 platform Cisco Nexus 9300 and 9500 Series
Monitoring MIBs	RMON-MIB
Fabric extender host interface type	48 100M/1/10GBASE-T ports: RJ-45 connectors
Enhanced Ethernet	DCB
Security	Local classification (256 access control list [ACL] entries)
Environment	Operating temperature: 32 to 131°F (0 to 55°C) Non-operating temperature: -40 to 158°F (-40 to 70°C) Humidity: 5 to 95 percent (noncondensing) Altitude: 0 to 10,000 ft. (0 to 3000m)
Power supply	N2200-PAC-400W, N2200-PAC-400W-B, N2200-PDC-400W, N2200-PDC-350W-B, NXA-PHV-500W, and NXA-PHV-500W-B
Typical input operating power	280W at 30m (maximum 350W)
Heat dissipation	952 BTU/hour (typical); 1190 BTU/hour (maximum)
Regulatory Compliance	Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC
Safety	UL 60950-1 CAN/CSA-C22.2 No. 60950-1EN 60950-1 IEC 60950-1AS/NZS 60950-1GB4943
Fabric extender fabric interfaces	6 x 40 Gigabit Ethernet QSFP (24 x 10 Gigabit Ethernet)
RoHS	The Cisco Nexus 2348UPQ, 2348TQ, and 2332TQ are RoHS-6 compliant
Network Equipment Building Standards (NEBS)	The Cisco Nexus 2348UPQ, 2348TQ, and 2332TQ meet NEBS level-3 standards (hardware revision 3) (not currently supported)
Fan modules	NXA-FAN-30CFM-F and NXA-FAN-30CFM-B (N+1 redundancy = 3 fans)
Layer 2 features	Layer 2 VLAN trunks IEEE 802.1Q VLAN encapsulation Cisco EtherChannel technology on uplinks PortChannel on server ports on Cisco Nexus 2300 platforms Advanced PortChannel hashing Jumbo frames on all ports (up to 9216 bytes) Pause frames (Priority Flow Control [PFC] and IEEE 802.3x) Private VLANs (promiscuous only on uplinks) Local multicast replication on Cisco Nexus 2300 platform (8000 entries) Autonegotiation to 1000BASE-T; full duplex on host interfaces

Q&A

Q What is N2K-C2348TQ？

A N2K-C2348TQ is a Cisco Nexus 2300 Platform Chassis, offering 10G BASE T Fabric Extender, 2 power supplier, 3 Fan Modules, 48x100M/1/10GT (RJ45) + 6x40G QSFP+(req QSFP+) and choice of airflow.

Q What is fabric extender Cisco?

A A Cisco Nexus Fabric Extender, also known as a FEX, is a networking device that extends the capabilities of a parent Cisco Nexus switch. It acts as a remote line card for the switch, allowing for the consolidation of network connections and simplifying management.

Q What is the difference between a switch and a fabric extender?

A Traditional Switching: A Comparison. A Fabric Extender (FEX) in Nexus is a technology that allows for the expansion of a traditional switch's ports and capabilities. It is essentially an extension of a parent switch, also known as a Fabric Interconnect, which provides centralized management and control.

Q How does switch fabric work?

A Multiple switches in a fabric usually form a mesh network, with devices being on the "edges" ("leaves") of the mesh. Most Fibre Channel network designs employ two separate fabrics for redundancy. The two fabrics share the edge nodes (devices), but are otherwise unconnected.
