Huawei S2300 Series Switch LS-S2309TP-SI-AC|LinkNewNet

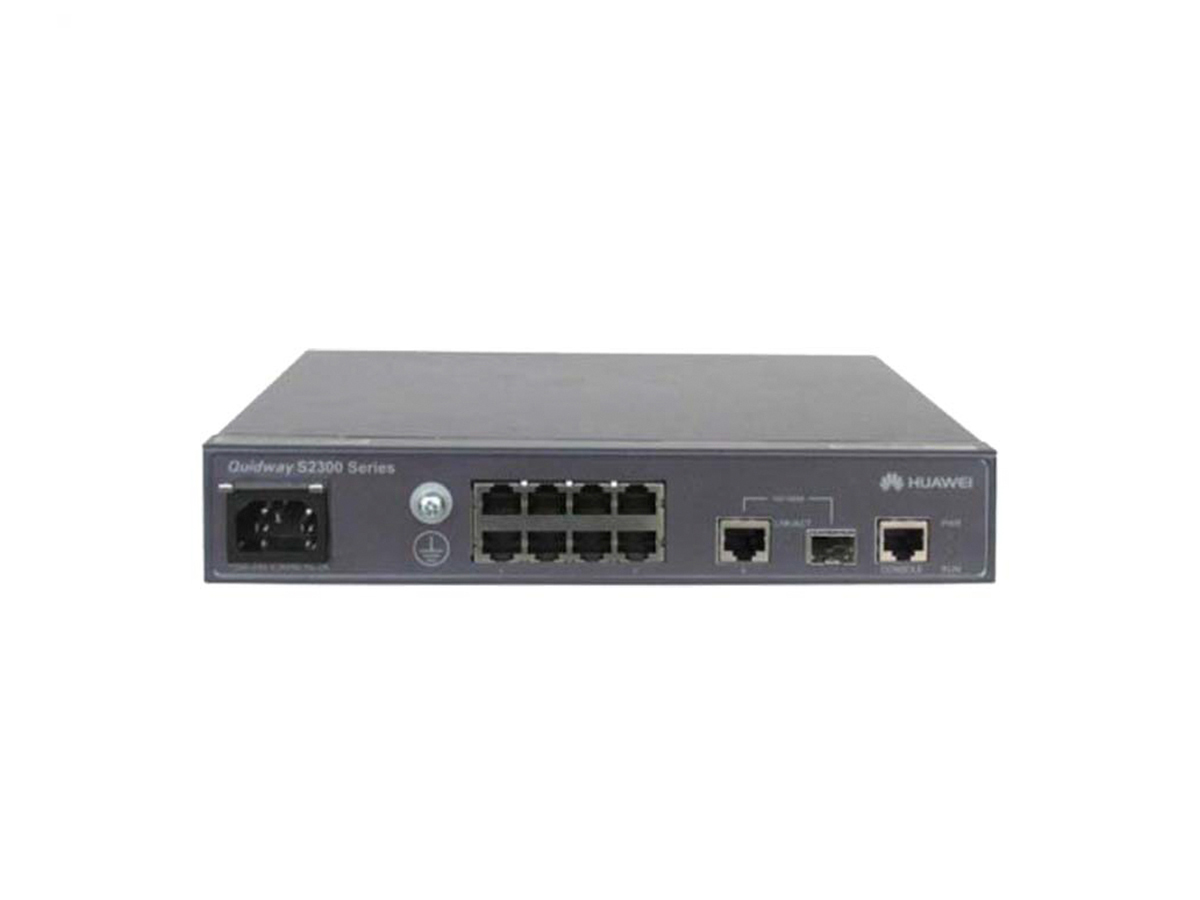

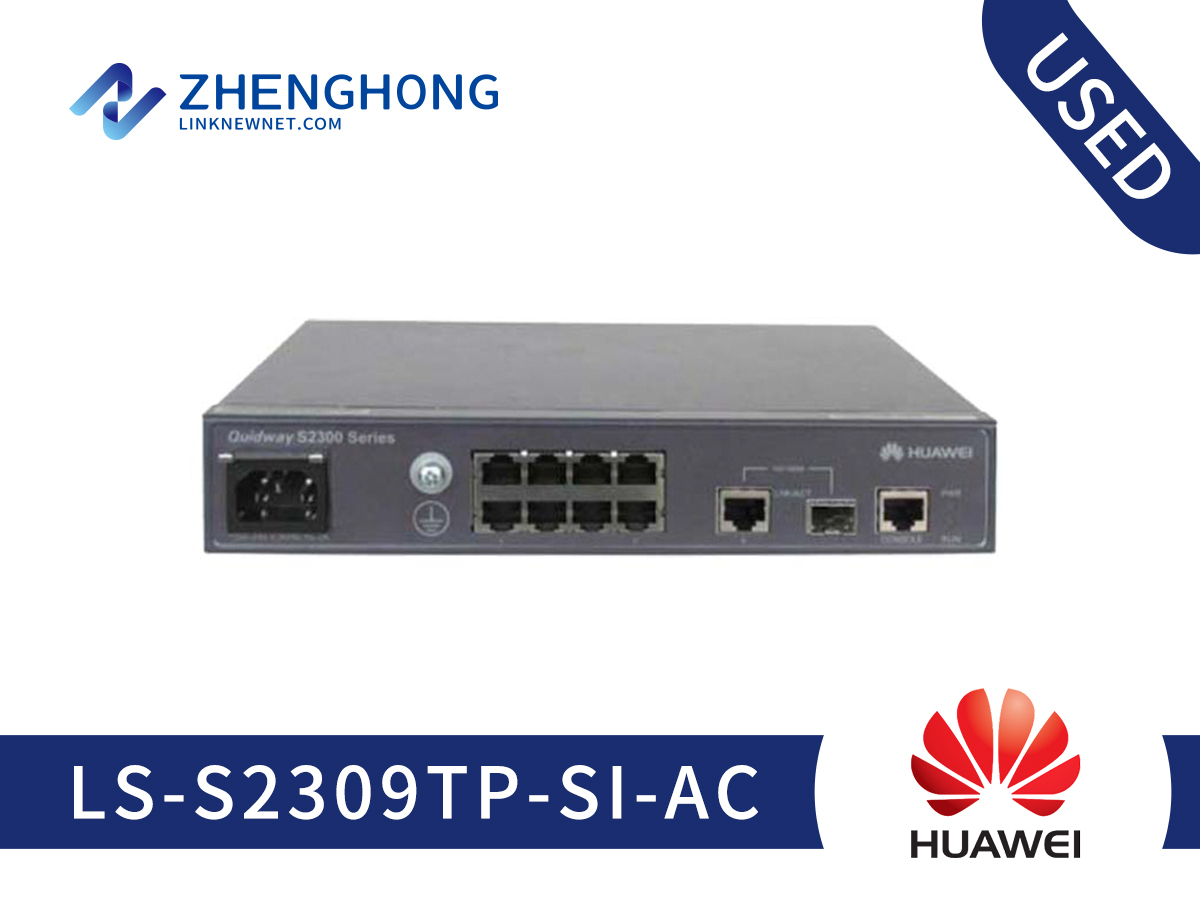

Huawei S2300 Series Switch LS-S2309TP-SI-AC

Model: LS-S2309TP-SI-AC

Detail: S2309TP-SI Mainframe(8 10/100 BASE-T ports and 1 Combo GE(10/100/1000 BASE-T+100/1000 Base-X) ports and AC 110/220V)

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

LS-S2309TP-SI-AC Specifications
Port	eight 10/100Base-TX ports and one gigabit Combo port (10/100/1000Base-T or 100/1000Base-X)
Forwarding performance	2.7 Mpps
Port switching capacity	3.6 Gbit/s
Backplane switching capacity	32 Gbit/s
MAC address table	Supports 8 K MAC address entries. Supports manual addition and deletion of a MAC address table. Supports configuration of MAC address aging time. Supports disabling of MAC address learning based on port or aggregation group. Supports limit on the number of MAC addresses to be learned on a port. Supports blackhole MAC addresses.
VLAN features	Supports IEEE 802.1Q (VLAN) and 4096 VLANs. Supports port-based VLAN.
QoS	Supports port rate limit and traffic rate limit. Supports four queues with different priorities on each port. Supports mapping of packets to different queues based on 802.1p. Supports multiple algorithms including SP, WRR, and SP+WRR.
IPv6 features	Supports IPv6 host functions. Supports static route configuration.
Multicast	Supports IGMP v1/v2/v3 snooping. Supports multicast load sharing among bundled ports. Supports port-based multicast rate limit and traffic statistics
Port mirroring	Supports 1:1 or N:1 port mirroring. Supports packet forwarding on an observing port.
Security	Supports port isolation. Supports suppression of multicast, broadcast, and unknown single-cast packets. Supports CPU protection.
Surge protection	Each port has a surge protection capability of 7 kV. Each port has a surge protection capability of 15 kV after an extra surge protection device is added.
Management	Supports iStack. Supports automatic configuration. Supports CLI configuration. Supports remote configuration and maintenance by using Telnet. Supports SNMP v1/v2/v3. Supports RMON. Supports HGMP v2. Supports SSH v2. Supports Web management. Supports GVRP.
Operating environment	Operating temperature: 0°C to 50°C (long term); –5°C to 55°C (short term); relative humidity: 10% to 90% (non-condensing)
Power supply	AC: Rated voltage: 100 V to 240 V, 50/60 Hz Maximum voltage: 90 V to 264 V, 50/60 Hz
Dimensions: width x depth x height	250 mm x 180 mm x 43.6 mm

Q&A

Q What are the common troubleshooting steps for LS-S2309TP-SI-AC?

A Ensure the LS-S2309TP-SI-AC is powered on, all cables are securely connected, and verify LED indicators. Refer to the manual for specific troubleshooting guidance.

Q How does LS-S2309TP-SI-AC compare with other similar products?

A The LS-S2309TP-SI-AC offers comparable features at a competitive price point, especially suited for smaller networks when compared to higher-end Huawei switches like the S2700 series.

Q How to use the Combo GE port on LS-S2309TP-SI-AC?

A The Combo GE port on the LS-S2309TP-SI-AC can be used for either a copper (10/100/1000 BASE-T) connection or a fiber (100/1000 Base-X) connection, providing flexibility as per network needs.
