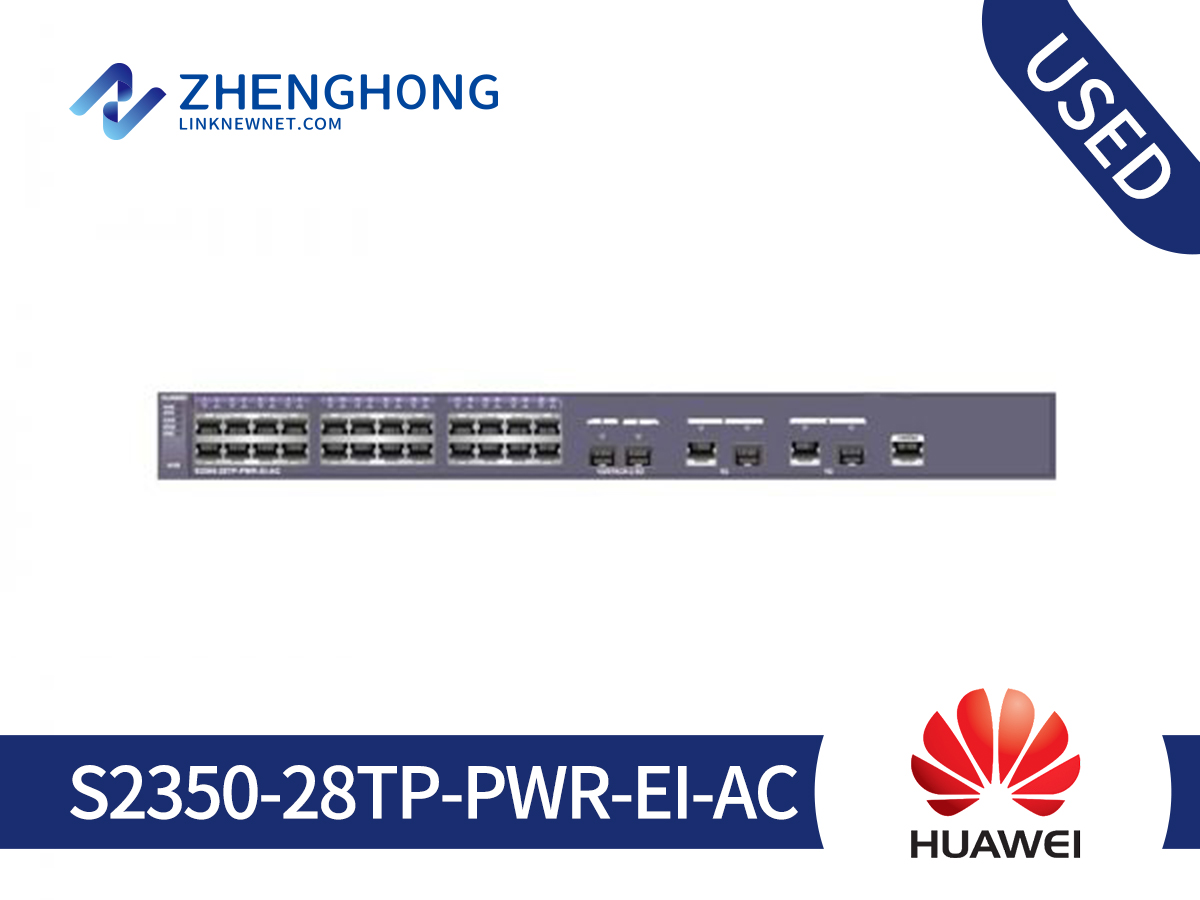

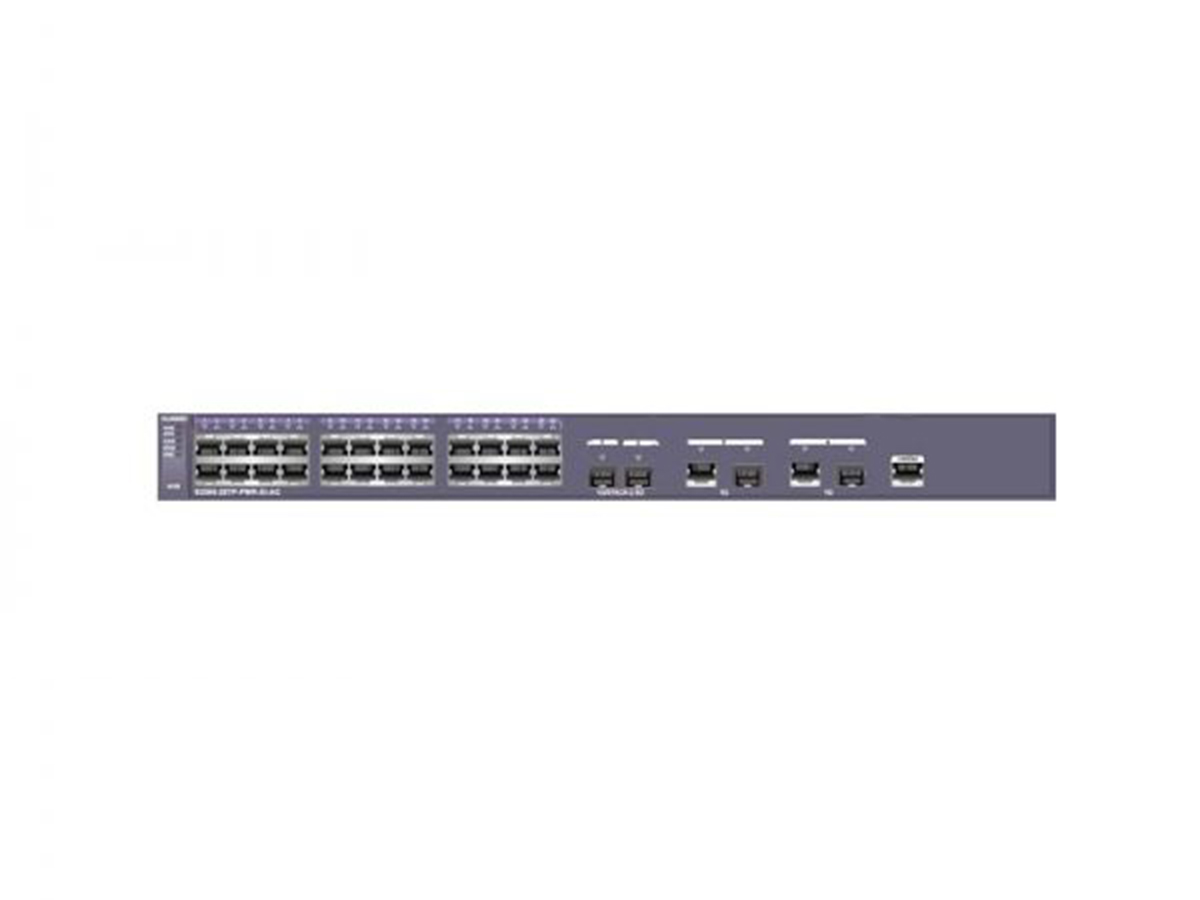

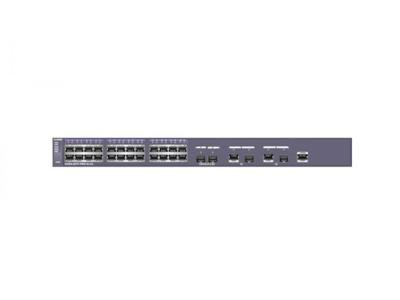

Huawei S2300 Series Switch S2350-28TP-PWR-EI-AC

Model: S2350-28TP-PWR-EI-AC

Detail: S2350-28TP-PWR-EI-AC(24 Ethernet 10/100 PoE+ ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V)

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

S2350-28TP-PWR-EI-AC Specifications
Technical Specifications
Item	Description
Memory (RAM)	256 MB
Flash	200 MB
Mean time between failures (MTBF)	78.29 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±6 kV
Power supply surge protection	±6 kV in differential mode, ±6 kV in common mode
Dimensions (W x D x H)	442.0 mm x 310.0 mm x 43.6 mm (17.4 in. x 12.2 in. x 1.72 in.)
Weight	≤ 5 kg (11.02 lb)
Stack ports	Two uplink 1000Base-X optical ports
RPS	Not supported
PoE	Supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, 100% PoE loads, full speed of fans)	445 W (system power consumption: 75 W, PoE: 370 W)
Operating temperature	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5096 ft.) NOTE： When the altitude is between 1800 m (5096 ft.) and 5000 m (16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 52 dBA
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	·EMC certification ·Safety certification ·Manufacturing certification
Performance Specifications
Ethernet	MAC:16K VLAN:4K Maximum number of Eth-Trunks:8 Maximum number of dynamic ARP entries in the system:256
IP unicast	IPv4 Route capacity:32 IPv6 Route capacity:16
Multicast	Number of multicast groups on the switch:1K
Reliability	RRPP: ·Maximum number of RRPP instances: 64 ·Maximum number of RRPP rings: 16 ·Maximum number of RRPP domains: 8 Smart Link: · Maximum number of instances: 64 · Maximum number of Smart Link groups: 16 MSTP: · Maximum number of MSTIs: 64 VBST: ·Number of protected VLANs: 128 SEP: ·Maximum number of segments: 16

Q&A

Q What are some common troubleshooting steps for the S2350-28TP-PWR-EI-AC?

A Common troubleshooting steps include checking power connections, verifying port configurations, and ensuring firmware is up to date. Rebooting the switch can also resolve minor issues.

Q What accessories are available for the S2350-28TP-PWR-EI-AC?

A Accessories for the S2350-28TP-PWR-EI-AC include mounting brackets, power cables, and SFP modules for the uplink ports.

Q How does the S2350-28TP-PWR-EI-AC compare to similar products?

A Compared to similar products, the S2350-28TP-PWR-EI-AC offers robust PoE+ support, multiple uplink options, and a competitive price point, making it a strong contender for business networks.

Q What product features make the S2350-28TP-PWR-EI-AC stand out?

A The standout features of the S2350-28TP-PWR-EI-AC include its 24 PoE+ ports, dual uplink options (Gig SFP or Ethernet), and reliable performance, making it suitable for high-demand network environments.
