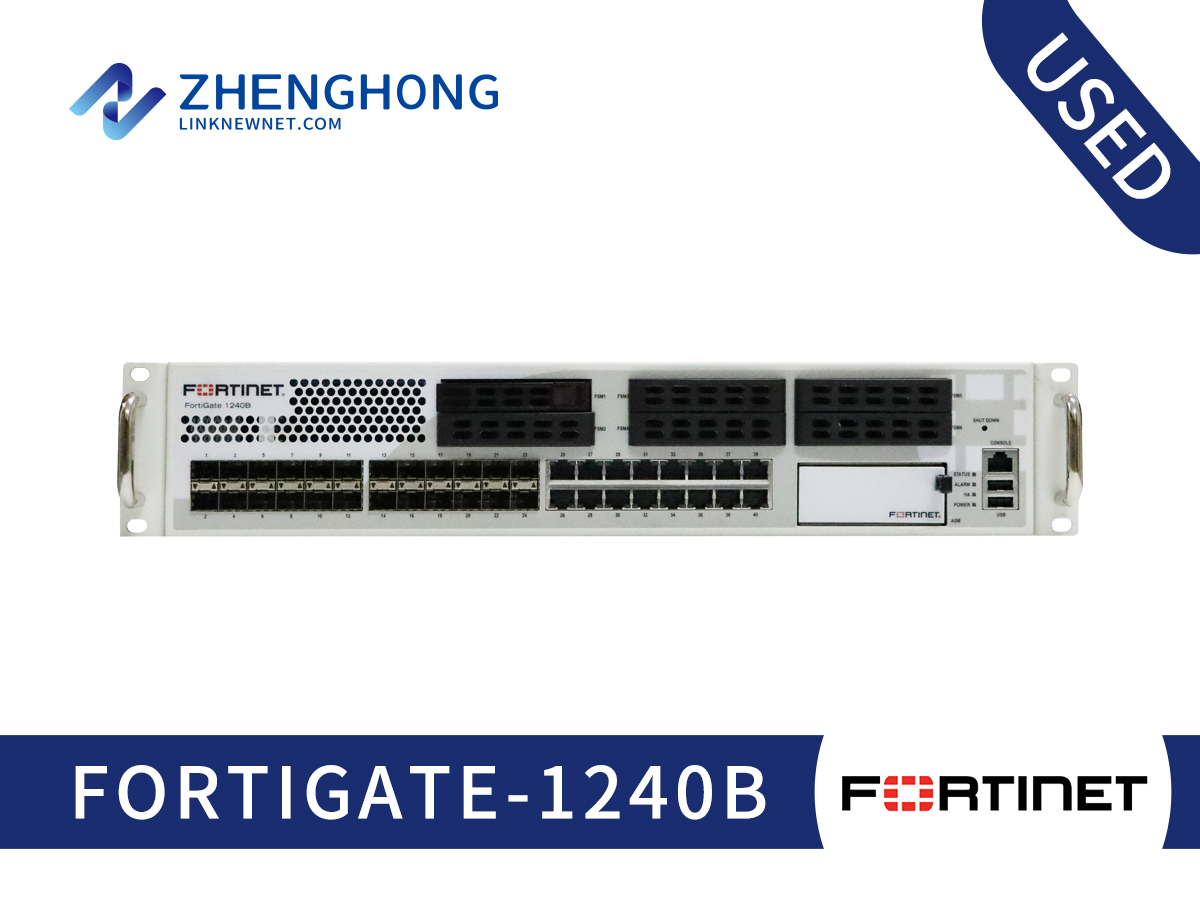

| FortiGate-1240B | |
| Product list | |
| Product code | FortiGate-1240B |
| Product parameters | |
| Included Accessories | 2 SFP transceivers |
| VoIP Protocols | H.323, SIP |
| Cables Included | 1 x network cable ¦ 1 x serial cable |
| Compliant Standards | UL, VCCI, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, FIPS 140-2, FCC Part 15 A, ICSA Network IPS |
| Form Factor | External |
| NGFW | 360 Mbps |
| Routing Protocol | OSPF, RIP, BGP |
| System Performance | |
| Capacity | Gateway to gateway IPSec VPN Tunnels: 10000 ¦ Client to gateway IPSec VPN tunnels: 20000 ¦ Concurrent sessions: 2000000 ¦ New sessions per second: 100000 ¦ Concurrent SSL VPN users: 1500 ¦ Firewall policies: 100000 ¦ Virtual domains: 25 ¦ User licenses: unlimited |
| Status Indicators | Power, status, alarm, link/activity |
| Firewall Throughput (Packets Per Second) | 6.6 Mpps |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP) |
| Hard Drive | SSD 64 GB x 1 |
| Firewall Policies | 10,000 |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
| Client-to-Gateway IPsec VPN Tunnels | 10,000 |
| SSL-VPN Throughput | 250 Mbps |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
| Power Device | |
| Maximum Current | 100V/0.5A 240V 10.22A |
| Physical specifications | |
| Width | 10 in |
| Height | 1.75 in |
| Depth | 17 in |
| Weight | 7.28 lbs |
