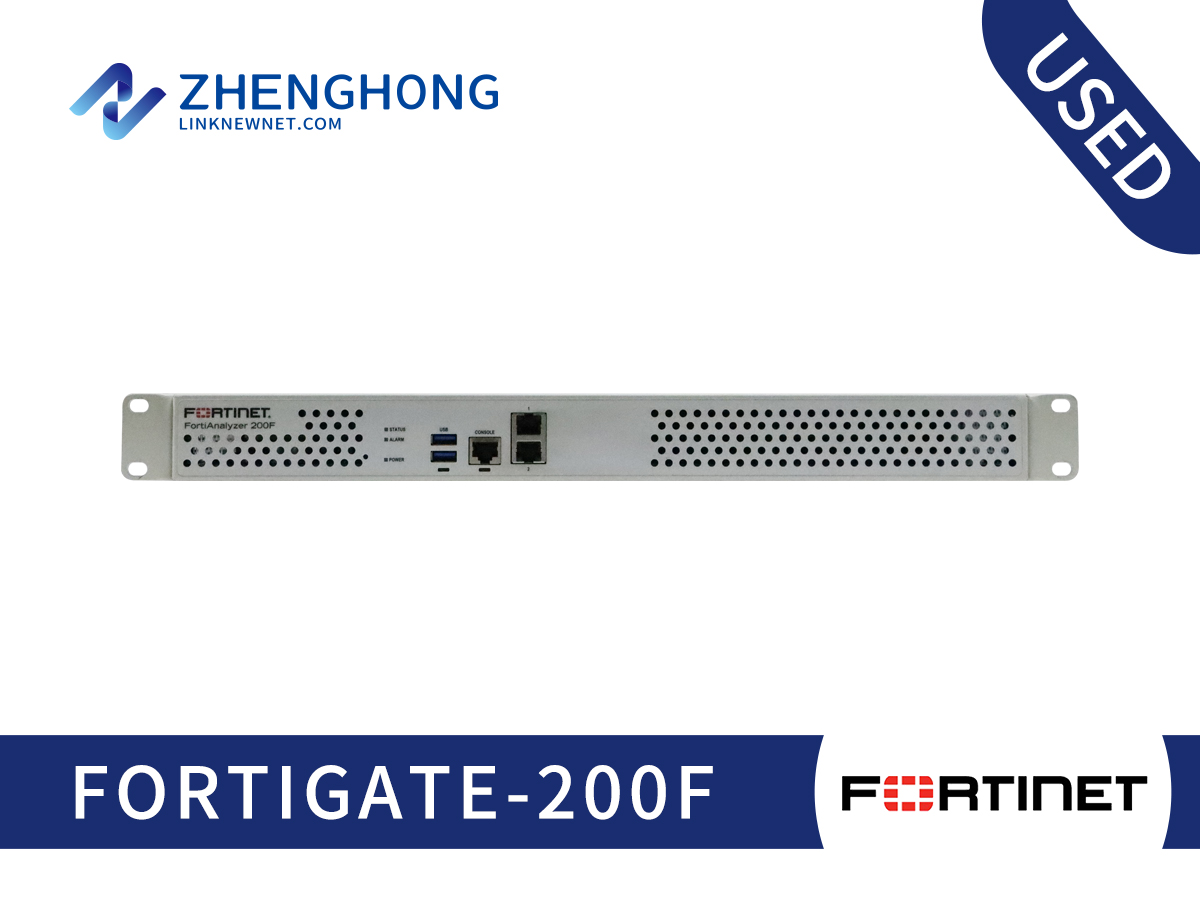

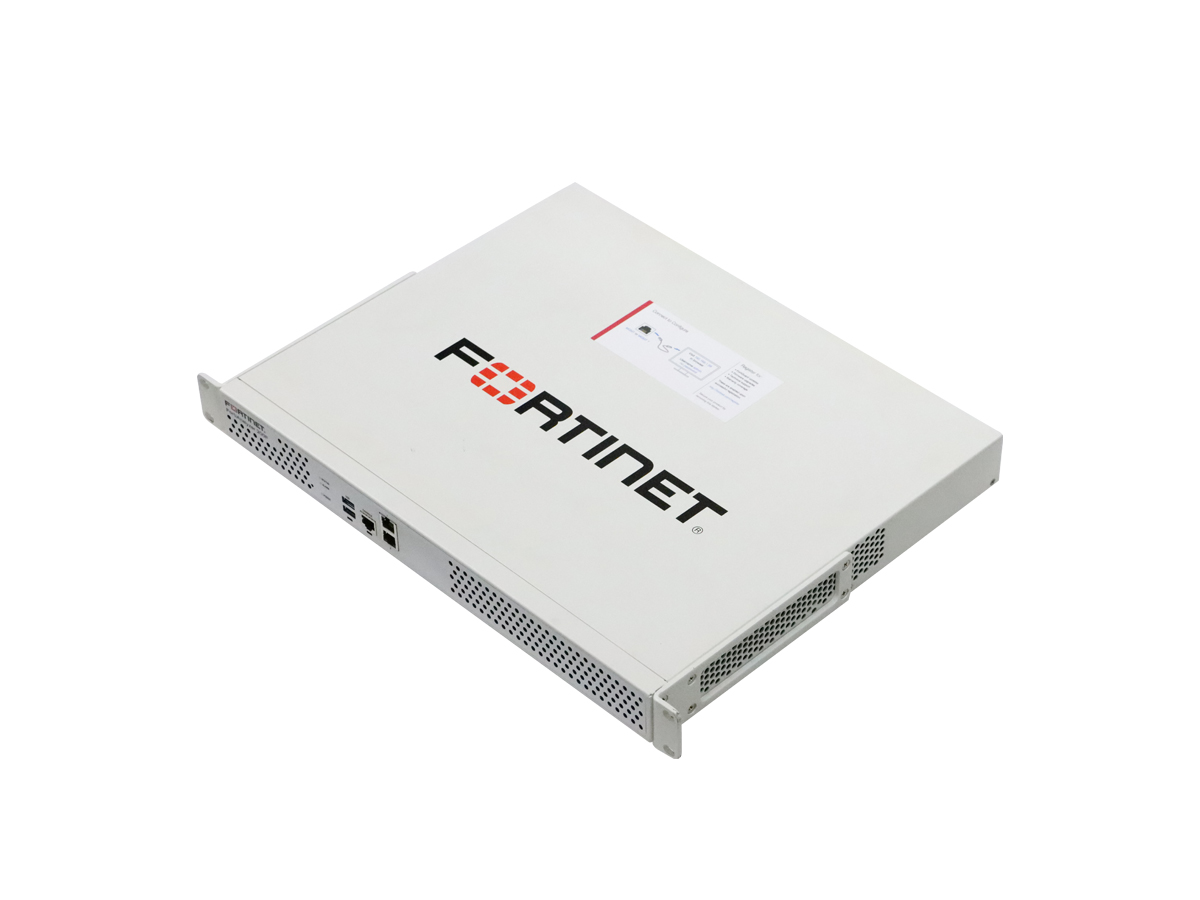

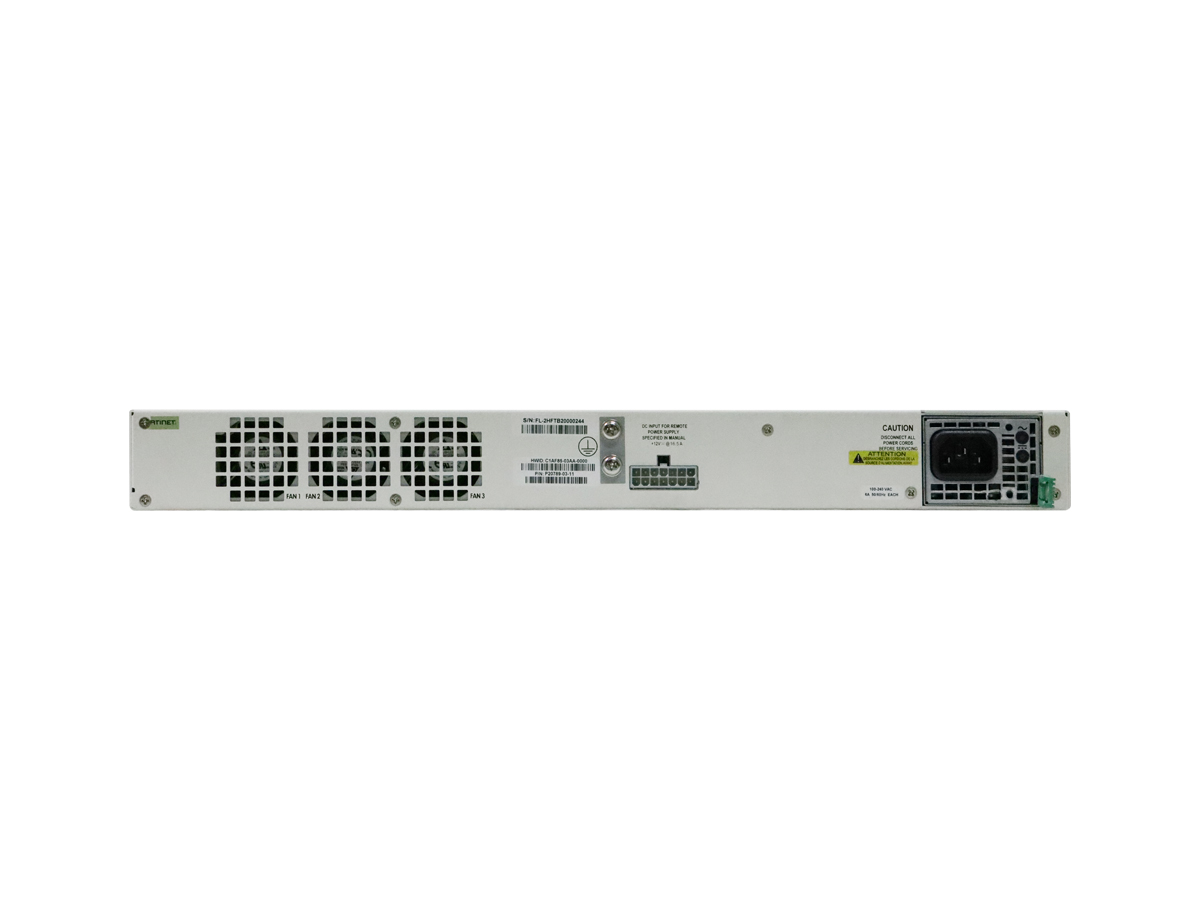

| FortiGate-200F | |
| Product list | |
| Product code | FortiGate-200F |
| Power cable | No |
| Button | No |
| Product parameters | |
| GE RJ45 Ports | 16 |
| GE SFP Slots | 8 |
| 10 GE SFP+ Slots | 2 |
| IPS Throughput 2 | 5 Gbps |
| NGFW Throughput 2, 4 | 3.5 Gbps |
| Firewall Latency (64 byte, UDP) | 4.78 μs |
| Firewall Throughput (Packet per Second) | 16.5 Mpps |
| Concurrent Sessions (TCP) | 3 Million |
| New Sessions/Second (TCP) | 280 000 |
| IPsec VPN Throughput (512 byte) 1 | 13 Gbps |
| Operating Temperature | 32°–104°F (0°–40°C) |
| Physical specifications | |
| Rack Units (Mountable) | 1 RU |
| Width | 17.01 in |
| Height | 1.73 in |
| Depth | 13.47 in |
| Weight | 9.92 lbs |
| Environmental Parameters | |
| Operating Ranges | Temperature and Humidity 0° - 40° C / 5% - 95% |
| Regulatory Certifications | FCC Class A, UL, CE, TUV, CB, VCCI | China CCC,BSMI, RCM (replace C-Tick), GOST-R, FAC |
