Huawei S9700 Core Routing Switch EH1B06EACD00|LinkNewNet

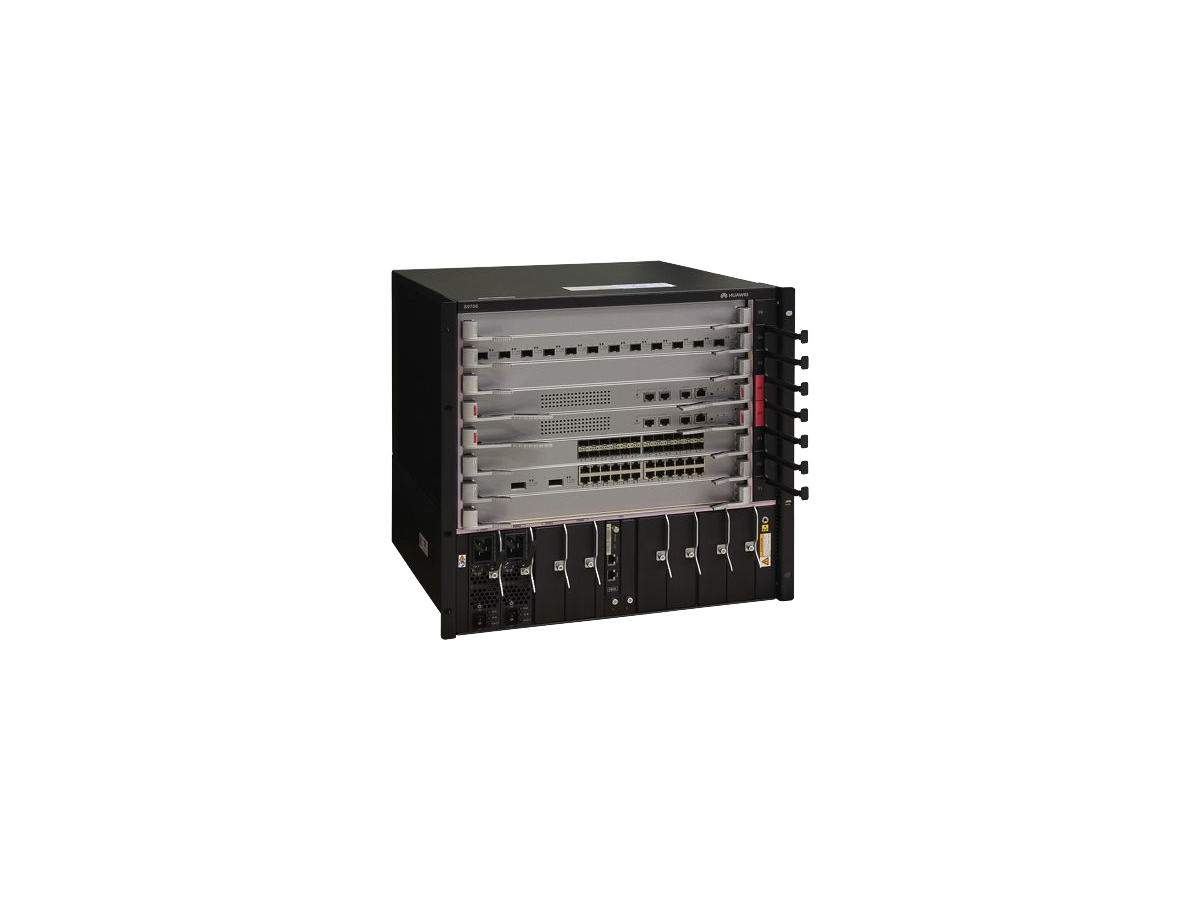

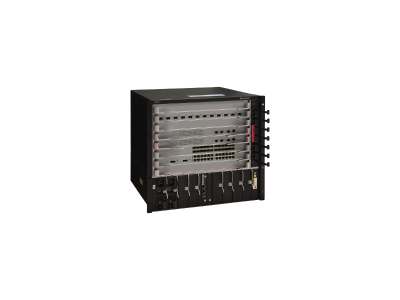

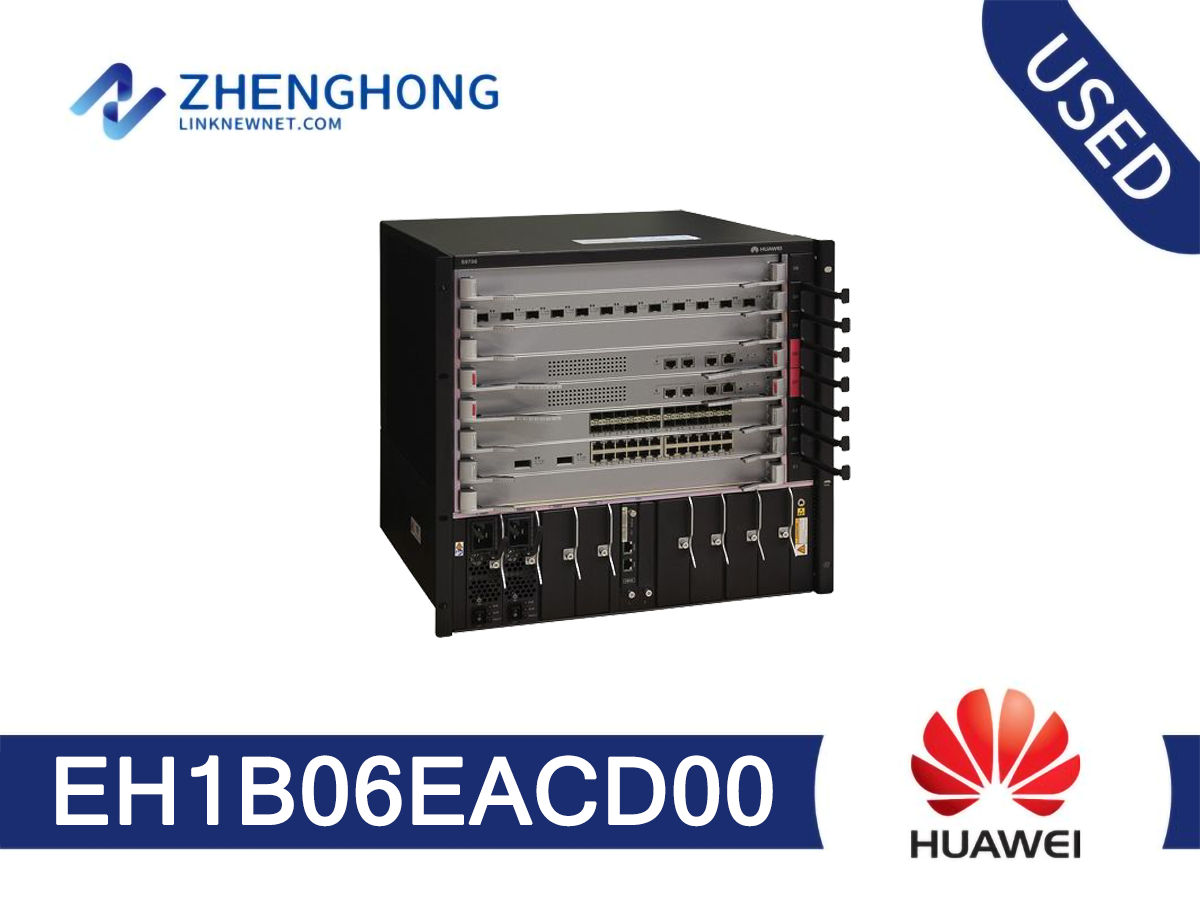

Huawei S9700 Core Routing Switch EH1B06EACD00

Model: EH1B06EACD00

Detail: Huawei S9706 Basic Engine AC Bundle featuring SRUD, 10GBASE-X Interface, and AC Power.

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags： AC

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

EH1B06EACD00 Specifications
Service slots	6
Series	Huawei S9706 Switch
Bundle	Huawei S9706 Basic Engine AC Bundle(Including Assembly Chassis, SRUD Main Board1, 12-Port 10GBASE-X Interface Card (SA,SFP+) 1, 2200W AC Power2, Basic Software1)
Switching capacity	6.72 Tbit/s; 14.72 Tbit/s
Packet forwarding rate	2,880 Mpps/5,040 Mpps
Network synchronization	Ethernet synchronization 1588v2
Dimensions (H x W x D in mm)	441.7 mm x 442 mm x 489 mm, 10U
Chassis weight(empty)	29 kg
Power supply capability of the equipment	4,400W
Operating Voltage	DC: –40V to –72V AC: 90V to 290V
