Huawei S9700 Series Switch EH1BS9712E00|LinkNewNet

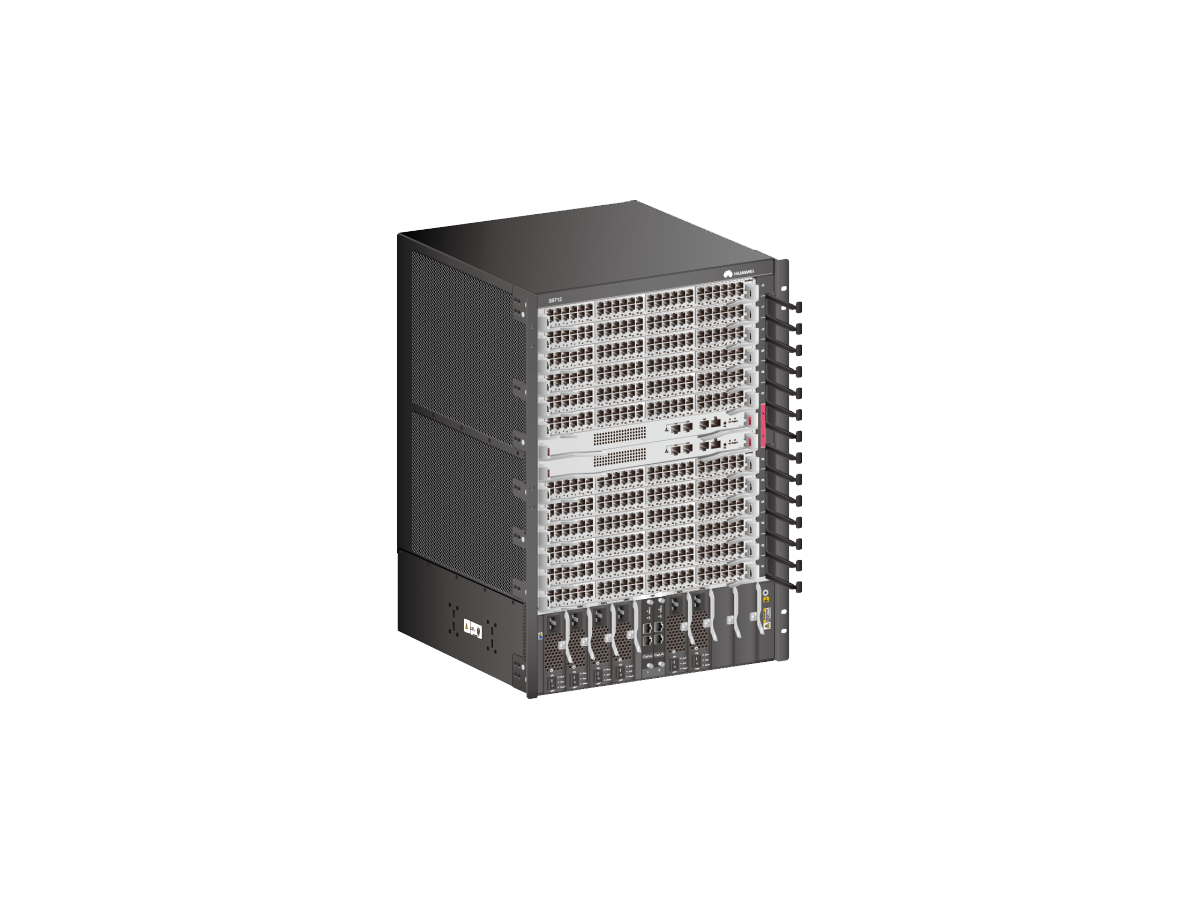

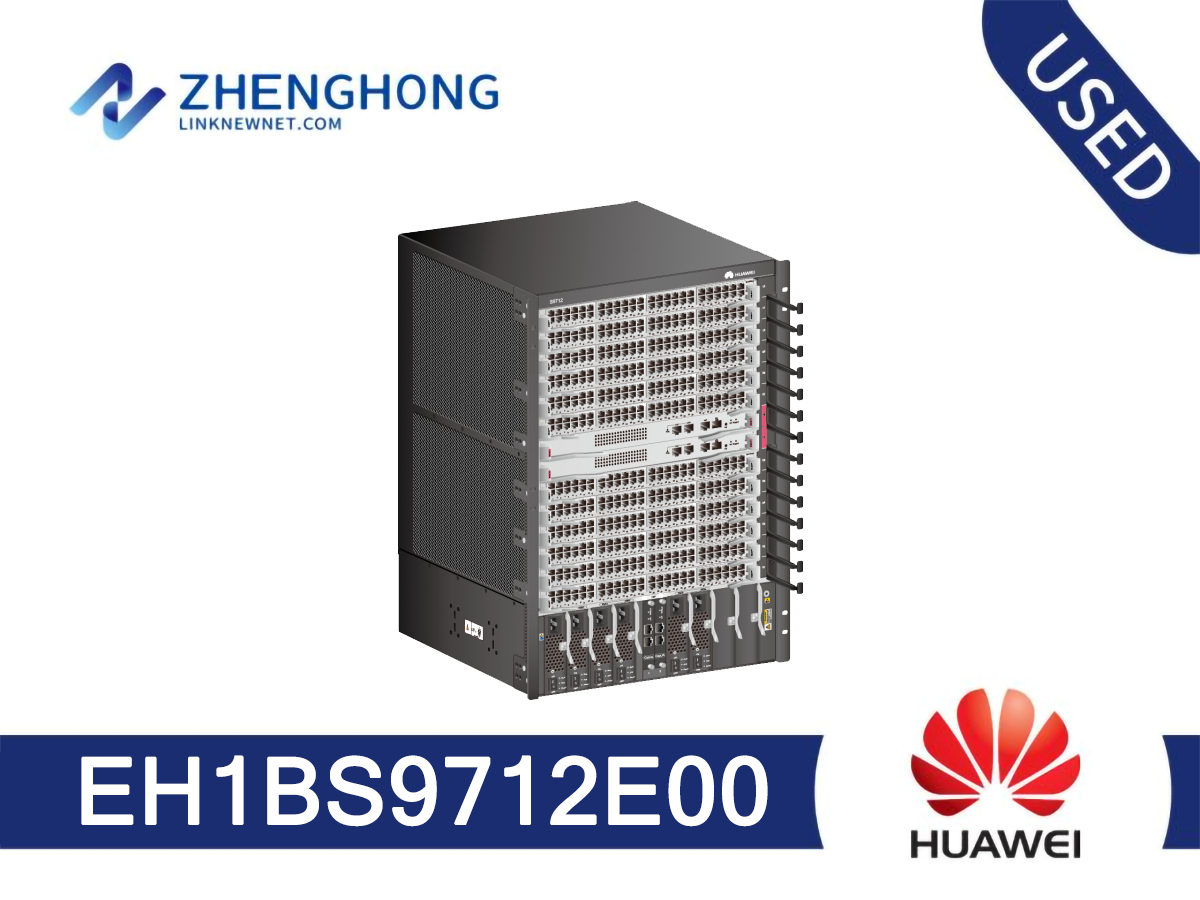

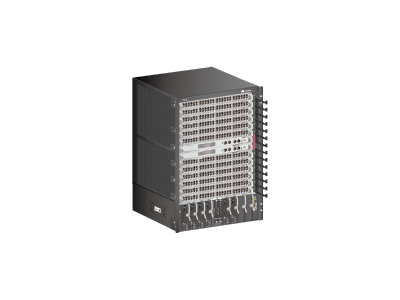

Huawei S9700 Series Switch EH1BS9712E00

Model: EH1BS9712E00

Detail: S9712 Assembly Chassis, expandable up to 12 slots, featuring standard specifications.

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

EH1BS9712E00 Specifications
Equipment Power Supply Capability	6,600W
Chassis Weight (empty)	37 kg
Operating Voltage	DC: –40V to –72V AC: 90V to 290V
Switching Capacity	8.64 Tbit/s; 18.56 Tbit/s
Packet Forwarding Rates	3,840 Mpps/6,480 Mpps
Service Slots	12
Dimensions (H x W x D)	663.95 mm x 442 mm x 489 mm, 15U
Energy Saving	Supports IEEE 802.3az: Energy Efficient Ethernet (EEE)
iPCA Quality Awareness	Marking real service packets to obtain real-time count of dropped packets and packet loss ratio
iPCA Quality Awareness	Counting number of dropped packets and packet loss ratio on devices and L2/L3 networks
SVF Virtualization	Virtualizing Access Switches (ASs) and APs into one logical device to simplify management and maintenance
	Two layers of ASs allowed in an SVF system
	Third-party devices allowed between SVF parent and clients
Network Synchronization	Ethernet synchronization
Network Synchronization	1588v2

Q&A

Q What common troubleshooting steps are available for the S9712 Assembly Chassis?

A Common steps include checking power connections, verifying slot module seating, and updating firmware. Refer to Huawei??s support documentation for detailed guidance.

Q What accessories are available for the S9712 Assembly Chassis?

A Accessories include power modules, line cards, cooling fans, and rack mounting kits. Ensure compatibility by consulting Huawei specifications.

Q How does the S9712 compare to similar products?

A The S9712 offers superior slot capacity and advanced cooling compared to similar products like the Cisco Nexus 9508 and Juniper QFX10008.

Q What are the network performance capabilities of the S9712 Assembly Chassis?

A The S9712 supports high throughput and low latency, catering to modern data-intensive applications and providing robust networking performance.
