CISCO1941W-A/K9 - Cisco 1941 Series Integrated Services Routers|LinkNewNet

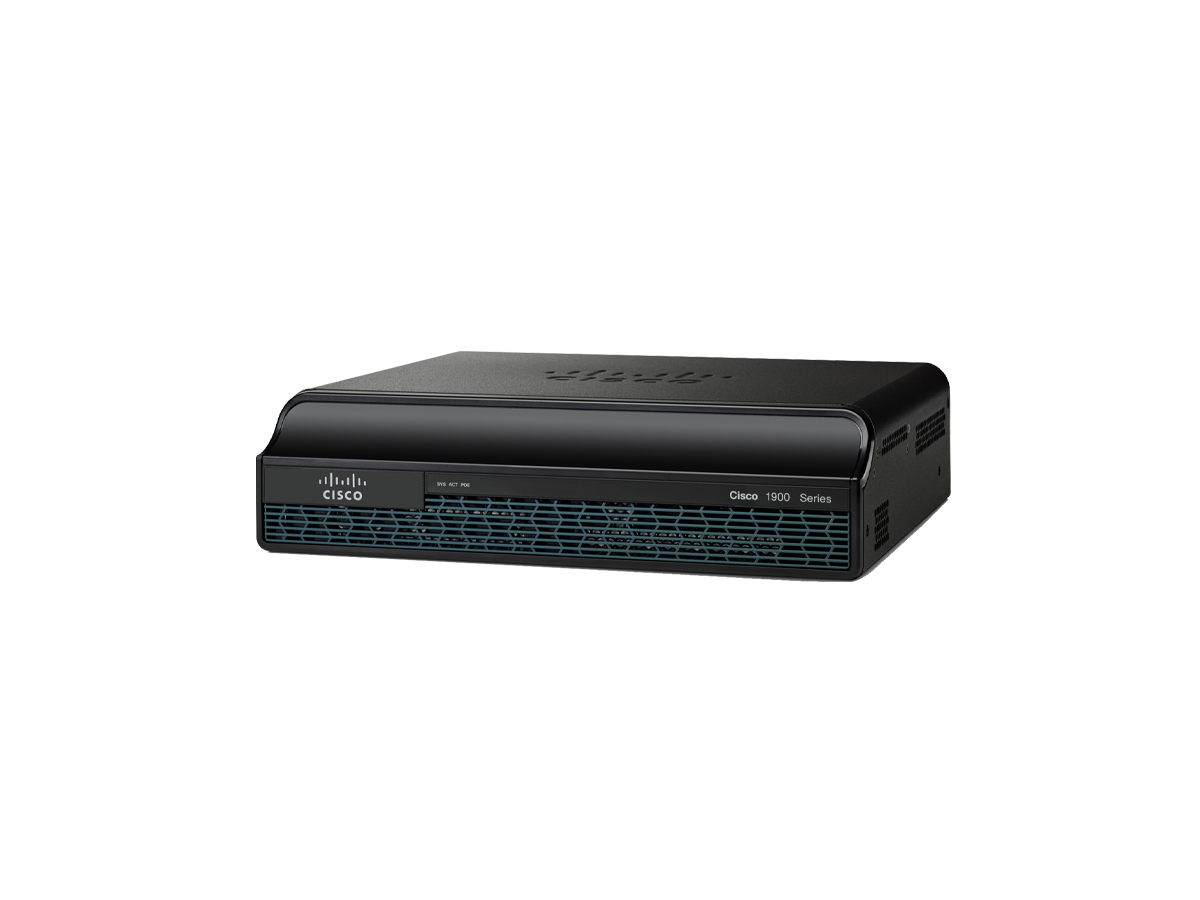

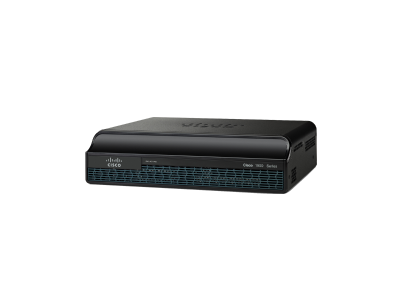

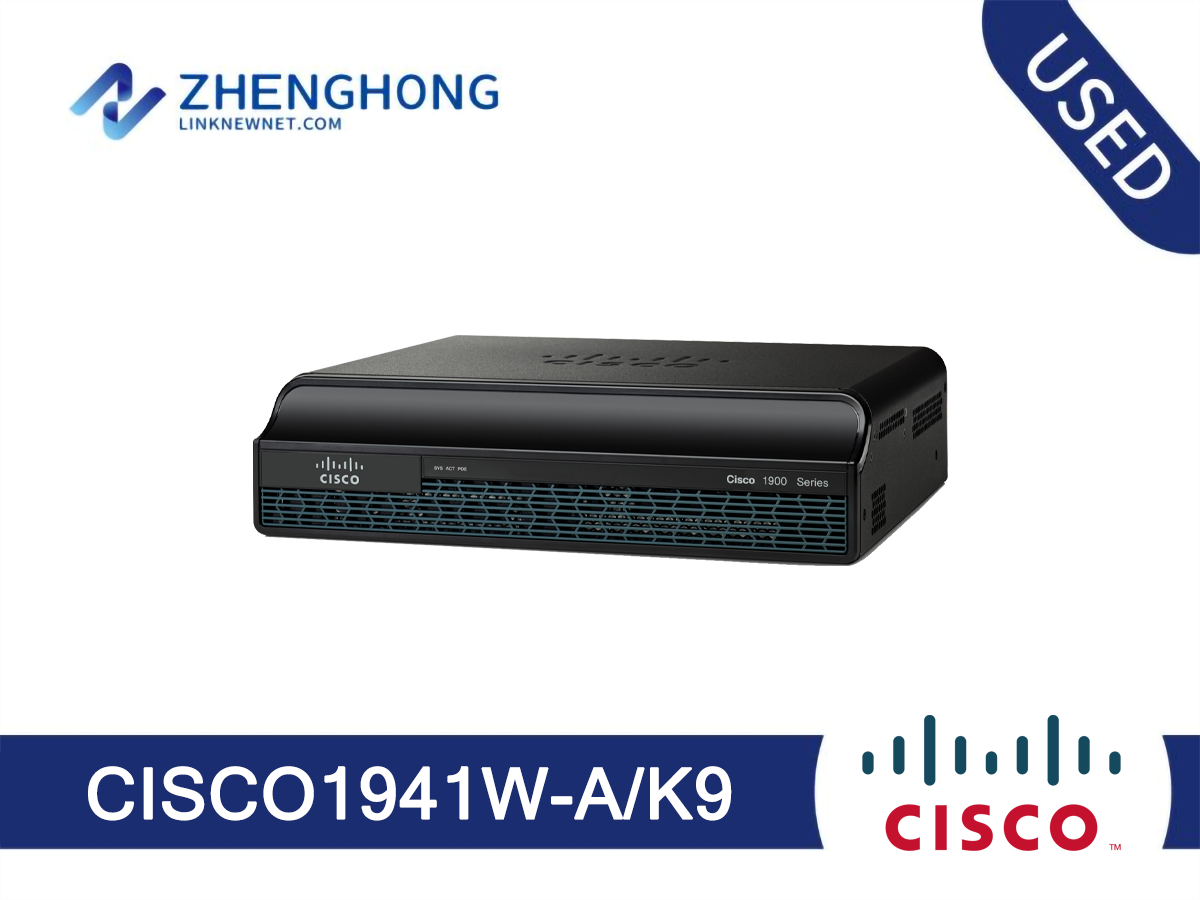

CISCO1941W-A/K9 - Cisco 1941 Series Integrated Services Routers

Model: CISCO1941W-A/K9

Detail: Cisco 1941 Router with 802.11 a/b/g/n FCC Compliant WLAN ISM, suitable for various wireless networks.

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

CISCO1941W-A/K9 Specifications
Manufacturer Part Number	CISCO1941W-A/K9
Compliant WLAN ISM	FCC Compliant WLAN ISM
Product Type	Wireless router
Form Factor	Desktop - modular - 2U
Connectivity Technology	Wireless, wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n (draft 2.0)
Network / Transport Protocol	IPSec, L2TPv3
Routing Protocol	OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), IPv4-to-IPv6 Multicast
Remote Management Protocol	SNMP, RMON, TR-069
Encryption Algorithm	LEAP, MD5, TLS, PEAP, TKIP, WPA, WPA2
Authentication Method	RADIUS, Extensible Authentication Protocol (EAP), EAP-FAST
Features	Firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Web Services Management Agent (WSMA), NetFlow
Compliant Standards	IEEE 802.3, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag, IEEE 802.11n (draft 2.0), ANSI T1.101, ITU-T G.823, ITU-T G.824
DRAM Memory	512 MB (installed) / 2 GB (max)
Flash Memory	256 MB (installed) / 8 GB (max)
LED Status Lights Indicators	Link activity, power
Router Interfaces	1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 Management : 1 x console - RJ-45 Management : 1 x console - mini-USB Type B Serial : 1 x auxiliary - RJ-45 USB : 2 x 4 PIN USB Type A
Expansion Slot(s)	2 (total) / 2 (free) x HWIC 2 (total) / 1 (free) x CompactFlash Card 1 (total) / 1 (free) x Expansion Slot
Aerial	External detachable
Antenna Qty	3
Directivity	Omni-directional
Gain Level	2 dBi
Power Device	Power supply - internal
Voltage Required	AC 120/230 V ( 50/60 Hz )
Width	34.3 cm
Depth	29.2 cm
Height	8.9 cm
Weight	5.8 kg
Compliant Standards	CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, AS/NZS 3548 Class A, CAN/CSA C22.2 No. 60950-1, VCCI V-3, EN 61000, TIA/EIA/IS-968

Q&A

Q Are there alternative routers to the CISCO1941W-A/K9 for smaller budgets?

A For those with tighter budgets, the Cisco 1800 series might provide a cost-effective alternative, though with possibly lower performance or fewer features.

Q What common troubleshooting steps should be taken if the router experiences connectivity issues?

A Checking WAN connections, restarting the router, updating firmware, or checking settings for firewall and security protocols are good first steps for troubleshooting.

Q What accessories are available for the CISCO1941W-A/K9 to enhance its functionality?

A Optional accessories include interface cards for additional WAN or voice connectivity, external power supplies, and rack-mount kits for installation.

Q How can system integrators and distributors verify the compatibility of the CISCO1941W-A/K9 with specific network configurations?

A By consulting Cisco's comprehensive documentation and support resources, or contacting Cisco directly for integration and compatibility guidance.
