Cisco Nexus 9000 Series Switch N9K-C9316D-GX|LinkNewNet

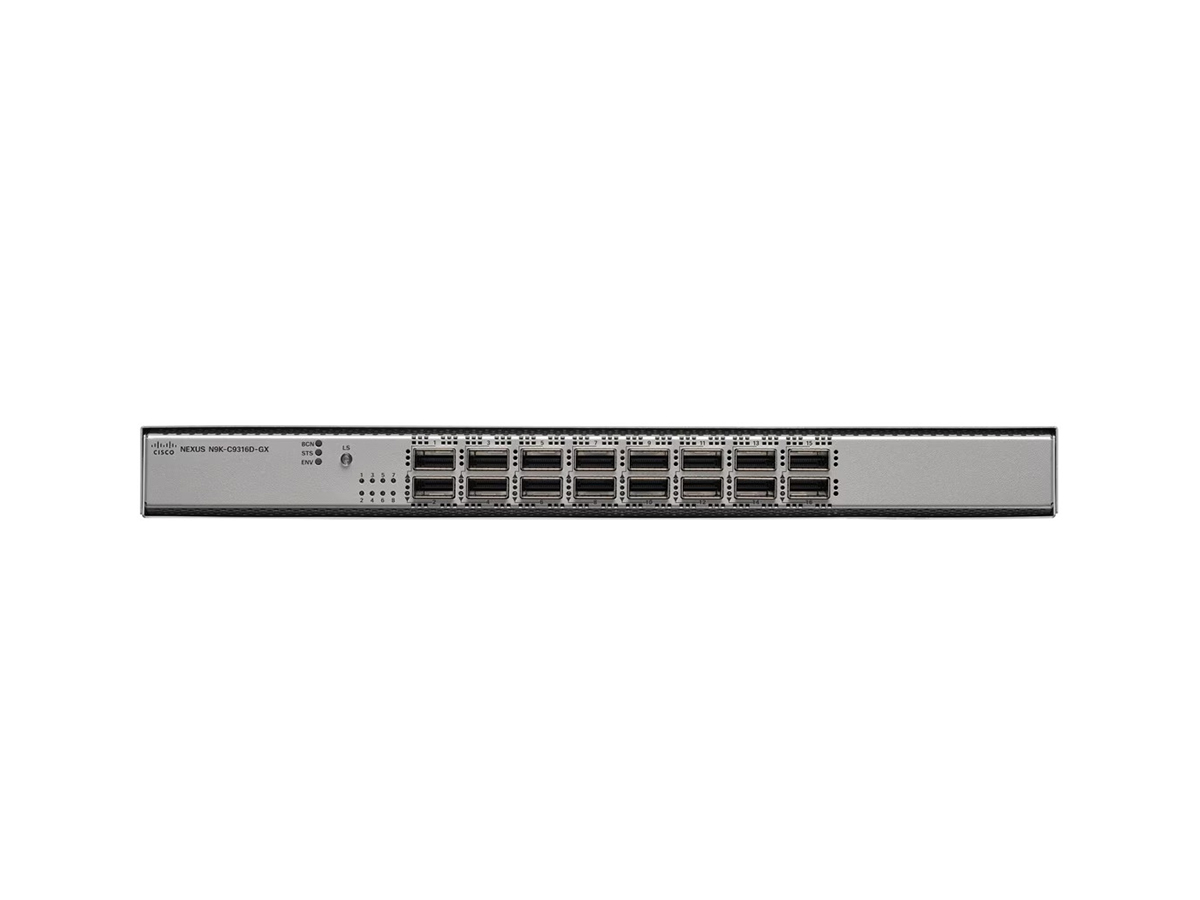

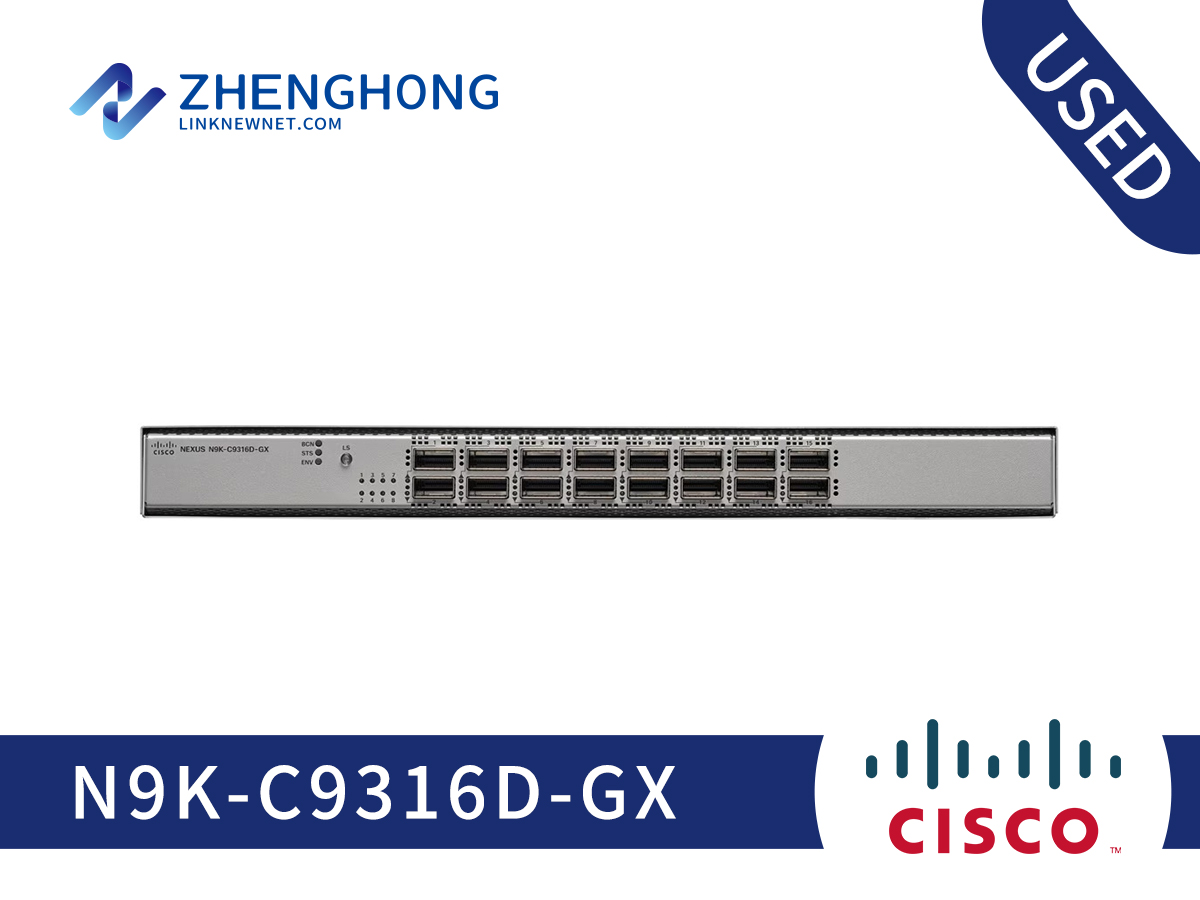

Cisco Nexus 9000 Series Switch N9K-C9316D-GX

Model: N9K-C9316D-GX

Detail: Nexus 9316D Spine switch with 16p 400/100G QSFP-DD

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

N9K-C9316D-GX
Product list
Product code	N9K-C9316D-GX
Power cable	No
Button	No
Product parameters
Port Details	16 x 400/100/40-Gbps QSFP-DD ports
Supported speeds	40/100/400-Gbps Ethernet Breakout supported on all ports, 1-16: 2x200, 4x100, 2x100, 8x50, 4x50, 2x50, 4x25, 4x10 10G w/QSA
CPU	4 cores
System memory	32 GB
SSD drive	128 GB
System buffer	80 MB
Management ports	2 ports: 1 RJ-45 and 1 SFP
Layer Supported	3
Features	Nexus 9316D Spine switch with 16p 400/100G QSFP-DD
Introduction	The Cisco Nexus 9316D-GX Switch is a 1RU switch that supports 12.8 Tbps of bandwidth and over 4.3 bpps. The switch can be configured to work as 10/25/40/50/100/200/400-Gbps offering flexible options in a compact form factor.
Physical specifications
Width	17.3 in
Height	1.7 in
Depth	25.5 in
Weight	29 lb
Environmental Parameters
Min Temperature	23 °F
Max Temperature	131 °F
Humidity Operating	5 - 95% (non-condensing)

Q&A

Q What is N9K-C9316D-GX？

A N9K-C9316D-GX is the Cisco Nexus 9316D Spine switch with 16p 400/100G QSFP-DD.

Q What is the difference between Cisco N7K and N9K?

A The N7K supports fairly robust and established technologies for multi-DC interconnect (DCI) such as OTV and LISP. The N9K does not support these well-established DCI technologies, but a newer DCI technology, VXLAN, BGP, EVPN, that can be deployed for site-to-site DCI.

Q What is a Nexus switch used for?

A The Nexus switching range. Cisco Nexus OS Software Defined Networking (SDN) allows the same policies that govern Identity and Access Management (IAM) to dictate levels of access to applications and data through a totally converged infrastructure not possible with legacy network and system access methods.

Q What is the difference between Nexus and catalyst switches?

A Cisco catalyst switches are mainly designed for distro/core layers in campus network vs the Nexus is mainly for data centers. Nexus series switches can support Ethernet, Fiber Channel and FCOE all in the same chassis but the catalyst don't. The catalyst switches support only Ethernet.
