Cisco Nexus 7700 F4 Series Switch N77-F430CQ-36|LinkNewNet

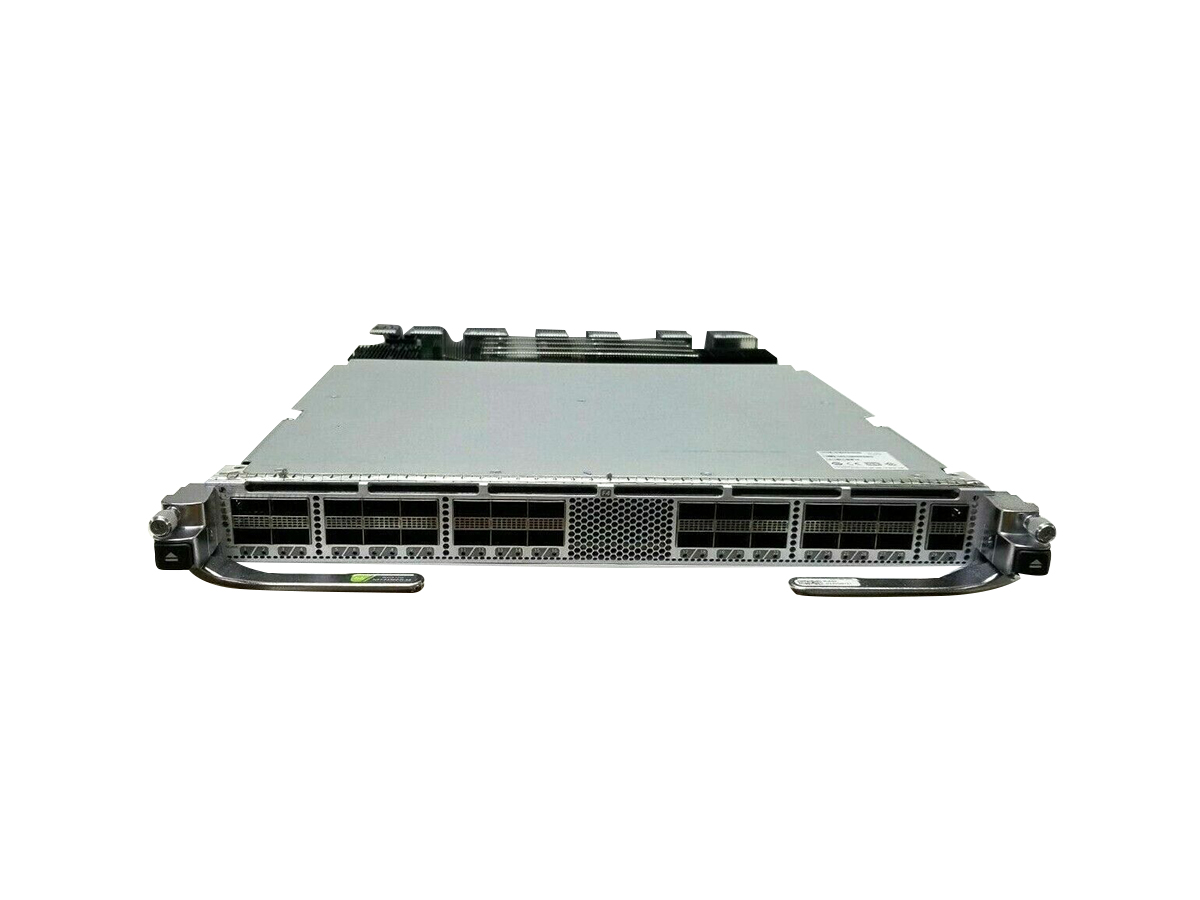

Cisco Nexus 7700 F4 Series Switch N77-F430CQ-36

Model: N77-F430CQ-36

Detail: Cisco Nexus 7700 F4-Series 30-Port 100-Gigabit Ethernet Module - expansion module - 100 Gigabit QSFP+ x 30

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

N77-F430CQ-36
Product list
Product code	N77-F430CQ-36
Power cable	No
Button	No
Product parameters
Network Ports	36
Expansion Slot Type	QSFP+
Port Details	100 Gigabit QSFP+
Ethernet Technology	100 Gigabit
Layer Supported	3
Forwarding performance	1.44 Bpps
RAM	8 GB
Introduction	The Cisco Nexus 7700 F4-Series 30-Port 100-Gigabit Ethernet Module offers outstanding feature flexibility and wire-rate performance on each port. The module enables the deployment of high-density, low-latency, scalable data center architecture. The Cisco Nexus 7700 F4-Series 30-Port 100-Gigabit Ethernet Module provides flexibility to use each port with either a 100- or 40-Gigabit Ethernet link. Each port also provides the flexibility to use as many as four 10-Gigabit Ethernet links. The Cisco Nexus 7700 F4-Series module is based on the Cisco Nexus F4-Series Switch-on-Chip (SoC) ASIC. This type of design increases performance, reduces latency while lowering the power and cooling requirements of the module. The Cisco Nexus F4-Series SoC is an innovative Cisco ASIC powered by a flexible packet engine, which makes it excellent for building network infrastructure for public and private cloud environments.
Physical specifications
Width	15.9 in
Height	1.7 in
Depth	21.8 in
Weight	10.6 kg
Environmental Parameters
Min Temperature	23 °F
Max Temperature	131 °F
Humidity Operating	5 - 95% (non-condensing)

Q&A

Q What is difference between Cisco switch and Nexus switch?

A Cisco catalyst switches are mainly designed for distro/core layers in campus network vs the Nexus is mainly for data centers. Nexus series switches can support Ethernet, Fiber Channel and FCOE all in the same chassis but the catalyst don't. The catalyst switches support only Ethernet.

Q Why do we need Nexus?

A It allows you to store, distribute, and retrieve build artifacts whenever it's required. Using Nexus, developers can easily access and deploy build artifacts in an organization from a single location.

Q What is the difference between vPC and VDC in Nexus?

A A vPC is a per-VDC function on the Cisco Nexus 7000 Series switches. A vPC can be configured in multiple VDCs, but the configuration is entirely independent. Each VDC requires an independent vPC peer-link and vPC peer-keepalive link.

Q What is a Nexus network?

A Nexus Networks provides an experienced, cost effective and reliable partnership to sustain the foundation of your network infrastructure and cloud services operations.
