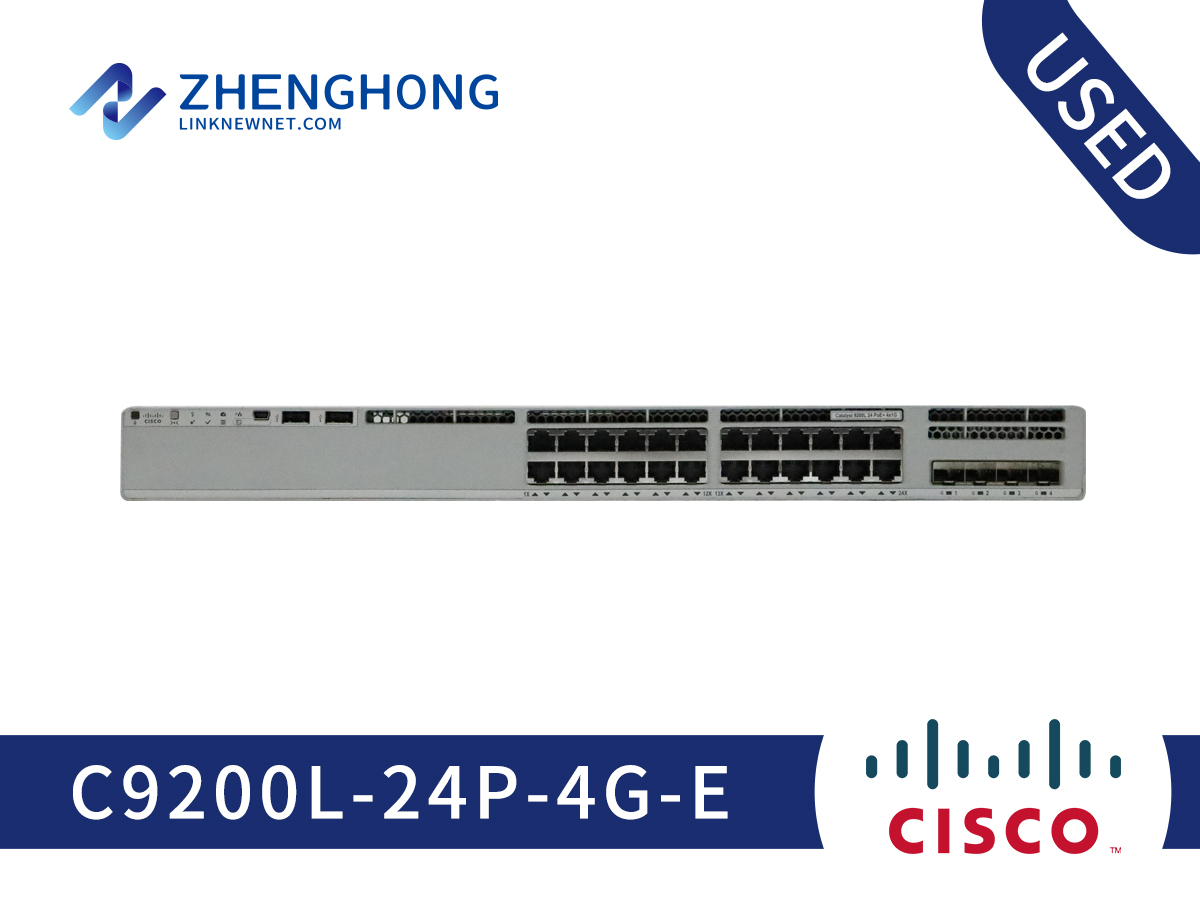

C9200L-24P-4G-E | |
Product list | |
Product code | C9200L-24P-4G-E |
Power cable | No |
Button | No |
Product parameters | |
Network Ports | 24 |
Uplink Port | Yes |
Stack Port | Yes |
Expansion Slots | 4 |
Expansion Slot Type | SFP (mini-GBIC) |
Port Details | 24 x Gigabit Ethernet Network 4 x Gigabit Ethernet Uplink |
Media Type Supported | Twisted Pair Optical Fiber |
Ethernet Technology | Gigabit Ethernet |
Network Technology | 10/100/1000Base-T 1000Base-X |
Layer Supported | 3 |
Introduction | Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise - it is secure, always on, and IT simplified. |
Physical specifications | |
Width | 17.5 in |
Height | 1.7 in |
Depth | 11.3 in |
Weight | 9.59 lb |
Model | C9200L-24P-4G-E |
Downlinks total 10/100/1000 or PoE+ copper ports | 24 ports full PoE+ |
Uplink configuration | 4x 1G fixed uplinks |
Default primary AC power supply | PWR-C5-600WAC |
Fans | Fixed redundant |
Software | Network Essentials |
Stacking bandwidth | 80 Gbps |
DRAM | 2 GB |
Flash | 4 GB |
Switching capacity | 56 Gbps |
Forwarding rate | 83.33 Mpps |
Chassis Dimensions | 1.73 x 17.5 x 11.3 in 4.4 x 44.5 x 28.8 cm |
Weight | 4.35 Kg |
