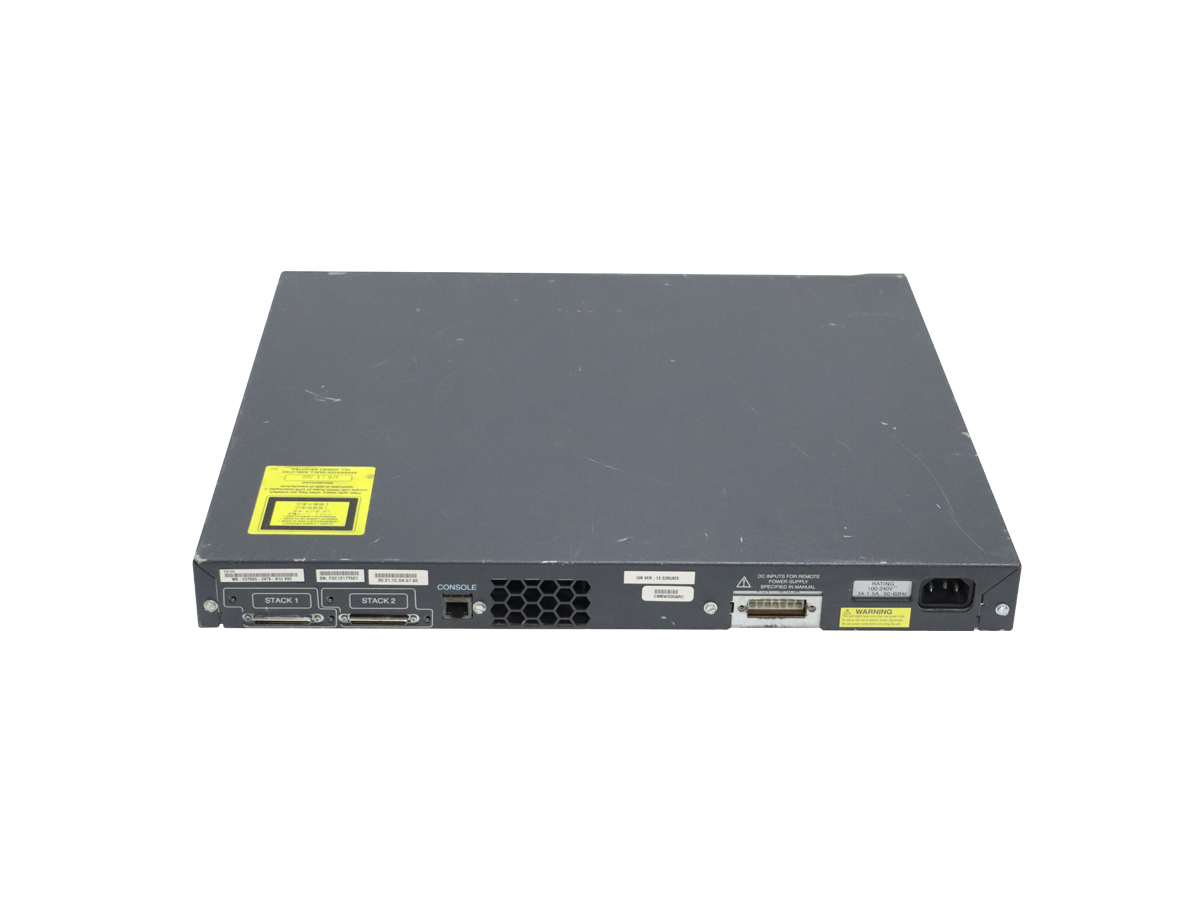

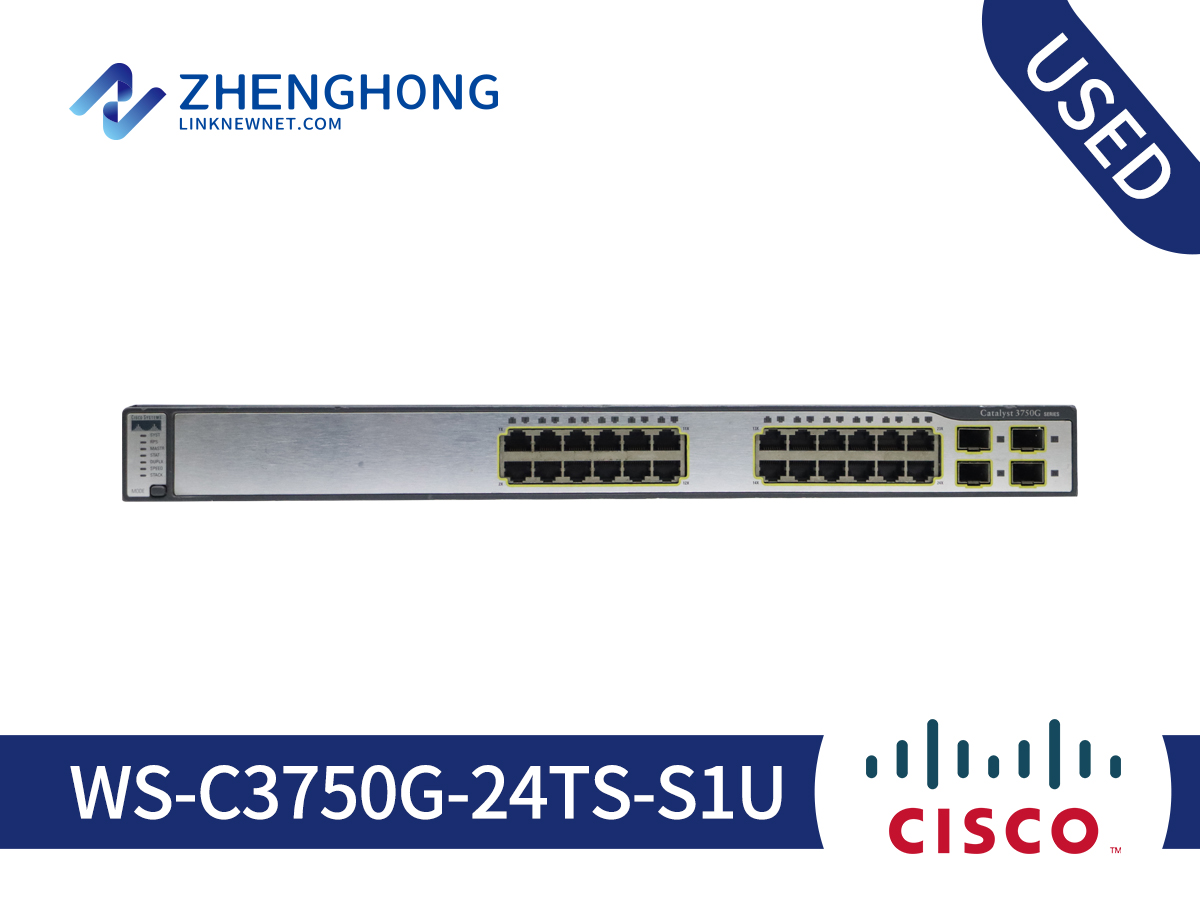

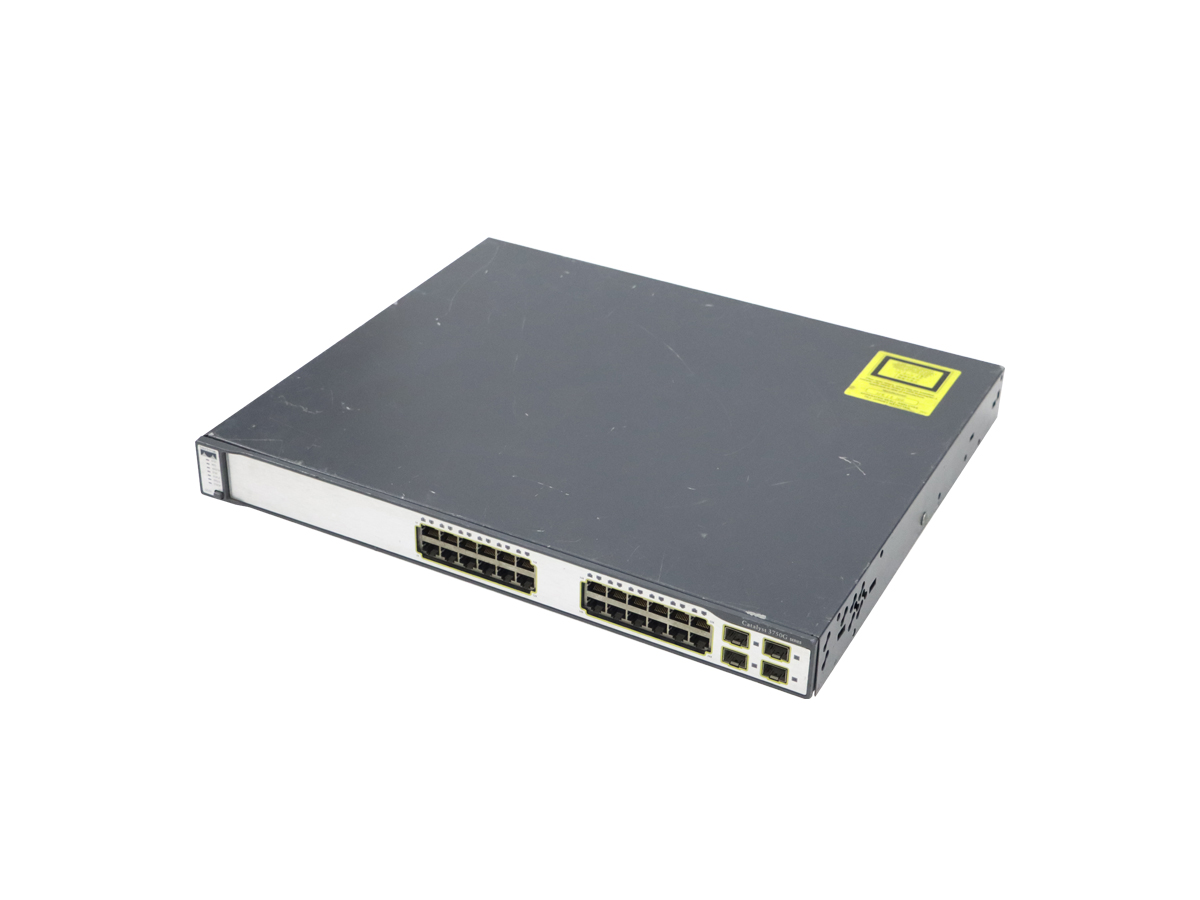

Cisco Catalyst 3750-G Series Switch WS-C3750G-24TS-S1U Overview
Cisco Catalyst 3750-G Series Switch WS-C3750G-24TS-S1U is a genuine campus and data-center switching product from Cisco, a leading enterprise networking vendor whose Catalyst, Nexus and ISR families power campus, data-center and branch networks worldwide. Belonging to the Cisco Catalyst 3750-G Series family, the WS-C3750G-24TS-S1U unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is suited to access-layer and edge deployments, where reliable wiring-closet operation and straightforward management are the priorities.
This unit follows the original factory specification for the Cisco Catalyst 3750-G Series family, covering its intended role without compatibility surprises. Standard mounting, cabling and management practices apply, and it interoperates with surrounding hardware using the same procedures as other Cisco equipment already deployed in the network.
Typical deployments include access-layer deployments for user, phone and AP connectivity, distribution and core aggregation in campus networks, and top-of-rack and end-of-row switching in data centers. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Cisco Catalyst switch 3750 24 10/100/1000 + 4 SFP + IPB Image; 1RU”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the WS-C3750G-24TS-S1U. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise Campus
High-density ports power users, phones and APs at the access layer.
Branch Office
Stackable units simplify branch deployment and management.
Wireless & IoT
PoE budget supports dense wireless and IoT endpoints.
Buying a Pre-Owned WS-C3750G-24TS-S1U
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
| WS-C3750G-24TS-S1U | |
| Product list | |
| Product code | WS-C3750G-24TS-S1U |
| Product Type | Managed, Stackable 24 ports L3 Switch |
| Form Factor | Fixed, Rack Mountable 1U, Stackable/Clustering |
| Product parameters | |
| Performance | Switching capacity : 32 Gbps Forwarding performance : 38.7 mpps |
| MAC Address Table Size | 12K entries |
| Jumbo Frame Support | Yes |
| Max Number of Stacks | 9 |
| Routing Protocol | IGRP, BGP-4, IS-IS, RIP-1, RIP-2, HSRP, PIM-SM, static IP routing, PIM-DM, EIGRP for IPv6, OSPF for IPv6, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
| Authentication Method | RIP-1, RIP-2, HSRP, static IP routing, RIPng |
| Features | Flow control, full duplex capability, Layer 3 switching, auto-sensing per device, IP-routing, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, stackable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Jumbo Frames support, Cisco StackWise Technology, Cisco EnergyWise technology, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN) |
| Memory | |
| Standard Memory | 128 MB |
| Memory Technology | DRAM |
| Flash Memory | 32 MB |
| Power Device | |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Physical specifications | |
| Width | 44.5 cm |
| Height | 37.8 cm |
| Depth | 4.4 cm |
| Weight | 5.5 kg |
| Environmental Parameters | |
| Min Temperature | 23 °F |
| Max Temperature | 131 °F |
| Humidity Operating | 5 - 95% (non-condensing) |
