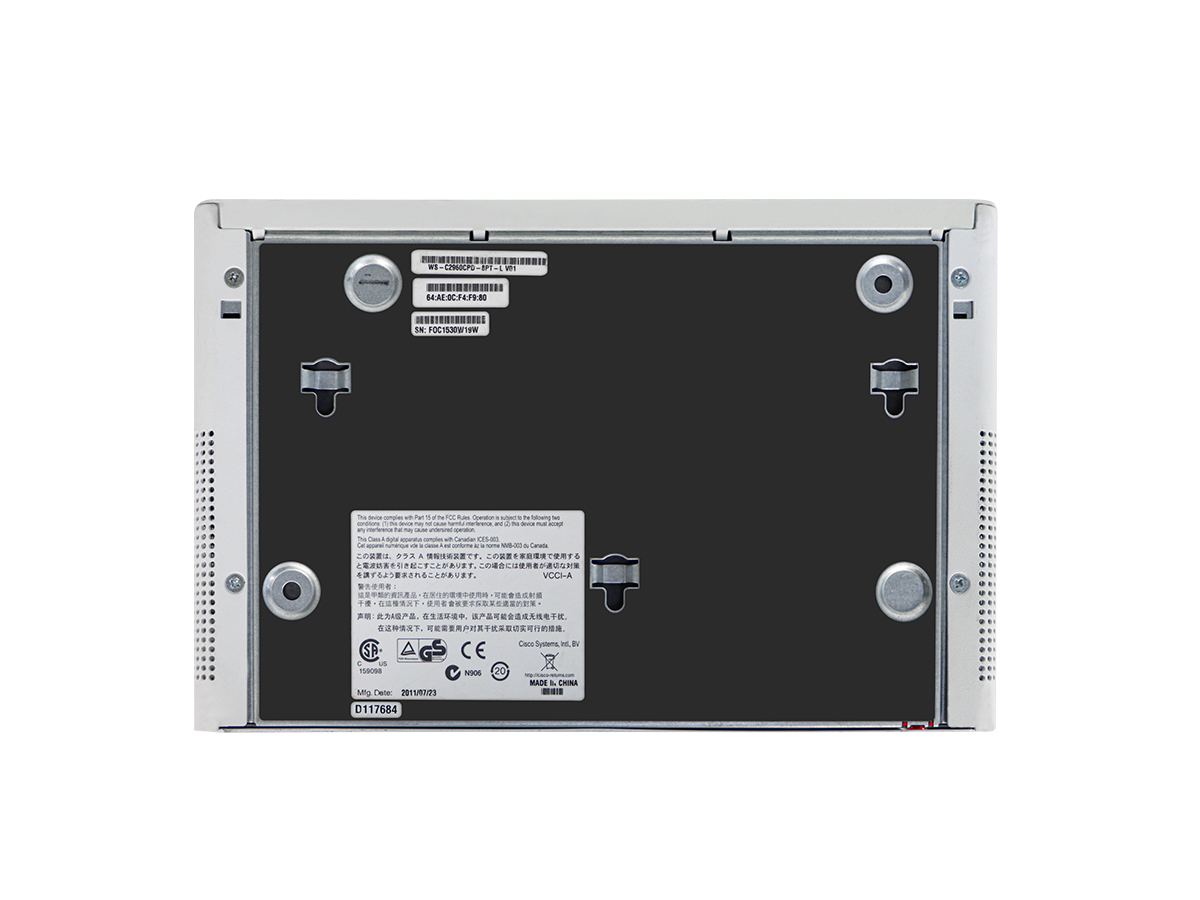

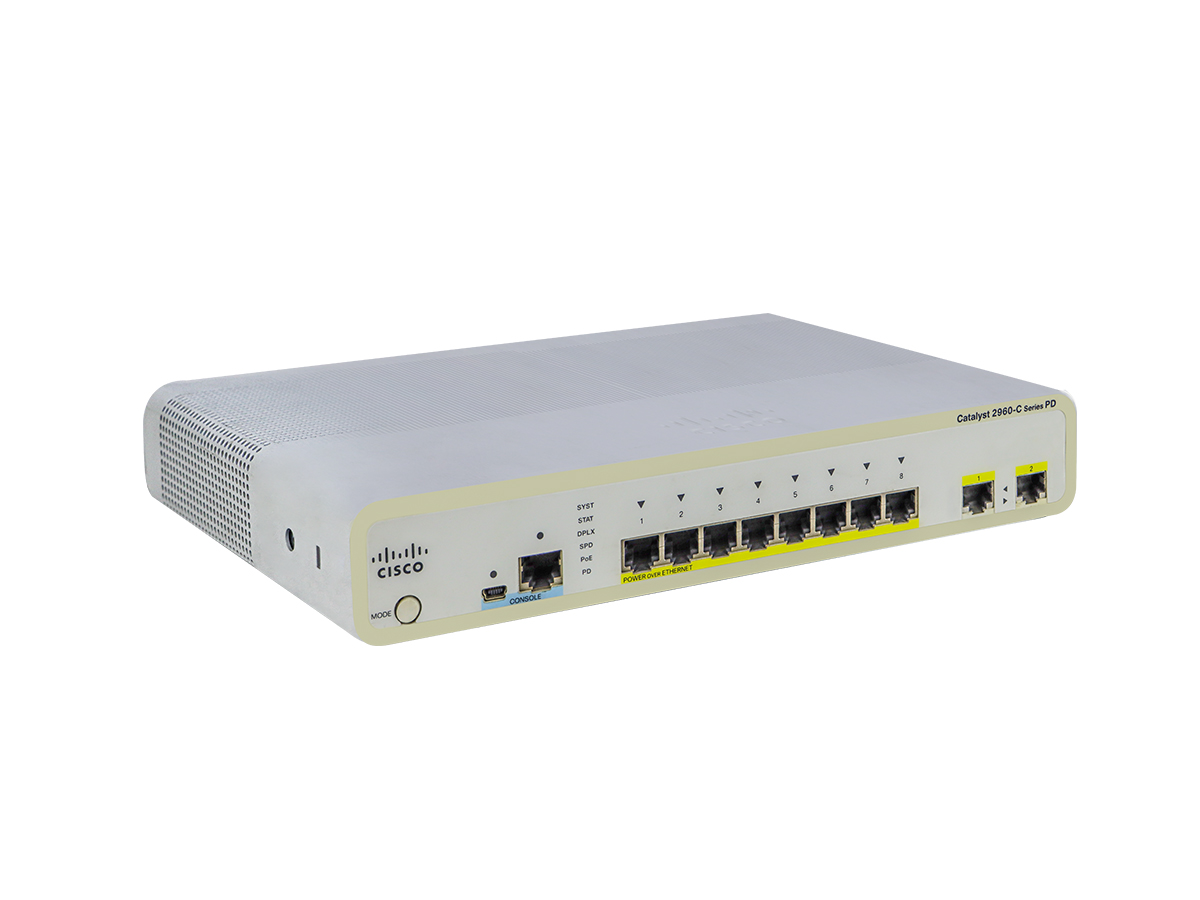

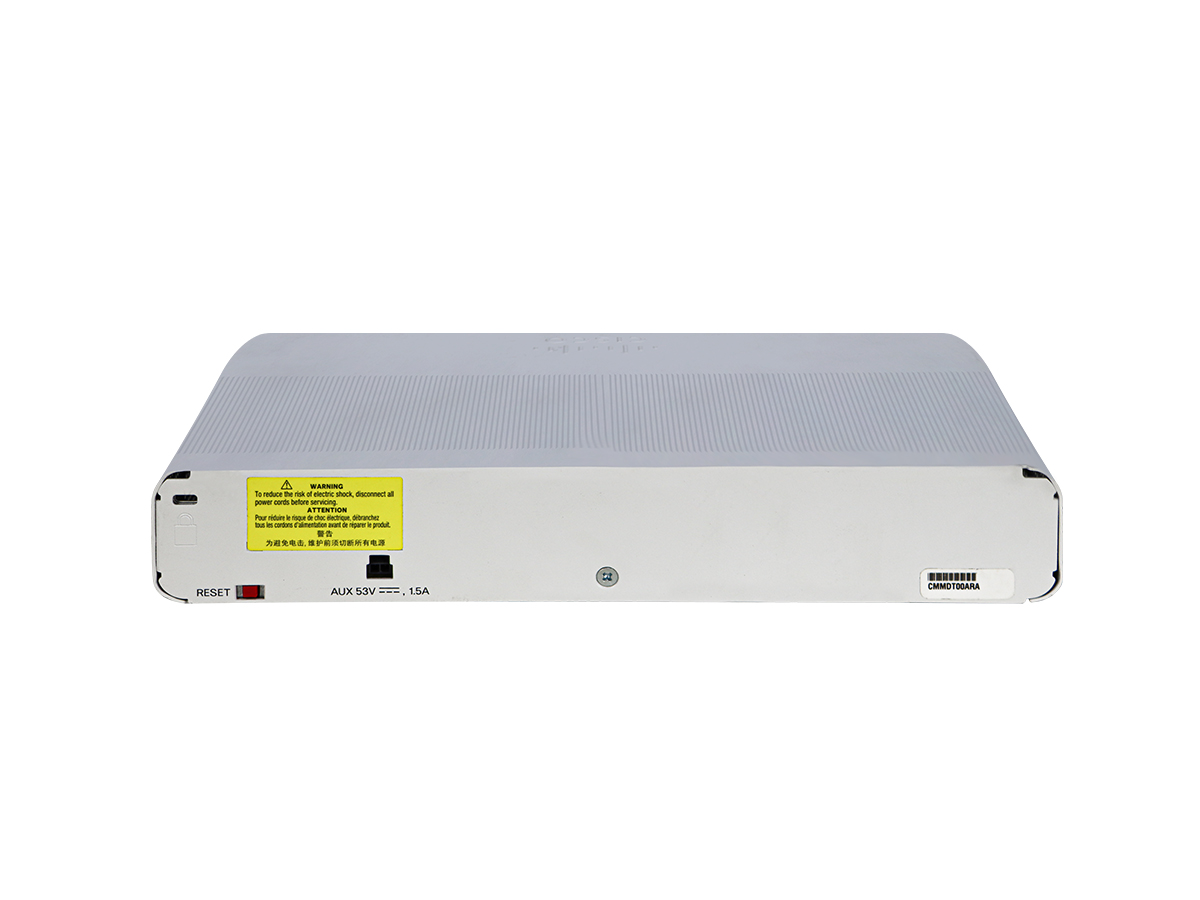

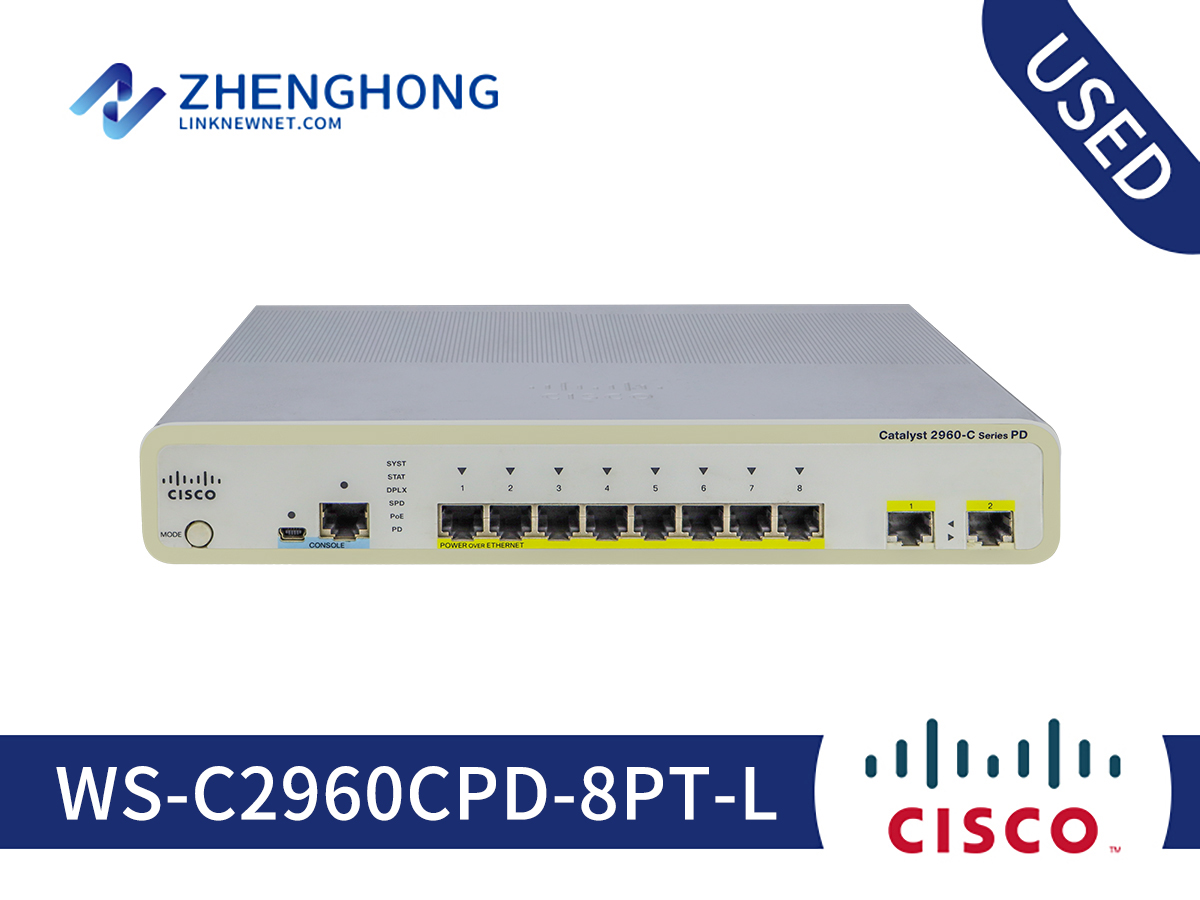

Cisco Catalyst 2960C Series Switch WS-C2960CPD-8PT-L Overview
Cisco Catalyst 2960C Series Switch WS-C2960CPD-8PT-L 2960C PD PSE Switch 8 FE PoE
Key Specifications
Applications
Enterprise Campus
High-density ports power users, phones and APs at the access layer.
Branch Office
Stackable units simplify branch deployment and management.
Wireless & IoT
PoE budget supports dense wireless and IoT endpoints.
Buying a Pre-Owned WS-C2960CPD-8PT-L
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
| WS-C2960CPD-8PT-L | |
| Product list | |
| Product code | WS-C2960CPD-8PT-L |
| Power cable | No |
| Button | No |
| Product parameters | |
| Port | 10 |
| Port Type | 8 x Fast Ethernet Network 2 x Gigabit Ethernet Uplink |
| Ethernet Technology | Gigabit Ethernet Fast Ethernet |
| Network Technology | 10/100/1000Base- T10/100Base-TX |
| Layer Supported | 2 |
| Standard Memory | 128 MB |
| Flash Memory | 64 MB |
| Management | Cisco Network Assistant CiscoWorks LAN Management Solution (LMS) Cisco Smart Install Cisco Smart Configuration Web-Based Management Command Line Interface SNMP v1, v2c, v3 RMON 1, 2, 3, 9 Telnet DHCP Syslog MIB QoS VLAN |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Introduction | WS-C2960CPD-8PT-L is small form-factor Fast Ethernet and Gigabit Ethernet switches designed for deployments outside the wiring closet. Enterprise and commercial customers can deliver advanced security services, unified communications, wireless, IP video cameras, and other applications for the office workspace, micro branch office, classroom, cruise ship, and other wiring-constrained environments. |
| Power Device | |
| Power Source | External power adapter |
| Max Supported Qty | 1 |
| Input Voltage | 110 V AC 220 V AC |
| Physical specifications | |
| Width | 10.6 in |
| Height | 1.8 in |
| Depth | 6.8 in |
| Weight | 2.38 lbs |
| Environmental Parameters | |
| Min Temperature | 23 °F |
| Max Temperature | 104 °F |
| Humidity Operating | 5 - 95% (non-condensing) |
