Cisco Catalyst 2960-S Series Switch WS-C2960S-24PS-L|LinkNewNet

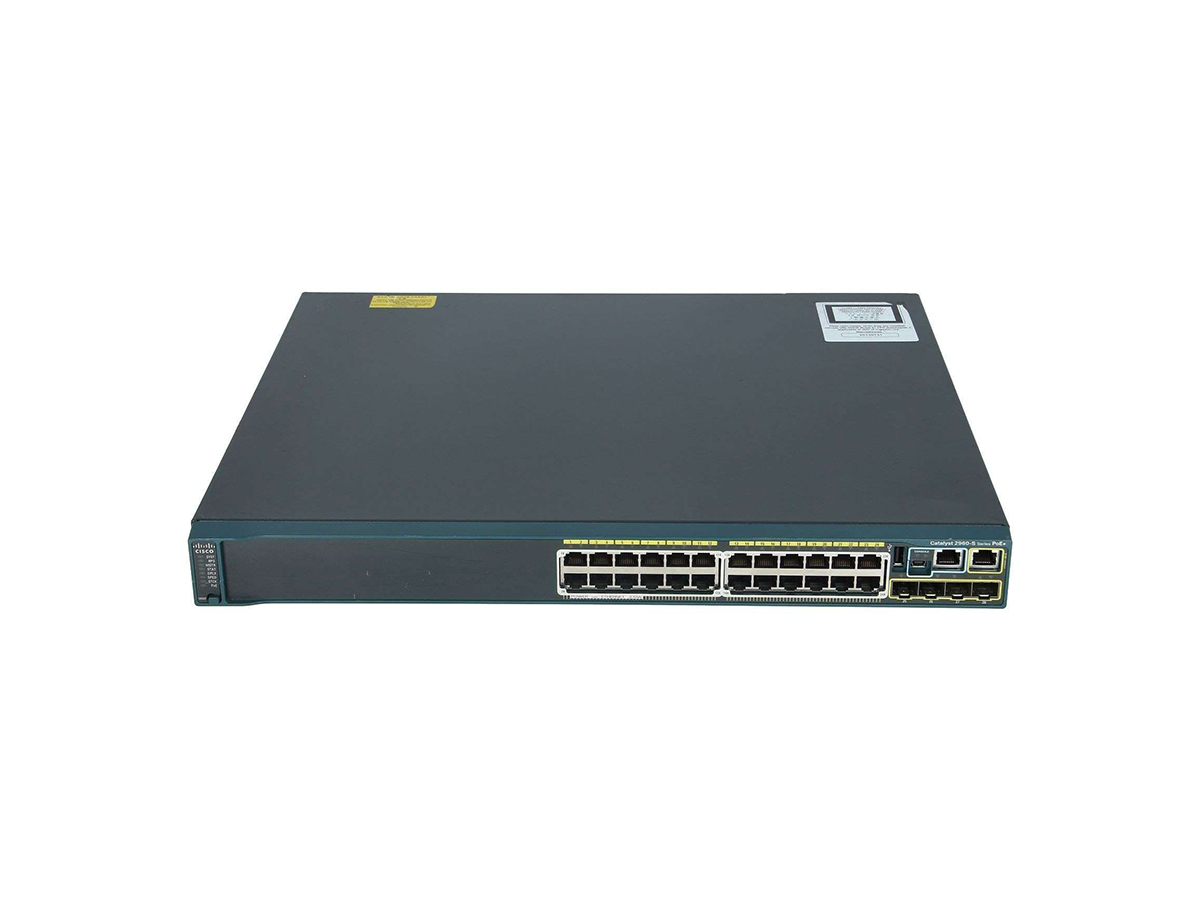

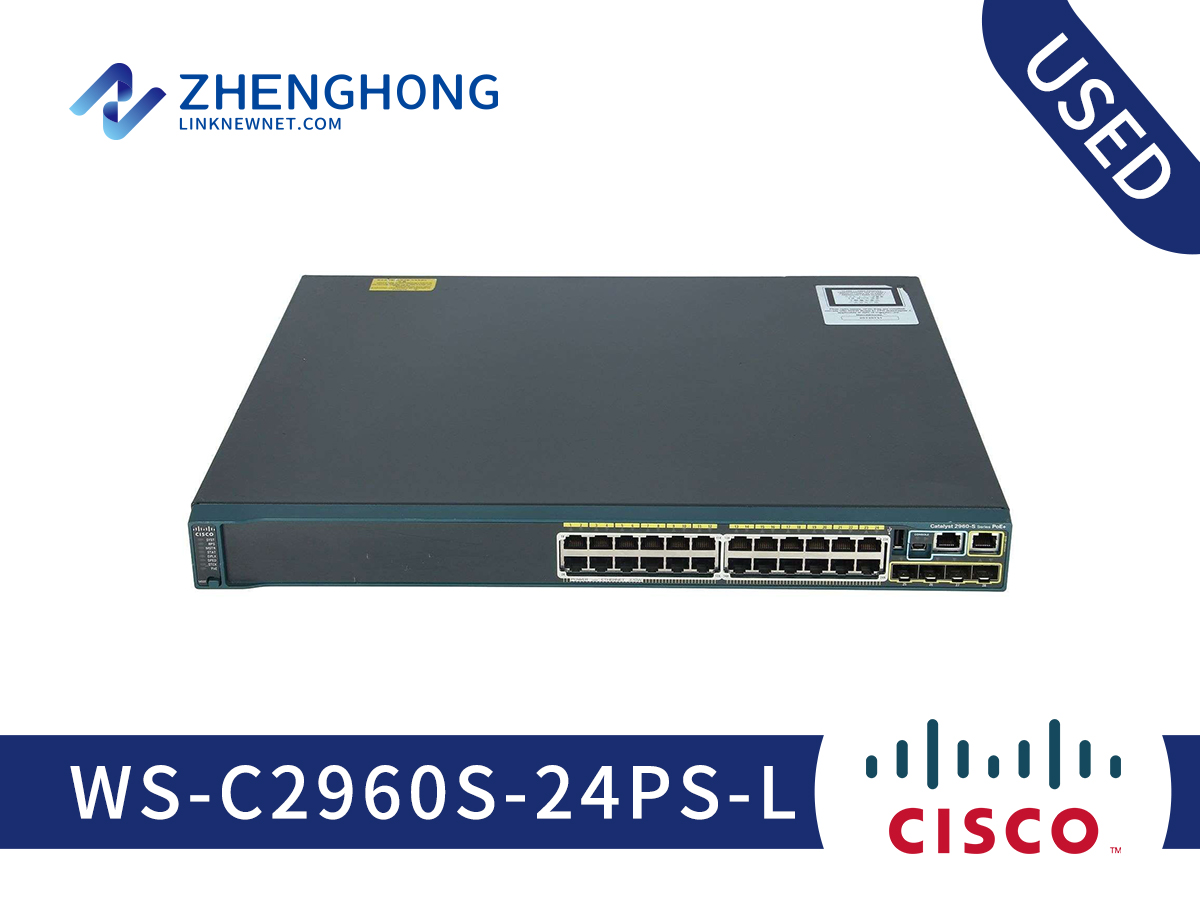

Cisco Catalyst 2960-S Series Switch WS-C2960S-24PS-L

Model: WS-C2960S-24PS-L

Detail: Cisco Catalyst 2960-S Series Switch WS-C2960S-24PD-L，CAT2960S Stack 24 Gige-POE 370W 4 x SFP LAN

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

WS-C2960S-24PS-L
Product list
Product code	WS-C2960S-24PS-L
Power cable	No
Button	No
Product parameters
Network Ports	24
Network Poe (RJ-45) Ports	24
Port Detail	24 x Gigabit Ethernet Network 4 x Gigabit Ethernet Expansion Slot
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T
Layer Supported	2
Expansion Slots	4
Expansion Slot Type	SFP
Number of SFP Slots	4
Management	QoS DHCP VLAN RMON CLI CiscoWorks LAN Management Solution SNMP v1,v2,v3 Syslog
Introduction	The Cisco Catalyst 2960-S Series Switches are fixed-configuration Gigabit Ethernet switches (Figure 1) that provide enterprise-class Layer 2 switching for campus and branch access applications.
Memory
Memory Technology	DRAM
Standard Memory	128 MB
Flash Memory	64 MB
Power Device
Power Source	Power Supply
Input Voltage	110 V AC 220 V AC
Physical specifications
Width	17.5 in
Height	1.8 in
Depth	15.2 in
Weight	12.5 lbs
Environmental Parameters
Min Temperature	23 °F
Max Temperature	131 °F
Humidity Operating	5 - 95% (non-condensing)

Q&A

Q Can I upgrade or downgrade a Cisco Catalyst 2960-S or 2960-SF Series Switch between the LAN Base and LAN Lite images?

A No. Cisco Catalyst 2960 Series Switches cannot be upgraded from LAN Lite to LAN Base and cannot be downgraded from LAN Base to LAN Lite.

Q Do I need a software license for the WS-C2960S-24PS-L?

A No. Cisco Catalyst 2960-S and 2960-SF Series Switches use the Universal image, but no license is required. The feature is bound to the hardware model type and cannot be changed. For convenience, a single software image is used for all Cisco Catalyst 2960-S and 2960-SF Series Switches, regardless of whether they are a LAN Base or LAN Lite model.

Q What are the notable differences between the Cisco® Catalyst® 2960-S, 2960-SF, and 2960 Series Switches?

A The Cisco Catalyst 2960-S and 2960-SF Series are the newest members of the 2960 family that offer a rich set of Layer 2 features. While the 2960-S provides Gigabit Ethernet (10/100/1000) connectivity with 10G/1G SFP+ uplinks, the 2960-SF provides Fast Ethernet (10/100) connectivity with 1G SFP uplinks. They bring the following new capabilities to the Catalyst 2960 family of Layer 2 switches, including: ● Cisco FlexStack stacking capabilities ● 10 Gigabit Ethernet uplinks with SFP+ ● Support for Power over Ethernet Plus (PoE+) ● Cisco Generic Online Diagnostics (GOLD) and onboard failure logging (OBFL) ● USB interfaces for file transfer and management ● 10/100 out-of-band (OOB) management.

Q Please advise me on this requirements:Cisco switch with PoE one is 24 ports, another one is 48 ports; Ethernet port 10/100/1000; Uplinks 2 or 4 SFP 1Gig; SFP transceiver (compatible one); Multimode fiber patch cables (compatible one); Onsite support

A Hi,the Cisco 2960S Series is suitable, e.g. WS-C2960S-24PS-L, WS-C2960S-48LPS-L, GLC-SX-MM. Also can choose 2960X series, 2960X series can do Stack up to 8units, and 2960S can do Stack up to 4units.
