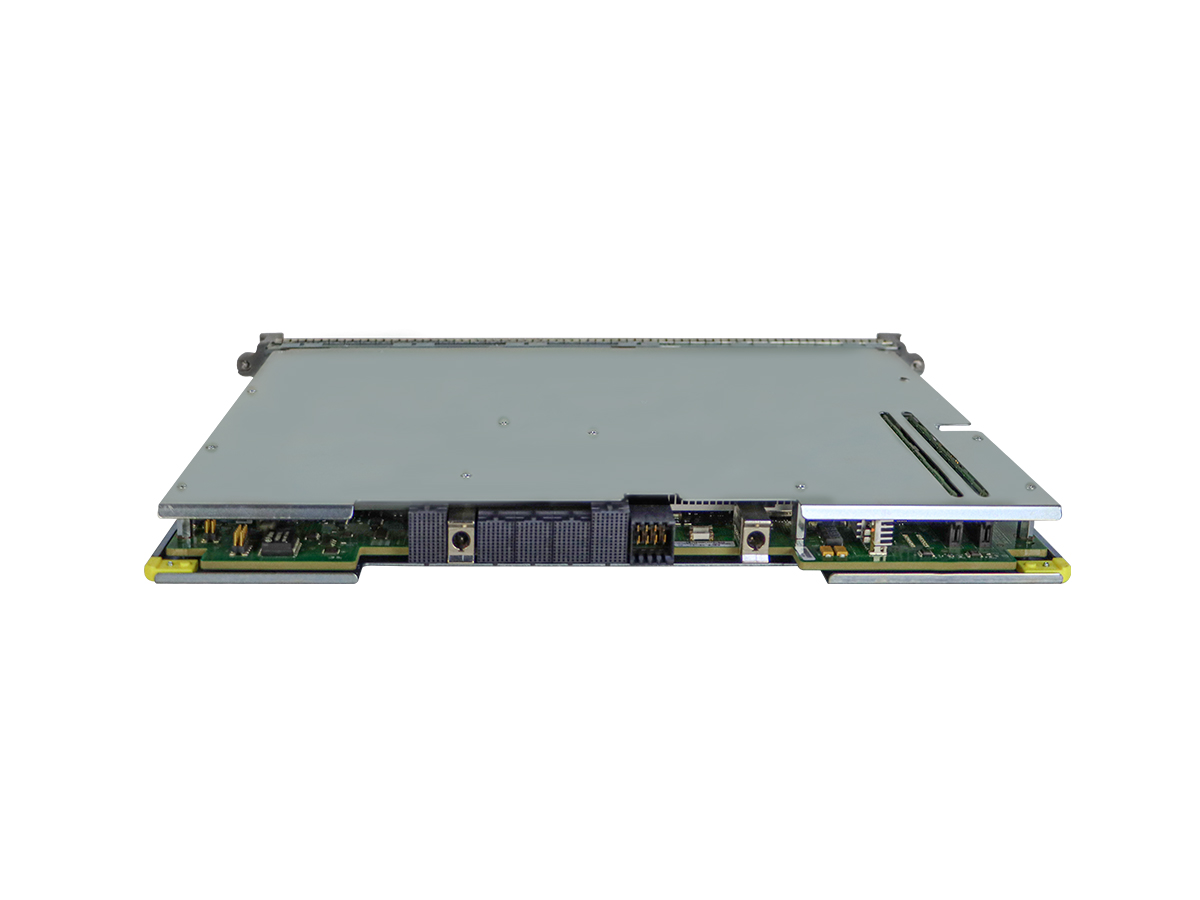

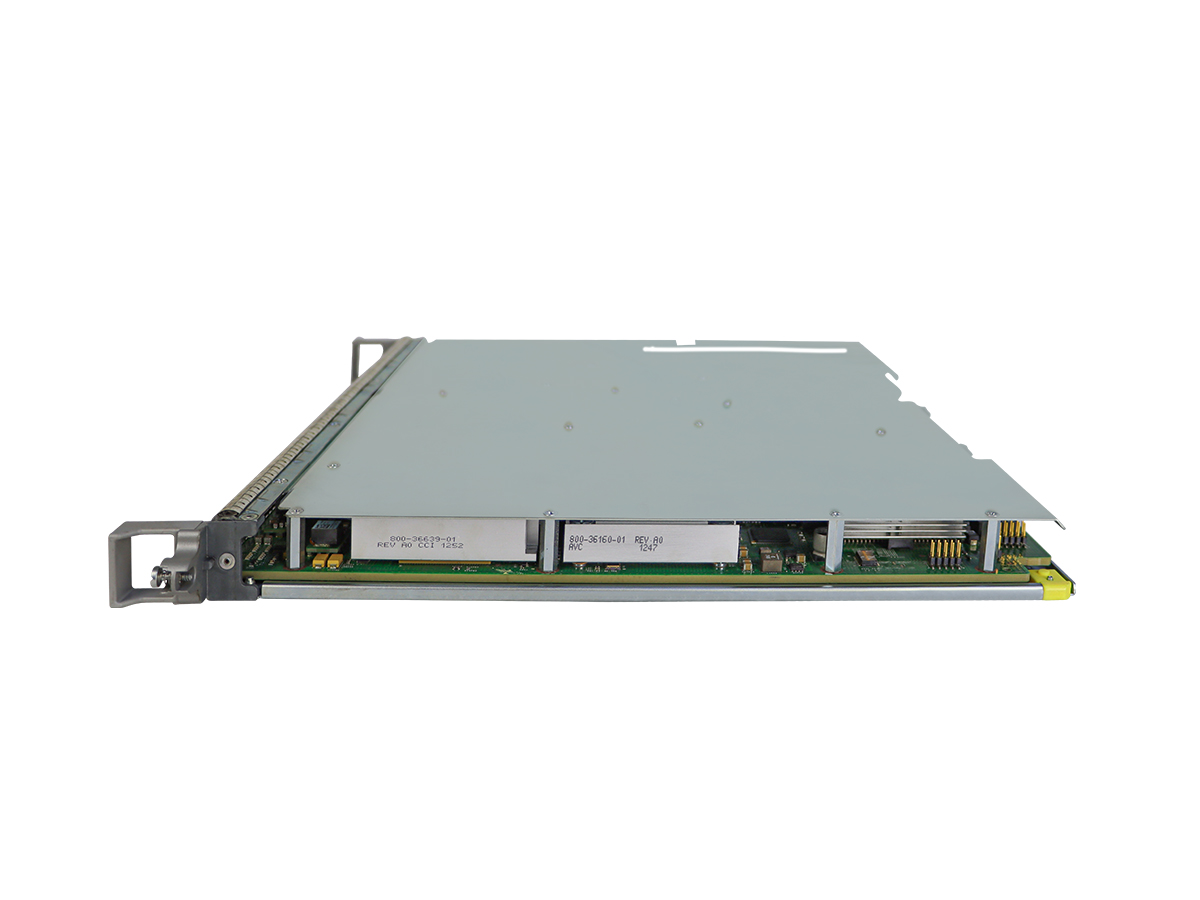

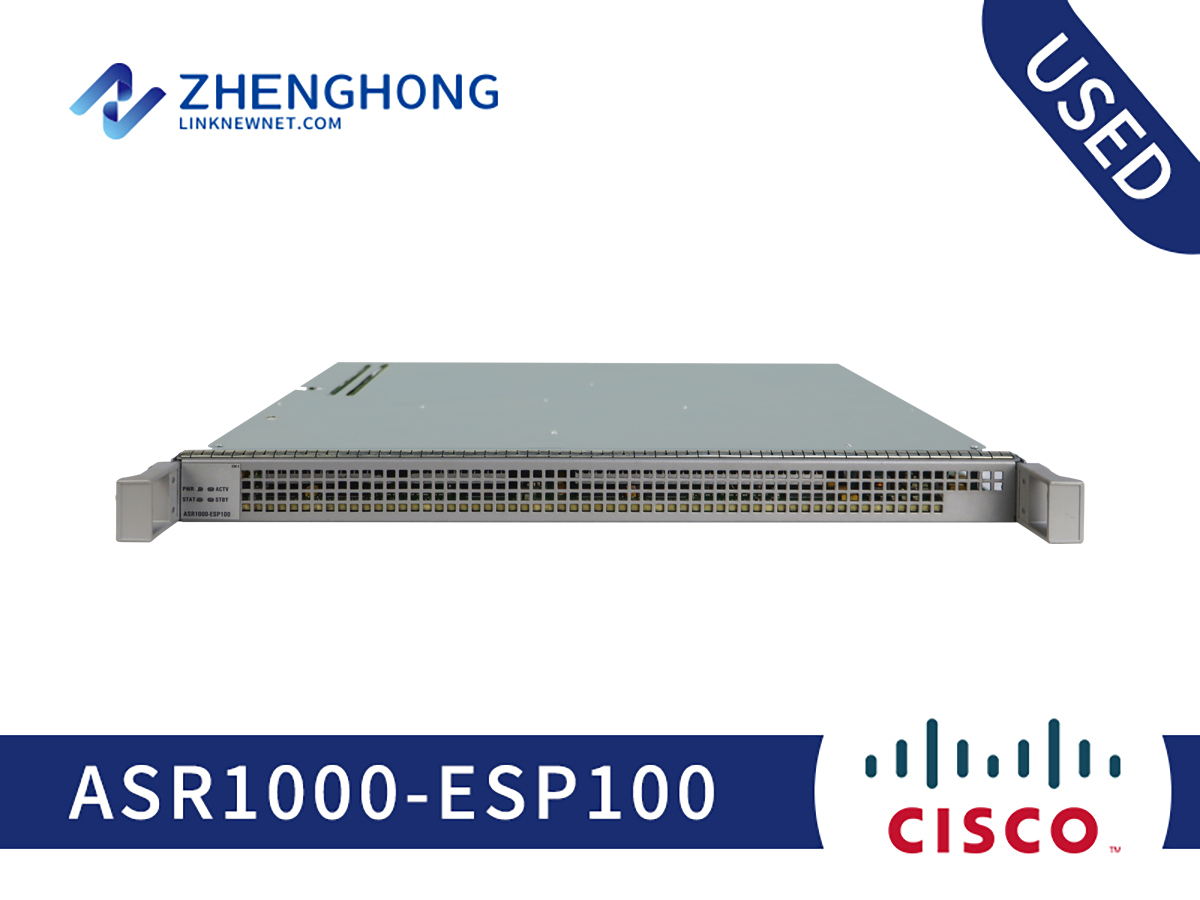

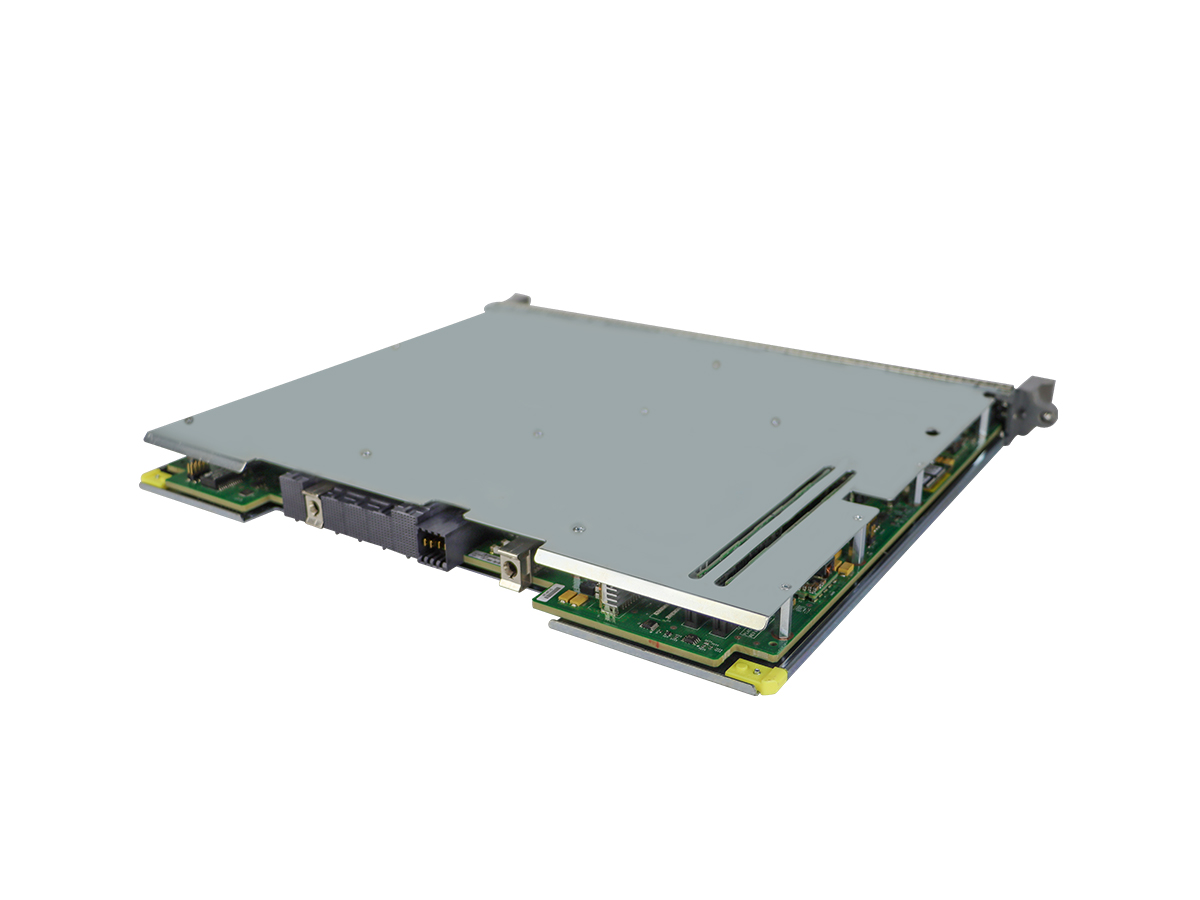

Cisco ASR1000 Embedded Services Processor ASR1000-ESP100 Overview
Cisco ASR1000 Embedded Services Processor ASR1000-ESP100 is a genuine modular capacity expansion product from Cisco, a global name in networking whose platforms are used by enterprises, service providers and data-center operators alike. Belonging to the Cisco family, the ASR1000-ESP100 unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
This unit follows the original factory specification for the Cisco family, covering its intended role without compatibility surprises. Standard mounting, cabling and management practices apply, and it interoperates with surrounding hardware using the same procedures as other Cisco equipment already deployed in the network.
Typical deployments include adding ports and performance to existing chassis systems, modernizing legacy platforms with compatible line cards, and mixing copper, fiber and high-speed uplinks in one chassis. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Cisco ASR1000 Embedded Services Processor, 100G ASR1000-ESP100”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the ASR1000-ESP100. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise WAN
Branch and campus routing with advanced services.
Service Provider
Edge routing for ISP and MPLS deployments.
Data Center
Interconnect core and aggregation layers reliably.
Buying a Pre-Owned ASR1000-ESP100
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
| ASR1000-ESP100 | |
| Product list | |
| Product code | ASR1000-ESP100 |
| Power cable | No |
| Button | No |
| Product parameters | |
| RAM | 16GB |
| Connectivity Technology | Wired |
| Compatible Slots | 1 x expansion slot |
| Performance | Bandwidth: 100 Gbp Encryption throughput: 25 Gbps Forwarding performance: up to 58 Mpps |
| Capacity | Access control entries: 400000 Concurrent L2TP VPN tunnels: 64000 ACL rules: 4000 IPv4 routes: 4000000 IPv6 routes: 4000000 NAT/ firewall sessions: 6000000 QoS hardware entries: 232000 GRE tunnels: 4000 |
| Status Indicators | Power, active, standby, status |
| Features | Firewall protectio NAT support IPv6 support Access Control List (ACL) support Quality of Service (QoS) |
| Compliant Standards | ETSI, BSMI CNS 13438 Class A, CISPR 24, EN 60950, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, VCCI Class A ITE, IEC 60950, EN55024, EN55022 Class A, UL 60950, CISPR 22, EN50082-1, EN 61000-4-2, EN 61000-4-6, AS/NZ 3548 Class A, CSA C22.2 No. 60950-00, EN 50082-2, EN 61000-4-11, FCC CFR47 Part 15, EN300-386, NEBS |
| Introduction | ASR1000-ESP100 is based on the innovative, industry-leading Cisco QuantumFlow Processor for next-generation forwarding and queuing in silicon. The Cisco ASR 1002-X Router and the 100-Gbps Cisco ASR 1000 Series ESP module introduce the second generation of the Cisco QuantumFlow Processor hardware and software architecture. |
| Physical specifications | |
| Width | 16.7 in |
| Height | 0.9 in |
| Depth | 14.2 in |
| Weight | 5.07 lbs |
| Compatibility Information | |
| Apply to | Cisco ASR 1006 Router Cisco ASR 1013 Router |
| Environmental Parameters | |
| Min Temperature | 41 °F |
| Max Temperature | 104 °F |
| Humidity Operating | 5 - 85% (non-condensing) |
