Cisco ASR 1000 Series Router ASR1002-X|LinkNewNet

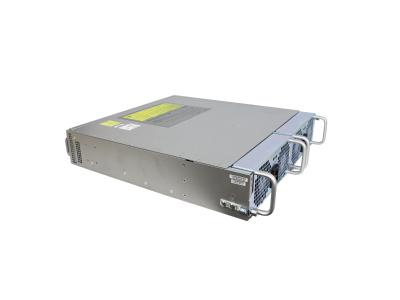

Cisco ASR 1000 Series Router ASR1002-X

Model: ASR1002-X

Detail: Cisco ASR1000-series router, Build-in Gigabit Ethernet port, 5G system bandwidth, 6 x SFP ports

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags： ≥1G

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

ASR1002-X
Product list
Product code	ASR1002-X
Product parameters
Product Type	Router
Default memory	4-GB DRAM shared across route processor, ESP, and SIP
EPS support	Cisco ASR 1002-X ESP with 5-Gbps (default) Upgradable through software-activated feature license to 10, 20, or 36 Gbps
EPS bandwidth	5 to 36 Gbps
External USB flash memory	1-GB USB flash-memory support
Safety Standards	UL60950-1 CSA C22.2 No. 60950-1-03 EN 60950-1 IEC 60950-1 AS/NZS 60950.1
Physical specifications
Width	17.2 in
Height	3.5 in
Depth	18.15 in
Weight	38.25 lb (17.36 kg) (with dual AC power supply and SPA blank covers) 39.05 lb (17.72 kg) (with dual DC power supply and blank covers)
Environmental Parameters
Min Temperature	32 °F
Max Temperature	104 °F
Humidity Range	10 - 85%

Q&A

Q What is the ACL processing capability of the ASR 1000 Series?

A The ASR 1000 Series processes ACLs in the ESPs. The ASR 1000 Series supports up to 4000 unique ACLs and up to 400,000 access control entries (ACEs) per system.

Q How can I deploy the value-added features on ASR 1000 Series Routers?

A First, select a Cisco IOS XE Software consolidated package that supports the required features. Second, check whether this feature requires a software license. If it does, you must purchase the required license in addition to the Cisco IOS XE consolidated package. The consolidated package and license are linked to the chassis, so if you upgrade from one route processor to another or from one ESP to another, you do not need to purchase a new consolidated package or feature license.

Q What is the expected performance of the ASR 1000 Series?

A The overall forwarding performance of the ASR 1000 Series depends on the ESP. The overall control-plane performance of the ASR 1000 Series depends on both the route processor and the ESP.

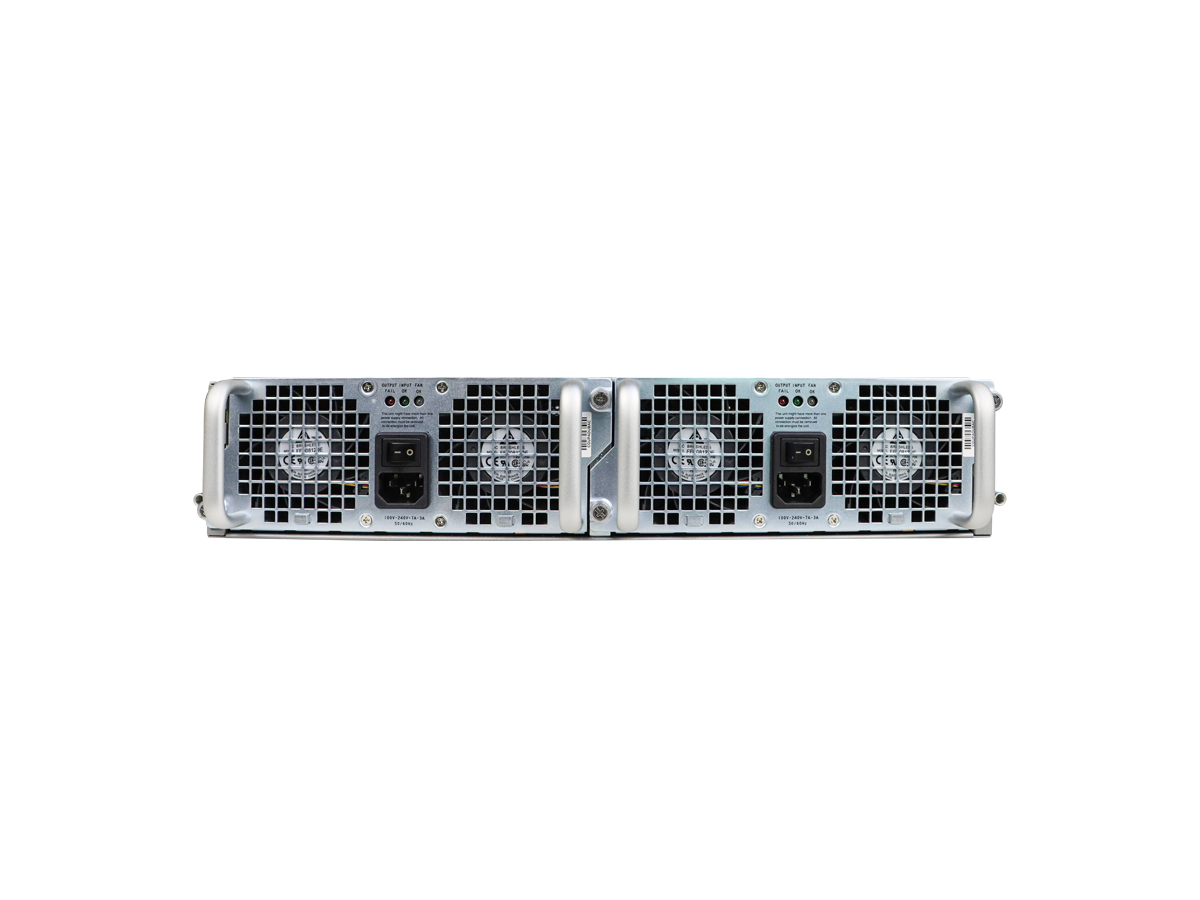

Q What system power-supply options are available for the ASR 1002-X?

A The ASR 1000 Series supports, by default, two power entry modules (PEMs) with either AC receptacle or DC terminal block for redundancy. The two redundant PEMs load-share the power between them. If an external power supply fails or one PEM fails or is removed, the other PEM provides the entire power requirements for the chassis.
