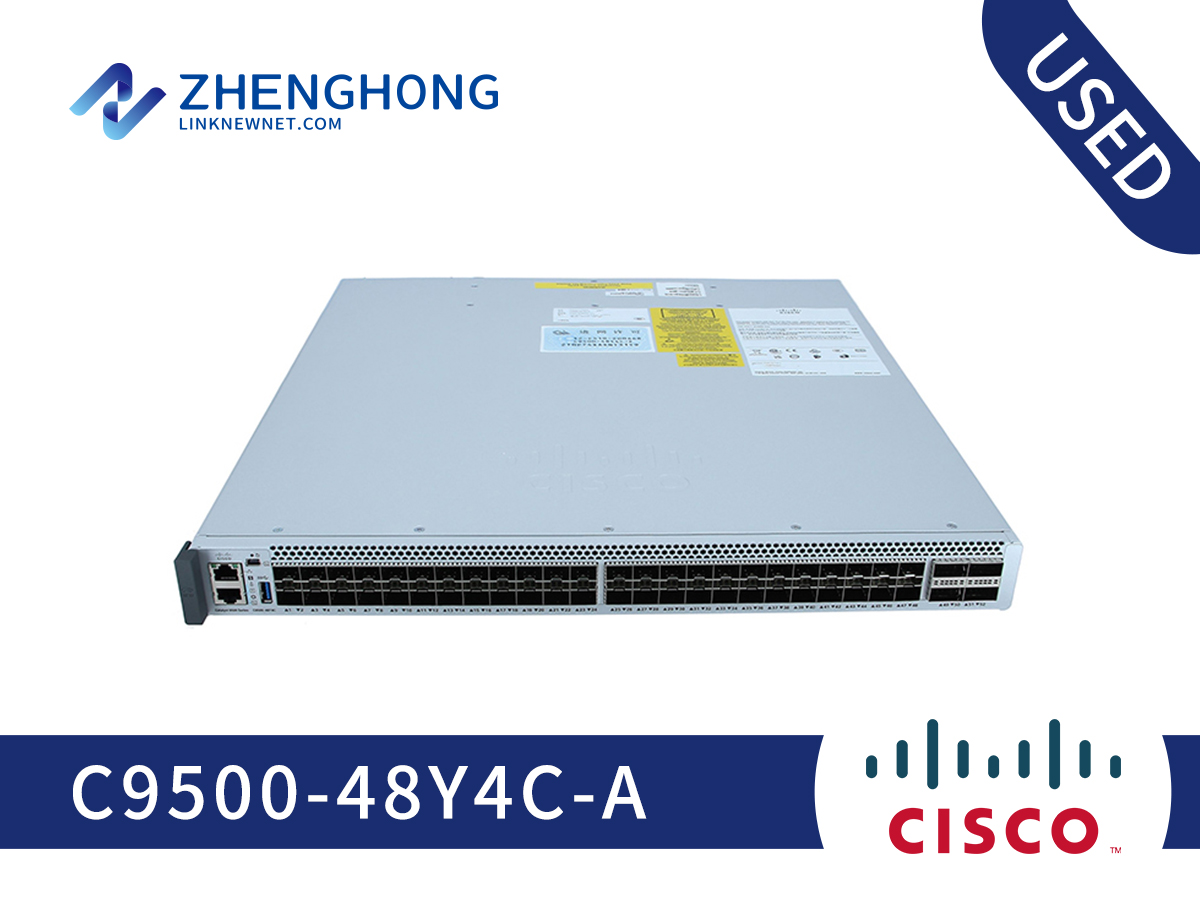

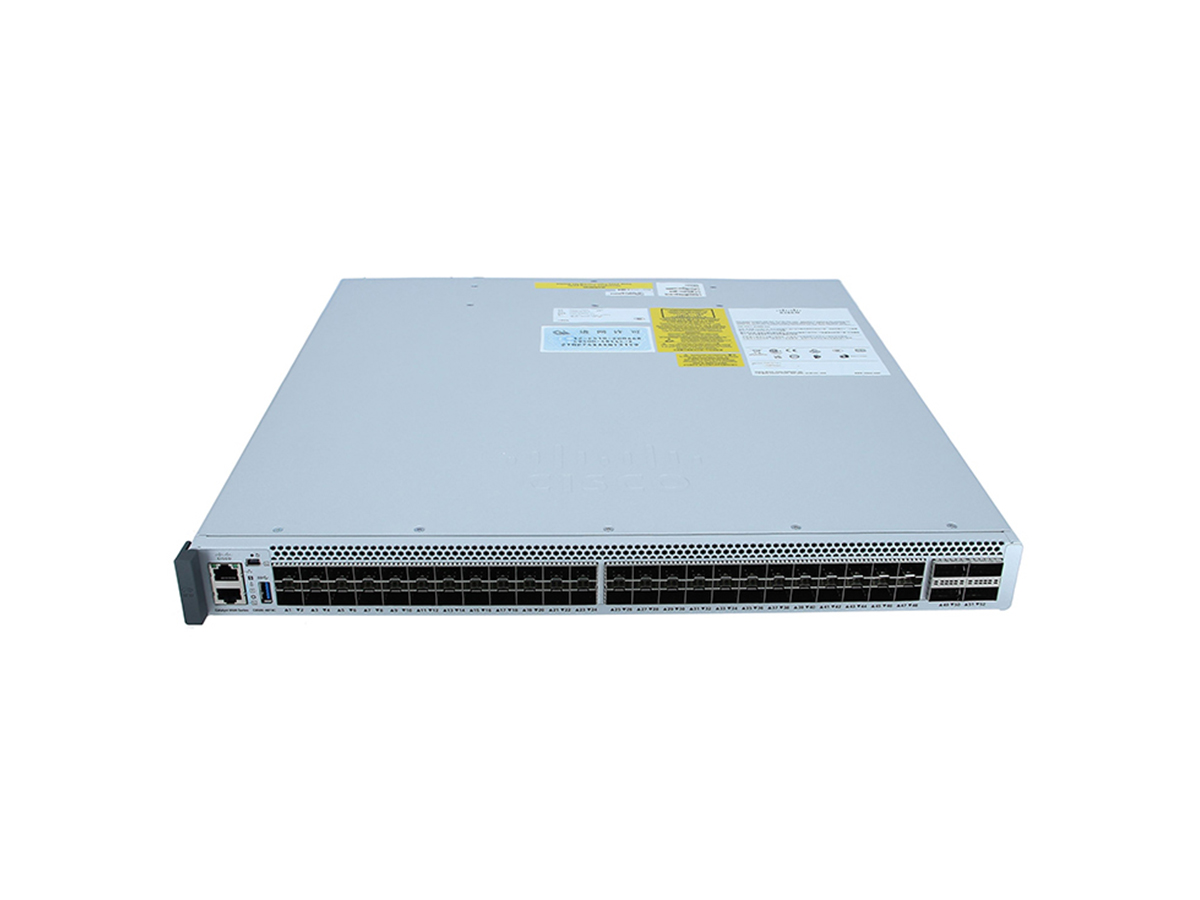

Cisco Catalyst 9500 C9500-48Y4C-A Switch Overview
The Cisco Catalyst 9500 C9500-48Y4C-A is a high-performance core and distribution switch. It provides 48 ports of 1G/10G/25G SFP+ plus 4 ports of 40G/100G QSFP28, making it suited to campus core, distribution and data-center aggregation. As an -A SKU it runs the Network Advantage feature set, delivering the advanced routing and security features that core roles require. Every unit sold by LinkNewNet is tested and carries a 3-month warranty.
This unit follows the original factory specification for the Cisco family, covering its intended role without compatibility surprises. Standard mounting, cabling and management practices apply, and it interoperates with surrounding hardware using the same procedures as other Cisco equipment already deployed in the network.
Typical deployments include access-layer deployments for user, phone and AP connectivity, distribution and core aggregation in campus networks, and top-of-rack and end-of-row switching in data centers. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Cisco Catalyst 9500 48-port x 1/10/25G + 4-port 40/100G, Advantage”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the C9500-48Y4C-A. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Up to 3.2 TbpsSwitch Capacity
Up to 1 BppsForwarding
C9500-48Y4C-AModel
Key Specifications
Applications
Enterprise Campus
High-density ports power users, phones and APs at the access layer.
Branch Office
Stackable units simplify branch deployment and management.
Wireless & IoT
PoE budget supports dense wireless and IoT endpoints.
Upgrade Path
Moving off Catalyst 4500-X? See how to upgrade to C9500-48Y4C-A â
C9500-48Y4C-A vs. C9500-24Y4C-A: Which to Choose
The Catalyst 9500 Y4C series is available as the C9500-48Y4C-A (this page) and the lower-density C9500-24Y4C-A. The -48Y4C offers 48 x 1/10/25G ports with 4 x 40/100G uplinks, while the -24Y4C gives you 24 x 1/10/25G ports with 4 x 40/100G uplinks. Both run the same Catalyst 9500 software and Network Advantage tier - pick the 48-port model if you need higher 10/25G density at the core or distribution layer.
For a full comparison read Cisco C9500-24Y4C-A vs C9500-48Y4C-A.
Buying a Used C9500-48Y4C-A
This C9500-48Y4C-A is offered used, fully tested and in stock at $10,795 with a 3-month warranty. Every unit is graded, cleaned and verified before dispatch. Orders ship within 2-3 working days. Contact sales for bulk pricing or an extended warranty.
Buying a Pre-Owned C9500-48Y4C-A
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
C9500-48Y4C-A Specification | |
Performance specifications | |
Switching capacity | Up to 3.2 Tbps |
Forwarding rate | Up to 1 Bpps |
Total number of MAC addresses | Up to 82,000 |
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) | Up to 212,000 indirect + direct Up to 90,000 host/ARP |
Total number of IPv6 routes | Up to 212,000 indirect + direct Up to 90,000 host |
QoS ACL scale | Up to 16000 |
Security ACL scale | Up to 27000 |
FNF entries | Up to 98,000 |
DRAM | 16 GB |
Flash | 16 GB |
VLAN IDs | 4000 |
Total Switched Virtual Interfaces (SVIs) | 4000 |
Jumbo frame | 9216 bytes |
Power supply specifications | |
Power Supply Selection | C9K-PWR-650WAC-R or C9K-PWR-930WDC-R |
Dimensions, physical specifications, and MTBF | |
Dimensions (H x W x D) | 1.73 x 17.5 x 18.0 in |
Rack units (RU) | 1 RU |
Input voltage | 90 to 264 VAC |
Altitude | Operation up to 13,000 feet at 40°C |
MTBF (hours) | 316,960 |
C9500-48Y4C-A FAQ
How many and what type of ports does the C9500-48Y4C-A have?
It has 48 ports of 1G/10G/25G SFP+ plus 4 ports of 40G/100G QSFP28, giving flexible high-density uplinks for core and distribution roles.
Is the C9500-48Y4C-A used or new?
We sell it as used/pre-owned. Every unit is fully tested by our engineers and carries a 3-month free warranty; an extended warranty can be arranged on request.
What feature set does the C9500-48Y4C-A run?
The -A SKU ships with the Network Advantage feature set, suited to core routing and security needs.
Is it tested before shipping?
Yes. Units are graded, cleaned and verified for correct operation before dispatch, and testing instructions can be provided on request.
How long does delivery take?
After your order we test and prepare the unit; it normally ships within 2-3 working days. Import duties and taxes are not included in the price.
C9500-48Y4C-A - Deployment Notes
This C9500-48Y4C-A switch is suited to wiring-closet, distribution, or core roles depending on the port density and uplink options of the specific model. The port configuration is a key consideration when planning power budgets for attached devices such as IP phones and access points.
For a refresh or expansion, confirm the IOS/NX-OS software release supported by this specific SKU, the fan and power requirements, and the uplink modules that match your existing infrastructure. Our team can verify revision levels and software compatibility before you order.
Every unit at LinkNewNet is inspected and tested before dispatch, and this C9500-48Y4C-A variant is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Volume requirements can be staged with configuration checks.
C9500-48Y4C-A - Cisco Series Notes
This listing is part of the Cisco enterprise networking product family, sourced and tested by LinkNewNet for enterprise deployment. Cisco Catalyst or Nexus switch is typically deployed in campus access, distribution, or data-center roles. It provides reliable Layer 2/3 switching for user, server and uplink connectivity, and integrates with Cisco DNA Center or traditional CLI-based management.
Deployment guidance: When planning this C9500-48Y4C-A unit into a network, confirm the software image (IOS/IOS-XE/NX-OS) required, the power and cooling profile, and the upstream/downstream interface types that match your existing infrastructure. For a like-for-like refresh, match the feature set of the units already in service so management and automation behave consistently.
Our Cisco reconditioning process: Every pre-owned Cisco unit at LinkNewNet passes a documented reconditioning flow before dispatch - visual inspection, internal cleaning, firmware verification, port-by-port testing, and configuration reset to factory defaults. This ensures the unit you receive operates reliably and integrates cleanly with your existing Cisco management tools.
Related models in this family: C9500-40X-A, C9500-40X-E, C9500-24Y4C-A, C9500-48Y4C-EDU, C9500-40X-E. Compare specifications to confirm the right port density, feature set and uplink options for your deployment.
Model code: A = AC power supply / Americas regulatory domain - this suffix indicates the feature set, power, or regulatory variant of the C9500-48Y4C-A, which affects software licensing and regional compliance.
