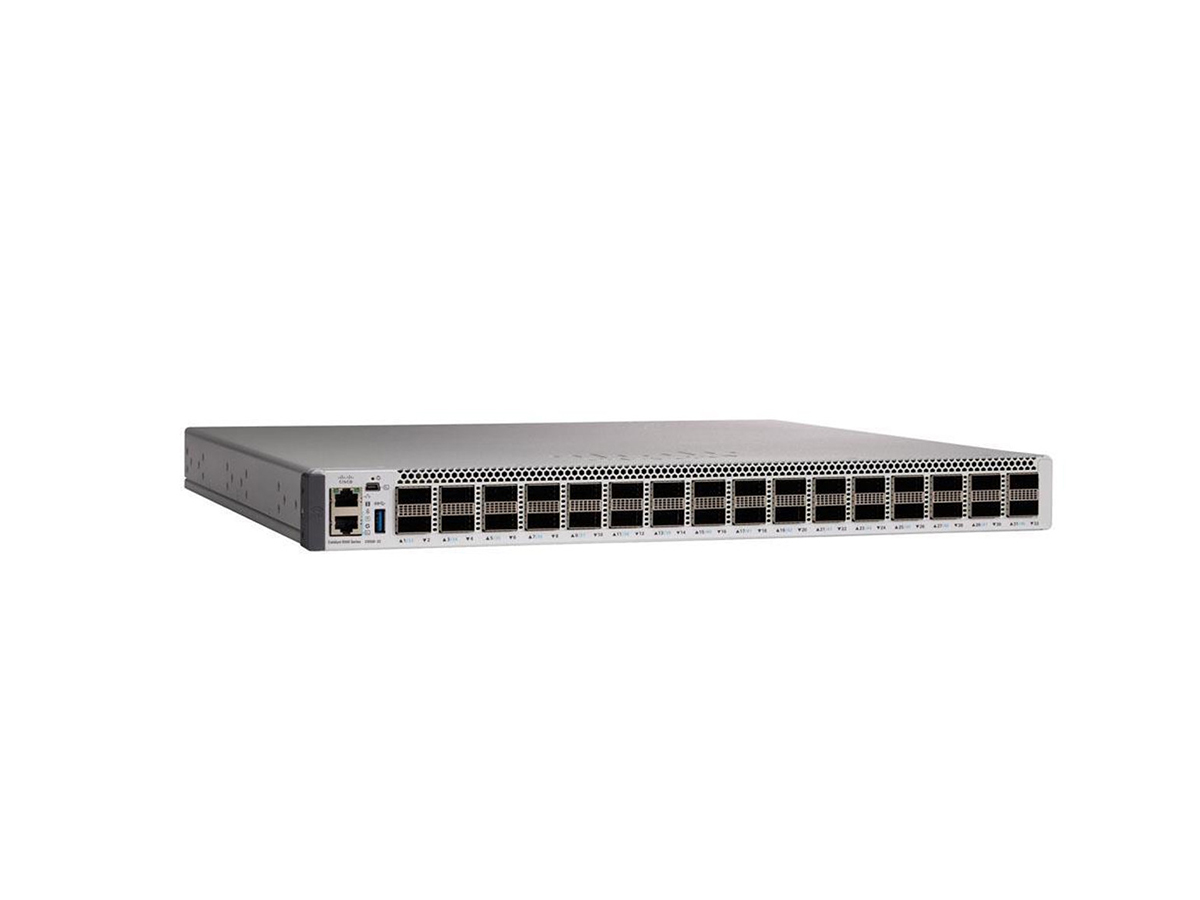

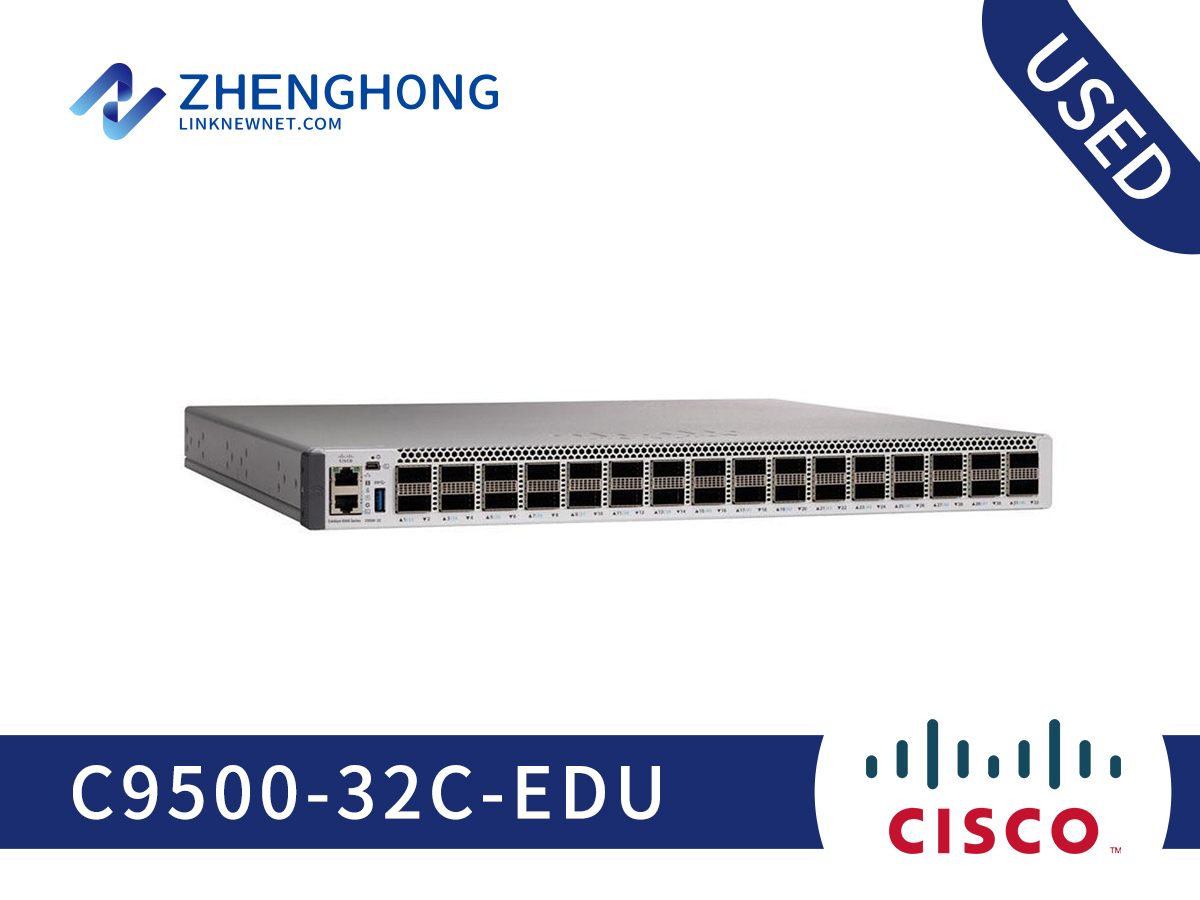

Cisco Switch Catalyst 9500 C9500-32C-EDU

Model: C9500-32C-EDU

Detail: Catalyst 9500 32x100G, K12, 1 RU

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

C9500-32C-EDU Specification
Product Code	C9500-32C-EDU
Product Description	Catalyst 9500 32x100G, K12
Rack units (RU)	1 RU
Minimum software requirement	Cisco IOS XE Software Release 16.8.1a
ASIC	UADP 3.0
Switching capacity	Up to 6.4 Tbps
Forwarding rate	Up to 2 Bpps
Total number of MAC addresses	Up to 82,000
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes)	Up to 212,000 indirect + direct Up to 90,000 host/ARP
Total number of IPv6 routes	Up to 212,000 indirect + direct Up to 90,000 host
Total number of IPv4 Multicast routes	Up to 32,000
Total number of IPv6 Multicast routes	Up to 32,000
QoS ACL scale	Up to 16000
Security ACL scale	Up to 27000
FNF entries	Up to 98,000
DRAM	16 GB
Flash	16 GB
VLAN IDs	4094
Total Switched Virtual Interfaces (SVIs)	4000
Jumbo frame	9216 bytes
Relative humidity operating and nonoperating noncondensing	Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95%
NEBS criteria levels	NEBS: •Normal operating temperature range: 5C to 40C (up to 1829 meters (6000 ft) •Short term operating temperature range: -5C to 55C •Normal Relative Humidity range: 5% to 85% •Short term Relative Humidity range: 5% to 93% •Operating Altitude: up to 1829 m (6000 ft) at 55C •ETSI 300-019 Requirements are covered under GR-63-CORE with some deviations. •SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue
Altitude	Operation up to 13,000 feet at 40°C
MTBF (hours)	212,820
Dimensions (H x W x D)	1.73 x 17.5 x 21.2 in

Q&A

Q What is the Catalyst 9500 Series Switch?

A The Cisco® Catalyst® 9500 Series switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Cisco Catalyst 9500 Series is Cisco’s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The switches come with a 4-core x86, 2.4-GHz CPU, 16-GB DDR4 memory, and 16-GB internal storage.

Q What is Cisco Catalyst 9500?

A Catalyst 9500 Series switches support advanced routing and infrastructure services (such as Multiprotocol Label Switching [MPLS] Layer 2 and Layer 3 VPNs, Multicast VPN [MVPN], and Network Address Translation [NAT])

Q Is Cisco Catalyst 9500 a core switch?

A Catalyst 9500 fixed-core switches are a building block for Software-Defined Access, Cisco's leading enterprise architecture.
