C9400-SUP-1 - Cisco Catalyst 9400 Serise Supervisor Module|LinkNewNet

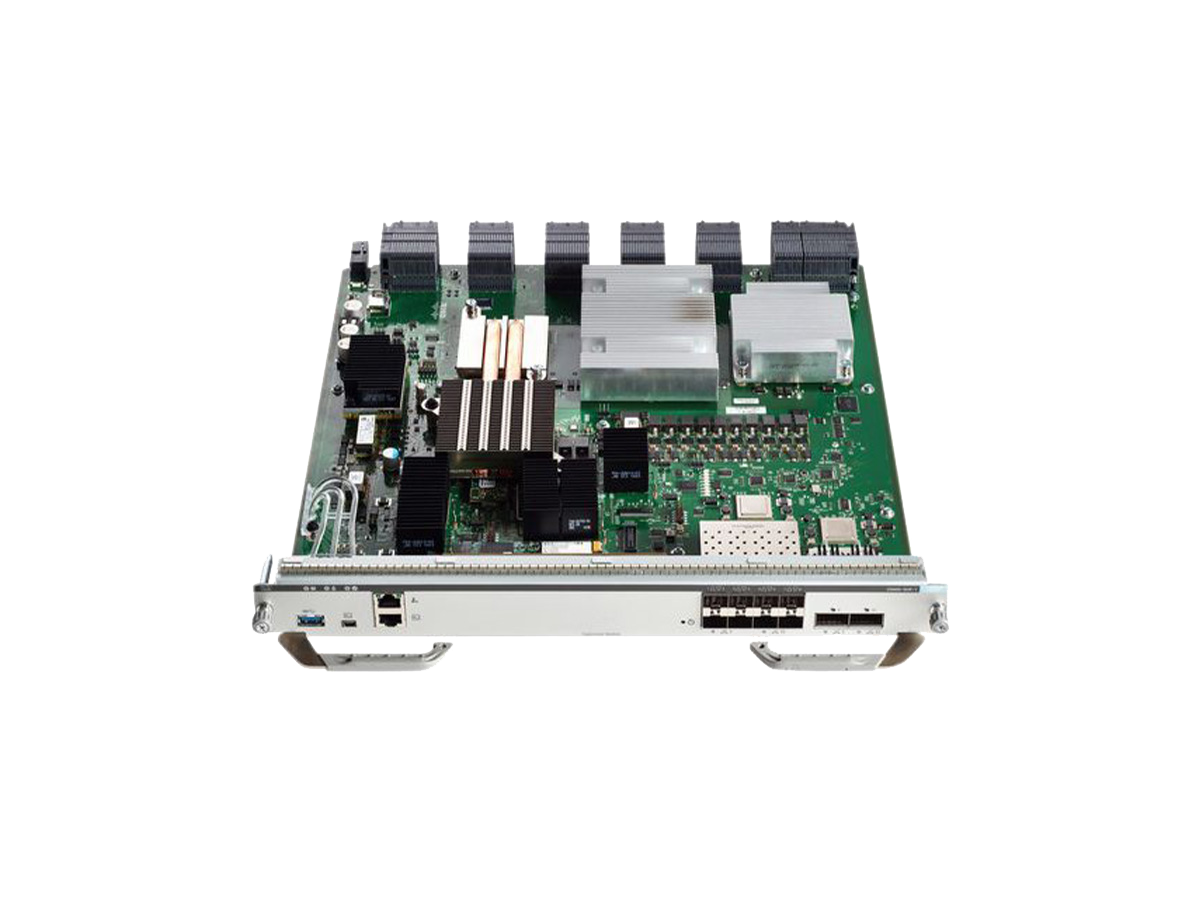

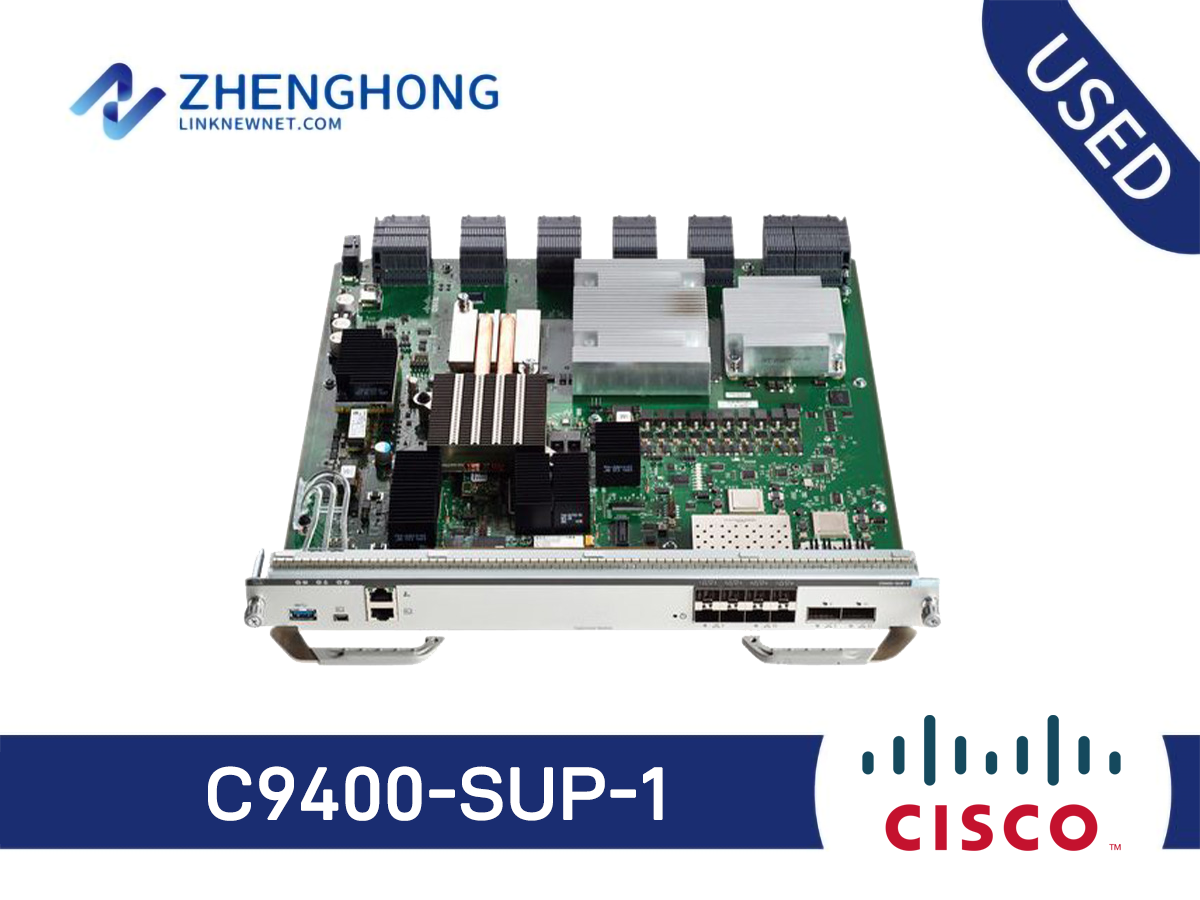

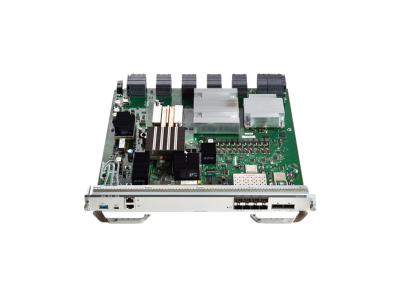

C9400-SUP-1 - Cisco Catalyst 9400 Serise Supervisor Module

Model: C9400-SUP-1

Detail: Cisco Catalyst 9400 Series Supervisor 1 Module

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Shipping: DHL, FedEx, UPS, etc

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

C9400-SUP-1 Specifications
Centralized wired capacity	Up to 1.44 Tbps
Per-slot switching Capacity	80 Gbps
Total number of MAC addresses	Up to 64K
Total number of IPv4 routes (ARP plus learned routes)	Up to 112K
FNF entries (v4/v6)	Up to 384K/192K
DRAM	16 GB
Flash	10 GB
VLAN IDs	4096
SSD Capacity	960 GB
Total Switched Virtual Interfaces (SVIs)	4,000
Jumbo frame	9216 bytes
Forwarding Rate	● 900 Mpps for IPv4 ● 450 Mpps for IPv6
IPv4 Routing Entries	Up to 112K
IPv6 Routing Entries	Up to 56K
Multicast Routes	Up to 16K
QoS Hardware Entries	Up to 18K
Security ACL Hardware Entries	Up to 18K
Packet Buffer	96 MB
Physical specifications	(H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) Weight: 10 lbs (4.5 kg)
Operating temperature	Normal Operating Temperature and Altitudes: ● 27° to 109°F (-5 to +45ºC), up to 6,000 feet (1800 m) ● 27° to 104°F (-5 to +40ºC), up to 10,000 feet (3000 m) ● Minimum ambient temperature for cold startup is 0ºC Short-Term Exceptional Conditions: ● 27° to 119°F (-5 to +55ºC), up to 6,000 feet (1800 m) ● 27° to 114°F (-5 to +50ºC), up to 10,000 feet (3000 m) ● *Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences
Storage temperature	40° to 158°F (-40° to 70°C)
Relative humidity operating and nonoperating noncondensing	10 to 95 percent, noncondensing
Altitude	-60 to 3000m
MTBF	302,000 hours

Q&A

What are common troubleshooting tips for the C9400-SUP-1?

Common troubleshooting for the C9400-SUP-1 includes checking connections, ensuring firmware is up to date, and consulting the module's LED indicators for status information.

What accessories are available for the C9400-SUP-1?

Accessories for the C9400-SUP-1 include power supplies, fan trays, additional network interface modules, and redundant supervisor engines.

How does the C9400-SUP-1 compare with similar products?

Compared to other modules, the C9400-SUP-1 offers superior security, scalability, and integrated services specifically designed for the Catalyst 9400 Series switches.

What are the notable features of the Cisco Catalyst 9400 Supervisor 1 module?

Notable features include enhanced security, high performance, redundant power configurations, and integrated services to support enterprise network requirements.

How cost-effective is the C9400-SUP-1 module for large enterprises?

The C9400-SUP-1 offers high performance and scalability, making it cost-effective for large enterprise networks.

What are the primary features of the C9400-SUP-1 module?

The C9400-SUP-1 features include high availability, advanced security, and integrated wireless controller capabilities.

What application scenarios are ideal for the C9400-SUP-1?

The C9400-SUP-1 is ideal for large campus networks, data centers, and high-demand networking environments.

How do I install the C9400-SUP-1 module?

Installation involves inserting the module into a compatible Cisco Catalyst 9400 Series chassis and securing it.

Does the C9400-SUP-1 module require regular upgrades?

Yes, regular firmware updates are recommended to ensure optimal performance and security.

Are there alternative products to the C9400-SUP-1?

Comparable alternatives include other modules in the Cisco Catalyst 9000 Series, such as the C9400-SUP-1XL.

What common troubleshooting steps are recommended for the C9400-SUP-1?

Common steps include checking connections, ensuring firmware is up-to-date, and consulting the Cisco support documentation.

What accessories are available for the C9400-SUP-1 module?

Accessories include compatible power supplies, fans, and chassis for the Cisco Catalyst 9400 Series.

How does the C9400-SUP-1 compare with the C9400-SUP-1XL?

The C9400-SUP-1XL offers higher performance and additional features compared to the standard C9400-SUP-1.

Is the C9400-SUP-1 suitable for small businesses?

The C9400-SUP-1 is more suited for medium to large enterprises due to its advanced features and scalability.

How cost-effective is the C9400-SUP-1 module?

The C9400-SUP-1 is cost-effective due to its high performance, reliability, and enhanced security features, offering great value for system integrators and distributors.

What are the key characteristics of the C9400-SUP-1?

The C9400-SUP-1 features advanced security, high scalability, and integrated services, making it ideal for modern enterprise networks.

What application scenarios is the C9400-SUP-1 suitable for?

The C9400-SUP-1 is suitable for large enterprise networks, data centers, and complex network infrastructures requiring high availability and security.

How do I install the C9400-SUP-1 module?

Install the C9400-SUP-1 module by inserting it into the appropriate slot in the Catalyst 9400 Series switch and securing it with screws. Refer to the user manual for detailed instructions.

Does the C9400-SUP-1 require firmware upgrades?

Periodic firmware upgrades are recommended to ensure optimal performance and security for the C9400-SUP-1 module. Check Cisco's website for updates.
