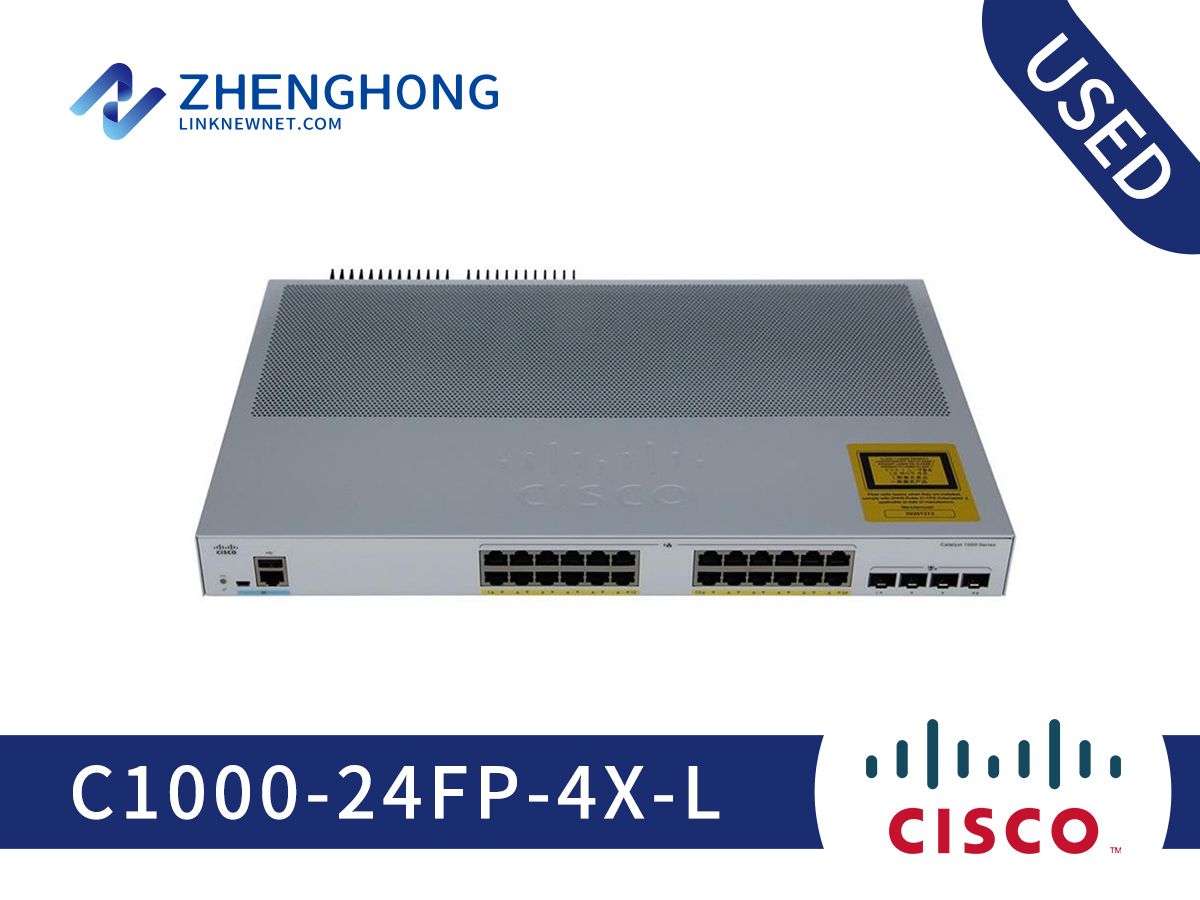

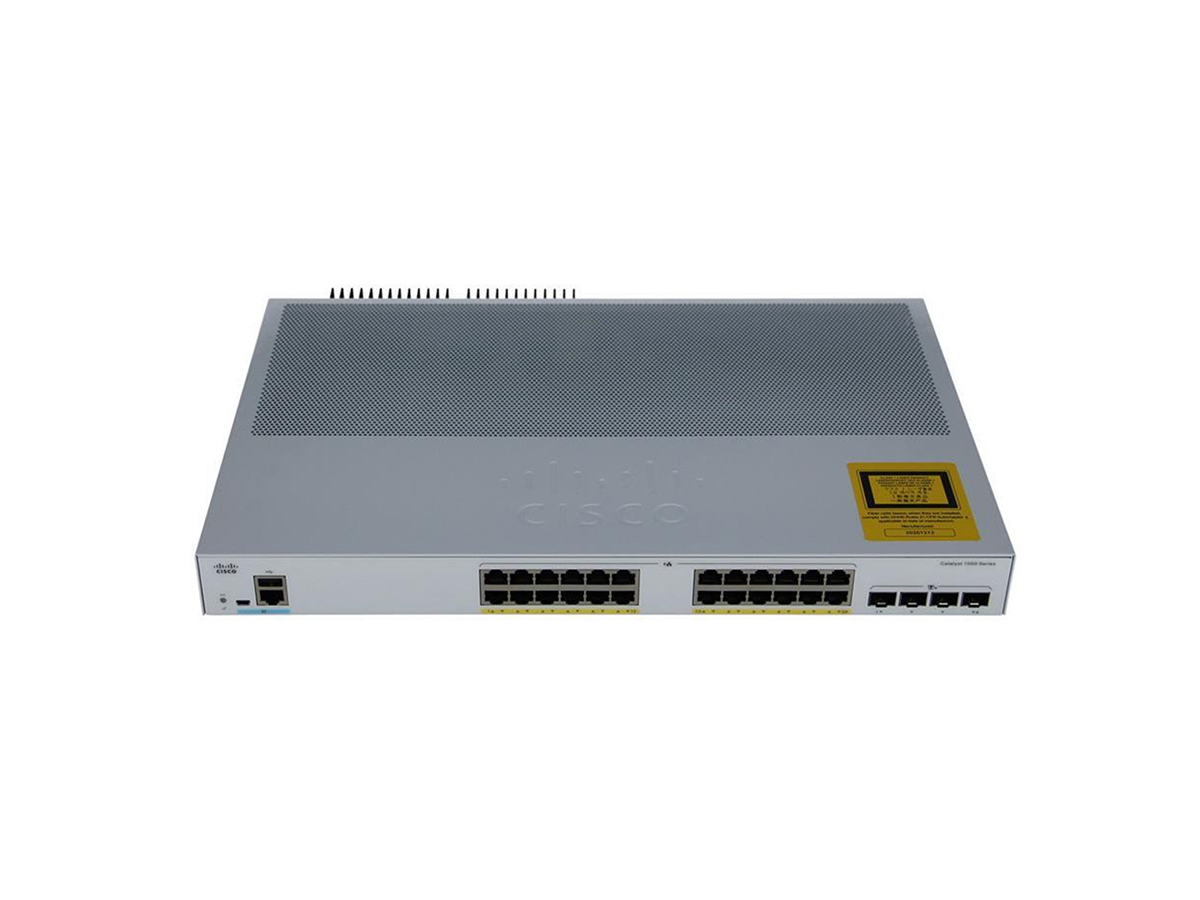

Cisco Catalyst 1000 Series Switch C1000-24FP-4X-L Overview
Cisco Catalyst 1000 Series Switch C1000-24FP-4X-L is a genuine campus and data-center switching product from Cisco, a leading enterprise networking vendor whose Catalyst, Nexus and ISR families power campus, data-center and branch networks worldwide. Belonging to the Cisco Catalyst 1000 Series family, the C1000-24FP-4X-L unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is suited to access-layer and edge deployments, where reliable wiring-closet operation and straightforward management are the priorities.
From a specification standpoint, it offers 24 ports for client, server or uplink connectivity; packet forwarding up to 41.67 Mpps; 370 W PoE budget. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Cisco hardware already running in the environment.
Typical deployments include access-layer deployments for user, phone and AP connectivity, distribution and core aggregation in campus networks, and top-of-rack and end-of-row switching in data centers. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “24x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4x 10G SFP+ uplinks”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the C1000-24FP-4X-L. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise Campus
High-density ports power users, phones and APs at the access layer.
Branch Office
Stackable units simplify branch deployment and management.
Wireless & IoT
PoE budget supports dense wireless and IoT endpoints.
Buying a Pre-Owned C1000-24FP-4X-L
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
C1000-24FP-4X-L Specification | |
Description | 24 x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4x 10G SFP+ uplinks |
Gigabit Ethernet ports | 24 |
Uplink interfaces | 4 SFP+ |
PoE+power budget | 370W |
Fanless | N |
Dimensions (WxDxH in inches) | 17.5 x 13.59 x 1.73 |
Memory and processor | |
CPU | ARM v7 800 MHz |
DRAM | 512 MB |
Flash memory | 256 MB |
Performance | |
Forwarding bandwidth | 64 Gbps |
Switching bandwidth | 128 Gbps |
Forwarding rate(64—byte L3 packets) | 41.67 Mpps |
MTU-L3 packet | 9198 bytes |
Jumbo Ethernet frame | 10,240 bytes |
Dying Gasp | Yes |
MTBF in hours (data) | 2,026,793 |
MTBF in hours (PoE) | 698,220 |
MTBF in hours (Full PoE) | 698,220 |
Environmental | |
Operating altitude | 10,000 ft (3,000m) |
Operating relative humidity | 5% to 90% at 40C |
Storage temperature | -13 to 158F (-25 to 70C) |
Storage altitude | 15,000 ft (4500m) |
Storage relative humidit | 5% to 95% at 65C |
Connectors and interfaces | |
Ethernet interfaces
| * 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted Pair (UTP) cabling * 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling * 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling * 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
Indicator LEDs
| * Per-port status: link integrity, disabled, activity * System status: system |
Console cables
| * CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45 * CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors |
Power
| * Use the supplied AC power cord to connect the AC power connector to an AC power outlet * Models have external power supply |
