C3945-VSEC-CUBE/K9 - Cisco 3900 Series Integrated Service Router|LinkNewNet

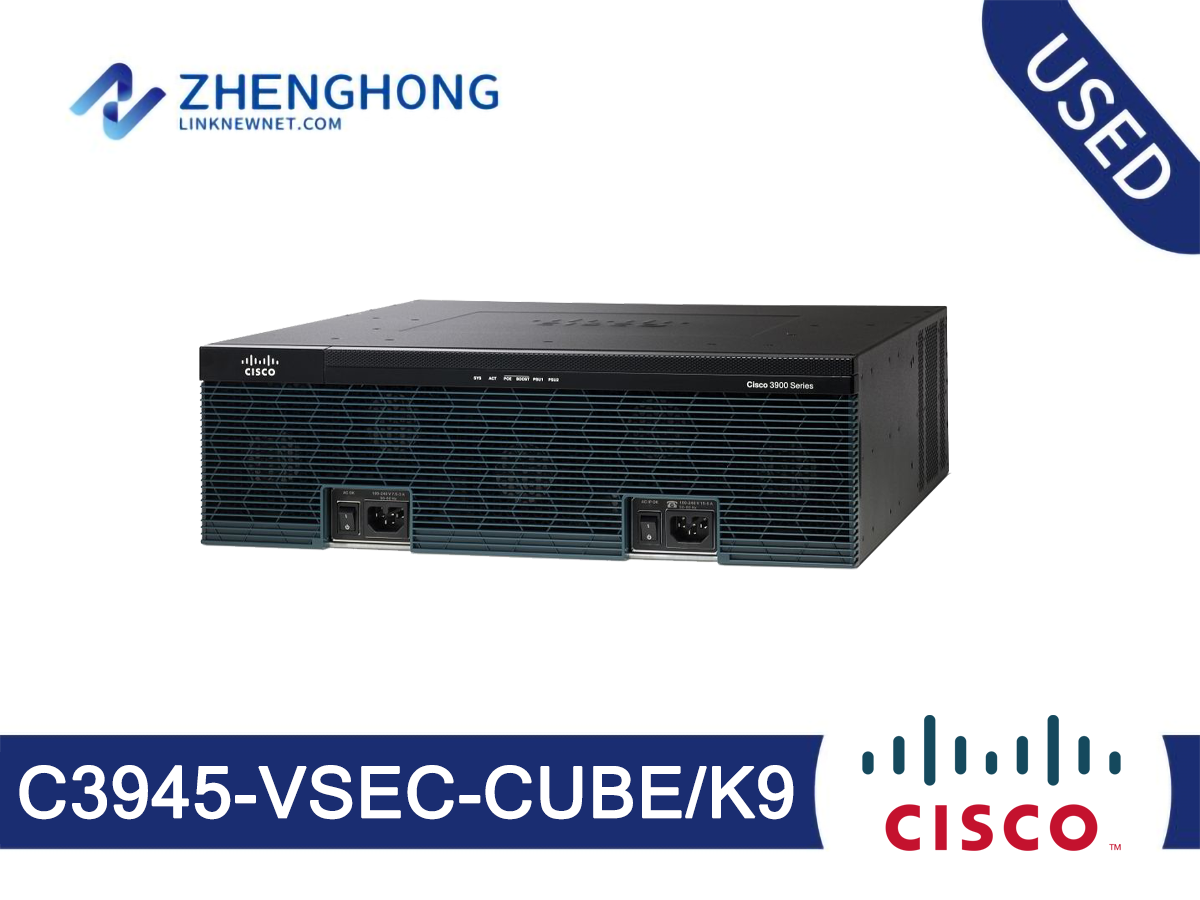

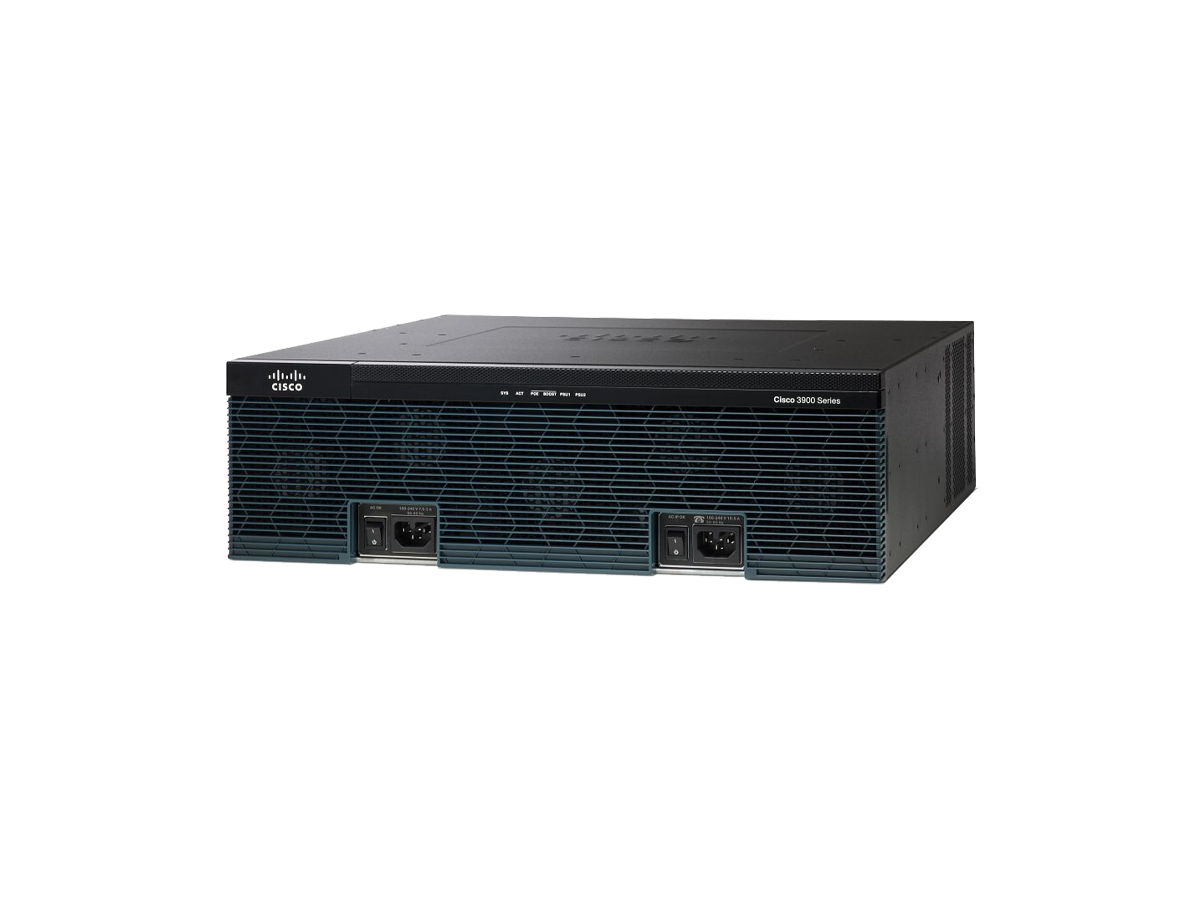

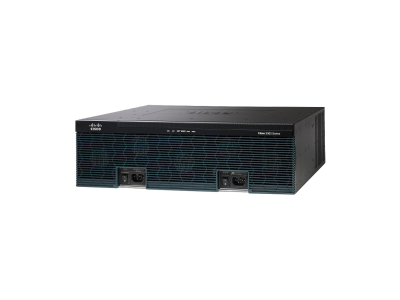

C3945-VSEC-CUBE/K9 - Cisco 3900 Series Integrated Service Router

Model: C3945-VSEC-CUBE/K9

Detail: C3945 VSEC CUBE Bundle, PVDM3-64, UC SEC Lic, FL-CUBEE-25

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

IP Telephony
C3945-VSEC-CUBE/K9 Specification
Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	C3945-VSEC-CUBE/K9
Product Type	Router
Form Factor	Desktop - modular - 3U
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol	TCP/IP, UDP/IP, RSVP, IPSec, PPPoE, L2TPv3
Routing Protocol	OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)
Remote Management Protocol	SNMP, RMON
Encryption Algorithm	SSL
Features	Firewall protection, NAT support, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN)
Compliant Standards	IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag
DRAM Memory	1 GB (installed) / 2 GB (max)
Flash Memory	256 MB (installed) / 8 GB (max)
LED Status Lights Indicators	Link activity, power
VoIP Protocols	H.323, SIP
Voice Codecs	G.711, G.722, G.723, G.728, G.729, G.729a, G.729ab, G.711u, G.711a, G.726, iLBC
IP Telephony Features	Call forwarding, automatic fax/modem detection and pass-through, call hold, call transfer, DTMF generation/detection
Connectivity Slots
Router Interfaces	3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 Management : 1 x console - RJ-45 Management : 1 x console - mini-USB Type B Serial : 1 x auxiliary - RJ-45 USB : 2 x 4 pin USB Type A 2 x SFP (mini-GBIC)
Expansion Slots Total (Free)	4 ( 4 ) x HWIC 3 ( 2 ) x PVDM 2 ( 1 ) x CompactFlash Card 1 ( 1 ) x expansion slot
Power Supply
Power Device	Power supply - internal
Voltage Required	AC 120/230 V ( 50/60 Hz )
Dimensions / Weight / Miscellaneous
Approximate Width	18.7 in
Depth	17.2 in
Height	5.2 in
Weight	39 lbs
