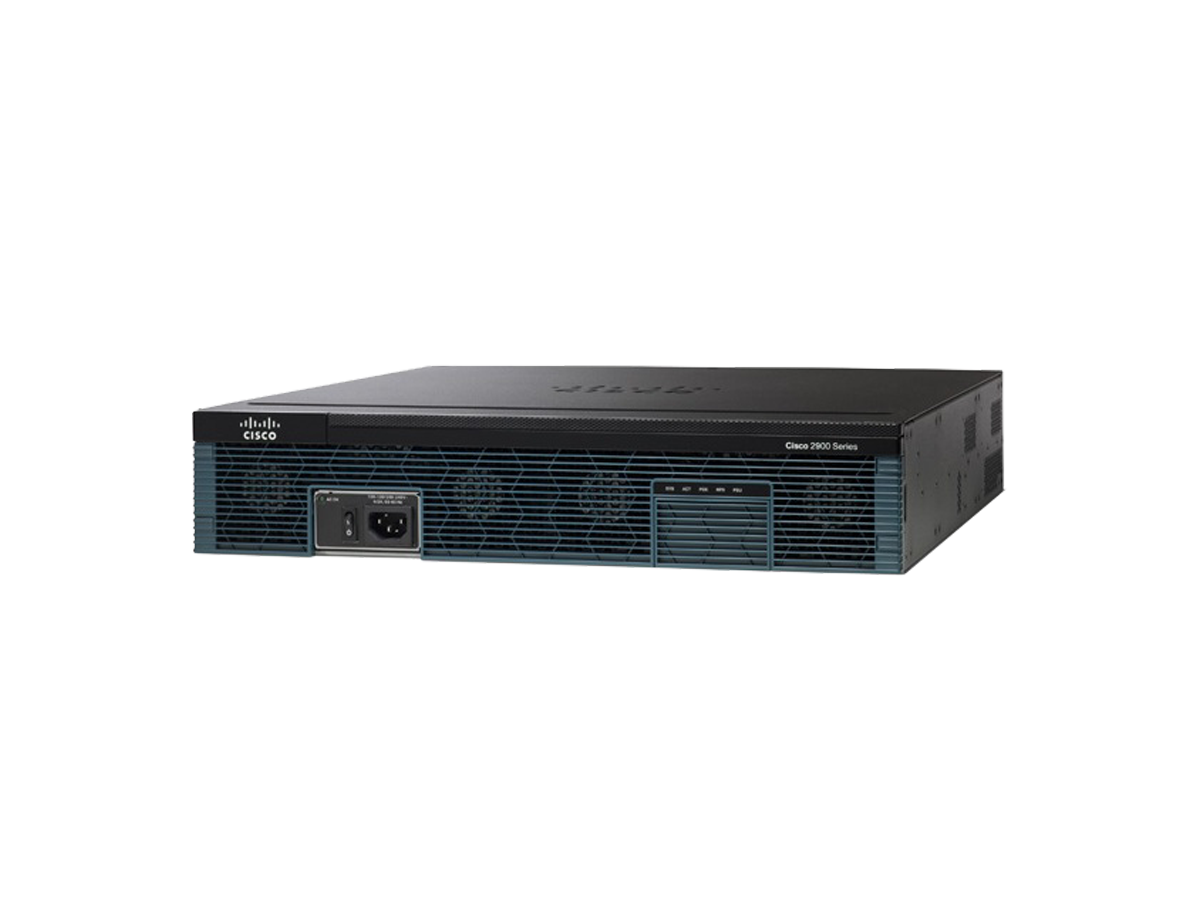

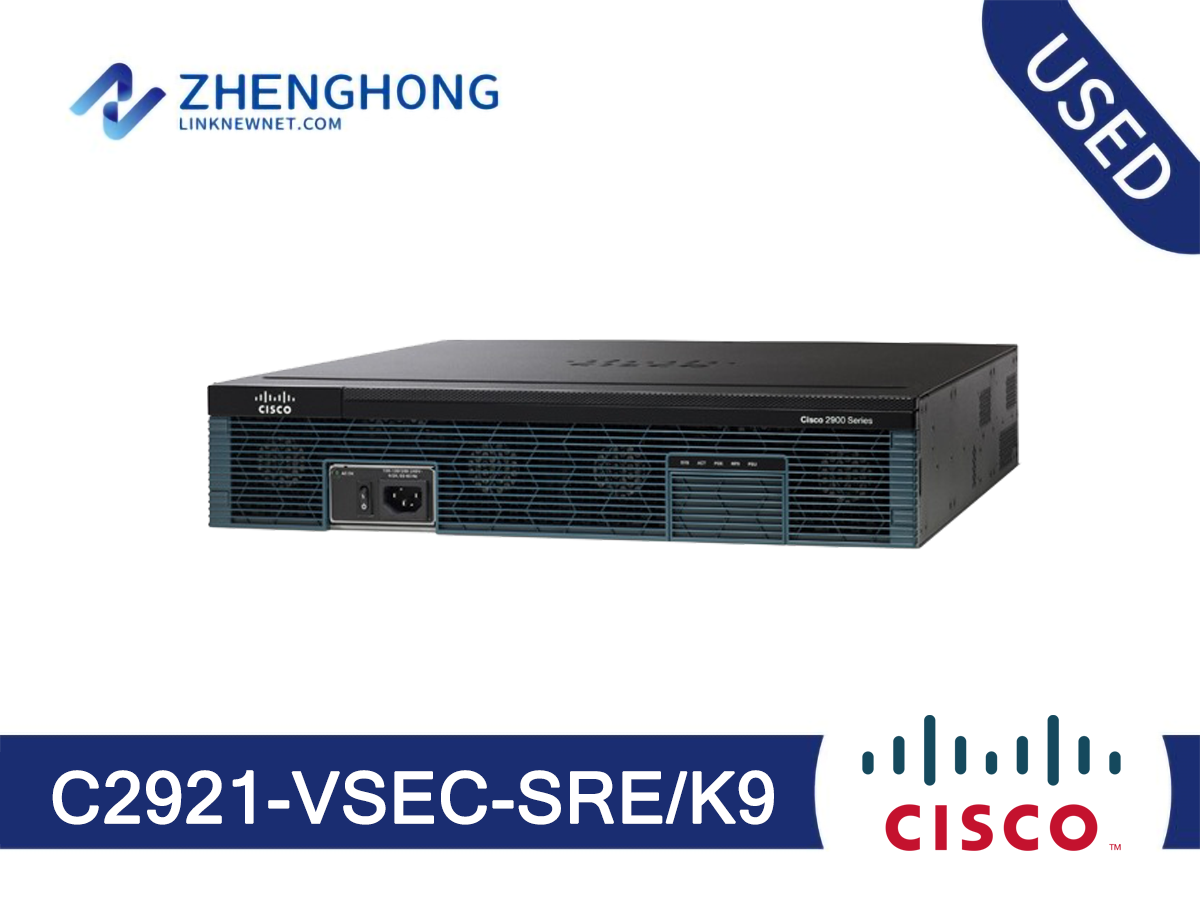

C2921-VSEC-SRE/K9 Specifications | |
Manufacturer | Cisco Systems, Inc |
Manufacturer Part Number | C2921-VSEC-SRE/K9 |
Product Type | Router |
Bundle | Cisco 2921 SRE Bundle, SRE 700, PVDM3-32, UC, SEC Lic. PAK |
Form Factor | External - modular - 2U |
Dimensions (WxDxH) | 43.8 cm x 47 cm x 8.9 cm |
DRAM Memory | 2 GB (installed) / 2 GB (max) |
Flash Memory | 512 MB (installed) / 8 GB (max) |
Hard Drive | 500 GB |
Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Network / Transport Protocol | L2TP, IPSec, PPPoE, PPPoA |
Remote Management Protocol | SNMP, RMON |
Digital Ports Qty | 32 |
Features | Firewall protection, Layer 3 switching, Layer 2 switching, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN) |
Compliant Standards | IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag |
Power | AC 120/230 V ( 47 - 63 Hz ) |
