CISCO2911/K9 - Cisco 2900 Series Integrated Service Router|LinkNewNet

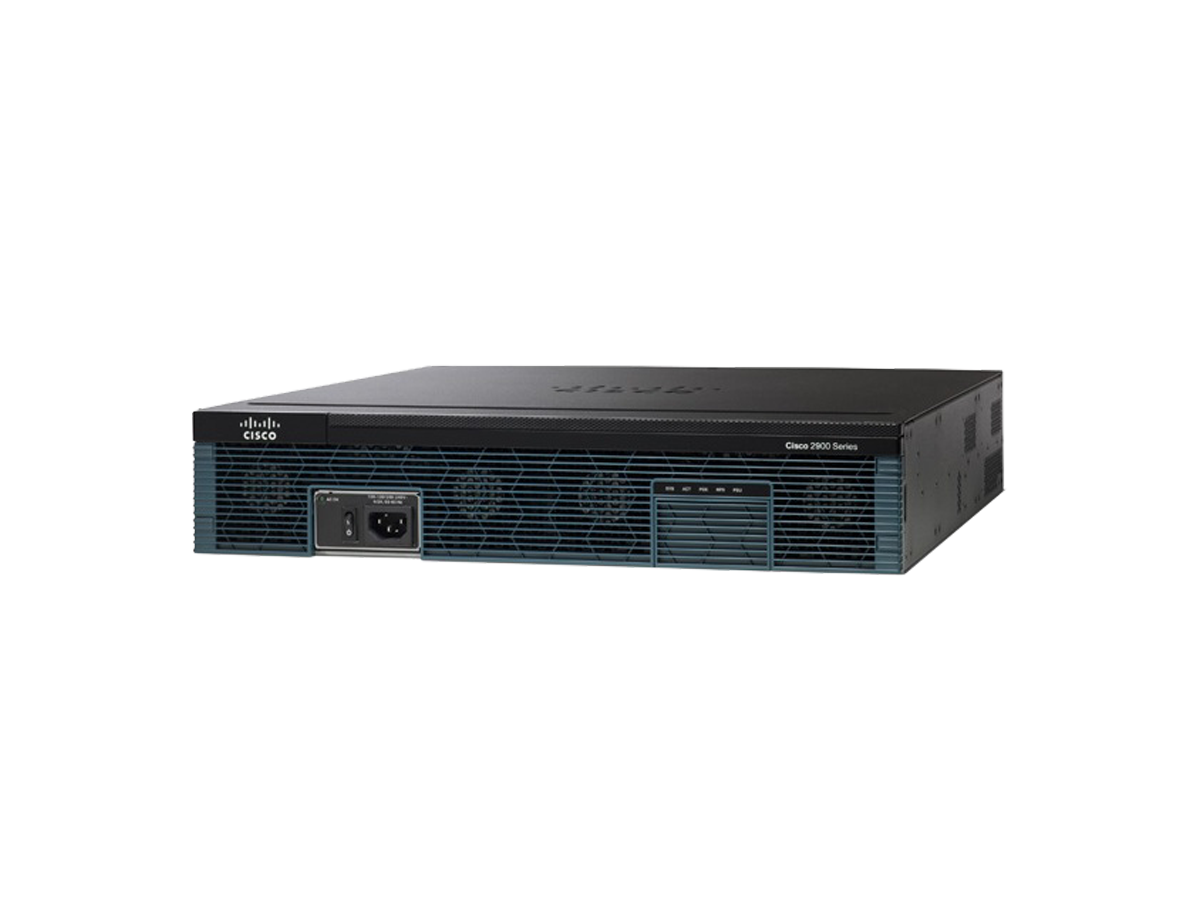

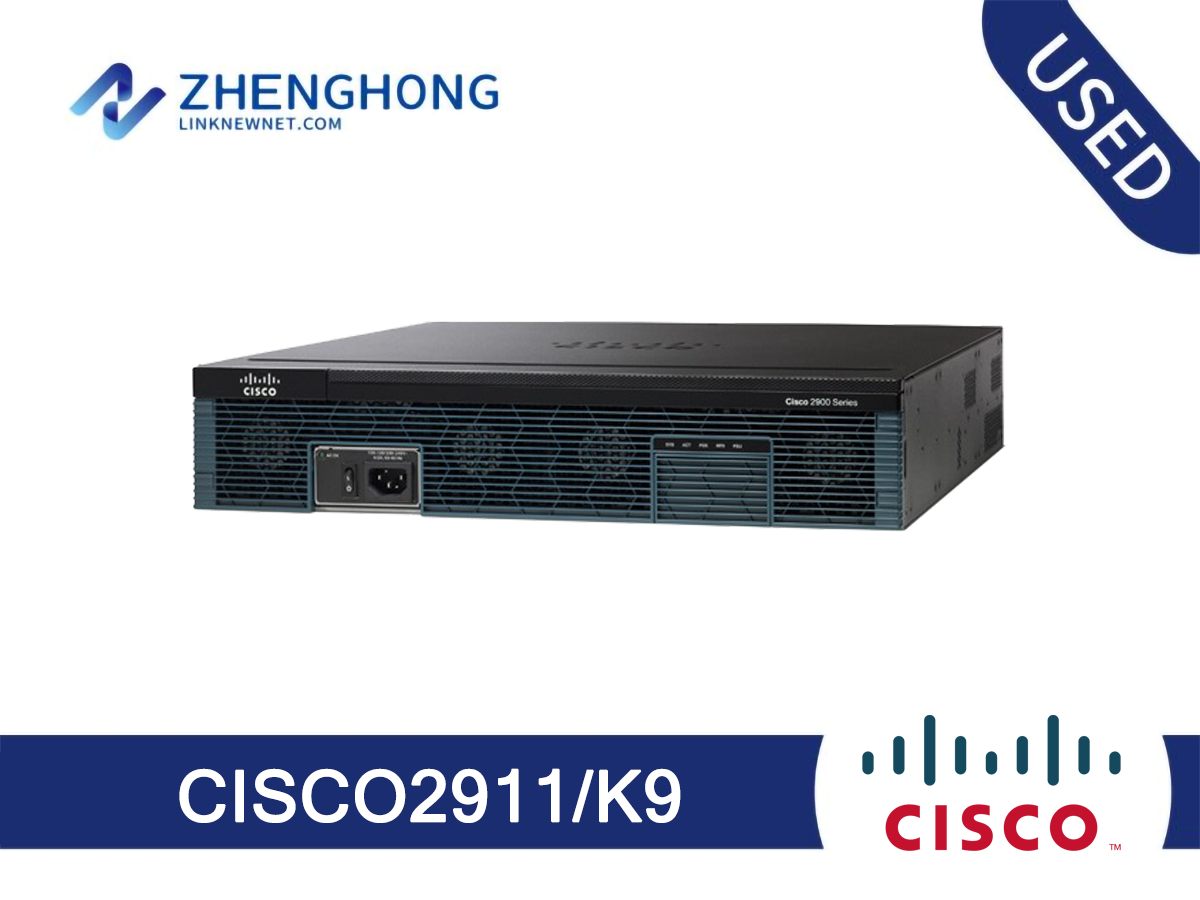

CISCO2911/K9 - Cisco 2900 Series Integrated Service Router

Model: CISCO2911/K9

Detail: Cisco 2911 router w/3 GE,4 EHWIC,2 DSP,1 SM,256MB CF,512MB DRAM,IPB

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags： 2U AC Wired

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

CISCO2911/K9 Specification
General
Device Type	Router
Enclosure Type	Rack-mountable - modular - 2U
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol	IPSec, L2TPv3
Routing Protocol	OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), IPv4-to-IPv6 Multicast
Remote Management Protocol	SNMP, RMON, TR-069
Features	Firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Web Services Management Agent (WSMA), NetFlow
Compliant Standards	IEEE 802.3, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824
RAM	512 MB (installed) / 2 GB (max)
Flash Memory	256 MB (installed) / 8 GB (max)
Status Indicators	Link activity, power
Expansion and Connectivity
Interfaces	3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Management : 1 x console - RJ-45 ¦ Management : 1 x console - mini-USB Type B ¦ Serial : 1 x auxiliary - RJ-45 ¦ USB : 2 x 4 pin USB Type A
Expansion Slot(s)	4 (total) / 4 (free) x EHWIC ¦ 2 (total) / 1 (free) x CompactFlash Card ¦ 1 (total) / 1 (free) x expansion slot ¦ 1 (total) / 1 (free) x service module (SM) ¦ 2 (total) / 2 (free) x PVDM
Power
Power Device	Power supply - internal
Voltage Required	AC 120/230 V ( 50/60 Hz )
Miscellaneous
Dimensions (W × D × H)	17.2 × 12 × 3.5 in (43.8 x 30.5 x 8.9 cm)
Package Weight	35.6 lbs (16.15 Kg)
Weight	18.1 lbs (8.21 Kg)
Rack Mounting Kit	N/A
Compliant Standards	CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, AS/NZS 3548 Class A, CAN/CSA C22.2 No. 60950-1, VCCI V-3, EN 61000, TIA/EIA/IS-968
Software / System Requirements
OS Provided	Cisco IOS IP Base
Manufacturer Warranty
Service & Support	90 days warranty

Q&A

Q How do I install the CISCO2911/K9 in my network?

A Installation involves mounting in a rack or shelf, connecting network cables to the appropriate ports, configuring settings via the CLI or web-based interface.

Q Are there any alternative products to the CISCO2911/K9?

A For different needs or budgets, alternatives include other models in the Cisco 2900 series or considering the Cisco 3900 series for higher performance needs.

Q What module will replace the Cisco AIM-VPN Module?

A There is currently no plan for any VPN acceleration ISM module. The integrated services routers generation 2 include built-in hardware acceleration for encrypted traffic, and in effect they already include AIM-VPN functions as part of the default platform hardware.
