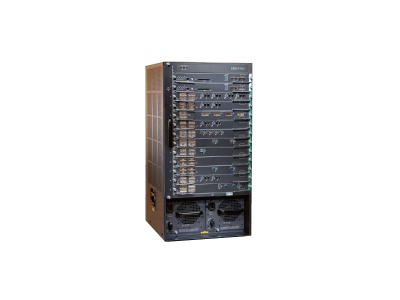

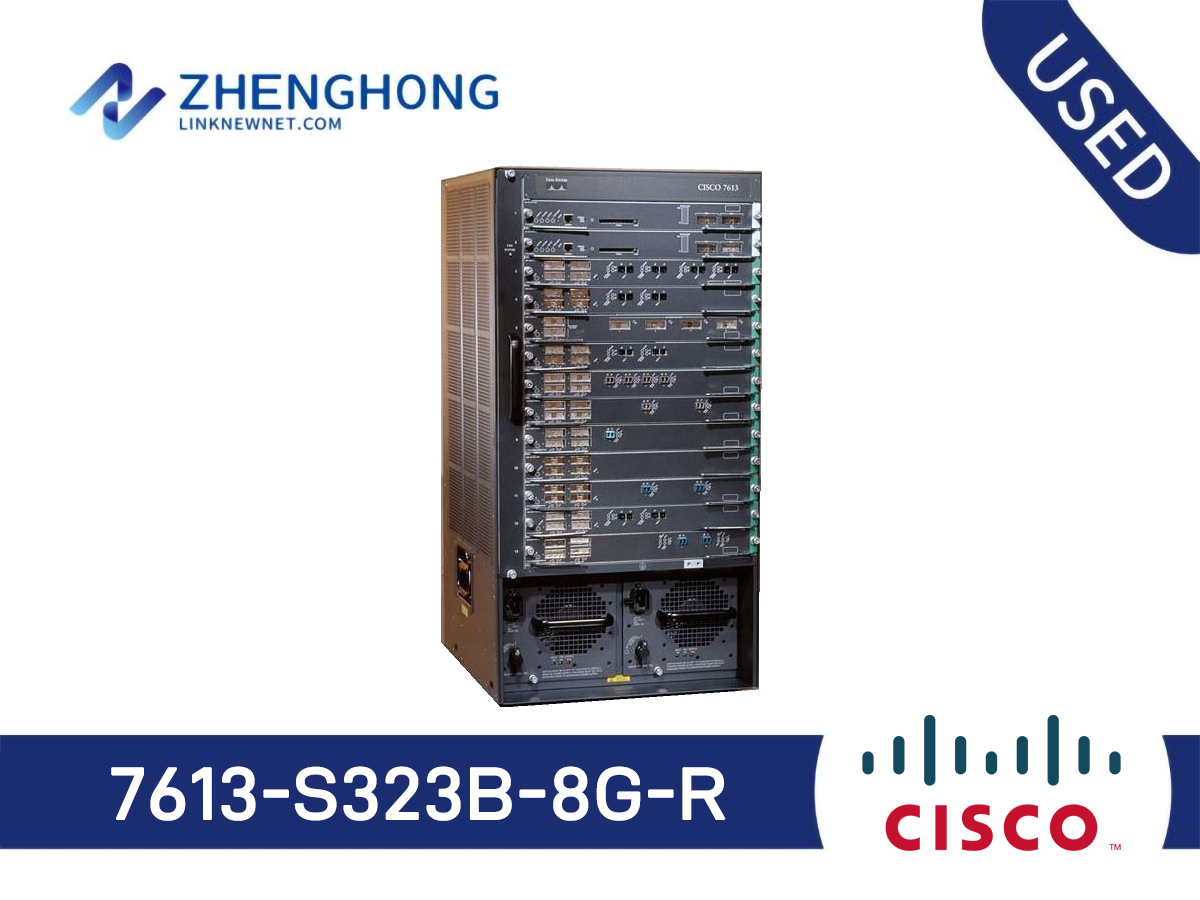

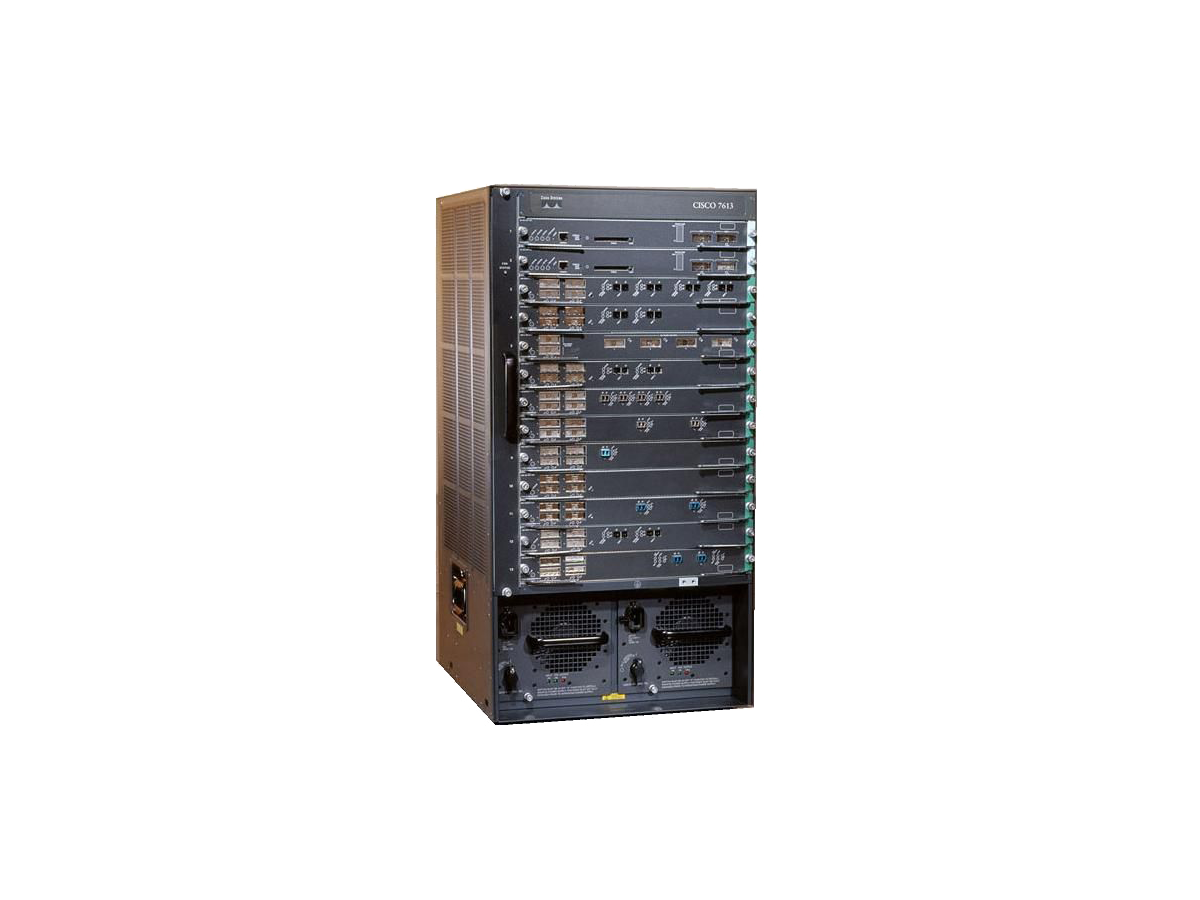

7613-S323B-8G-R - Cisco 7613 Router Overview
7613-S323B-8G-R - Cisco 7613 Router is a genuine edge and wide-area routing product from Cisco, a leading enterprise networking vendor whose Catalyst, Nexus and ISR families power campus, data-center and branch networks worldwide. Belonging to the Cisco family, the 7613-S323B-8G-R unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
This unit follows the original factory specification for the Cisco family, covering its intended role without compatibility surprises. Standard mounting, cabling and management practices apply, and it interoperates with surrounding hardware using the same procedures as other Cisco equipment already deployed in the network.
Typical deployments include branch and campus WAN connectivity, service-provider edge and MPLS deployments, and secure remote-site interconnect. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Cisco 7613 Chassis, 13-slot, Redundant SUP32-8GE-3B and PS”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the 7613-S323B-8G-R. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise WAN
Branch and campus routing with advanced services.
Service Provider
Edge routing for ISP and MPLS deployments.
Data Center
Interconnect core and aggregation layers reliably.
Buying a Pre-Owned 7613-S323B-8G-R
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
7613-S323B-8G-R Specification | |
| General | |
| Device Type | Router - with 2 x Cisco Supervisor Engine 32 with 8 ports Gigabit Ethernet, PFC3B, and MSFC2A |
| Enclosure Type | Rack-mountable - modular - 18U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Routing Protocol | IGMP, PIM-SM, PIM-DM, IGMPv3, GRE, PIM-SSM, Multiprotocol BGP |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3 |
| Features | DHCP support, NAT support, VPN support, ARP support, MPLS support, VLAN support, IPv6 support, Access Control List (ACL) support |
| Compliant Standards | IEEE 802.3, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ak, NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, AS/NZ 3548 Class A, CSA C22.2 No. 60950-00, ICES-003 Class A |
| RAM | 512 MB (installed) / 1 GB (max) |
| Flash Memory | 256 MB (installed) / 1 GB (max) |
| Expansion / Connectivity | |
| Interfaces | 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A ¦ USB 2.0: 1 x 4 pin USB Type B ¦ 8 x SFP (mini-GBIC) |
| Expansion Slots | 13 (total) / 11 (free) x expansion slot |
| Installed Modules Qty (Max) | 2 (installed) / 13 (max) |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Power Redundancy | Yes |
| Installed Qty | 2 (max) |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Dimensions & Weight | |
| Width | 16.7 in |
| Depth | 17.6 in |
| Height | 32.4 in |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% |
7613-S323B-8G-R - Product Notes
This listing is a specific SKU variant of the 7613-S323B-8G-R family. Review the specifications above and confirm compatibility with your existing infrastructure, including software version, mounting, and interface requirements, before ordering.
For volume requirements we offer configuration checks and staged delivery options. Our team can confirm revision levels, software compatibility, and lead time before you place an order.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation.
7613-S323B-8G-R - Product Notes
This listing is a specific SKU variant of the 7613-S323B-8G-R family. Review the specifications above and confirm compatibility with your existing infrastructure, including software version, mounting, and interface requirements, before ordering.
For volume requirements we offer configuration checks and staged delivery options. Our team can confirm revision levels, software compatibility, and lead time before you place an order.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation.
7613-S323B-8G-R - Product Notes
This listing is a specific SKU variant of the 7613-S323B-8G-R family. Review the specifications above and confirm compatibility with your existing infrastructure, including software version, mounting, and interface requirements, before ordering.
For volume requirements we offer configuration checks and staged delivery options. Our team can confirm revision levels, software compatibility, and lead time before you place an order.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation.
7613-S323B-8G-R - Cisco Series Notes
This listing is part of the Cisco enterprise networking product family, sourced and tested by LinkNewNet for enterprise deployment. Cisco router is positioned at the WAN edge, branch, or service-provider aggregation point. It provides routing, VPN, QoS and security services, and integrates with Cisco IOS-XE / IOS-XR management.
Deployment guidance: When planning this 7613-S323B-8G-R unit into a network, confirm the software image (IOS/IOS-XE/NX-OS) required, the power and cooling profile, and the upstream/downstream interface types that match your existing infrastructure. For a like-for-like refresh, match the feature set of the units already in service so management and automation behave consistently.
Our Cisco reconditioning process: Every pre-owned Cisco unit at LinkNewNet passes a documented reconditioning flow before dispatch - visual inspection, internal cleaning, firmware verification, port-by-port testing, and configuration reset to factory defaults. This ensures the unit you receive operates reliably and integrates cleanly with your existing Cisco management tools.
Related models in this family: CISCO 7606, CISCO7606, 7609S-SUP720BXL-P, CISCO7609=, 7609-2SUP7203B-2PS. Compare specifications to confirm the right port density, feature set and uplink options for your deployment.
Model code: R = Router / RF interface - this suffix indicates the feature set, power, or regulatory variant of the 7613-S323B-8G-R, which affects software licensing and regional compliance.
