7613-RSP720CXL-R - Cisco 7613 Router|LinkNewNet

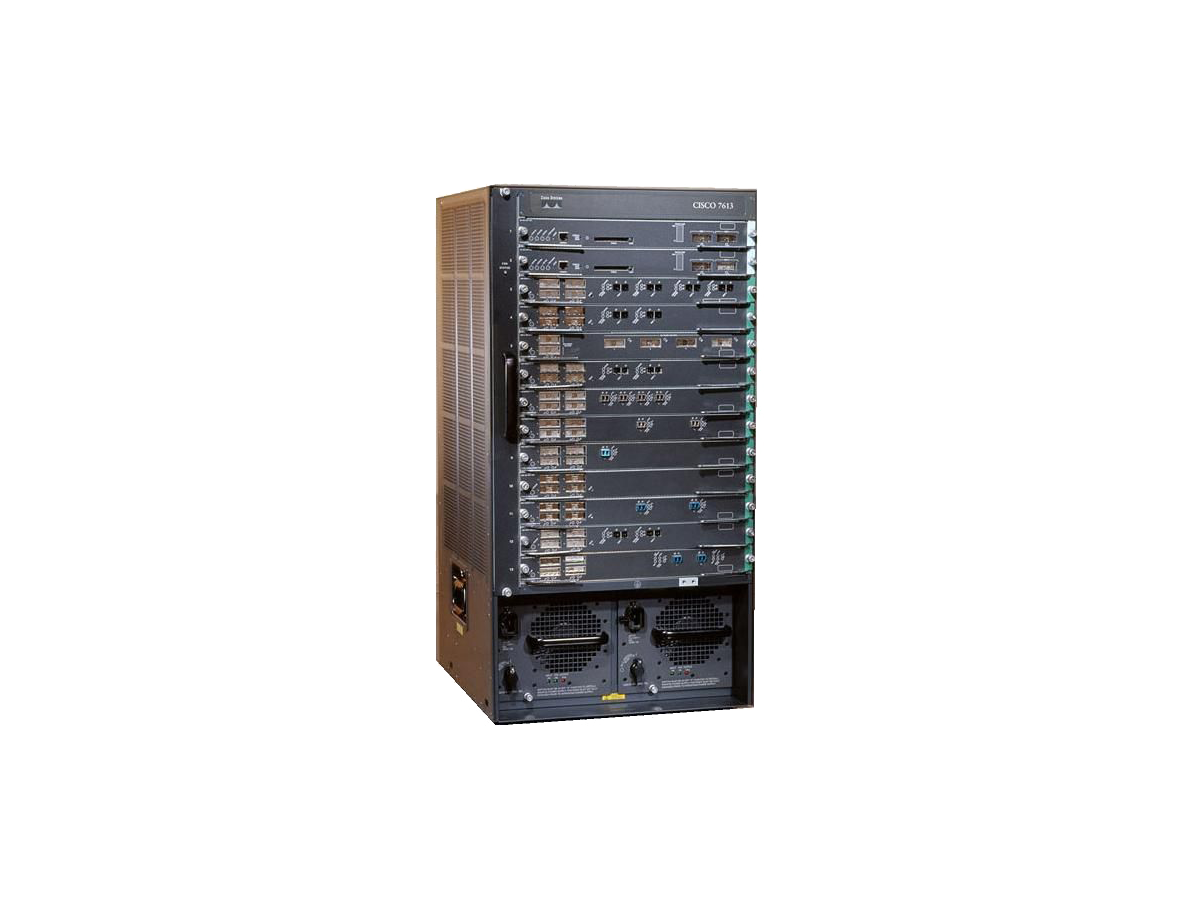

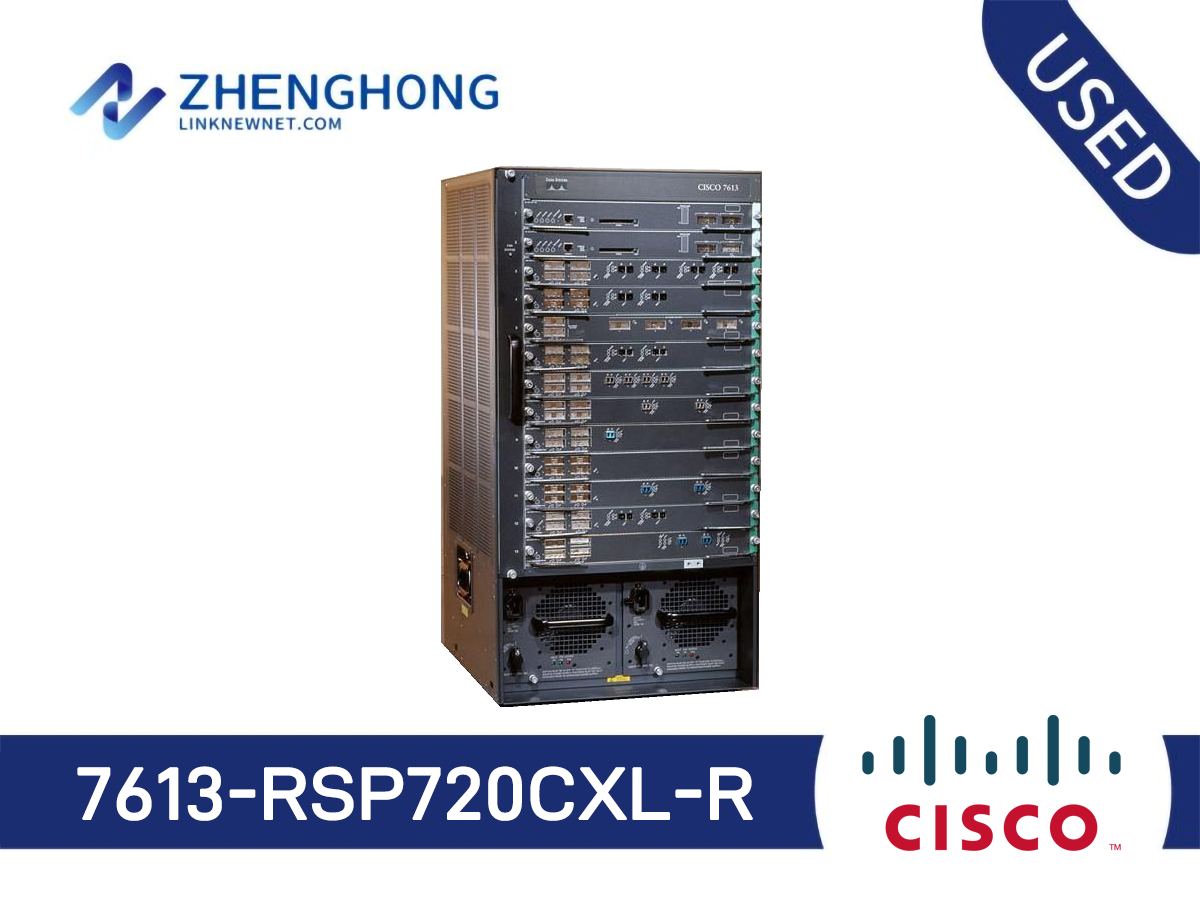

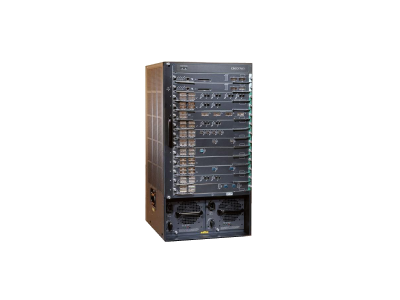

7613-RSP720CXL-R - Cisco 7613 Router

Model: 7613-RSP720CXL-R

Detail: Cisco 7613 Chassis,13-slot,Redundant System,2RSP720-3CXL,2PS

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

7613-RSP720CXL-R Specifications
Brand	Cisco
Model	7613-RSP720CXL-R (USED)
Chassis	13-slot
Redundant System	Yes
Route Switch Processors	2 x RSP720-3CXL
Power Supply Units	2
Forwarding Rate	720 Gbps
Height	24.36 inches (61.9 cm)
Width	17.25 inches (43.8 cm)
Depth	18.98 inches (48.2 cm)
DC Input Voltage	-48 to -60 VDC
AC Input Voltage	100-240 VAC
AC Frequency	50-60 Hz
Redundant Power Supply	Yes
Operating Temperature Range	32 to 104°F (0 to 40°C)
Relative Humidity	10% to 90% non-condensing
Management Protocols	SNMP, RMON, Telnet, SSH
Software	Cisco IOS
Layer Supported	Layer 2-3
Interface Types	Gigabit Ethernet, Fast Ethernet

Q&A

What are common troubleshooting steps for the Cisco 7613-RSP720CXL-R?

Common troubleshooting includes verifying power connections, checking system logs for errors, and using Cisco's diagnostic tools to identify and resolve issues.

What accessories are available for the Cisco 7613-RSP720CXL-R?

Accessories include additional network modules, cables, rack mounting kits, and spare power supplies.

How does the Cisco 7613-RSP720CXL-R compare to other Cisco routers?

The 7613-RSP720CXL-R is known for its high port density and redundancy features, making it suitable for demanding environments compared to other models like the Cisco 6500 series.

Is the Cisco 7613-RSP720CXL-R compatible with current networking standards?

Yes, the Cisco 7613-RSP720CXL-R supports a wide range of networking standards and protocols, making it suitable for integration into modern networks.

How cost-effective is the 7613-RSP720CXL-R?

The 7613-RSP720CXL-R offers a budget-friendly option for high-capacity networking, providing robust performance at a fraction of the cost of new units.

What are the main features of the Cisco 7613-RSP720CXL-R?

The Cisco 7613-RSP720CXL-R features a 13-slot chassis, redundant system design, 2 RSP720-3CXL route processors, and 2 power supplies, ensuring high availability and fault tolerance.

What are common application scenarios for the 7613-RSP720CXL-R?

Common applications include large enterprise networks, data centers, and network aggregation points, requiring high performance and redundancy.

How do I install the Cisco 7613-RSP720CXL-R?

Installation involves mounting the chassis in a standard rack, connecting the power supplies, and inserting the network modules and route processors according to Cisco's guidelines.

Does the 7613-RSP720CXL-R require software upgrades?

Yes, it is advisable to check for the latest IOS updates from Cisco to ensure optimal performance and security for the 7613-RSP720CXL-R.

Are there alternative products to the 7613-RSP720CXL-R?

Alternatives include other Cisco 7600 series routers or newer models like the Cisco ASR 9000 series, depending on specific network requirements.
