7606S-RSP7C-10G-P - Cisco 7606 Router|LinkNewNet

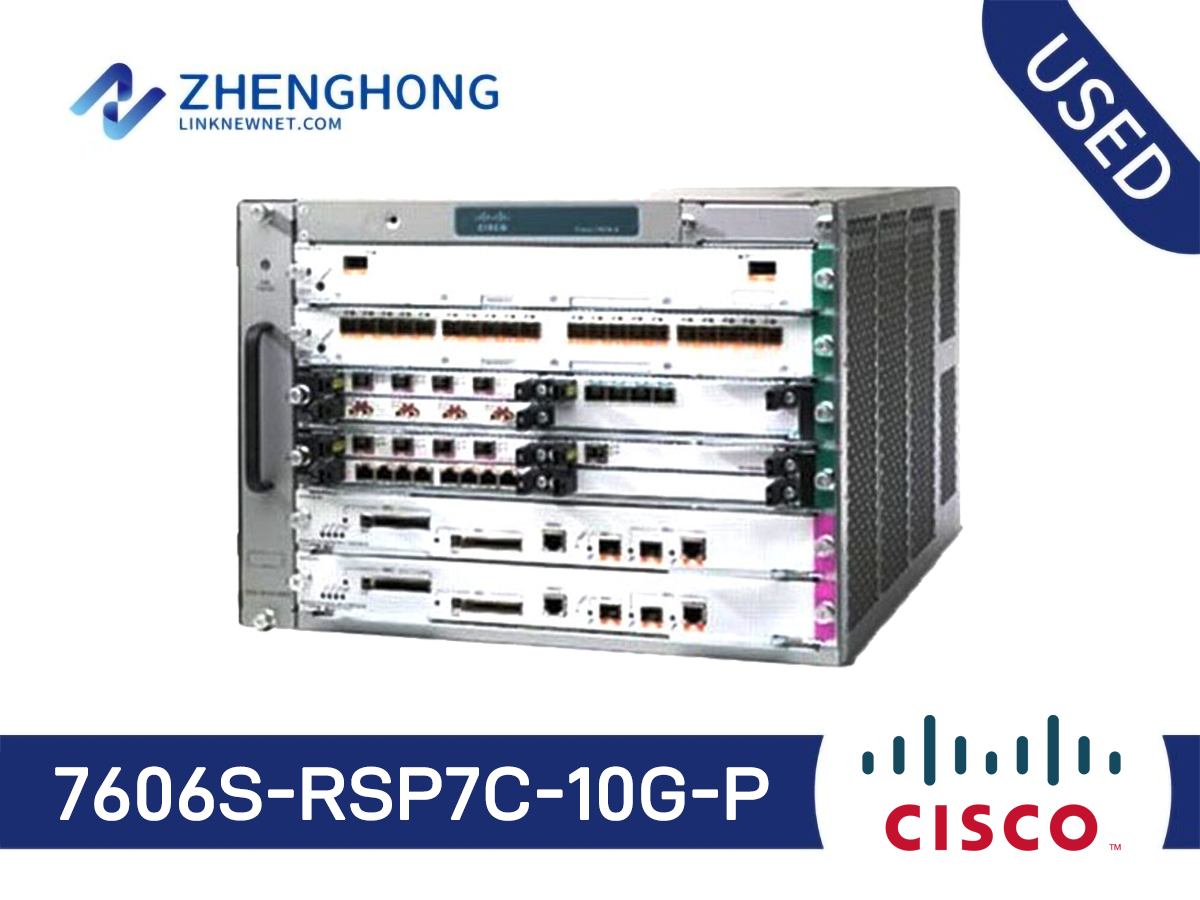

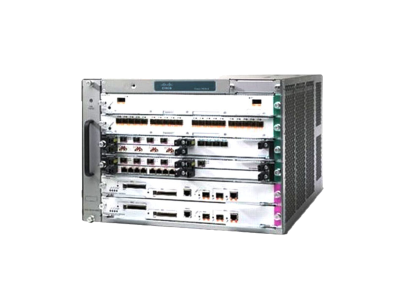

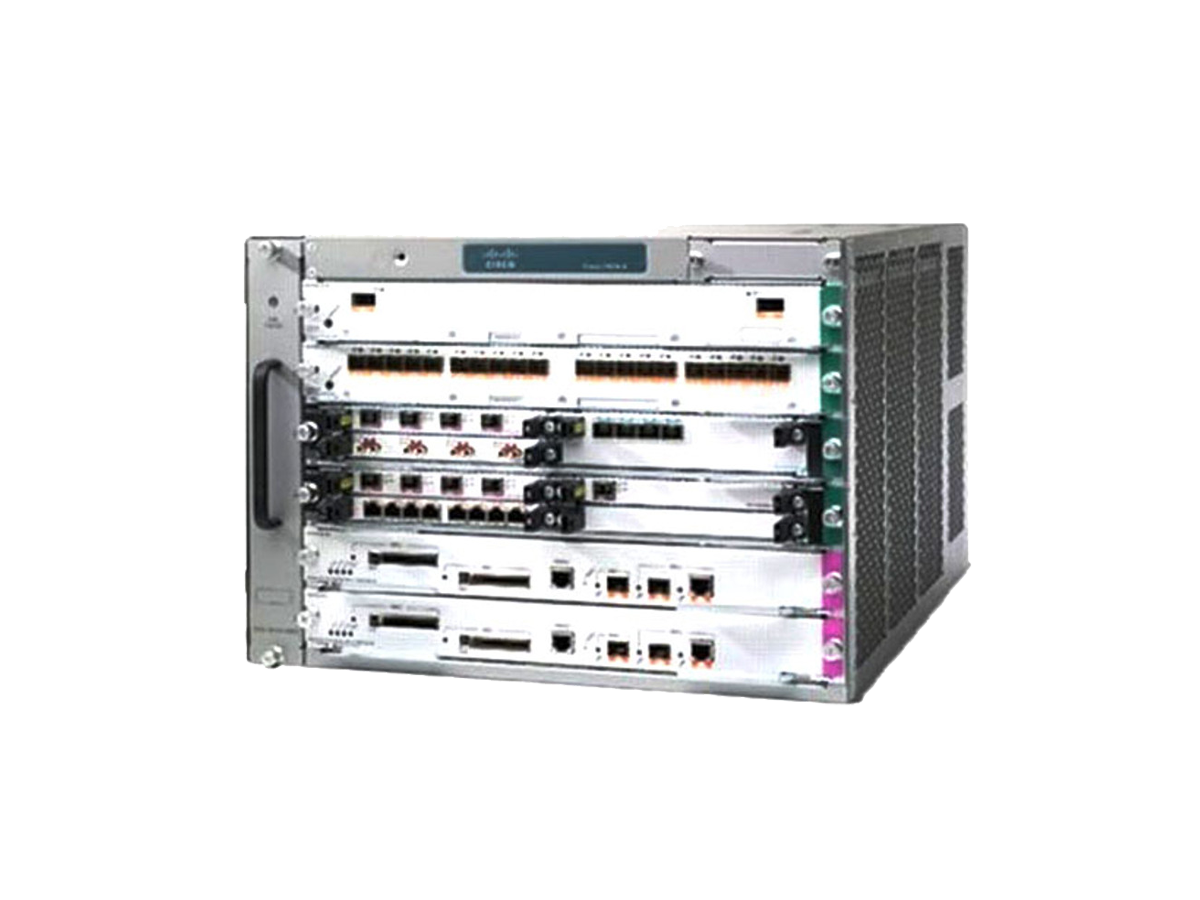

7606S-RSP7C-10G-P - Cisco 7606 Router

Model: 7606S-RSP7C-10G-P

Detail: Cisco 7606S Chassis,6-slot,RSP720-3C-10GE,PS

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

7606S-RSP7C-10G-P Specification
General
Device Type	Router - with Cisco 7600 Series Route Switch Processor 720 with 10 Gigabit Ethernet (RSP720-3C-10GE)
Enclosure Type	Rack-mountable - modular - 7U
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Performance	Switching capacity: 720 Gbps ¦ IPv4 routing: 400 Mbps ¦ IPv6 routing: 200 Mbps
Capacity	ACL rules: 128000 ¦ IPv4 routes: 256000 ¦ IPv6 routes: 128000 ¦ NetFlow entries: 128000
Network / Transport Protocol	TCP/IP, ICMP/IP, DHCP
Routing Protocol	OSPF, RIP, BGP-4, IS-IS, IGMP, PIM-SM, PIM-DM, GRE, Bidirectional PIM
Features	Layer 3 switching, layer 2 switching, dynamic IP address assignment, DHCP support, NAT support, VPN support, MPLS support, VLAN support, IGMP snooping, traffic shaping, DoS attack prevention, DiffServ support, Access Control List (ACL) support, Quality of Service (QoS), MPLS VPN, Virtual Route Forwarding-Lite (VRF-Lite)
Compliant Standards	IEEE 802.1x, NEBS level 3, ETSI, CISPR 22 Class A, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, AS/NZS 3260, AS/NZ 3548 Class A, CSA C22.2 No. 60950-00, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, FCC CFR21 Part 1040, IEC 60825-1, EN 60825-1
RAM	2 GB (installed) / 6 GB (max)
Flash Memory	1 GB (installed) / 2 GB (max)
Expansion / Connectivity
Interfaces	1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Management: 1 x console - RJ-45 ¦ 2 x SFP (mini-GBIC) ¦ 2 x X2
Expansion Slots	6 (total) / 5 (free) x expansion slot ¦ 3 (total) / 2 (free) x CompactFlash Card - type II
Installed Modules Qty (Max)	1 (installed) / 6 (max)
Power
Power Device	Internal power supply - hot-plug
Power Redundancy	Yes
Installed Qty	1 (installed) / 2 (max)
Miscellaneous
Rack Mounting Kit	Included
MTBF	400,000 hours
Dimensions & Weight
Width	17.2 in
Depth	21.5 in
Height	12.2 in
Manufacturer Warranty
Service & Support	Limited warranty - 1 year ¦ Limited warranty - replacement - 1 year - response time: 10 days
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	10 - 85% (non-condensing)

Q&A

How do I troubleshoot common issues with the Cisco 7606S Router?

Common troubleshooting steps for the Cisco 7606S-RSP7C-10G-P involve checking physical connections, verifying configurations, and reviewing the router's logs through the CLI.

What accessories are available for the Cisco 7606S Router?

Accessories for the Cisco 7606S-RSP7C-10G-P include additional power supplies, interface modules, fan trays, and rack-mount kits.

How does the Cisco 7606S Router compare to similar products?

The Cisco 7606S-RSP7C-10G-P offers a balance of high performance and cost efficiency compared to similar products like the Cisco ASR 1000 series, making it suitable for large-scale network deployments.

Is the Cisco 7606S Router suitable for large-scale deployments?

Yes, the Cisco 7606S-RSP7C-10G-P is well-suited for large-scale deployments due to its modular design, high throughput, and extensive feature set.

How cost-effective is the Cisco 7606S Router?

The Cisco 7606S-RSP7C-10G-P provides a cost-effective solution by offering high performance at a fraction of the cost of new units, making it ideal for budget-conscious system integrators and distributors.

What are the key features of the Cisco 7606S Router?

The Cisco 7606S-RSP7C-10G-P features six slots, RSP720-3C-10GE, and versatile power supply options, ensuring reliable and scalable performance for various network demands.

What are the application scenarios for the Cisco 7606S Router?

The Cisco 7606S-RSP7C-10G-P is ideal for WAN aggregation, internet edge applications, and service provider environments requiring robust routing capabilities.

How do I install the Cisco 7606S Router?

Installation of the Cisco 7606S-RSP7C-10G-P involves mounting the chassis in a rack, connecting the power supply, and configuring through Cisco IOS software.

Does the Cisco 7606S Router need to be upgraded?

While the Cisco 7606S-RSP7C-10G-P is a robust unit, firmware upgrades and software patches from Cisco may be required to ensure optimal performance and security.

Are there alternative products to the Cisco 7606S Router?

Alternatives to the Cisco 7606S-RSP7C-10G-P include newer Cisco ASR series routers or the Cisco Nexus series, depending on specific network requirements.
