7604-RSP7C-10G-P - Cisco 7604 Router|LinkNewNet

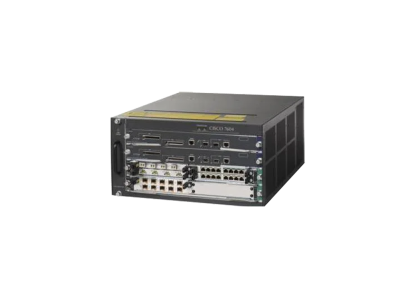

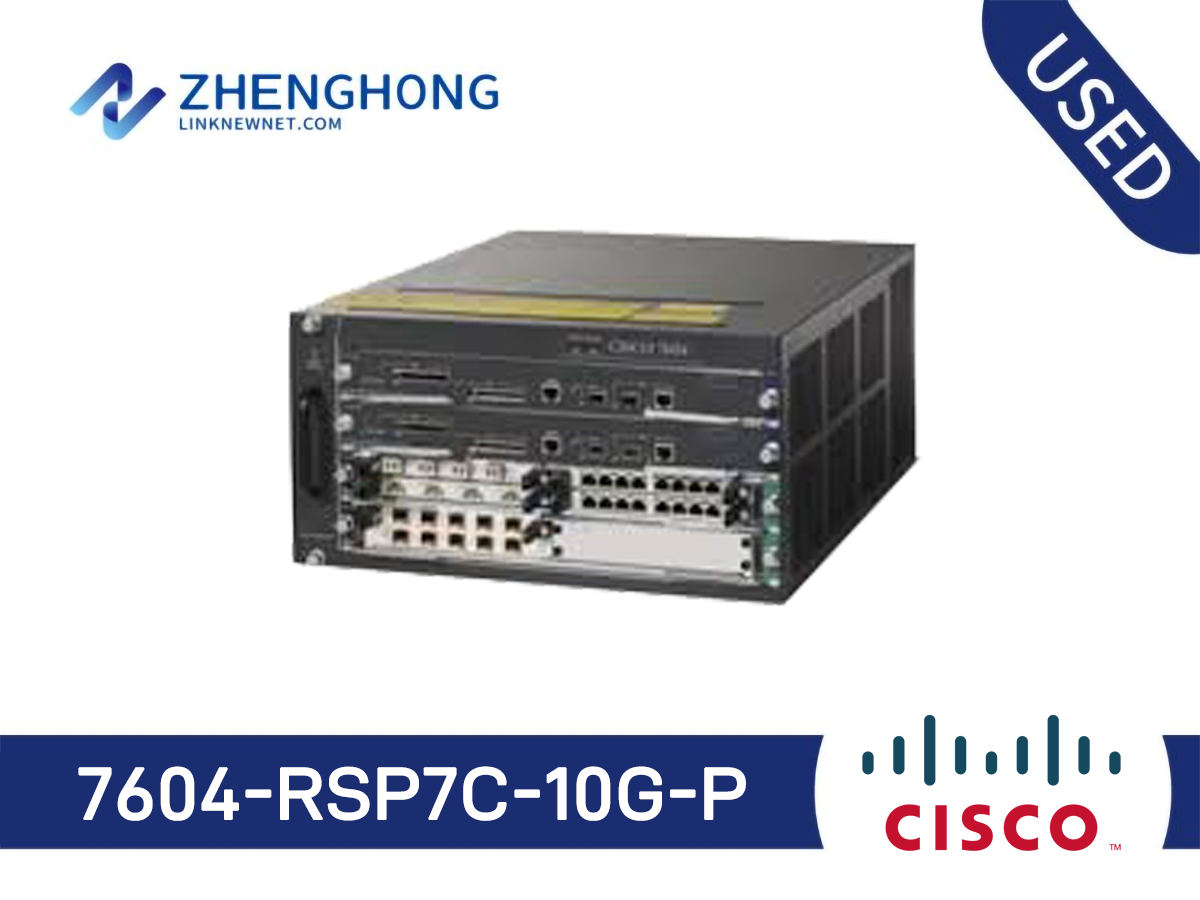

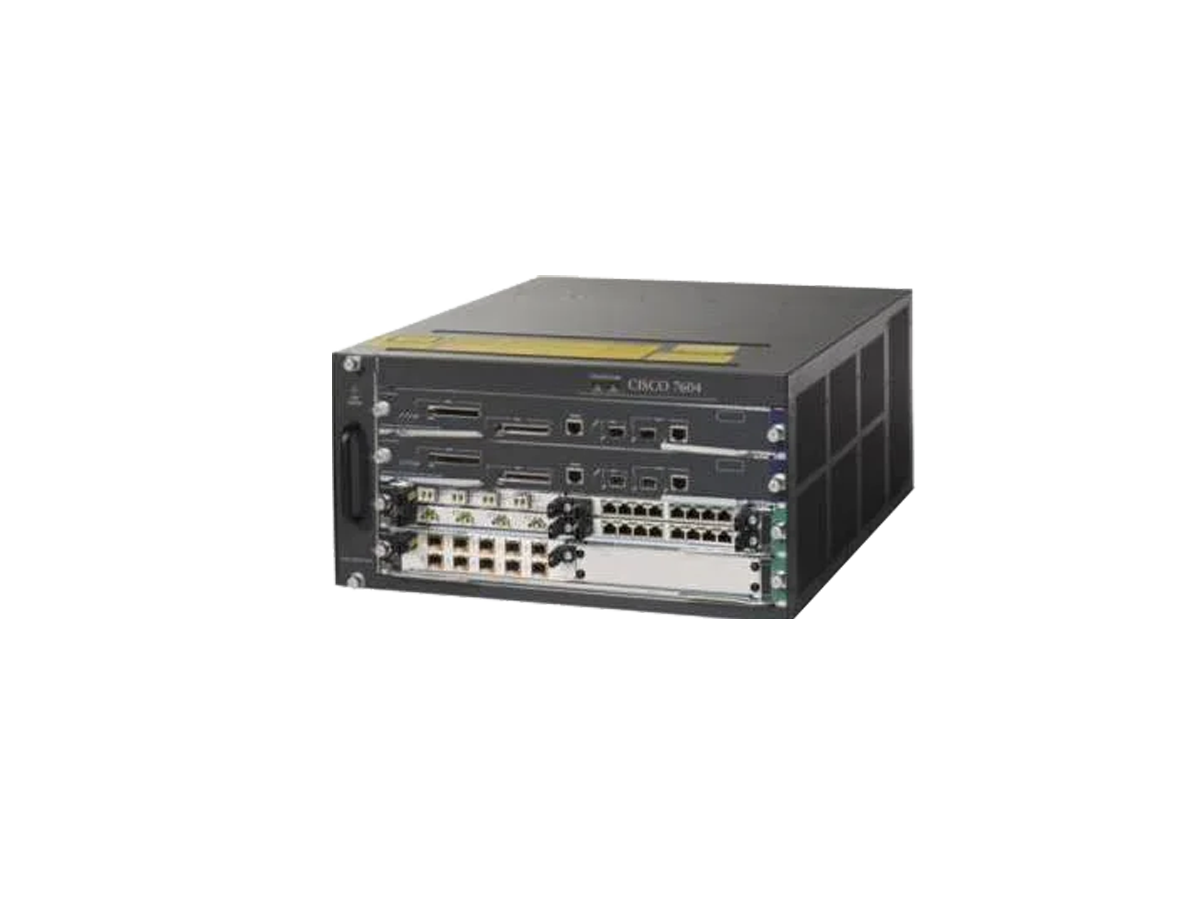

7604-RSP7C-10G-P - Cisco 7604 Router

Model: 7604-RSP7C-10G-P

Detail: Cisco 7604 Chassis,4-slot,RSP720-3C-10GE,PS

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

7604-RSP7C-10G-P Specification
General
Device Type	Router - with Cisco 7600 Series Route Switch Processor 720 with 10 Gigabit Ethernet (RSP720-3C-10GE)
Enclosure Type	Desktop, rack-mountable - modular - 5U
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Performance	Switching capacity: 720 Gbps ¦ IPv4 routing: 400 Mbps ¦ IPv6 routing: 200 Mbps
Capacity	ACL rules: 128000 ¦ NetFlow entries: 128000
Network / Transport Protocol	TCP/IP, ICMP/IP
Routing Protocol	OSPF, RIP, BGP-4, IS-IS, PIM-SM, PIM-DM, GRE
Features	Layer 3 switching, layer 2 switching, dynamic IP address assignment, DHCP support, NAT support, MPLS support, VLAN support, IGMP snooping, traffic shaping, DoS attack prevention, Access Control List (ACL) support, Quality of Service (QoS), MPLS VPN
Compliant Standards	IEEE 802.1x, NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, ICES-003, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, AS/NZ 3548 Class A, FCC Part 15, CSA C22.2 No. 60950-00
RAM	2 GB
Flash Memory	512 MB
Expansion / Connectivity
Interfaces	1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Management: 1 x console - RJ-45 ¦ 2 x SFP (mini-GBIC)
Expansion Slots	4 (total) / 3 (free) x expansion slot ¦ 2 (total) / 1 (free) x CompactFlash Card - type II
Power
Power Device	Internal power supply - hot-plug
Power Redundancy	Yes
Installed Qty	2 (installed) / 2 (max)
Miscellaneous
Mounting Kit	Included
MTBF	7 years
Dimensions & Weight
Width	17.5 in
Depth	21.7 in
Height	8.7 in
Manufacturer Warranty
Service & Support	Limited warranty - advance parts replacement - 1 year - response time: 10 days
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	10 - 85%

Q&A

What common troubleshooting steps should I follow for the Cisco 7604-RSP7C-10G-P?

Common steps include checking power connections, verifying module installations, and updating firmware.

What accessories are compatible with the Cisco 7604-RSP7C-10G-P?

Compatible accessories include various line cards, power supplies, and network modules specific to the 7600 series.

How does the Cisco 7604-RSP7C-10G-P compare to newer Cisco routers?

While the 7604-RSP7C-10G-P offers strong performance, newer models provide enhanced features and efficiency.

How do I optimize the performance of my Cisco 7604-RSP7C-10G-P?

Regularly update firmware, use compatible high-performing modules, and ensure proper configuration for optimal performance.

How cost-effective is the Cisco 7604-RSP7C-10G-P?

The Cisco 7604-RSP7C-10G-P offers excellent value due to its robust performance and lower cost compared to new models.

What are the standout features of the Cisco 7604-RSP7C-10G-P?

This model includes a 4-slot chassis, RSP720-3C-10GE, and power supply, ideal for high-performance routing.

What is the typical application scenario for the Cisco 7604-RSP7C-10G-P?

The Cisco 7604-RSP7C-10G-P is suitable for WAN aggregation and internet edge routing in enterprise environments.

How do I install the Cisco 7604-RSP7C-10G-P?

Installation involves mounting the chassis, connecting the power supply, and configuring the RSP720-3C-10GE module.

Does the Cisco 7604-RSP7C-10G-P require upgrades?

Depending on network needs, firmware or module upgrades might be necessary to optimize performance.

Are there alternative products to the Cisco 7604-RSP7C-10G-P?

Alternatives include newer models in the Cisco 7600 series or other WAN aggregation routers from Cisco.
