7604-RSP720CXL-P - Cisco 7604 Router|LinkNewNet

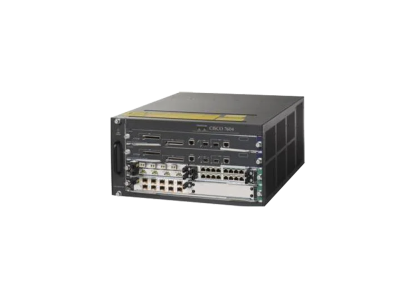

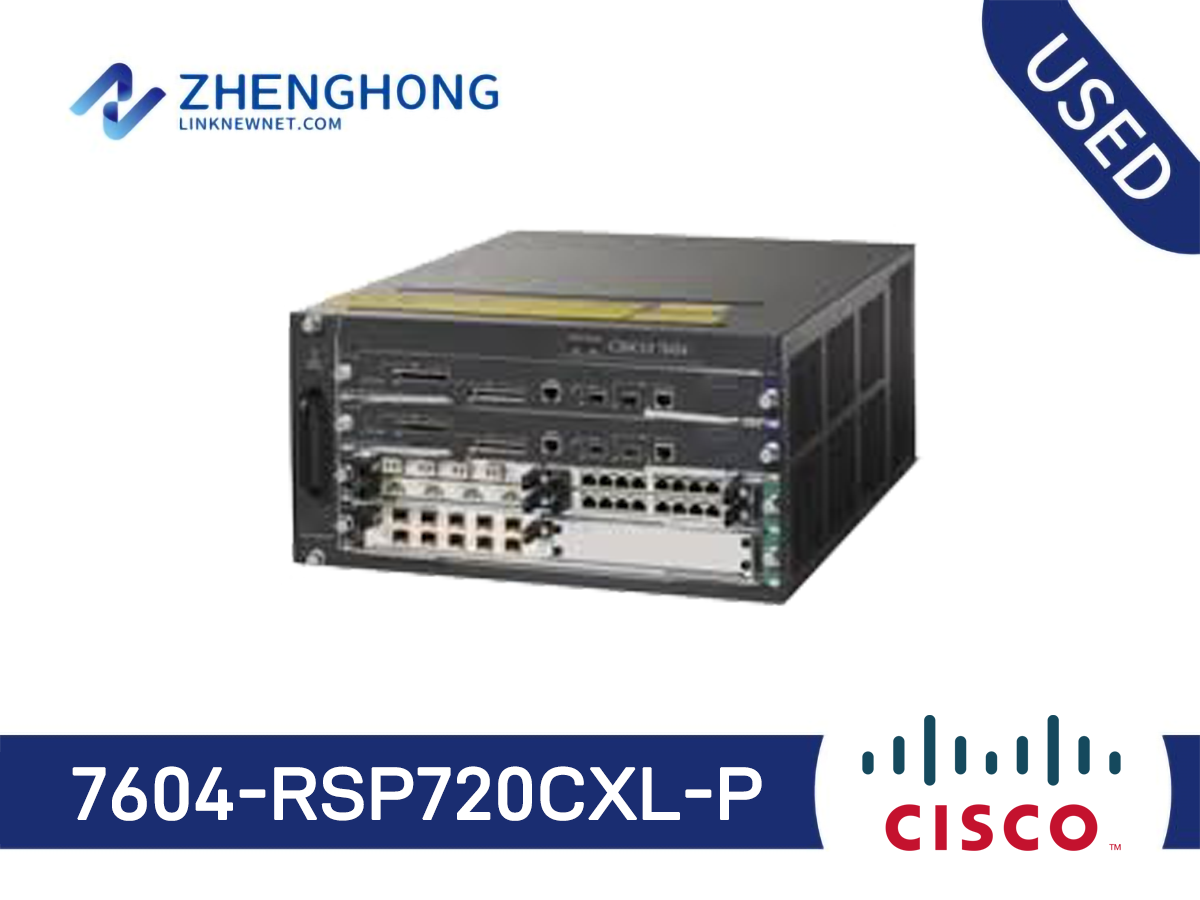

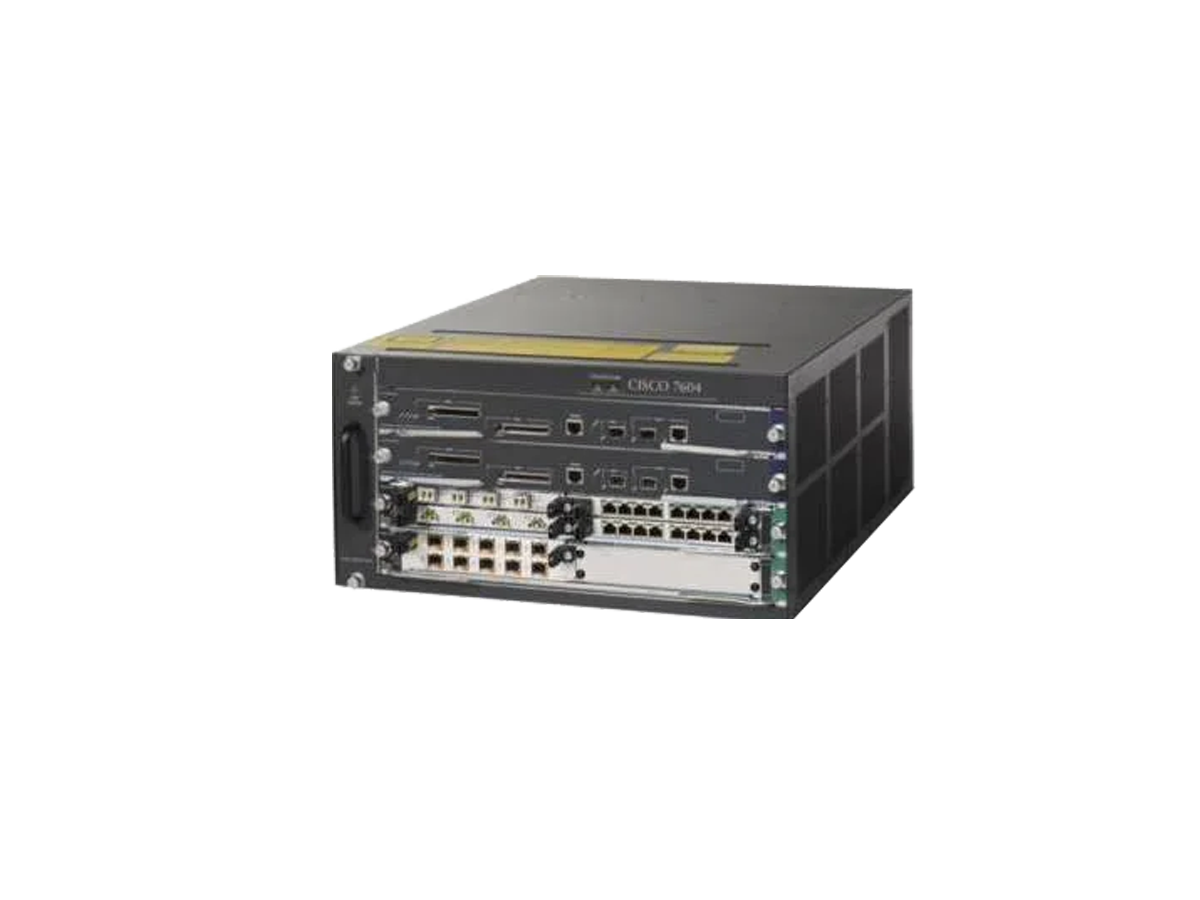

7604-RSP720CXL-P - Cisco 7604 Router

Model: 7604-RSP720CXL-P

Detail: Cisco 7604 Chassis,4-slot,RSP720-3CXL,PS

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

7604-RSP720CXL-P Specification
General
Device Type	Router - with Cisco 7600 Series Route Switch Processor 720 with PFC-3CXL
Enclosure Type	Desktop - modular - 5U
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Performance	IPv4 routing: 400 Mbps ¦ IPv6 routing: 200 Mbps ¦ Switching capacity: 720 Gbps
Capacity	IPv4 routes: 1000000 ¦ IPv6 routes: 500000 ¦ NetFlow entries: 256000 ¦ ACL rules: 256000
Network / Transport Protocol	TCP/IP, ICMP/IP
Routing Protocol	OSPF, RIP, BGP-4, IS-IS, IGMP, PIM-SM, PIM-DM
Features	Layer 3 switching, layer 2 switching, dynamic IP address assignment, DHCP support, MPLS support, VLAN support, IGMP snooping, traffic shaping, DoS attack prevention, Access Control List (ACL) support, Quality of Service (QoS)
Compliant Standards	IEEE 802.1x, NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, AS/NZ 3548 Class A, CSA C22.2 No. 60950-00, ICES-003 Class A
Processor	PowerPC 1.2 GHz
RAM	3 GB (installed) / 6 GB (max)
Expansion / Connectivity
Interfaces	1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Management: 1 x console - RJ-45 ¦ 2 x SFP (mini-GBIC)
Expansion Slots	4 (total) / 3 (free) x expansion slot ¦ 3 (total) / 2 (free) x CompactFlash Card - type II
Installed Modules Qty (Max)	1 (installed) / 4 (max)
Power
Power Device	Internal power supply - hot-plug
Power Redundancy	Yes
Installed Qty	1 (installed) / 2 (max)
Dimensions & Weight
Width	17.5 in
Depth	21.7 in
Height	8.7 in
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	10 - 85%

Q&A

What troubleshooting steps are common for the 7604-RSP720CXL-P?

Common troubleshooting includes checking power connections, verifying module seating, and ensuring software is up-to-date.

What accessories are available for the Cisco 7604-RSP720CXL-P?

Accessories include additional line cards, power supplies, and mounting kits tailored for the Cisco 7604 series.

How does the Cisco 7604-RSP720CXL-P compare to other Cisco routers?

The 7604-RSP720CXL-P is known for its robust performance and scalability, making it a cost-effective option compared to newer models like the Cisco ASR series.

What is the warranty policy on the 7604-RSP720CXL-P?

Warranty for the used 7604-RSP720CXL-P may vary by vendor; typically, it includes limited coverage. Check with your supplier for specific details.

How cost-effective is the 7604-RSP720CXL-P?

The 7604-RSP720CXL-P offers excellent performance at a reduced cost compared to new models, ideal for budget-conscious projects.

What are the key features of the Cisco 7604-RSP720CXL-P?

The Cisco 7604-RSP720CXL-P features a 4-slot chassis, RSP720-3CXL route processor, and dual power supply, designed for high scalability and performance.

What are the common application scenarios for the 7604-RSP720CXL-P?

The 7604-RSP720CXL-P is ideal for WAN aggregation and internet edge scenarios, supporting high-capacity network traffic and services.

How do I install the Cisco 7604-RSP720CXL-P?

For installation, refer to the Cisco 7604 installation guide. Ensure proper placement, connection of power supplies, and module installation.

Does the 7604-RSP720CXL-P require software upgrades?

Yes, regular software upgrades are recommended to ensure optimal performance and security for the Cisco 7604-RSP720CXL-P.

Are there any alternative products to the Cisco 7604-RSP720CXL-P?

Consider the Cisco ASR 1000 Series as an alternative, providing similar capabilities with newer hardware.
