7604-RSP720C-R - Cisco 7604 Router|LinkNewNet

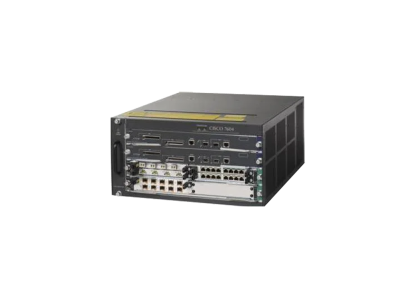

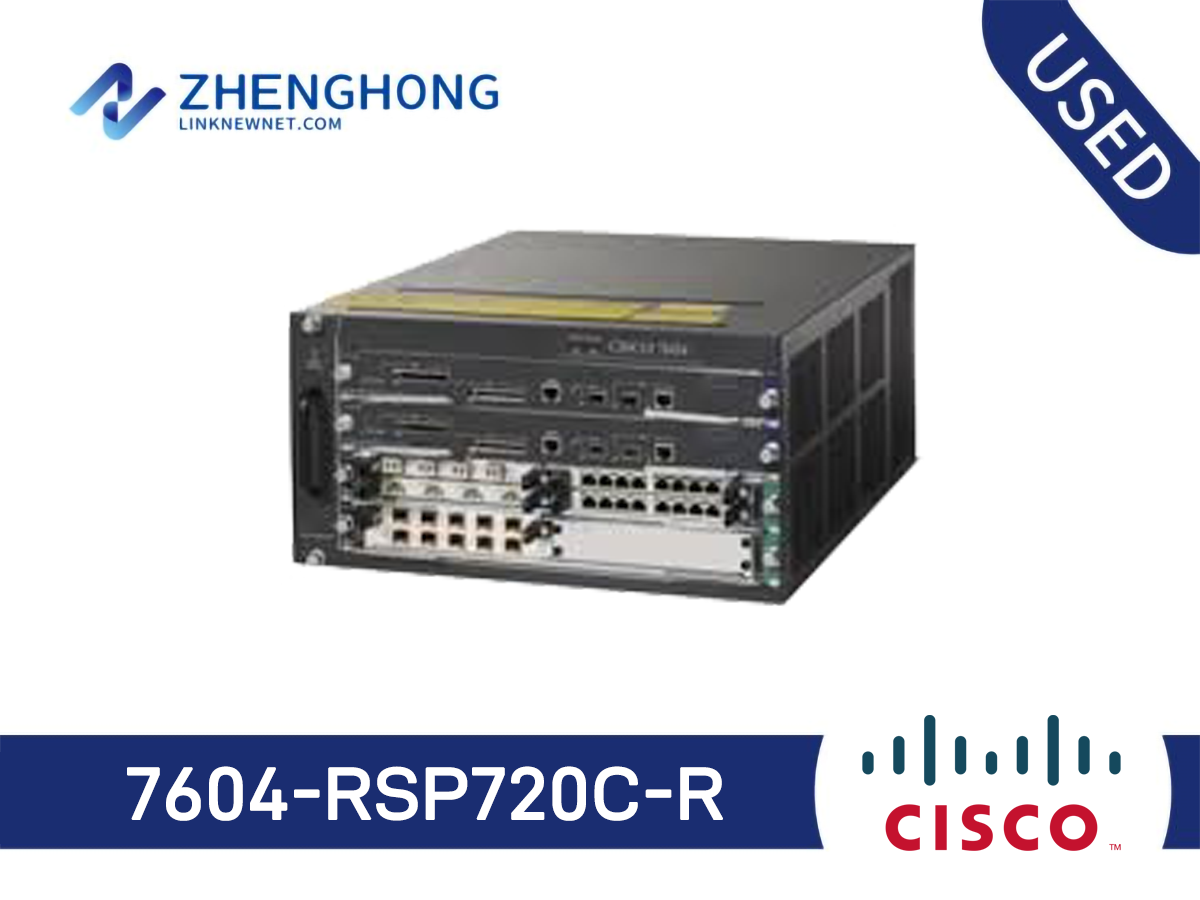

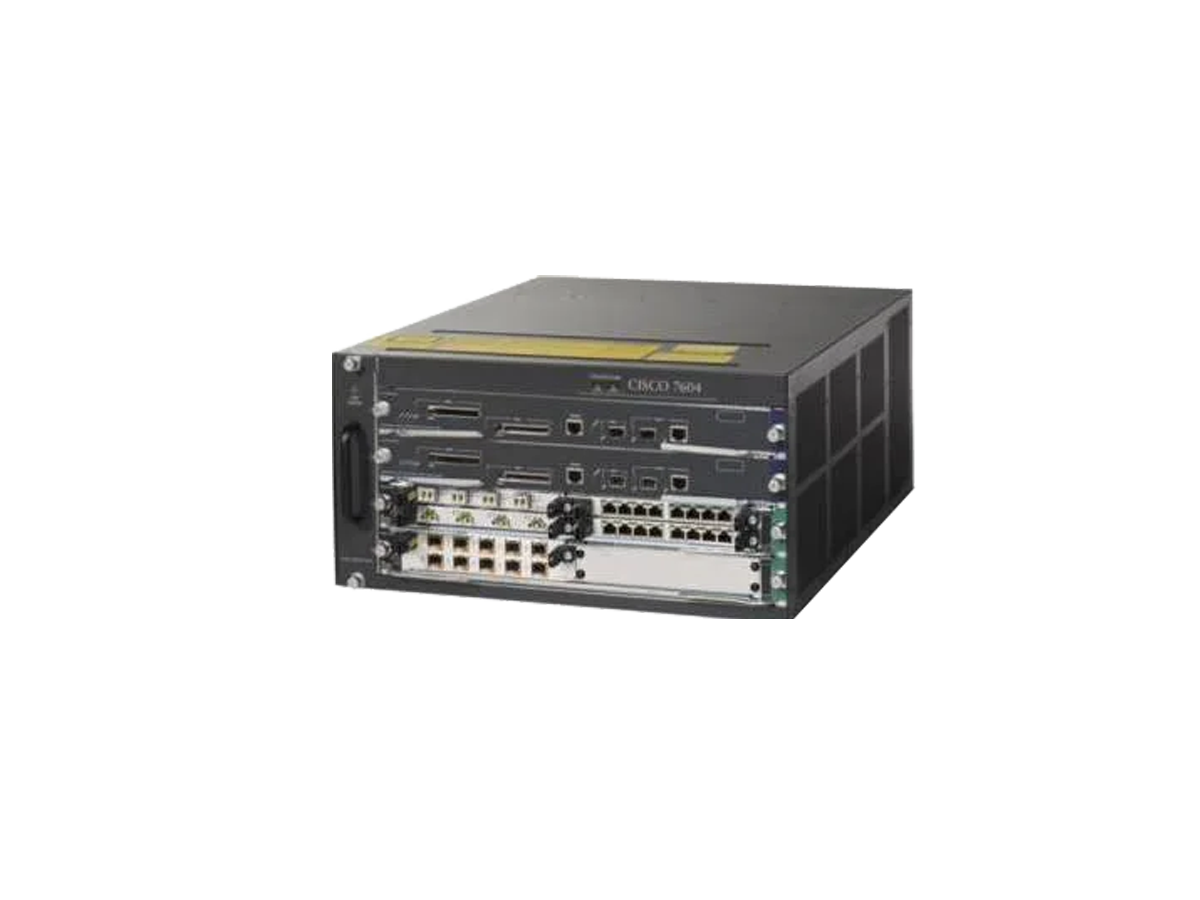

7604-RSP720C-R - Cisco 7604 Router

Model: 7604-RSP720C-R

Detail: Cisco 7604 Chassis,4-slot,Redundant System,2RSP720-3C,2PS

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

7604-RSP720C-R Specification
General
Device Type	Router - with 2 x Cisco 7600 Series Route Switch Processor 720 with PFC-3C
Enclosure Type	Desktop - modular - 5U
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Performance	IPv4 routing: 400 Mbps ¦ IPv6 routing: 200 Mbps ¦ Switching capacity: 720 Gbps
Capacity	IPv4 routes: 256000 ¦ IPv6 routes: 128000 ¦ NetFlow entries: 128000 ¦ ACL rules: 128000
Network / Transport Protocol	TCP/IP, ICMP/IP
Routing Protocol	OSPF, RIP, BGP-4, IS-IS, IGMP, PIM-SM, PIM-DM
Features	Layer 3 switching, layer 2 switching, dynamic IP address assignment, DHCP support, MPLS support, VLAN support, IGMP snooping, traffic shaping, DoS attack prevention, Access Control List (ACL) support, Quality of Service (QoS)
Compliant Standards	IEEE 802.1x, NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, AS/NZ 3548 Class A, CSA C22.2 No. 60950-00, ICES-003 Class A
Processor	PowerPC 1.2 GHz
RAM	2 GB (installed) / 6 GB (max)
Expansion / Connectivity
Interfaces	1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Management: 1 x console - RJ-45 ¦ 2 x SFP (mini-GBIC)
Expansion Slots	4 (total) / 2 (free) x expansion slot ¦ 3 (total) / 2 (free) x CompactFlash Card - type II
Installed Modules Qty (Max)	2 (installed) / 4 (max)
Power
Power Device	Internal power supply - hot-plug
Power Redundancy	Yes
Installed Qty	2 (installed) / 2 (max)
Dimensions & Weight
Width	17.5 in
Depth	21.7 in
Height	8.7 in
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	10 - 85%

Q&A

What common troubleshooting steps are there for the 7604-RSP720C-R?

Common troubleshooting steps for the 7604-RSP720C-R include checking power supplies, verifying network connections, and ensuring up-to-date firmware.

What accessories are available for the 7604-RSP720C-R?

Accessories for the 7604-RSP720C-R include redundant power supplies, additional RSP720-3C engines, and various network interface modules.

How does the 7604-RSP720C-R compare with the Cisco 7606 chassis?

The 7604-RSP720C-R has four slots, making it more compact, whereas the Cisco 7606 has six slots, providing more room for expansion.

Is the 7604-RSP720C-R suitable for high-traffic environments?

Yes, the 7604-RSP720C-R is designed to handle high-traffic environments with its powerful RSP720-3C engines and redundant system setup.

How cost-effective is the 7604-RSP720C-R for system integrators?

The 7604-RSP720C-R offers a cost-effective solution for high-performance WAN aggregation and Internet edge routing, making it ideal for budget-conscious integrators.

What are the key features of the Cisco 7604-RSP720C-R?

The Cisco 7604-RSP720C-R features four slots, redundant power supplies (2PS), and two RSP720-3C engines for high availability.

What are the common application scenarios for the 7604-RSP720C-R?

The 7604-RSP720C-R is commonly used in enterprise WAN aggregation and Internet edge routing due to its reliability and performance.

How can you install the 7604-RSP720C-R?

To install the 7604-RSP720C-R, simply mount the chassis in a standard 19-inch rack and ensure proper connectivity for power and network interfaces.

Does the Cisco 7604-RSP720C-R need regular upgrades?

While the hardware itself does not need frequent upgrades, keeping the software and firmware up-to-date ensures optimal performance and security.

Are there alternative products to the 7604-RSP720C-R?

Alternatives to the 7604-RSP720C-R include more recent models like the Cisco ASR 1000 Series which offer enhanced performance and newer features.

What common troubleshooting steps are there for the 7604-RSP720C-R?

Common troubleshooting steps for the 7604-RSP720C-R include checking power supplies, verifying network connections, and ensuring up-to-date firmware.

What accessories are available for the 7604-RSP720C-R?

Accessories for the 7604-RSP720C-R include redundant power supplies, additional RSP720-3C engines, and various network interface modules.

How does the 7604-RSP720C-R compare with the Cisco 7606 chassis?

The 7604-RSP720C-R has four slots, making it more compact, whereas the Cisco 7606 has six slots, providing more room for expansion.

Is the 7604-RSP720C-R suitable for high-traffic environments?

Yes, the 7604-RSP720C-R is designed to handle high-traffic environments with its powerful RSP720-3C engines and redundant system setup.
