What is switch stacking and its importance?
Dec 22 , 2023 208

In modern network architectures, switch stacking technology has become an important part of building high-performance, high-availability network infrastructures. Switch stacking provides network administrators with a more flexible and manageable solution by connecting multiple physical switches together to form a logical unit.


What is switch stacking?

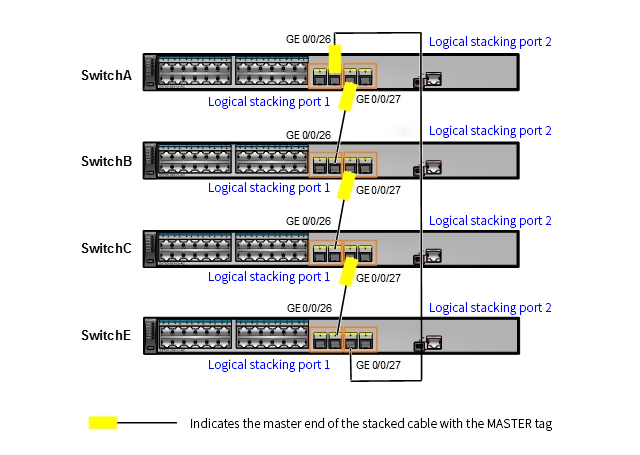

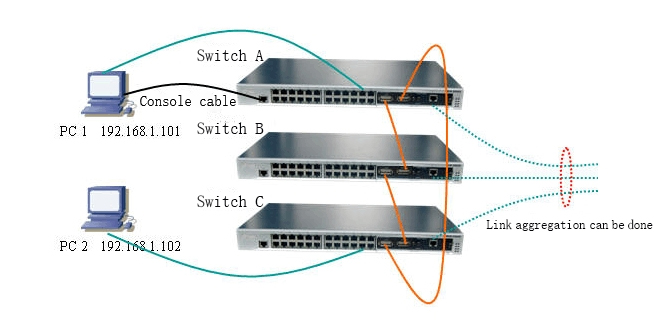

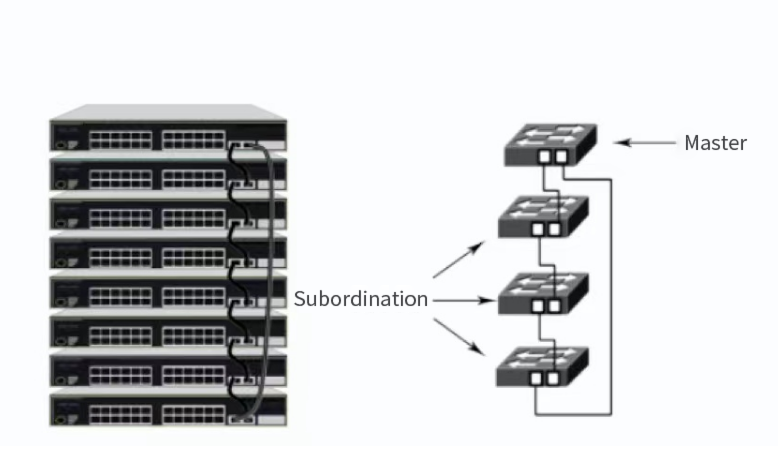

Switch stacking is a network topology design that works by physically connecting multiple switches together so that they behave as a logical unit. This logical unit allows administrators to centrally manage the entire stack, providing higher bandwidth, redundancy, and availability, and is a horizontal defuzzification technique that is widely used today.


What are the key features of switch stacking?


High Bandwidth: Switch stacking provides greater overall bandwidth by creating high-speed stacking links between physical switches. This helps to meet the growing demand for network traffic and ensures that data travels quickly through the network.


Redundancy and High Availability: The switch stacking architecture allows for redundancy in the stack, so that even if one switch fails, the others can still provide service. This redundancy increases the reliability of the network and reduces service downtime due to hardware failure.


Simplified Management: Administrators can configure and monitor the entire stack through a centralized management interface. This centralized management greatly simplifies network management tasks, reduces the possibility of configuration errors, and improves overall network manageability.

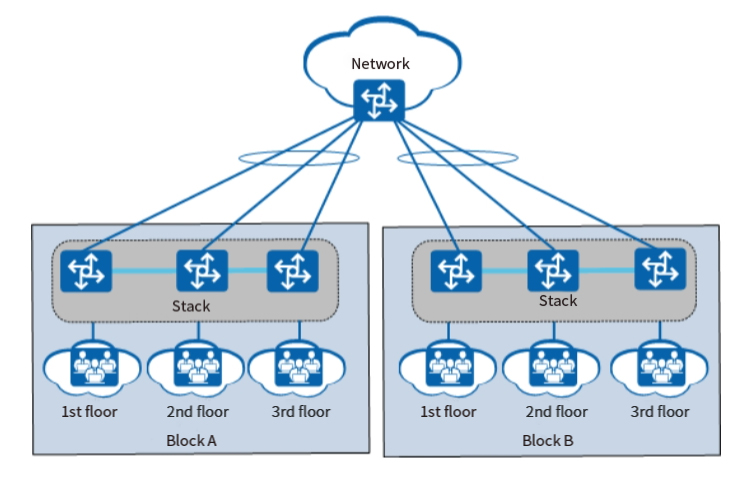

Scalability: Switch stacking makes it easy to scale a network. By simply adding more switches to the stack, administrators can easily scale the network to meet the growth needs of the organization.


What is the importance of switch stacking?


Performance Improvement: By aggregating multiple switches into a single logical unit, switch stacking provides higher bandwidth and faster data transfer speeds, thus improving overall network performance.


Failure Recovery: Because switch stacking allows for redundancy, the network can continue to operate even if one switch fails. This increases the availability of the network and reduces the business impact of a failure.


Management Efficiency: A centralized management interface makes it easier for administrators to monitor and configure the entire network. This centralized approach increases management efficiency and reduces the time and resources required to maintain and operate the network.


Flexibility: Switch stacking gives the network the flexibility to adapt to changing business needs. Administrators can easily adjust the network configuration to meet the needs of different departments or applications.


Overall, switch stacking technology provides higher performance, availability, and management efficiency for enterprise networks. As network requirements continue to grow, the use of switch stacking has become an important choice for building modern enterprise networks.
