What is an SFP port? What are the features and functions?

Jul 13 , 2024 384

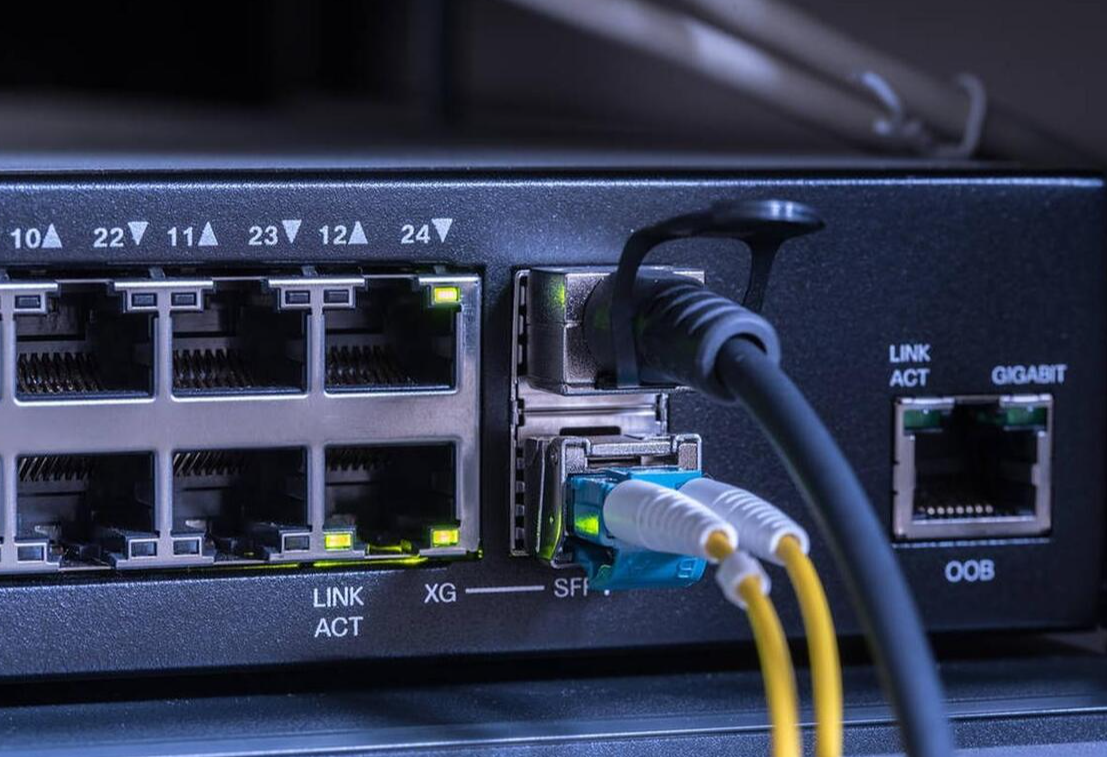

SFP (Small Form-factor Pluggable) port is a hot-swappable interface standard that allows replacement and installation without interfering with the normal operation of the equipment. It is widely used in high-speed data communications and network connectivity. With SFP modules, fiber or copper cables can be connected, allowing network equipment to flexibly support different types and distances of network transmission. SFP ports are widely used in switches, routers, servers, and other equipment, and have become an indispensable part of modern data centers and enterprise networks.

Introduced in 2001, it triggered a major change in networking. Due to the small size and flexibility of SFP ports, they are gradually replacing the larger GBIC (Gigabit Interface Converter) modules as one of the key components in modern networks.

In terms of transmission rates, SFP ports support a wide range of transmission rates, typically including 100 Mbps, 1 Gbps, and 10 Gbps. Newer standards such as SFP+ can support transmission rates up to 10 Gbps, while more advanced modules such as QSFP (Quad Small Form-factor Pluggable) can support rates of 40 Gbps or even 100 Gbps.

Additionally, SFP ports are extremely powerful, supporting transmission distances from a few meters to hundreds of kilometers. Its high flexibility allows different types of modules to be replaced as needed to accommodate diverse network requirements. For example, RJ45 is used for copper connection, SX is used for short distance multi-mode fiber, LX is used for long distance single-mode fiber and so on.

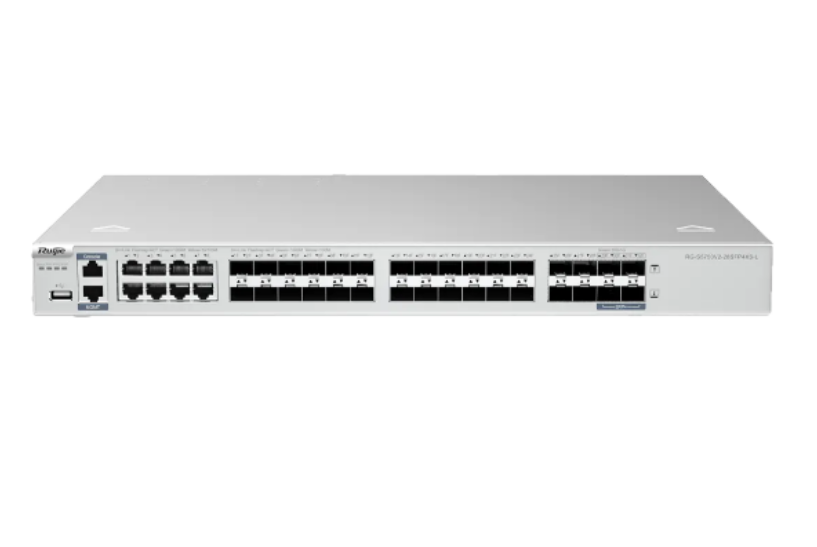

At the transport level, SFP ports are mainly used to transfer data between switches and other network devices. Many well-known brands of switches, such as Cisco, Huawei, and Dell, rely on SFP ports.

In terms of transmission distance, SFP modules are divided into three types: Multimode fiber (MMF) SFP modules, Single-mode fiber (SMF) SFP modules and Copper SFP modules. Among them:

Of the multimode fiber optic SFP modules, 1000BASE-SX has a maximum transmission distance of about 550 m to 2,000 m, and 10GBASE-SR usually has a maximum transmission distance between 100 m and 300 m.

Among the single-mode fiber SFP modules, the maximum transmission distance of 1000BASE-LX is usually around 5 km; the maximum transmission distance of 10GBASE-LR is usually around 10 km; and the maximum transmission distance of 40GBASE-LR4 and 100GBASE-LR4 can reach 10 km.

In copper SFP modules, the maximum transmission distance for 1000BASE-T is usually 100 meters; the maximum transmission distance for 10GBASE-T is usually 30 meters to 100 meters.

These distances are approximate valuations and the actual transmission distance may be affected by factors such as signal attenuation, signal distortion or connection quality. Therefore, when planning the network architecture, it is necessary to consider the transmission distance, topology and other performance requirements to ensure that the appropriate SFP module is selected.

Due to their high flexibility and reliability, SFP modules are often used in the following scenarios:

1. Data Center: for high-density, high-speed network connectivity, with the flexibility to achieve efficient connectivity between servers, storage devices and switches.

2. Enterprise Network: Provides high-bandwidth, low-latency connections between core switches, aggregation switches and access switches.

3. Telecom Network: supports long-distance, high-speed data transmission between various transmission devices to meet telecom-grade requirements.

4. Fiber-to-the-Home (FTTH): used in FTTH deployments for fiber optic access equipment to provide high-speed Internet access services.

SFP port is a key interface standard in modern network equipment with high performance, flexibility and reliability. It is widely used in data centers, enterprise networks, telecom networks and FTTH scenarios, providing efficient and stable connectivity solutions for various network environments. By flexibly replacing different types of SFP modules, network administrators can easily cope with different network needs and upgrade requirements, thus realizing network scalability and maintainability.
