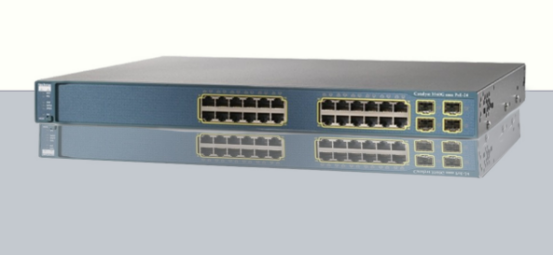

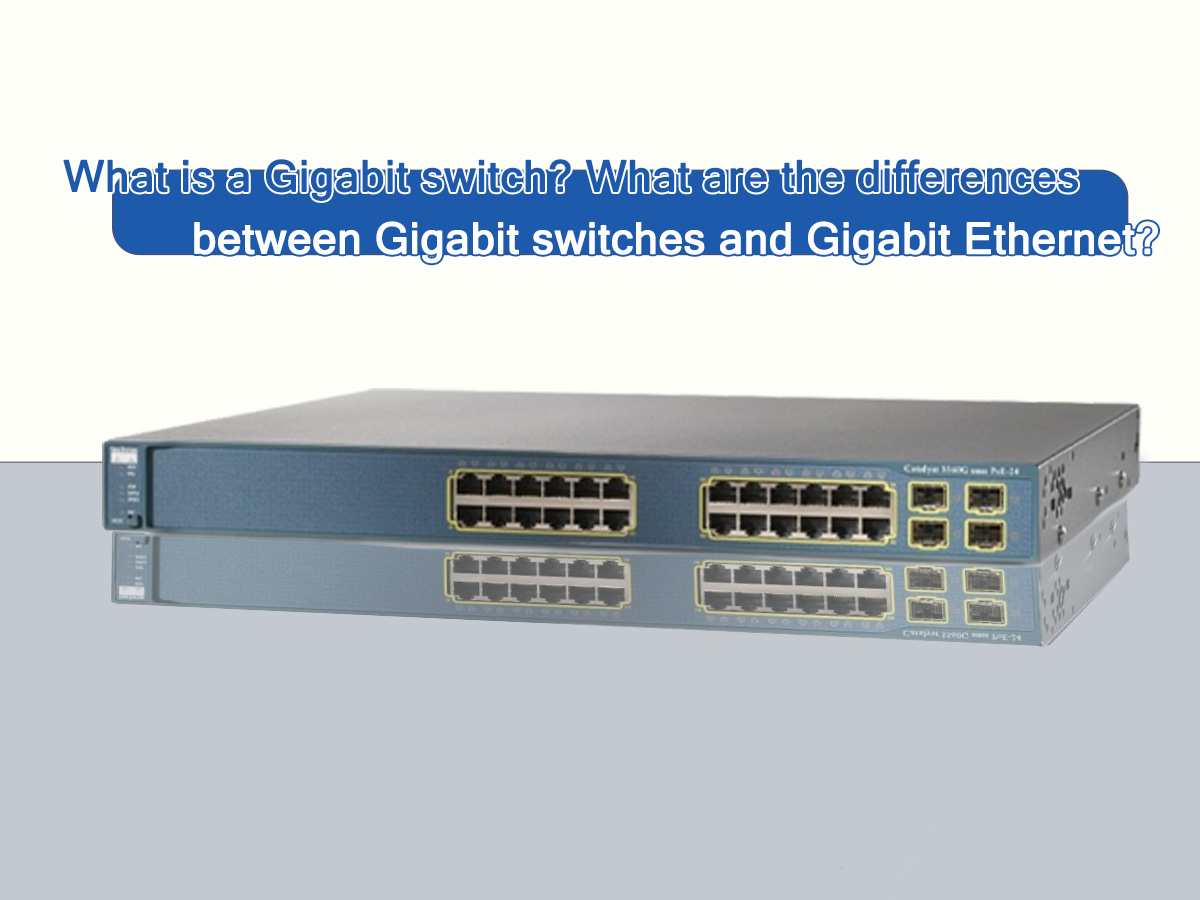

A Gigabit Switch is a networking device that provides Gigabit Ethernet connectivity in a computer network. Gigabit switches offer higher bandwidth and faster data transfer speeds than traditional 100-megabit switches, and can transfer up to 1,000 megabits of data per second, which is equivalent to 1 billion bits or 1,000,000,000 bits per second. This makes Gigabit switches an important component in modern networks, especially in environments that require high bandwidth and low latency.
Gigabit switches can be categorized into different switch types based on different categories. According to management capabilities, they can be categorized into managed and unmanaged switches, also called managed and unmanaged switches. Specifically, managed switches mean that software can be used to manage the network, while unmanaged switches require no configuration, just plug in the switch and start expanding your network immediately.
According to the installation method can be divided into desktop Gigabit switches and rack-mounted Gigabit switches.
Desktop Gigabit switches are small in size, suitable for preventing on the desktop or small rack, suitable for home network or small office scenarios. Rack-mounted Gigabit switches are able to provide high-density ports and are suitable to be installed in a standard 19-inch rack for easy expansion and maintenance, and have a professional thermal design for better heat dissipation and suitable for long-time operation. This type is generally suitable for enterprise networks and data centers.
According to the number of ports can be divided into fixed port Gigabit switches and modular Gigabit switches.
Fixed port Gigabit switches have an unchangeable number of ports and are suitable for fixed network sizes. Their relatively low cost makes them suitable for limited budgets, and they are suitable for small and medium-sized networks and budget-limited deployments. Modular Gigabit switches can add modules to increase the number of ports or features, suitable for expanding and changing network requirements, for large enterprise networks and environments requiring flexible configuration.
According to the power supply method, it can be divided into standard Gigabit switch and POE Gigabit switch.
Standard Gigabit switches are powered by power adapters, do not support PoE, and are more basic and suitable for general data transmission needs.PoE Gigabit switches can power PoE-enabled devices, such as IP phones, wireless access points, and webcams, through network cables, which are suitable for intelligent buildings, wireless network deployment, and security monitoring system scenarios.
Overall, Gigabit switches can be divided into managed and unmanaged switches, desktop Gigabit switches and rack-mounted Gigabit switches, fixed-port Gigabit switches and modular Gigabit switches, standard Gigabit switches and POE Gigabit switches, eight types, which can be selected according to the actual use of the function and the budget in the selection process.
Difference between Gigabit switch and Gigabit Ethernet:
A Gigabit switch is an advanced version of a Fast Ethernet switch, upgrading from traditional 10/100 Mbps Fast Ethernet speeds to 10/100/1000 Mbps or 10Gb Ethernet to provide faster data transfer speeds and higher network performance.
Gigabit Ethernet (GbE) is the most widely used high-speed Ethernet technology for businesses due to its cost-effectiveness, and is also a sustainable solution for most home networks and small businesses, especially for short-distance connections. Gigabit switches are important devices in networks that help connect devices such as computers, printers, and cameras to a local area network (LAN), while supporting the connection of advanced devices such as HDTVs to the Internet and avoiding the instability of wireless connections.
The following are specific differences between Gigabit switches and Fast Ethernet switches:
Categories | Gigabit switch | Fast Ethernet Switches |
Data transfer speed | Transmission Rate: Supports transmission speeds of up to 1,000 megabits per second (1 Gbps).
Application Advantage: Can meet the high bandwidth requirements of application scenarios, such as high-definition video transmission, large file sharing and high-speed Internet access. | Transmission Rate: Supports transmission speeds up to 100 megabits per second (100 Mbps).
Application Limitations: Suitable for basic applications with low bandwidth requirements, such as web browsing and e-mail communication. |
Network performance | High Performance: Provides higher throughput and lower latency, and supports full-duplex communication, meaning that data can be sent and received between devices at the same time.
Low Latency: Ideal for applications that require real-time data transfer, such as video conferencing and online gaming. | Lower performance: Throughput and speed are not as high as Gigabit switches, which may cause network congestion in high traffic situations.
Suitable for light applications: Suitable for everyday applications with low traffic, such as general office environments. |
Number of ports | Port Selection: More ports (e.g. 24, 48 ports) are usually available and link aggregation is supported to increase bandwidth and reliability.
Modular Design: Some high-end Gigabit switches support modular design, which allows you to expand the features and number of ports by adding modules. | Limited number of ports: Usually provides fewer ports and is suitable for small networks.
Fixed Design: Most Fast Ethernet switches have a fixed port design and lack expansion capability. |
Functions and Features | Advanced Features: Supports QoS (Quality of Service), VLAN (Virtual LAN), port mirroring, link aggregation, and more to provide better network management and security.
PoE Support: Many Gigabit switches support PoE (Power over Ethernet), enabling them to power devices such as IP phones and wireless access points over the network cable.
| Basic Functionality: Provides basic network connectivity, usually does not support advanced management and security features.
Limited PoE Support: Generally does not support PoE, or only a few ports do. |
Application scenario | Enterprise Network: Suitable for enterprise network environments that require high bandwidth and high performance, such as large and medium-sized enterprises and data centers.
Multimedia content production: Support fast transmission and storage of large files, such as video editing and image processing.
High-performance home network: Ideal for home environments with lots of streaming media playback, online gaming, and smart devices. | Small network: Suitable for small offices, home networks and other environments with low bandwidth requirements.
Basic Network Requirements: Meet the basic Internet access and simple file sharing requirements. |
Costs
| Relatively high: Gigabit switches are typically priced higher than Fast Ethernet switches because they support higher speeds and more features.
Long-term investment: Despite the higher initial cost, Gigabit switches provide longer-term value as network needs increase. | Affordability: Suitable for users with limited budgets and simple network requirements, with a low initial investment.
Upgrade Limitations: May need to be replaced with a Gigabit switch as network needs increase.
|
After understanding the functions and classification of Gigabit switches, as well as the difference between Gigabit switches and Gigabit Ethernet, what do we need to pay attention to before buying a Gigabit switch? The following is a compilation of some tips before you buy, and those who need them are recommended to collect them.
What do I need to look for before choosing a Gigabit switch?
1. The type of switch needs to be carefully considered. If you want to use a fixed switch, make sure it comes with 2 fiber optic port modules. This will benefit your future network expansion by leaving room for it to prevent mixing fiber with traditional networks in practice.
2. You need to find the port numbers of copper and fiber optic cables according to the type of application you need, and make sure that all other devices connected to this network are Gigabit compliant to avoid unconnectable conditions during use.
3. Check whether the Ethernet switch is certified or what customization options are available and whether it complies with the IEEE 802.3 standard.
4. Consider the match between your budget and the product you require. If you are a home user and looking for value for money, you can choose an unmanaged switch, which is less expensive and requires little maintenance.
5.Consider the environment in which the Gigabit switch will be placed, as high humidity or high operating temperatures may reduce the life of the product or damage it.
Gigabit switches are categorized into different types based on features such as manageability, installation, number of ports and power supply. Each type of Gigabit switch has its specific functions and applicable scenarios, and users can choose the right type of switch according to their network needs and budget.
