Huawei Firewall Enterprise Dual Egress Firewall Load Configuration Example

Sep 24 , 2022 2102

Case Study

---Huawei Enterprise dual firewall

Project Requirement:

There are 2 channels internal network in the company, FW1 and FW2 set as enterprise dual output firewall, internal network runs OSPF contract with firewall, output firewall works as load sharing, Vlan 10 through AR1, Vlan 20 trough AR2.

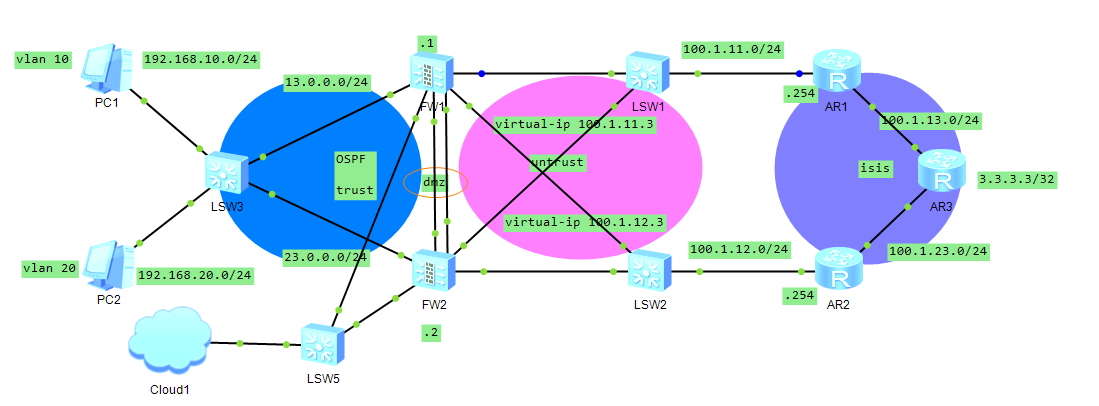

Topology as follow:

Related Devices:

Firewall：USG6000 Series

Router：AR2200 Series

Switch：S5700 Series

SW3 Dispose：

1、Create VLAN

vlan batch 10 13 20 23

2、Dispose Interface

interface GigabitEthernet0/0/1

port link-type access

port default vlan 10

stp edged-port enable

interface GigabitEthernet0/0/2

port link-type access

port default vlan 20

stp edged-port enable

interface GigabitEthernet0/0/23

port link-type access

port default vlan 13

stp edged-port enable

interface GigabitEthernet0/0/24

port link-type access

port default vlan 23

stp edged-port enable

3、Dispose IP address and DHCP

dhcp enable

interface Vlanif10

ip address 192.168.10.1 255.255.255.0

dhcp select interface

dhcp server excluded-ip-address 192.168.10.200 192.168.10.254

dhcp server dns-list 114.114.114.114

interface Vlanif13

ip address 13.0.0.3 255.255.255.0

interface Vlanif20

ip address 192.168.20.1 255.255.255.0

dhcp select interface

dhcp server excluded-ip-address 192.168.20.200 192.168.20.254

dhcp server dns-list 114.114.114.114

interface Vlanif23

ip address 23.0.0.3 255.255.255.0

4、Dispose OSPF

ospf 10 router-id 3.3.3.3

area 0.0.0.0

network 192.168.10.1 0.0.0.0

network 13.0.0.3 0.0.0.0

network 192.168.20.1 0.0.0.0

network 23.0.0.3 0.0.0.0

network 3.3.3.3 0.0.0.0

FW1 Dispose

1、Dispose interface IP

interface Eth-Trunk12

ip address 10.1.12.1 255.255.255.0

truckport gigabitethernet 1/0/5 1/0/6

service-manage ping permit

interface GigabitEthernet1/0/0

undo shutdown

ip address 100.1.11.1 255.255.255.0

gateway 100.1.11.254

interface GigabitEthernet1/0/1

undo shutdown

ip address 100.1.12.1 255.255.255.0

gateway 100.1.12.254

interface GigabitEthernet1/0/2

undo shutdown

ip address 13.0.0.1 255.255.255.0

service-manage ping permit

interface LoopBack0

ip address 1.1.1.1 255.255.255.255

2、Interface Zone

firewall zone trust

set priority 85

add interface GigabitEthernet0/0/0

add interface GigabitEthernet1/0/2

firewall zone untrust

set priority 5

add interface GigabitEthernet1/0/0

add interface GigabitEthernet1/0/1

firewall zone dmz

set priority 50

add interface Eth-Trunk12

3、Switch-on IP-LINK and Dispose

ip-link check enable

ip-link name isp1

destination 3.3.3.3 interface GigabitEthernet1/0/0 mode icmp next-hop 100.1.11.254

ip-link name isp2

destination 3.3.3.3 interface GigabitEthernet1/0/1 mode icmp next-hop 100.1.12.254

4、Dispose Default routing points to AR1 and combine to IP-LINK， Default routing enable and switch to another link when error occur,

ip route-static 0.0.0.0 0.0.0.0 GigabitEthernet1/0/0 100.1.11.254 track ip-link isp1

5、Dispose safety strategy

security-policy

rule name internet

source-zone trust

destination-zone untrust

action permit

rule name inside

source-zone dmz

source-zone local

source-zone trust

destination-zone dmz

destination-zone local

destination-zone trust

service icmp

service ospf

action permit

6、Dispose OSPF

ospf 10 router-id 1.1.1.1

default-route-advertise

area 0.0.0.0

network 1.1.1.1 0.0.0.0

network 13.0.0.1 0.0.0.0

7、Dispose NAT Strategy

nat-policy

rule name internet

source-zone trust

destination-zone untrust

action source-nat easy-ip

8、Dispose PBR redirection VLAN20 to AR2 as load sharing，and combine to IP-LINK，Redirection enable and switch to another link when error occur,

policy-based-route

rule name toisp2 1

source-zone trust

source-address address-set vlan20

track ip-link isp2

action pbr egress-interface GigabitEthernet1/0/1 next-hop 100.1.12.254

9、Output dispose vrrp, set analog interface 100.1.11.3 和100.1.12.3

interface GigabitEthernet1/0/0

vrrp vrid 1 virtual-ip 100.1.11.3 active

interface GigabitEthernet1/0/1

vrrp vrid 2 virtual-ip 100.1.12.3 standby

10、Start HRP，ensure the two firewall chatting chart synchronized

hrp enable

hrp interface Eth-Trunk12 remote 10.1.12.2

hrp mirror session enable

FW2 dispose

1、dispose interface IP

interface Eth-Trunk12

ip address 10.1.12.2 255.255.255.0

truckport gigabitethernet 1/0/5 1/0/6

service-manage ping permit

interface GigabitEthernet1/0/0

undo shutdown

ip address 100.1.11.2 255.255.255.0

gateway 100.1.11.254

interface GigabitEthernet1/0/1

undo shutdown

ip address 100.1.12.2 255.255.255.0

gateway 100.1.12.254

interface GigabitEthernet1/0/2

undo shutdown

ip address 23.0.0.2 255.255.255.0

service-manage ping permit

interface LoopBack0

ip address 2.2.2.2 255.255.255.255

2、Interface zone

firewall zone trust

set priority 85

add interface GigabitEthernet0/0/0

add interface GigabitEthernet1/0/2

firewall zone untrust

set priority 5

add interface GigabitEthernet1/0/0

add interface GigabitEthernet1/0/1

firewall zone dmz

set priority 50

add interface Eth-Trunk12

3、Start IP-LINK and dispose

ip-link check enable

ip-link name isp1

destination 3.3.3.3 interface GigabitEthernet1/0/0 mode icmp next-hop 100.1.11.254

ip-link name isp2

destination 3.3.3.3 interface GigabitEthernet1/0/1 mode icmp next-hop 100.1.12.254

4、Dispose default routing and points to AR1 and combine to IP-LINK，Default routing enable and switch to another link when error occurs,

ip route-static 0.0.0.0 0.0.0.0 GigabitEthernet1/0/0 100.1.11.254 track ip-link isp1

5、Dispose Safety Strategy

security-policy

rule name internet

source-zone trust

destination-zone untrust

action permit

rule name inside

source-zone dmz

source-zone local

source-zone trust

destination-zone dmz

destination-zone local

destination-zone trust

service icmp

service ospf

action permit

6、Dispose OSPF

ospf 10 router-id 2.2.2.2

default-route-advertise

area 0.0.0.0

network 2.2.2.2 0.0.0.0

network 23.0.0.2 0.0.0.0

7、Dispose NAT Strategy

nat-policy

rule name internet

source-zone trust

destination-zone untrust

action source-nat easy-ip

8、Dispose PBR Redirection VLAN20 to AR2 as load sharing，and combine to IP-LINK，Redirection enable and switch to another link when error occurs,

policy-based-route

rule name toisp2 1

source-zone trust

source-address address-set vlan20

track ip-link isp2

action pbr egress-interface GigabitEthernet1/0/1 next-hop 100.1.12.254

9、Output dispose vrrp, set analog interface 100.1.11.3 和100.1.12.3

interface GigabitEthernet1/0/0

vrrp vrid 1 virtual-ip 100.1.11.3 standby

interface GigabitEthernet1/0/1

vrrp vrid 2 virtual-ip 100.1.12.3 active

10、Start HRP，ensure twp firewall chatting chat synchronized

hrp enable

hrp interface Eth-Trunk12 remote 10.1.12.1

hrp mirror session enable

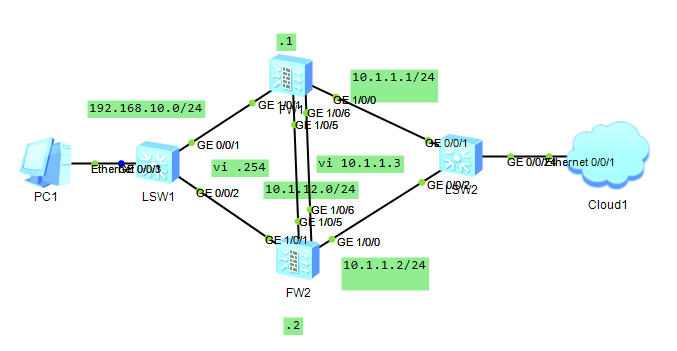

Dual firewall setting L2TP&IPSEC

Dispose as follow：

FW1

No need to explain too clear about interface and zone here,

1、Dispose and synchronized chatting chart

hrp interface Eth-Trunk12 remote 10.1.12.2

hrp mirror session enable

hrp enable

2、Dispose Safety zone.

Allow tunnel flow：

rule name untrust_local

source-zone untrust

destination-zone local

destination-address 10.1.1.3 mask 255.255.255.255

action permit

rule name VPN

source-zone untrust

destination-zone trust

destination-address address-set neiwang

action permit

3、Dispose admin user

Graphic Create

4、Dispose L2TP&IPSEC

Dispose encode flow

acl number 3000

rule 5 permit udp source-port eq 1701

Dispose IPSEC Suggestions

ipsec proposal prop25815354029

encapsulation-mode auto

esp authentication-algorithm sha2-256

esp encryption-algorithm aes-256

Dispose IKE Suggestions

ike proposal 1

encryption-algorithm aes-256

dh group14

authentication-algorithm sha2-256

authentication-method pre-share

integrity-algorithm hmac-sha2-256

prf hmac-sha2-256

Dipose IKE

ike peer ike258153540293

exchange-mode auto

pre-shared-key %^%#vHz}X2hmkWAE[x.+(R9OUK8fG-~)):#E$<0jc!r9%^%#

ike-proposal 1

remote-id-type none

dpd type periodic

ike negotiate compatible

Dipose IPSEC Strategy

ipsec policy-template tpl258153540293 1

security acl 3000

ike-peer ike258153540293

proposal prop25815354029

tunnel local 10.1.1.3

alias zon

sa duration traffic-based 10485760

sa duration time-based 3600

scenario point-to-multi-point l2tp-user-access

Dispose application IPSEC strategy

ipsec policy ipsec2581535397 10000 isakmp template tpl258153540293

Dispose VPN link address

ip pool server

section 0 172.16.10.10 172.16.10.100

excluded-ip-address 172.16.10.10

dns-list 114.114.114.114

Dispose L2TP

l2tp-group default-lns

allow l2tp virtual-template 0

interface Virtual-Template0

ppp authentication-mode chap pap

remote service-scheme l2tpScheme_1661412940479

ip address 172.16.10.10 255.255.255.255

alias L2TP_LNS_0

undo service-manage enable

5、Interface Application

interface GigabitEthernet1/0/0

ipsec policy ipsec2581535397

FW2

1、Configure the heartbeat synchronization session table

hrp interface Eth-Trunk12 remote 10.1.12.2

hrp mirror session enable

hrp enable

2、Configure heartbeat synchronization safety zone and L2TP&IPSEC configuration

No more extra explanation here.
