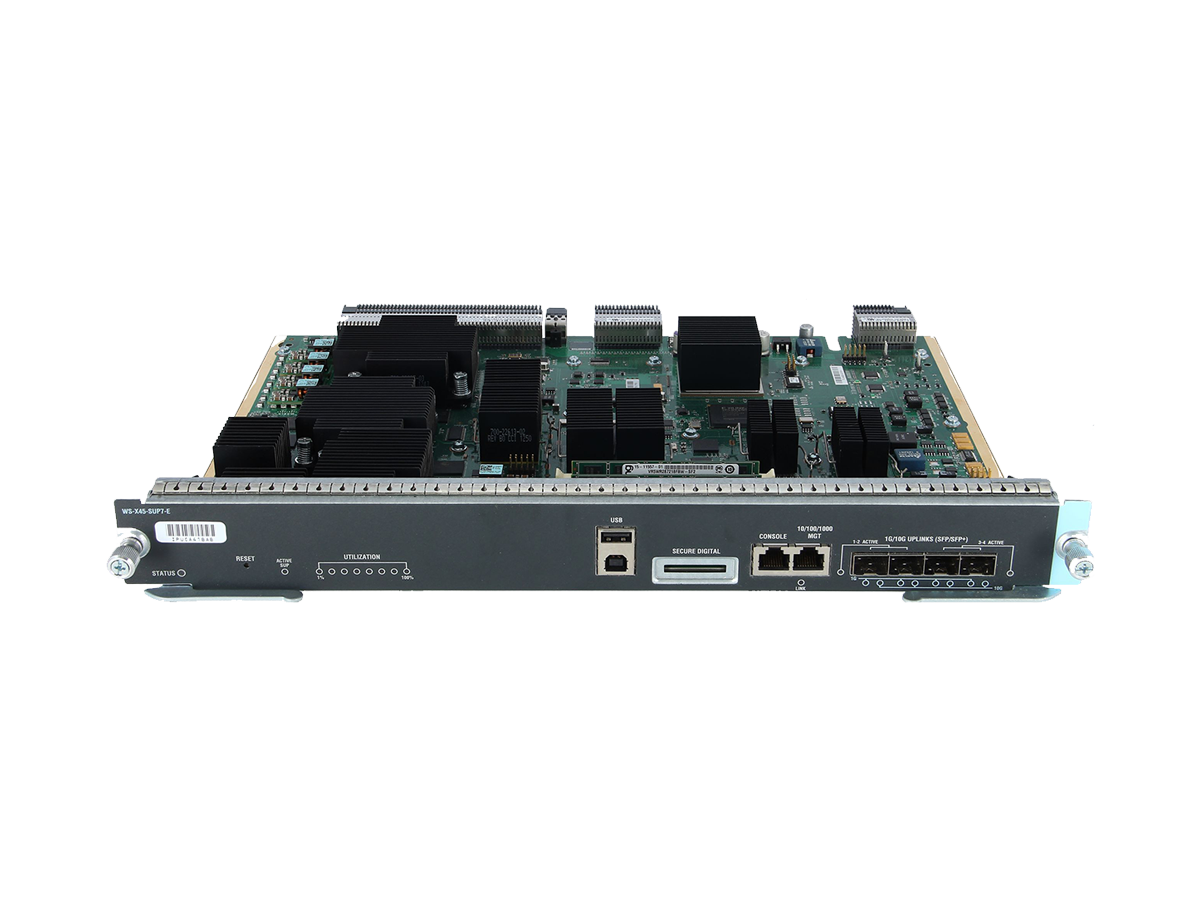

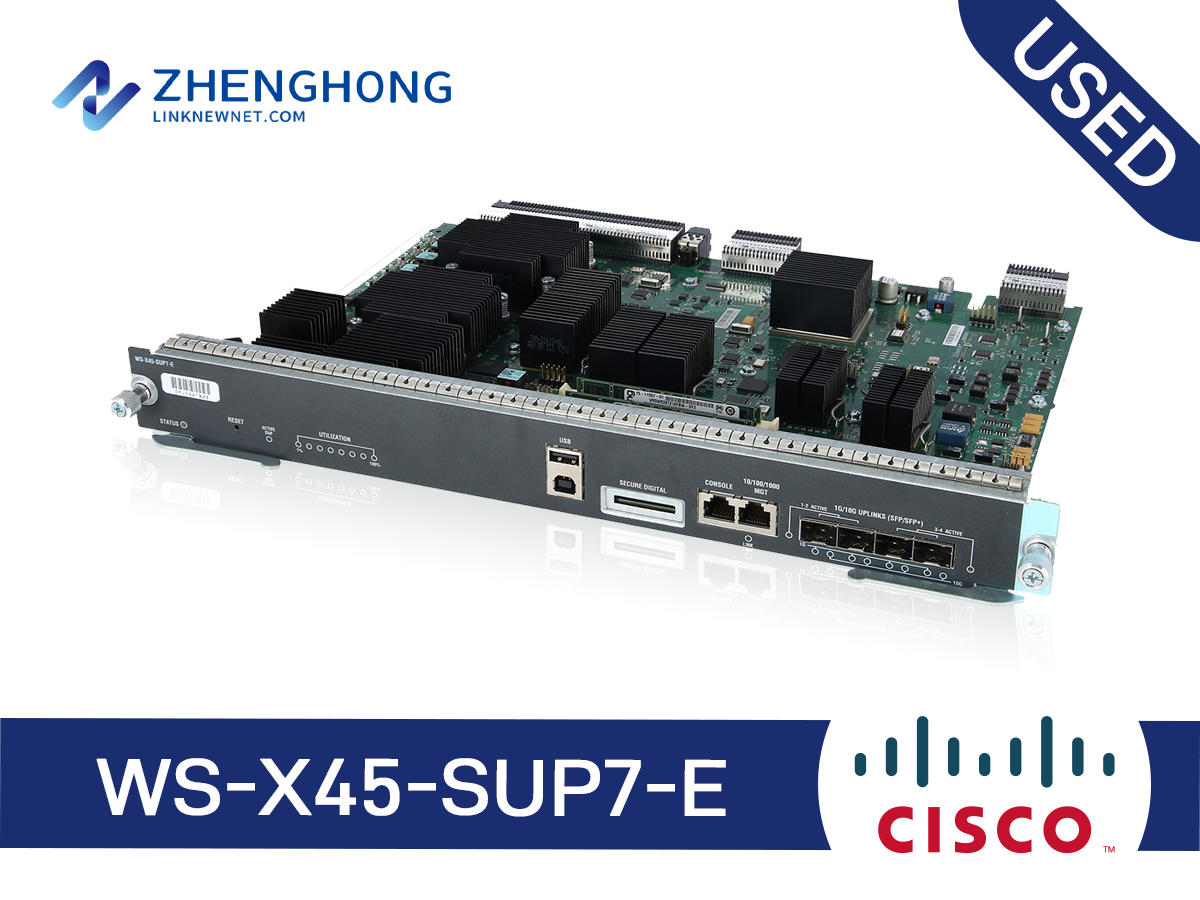

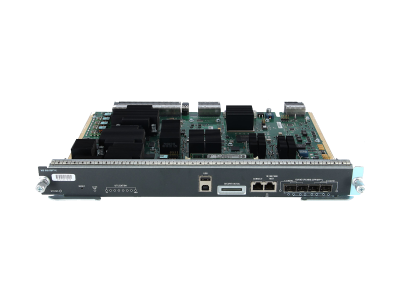

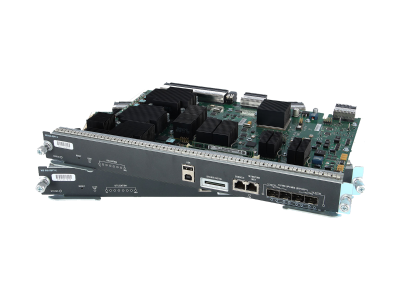

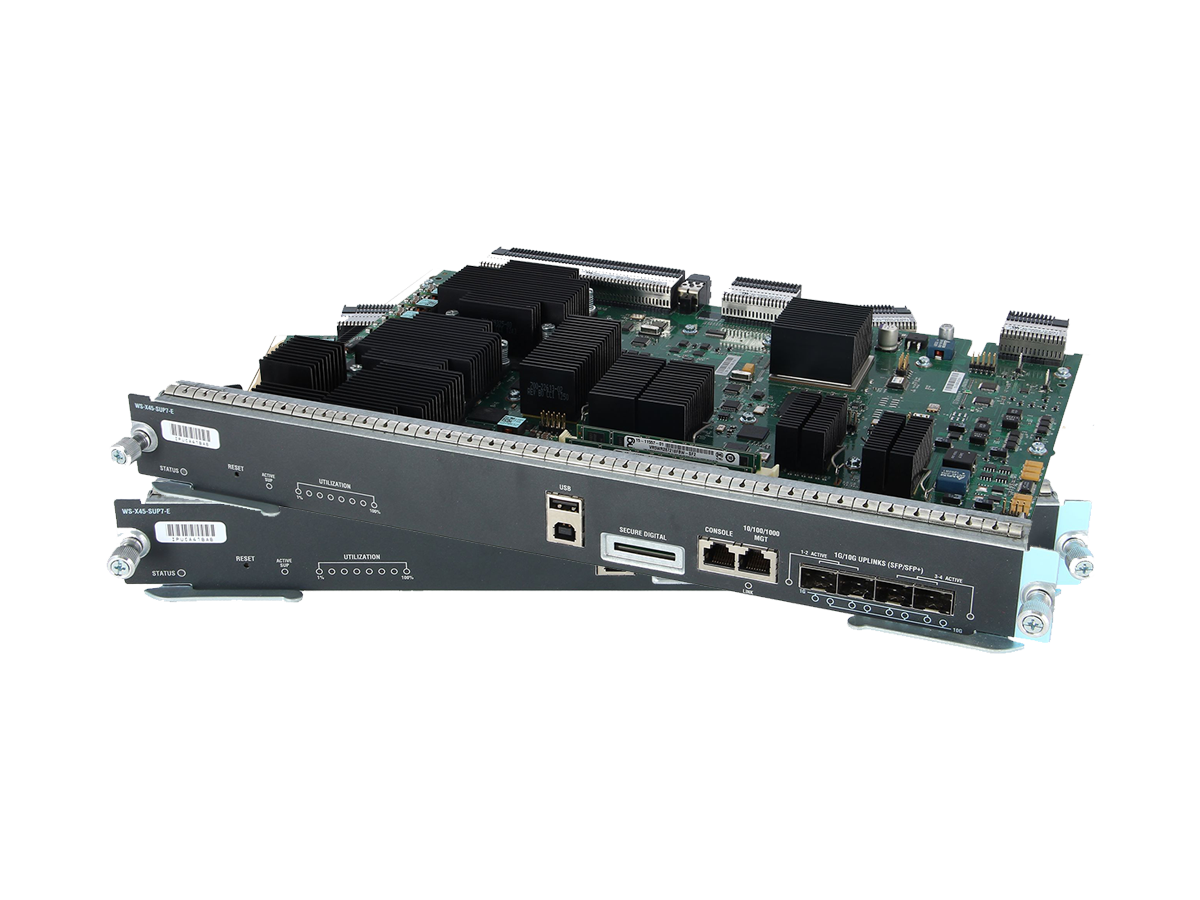

WS-X45-SUP7-E - Cisco Catalyst 4500 E Series Supervisor Engine

Model: WS-X45-SUP7-E

Detail: Catalyst 4500 E-Series Supervisor Engine 7-E, 848Gbps

Condition: USED

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

WS-X45-SUP7-E Specification
Chassis compatibility	All Catalyst 4500 E-series switches
Software requirements (minimum)	Refer to your software release notes for the latest software release requirements
Chassis slot restrictions	•Catalyst 4503-E: Slot 1 only •Catalyst 4506-E: Slot 1 only •Catalyst 4507R-E and Catalyst 4507R+E: Slot 3 and slot 4 •Catalyst 4510R-E and Catalyst 4510R+E: Slot 5 and slot 6
Bandwidth per slot	48-Gbps
Memory	2-GB (upgrade to 4-GB)
STATUS LED	The status LED indicates the current health of the supervisor engine and the current software state.
RESET switch	The RESET switch is used to reset and restart the switch. Note Use a paper clip or other small, pointed object to press the RESET switch.
ACTIVE SUP LED	The active supervisor engine LED indicates whether the supervisor engine is active or in standby mode in redundant supervisor engine configurations.
UTILIZATION LEDs	Eight LEDs indicate (as an approximate percentage) the current traffic load over the backplane.
USB connectors	Two USB 2.0 ports are provided. Port 1 operates in device mode (upstream) and port 2 in host mode (downstream). Port 1 has a standard Type B USB connector and can be used as a USB console.Port 2 has a USB type A connector and a standard USB 2.0 device like a flash memory device can plug into this connector.
SECURE DIGITAL slot	A standard Secure Data (SD) memory card interface is provided on the front panel
CONSOLE port	This is a 10/100/1000 port that uses an RJ-45 connector. The console port allows you th access the switch either locally (with a console terminal) has an RJ-45 connector. The console port allows you to perform the following functions: •Configure the switch from the CLI •Monitor network statistics and errors •Configure SNMP agent parameters
10/100/1000 MGT port	The Ethernet management port is a Layer 3 host port to which you can connect a PC. You can use the Ethernet management port instead of the switch console port for network management. When managing a switch, connect the PC to the Ethernet management port on a Catalyst 4500 E-series switch. Note When connecting a PC to the Ethernet management port, you must assign an IP address.
LINK LED	The 10/100/1000 MGT port has a link LED associated with it.
1G/10G UPLINKS (SFP/SFP+) ports	The Supervisor Engine 7-E has four 1-G or 10-G ports that use either SFP transceivers or SFP+ transceivers.
Uplink port LEDs	Each of the four uplink ports has two LEDs associated with it. One LED displays port status when a 1-GB SFP transceiver is installed in the port socket. The second LED displays uplink port status when a 10-GB SFP+ transceiver is installed in the port socket.
Power requirement	302 W
Operating temperature	Certified for operation: 32° to 104°F (0° to 40°C) •Designed and tested for operation: 32° to 130°F (0° to 55°C)
Humidity (RH) ambient (noncondensing)	10 to 90%
Operating altitude	Certified for operation: 0 to 6500 ft (0 to 2000 m) •Designed and tested for operation: -200 to 10,000 ft (-60 to 3000 m)
Operating temperature	Certified for operation: 32° to 104°F (0° to 40°C) •Designed and tested for operation: 32° to 130°F (0° to 55°C)
Supervisor Engine 7-E Front Panel LEDs
STATUS	The STATUS LED indicates the status of he supervisor engine. Green—All diagniostic tests have passed Orange—System boot or a diagnostic test is in progress. Red—A diagnostic test failed. Off—The supervisor engine is disabled or is not powered up.
ACTIVE SUP	Indicates whether the supervisor engine is active or standby. Green—Supervisor engine is active (in redundant supervisor engine configurations) Off—Supervisor engine is in standby mode (in redundant supervisor engine configurations)
UTILIZATION	When the switch is operational, the eight utilization LEDs indicate the current traffic load over the backplane as an approximate percentage value. Each LED lit green indicates approximately 12.5 percent of load.
MGT port	Indicates the status of the 10/100/1000BASE-T Ethernet management port Green—The link is operational. Orange—The link is disabled by user. Flashing orange—The power-on self-test indicates a faulty port. Off—No signal is detected or there is a link configuration failure.
Uplink link	Indicates the status of the uplink port Green—The link is operational. Orange—The link is disabled by user. Flashing orange—The power-on self-test indicates a faulty port. Off—No signal is detected or there is a link configuration failure.
