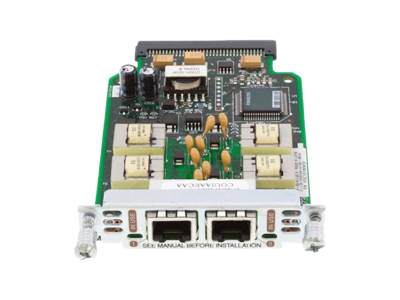

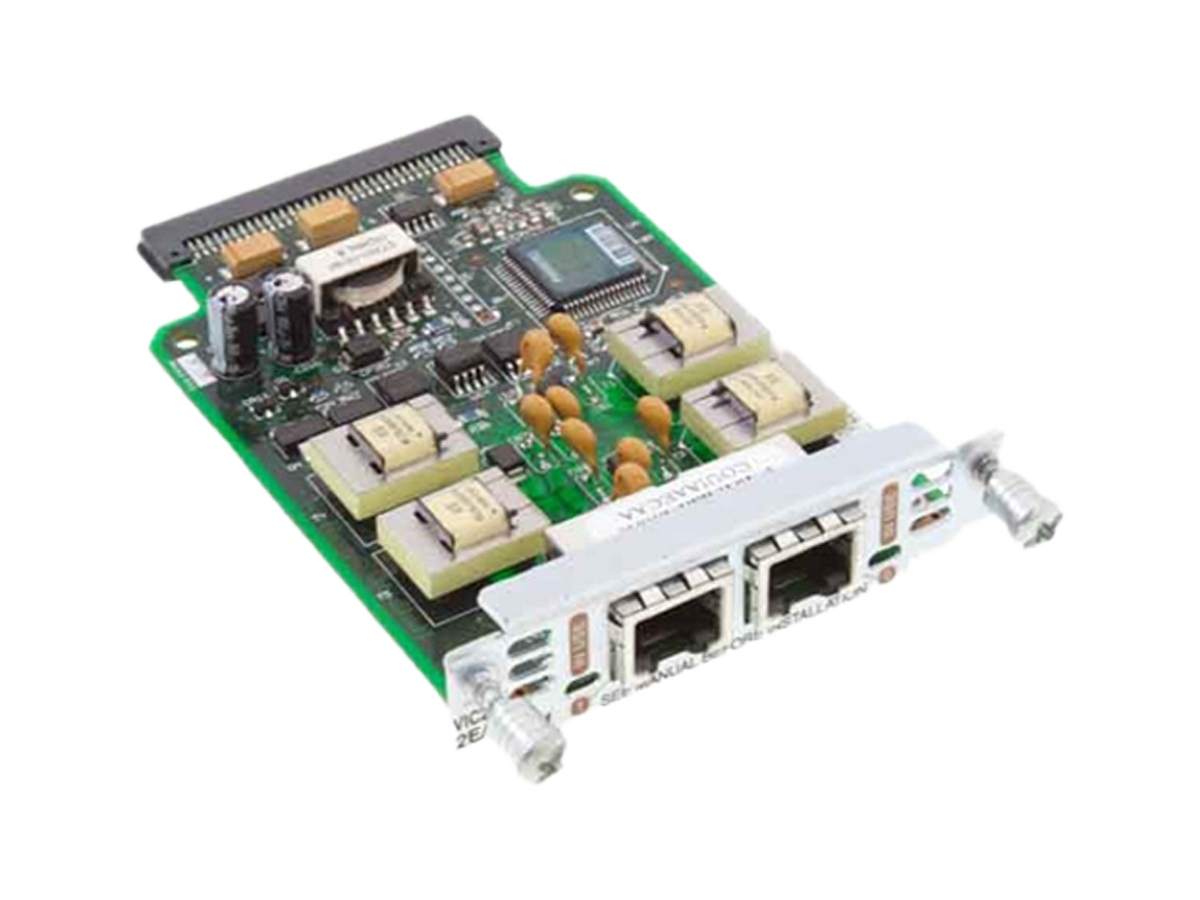

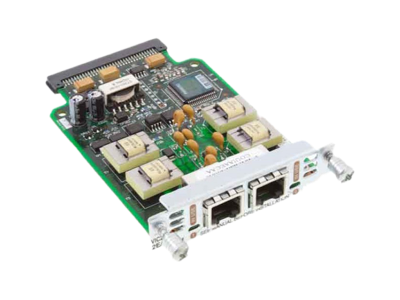

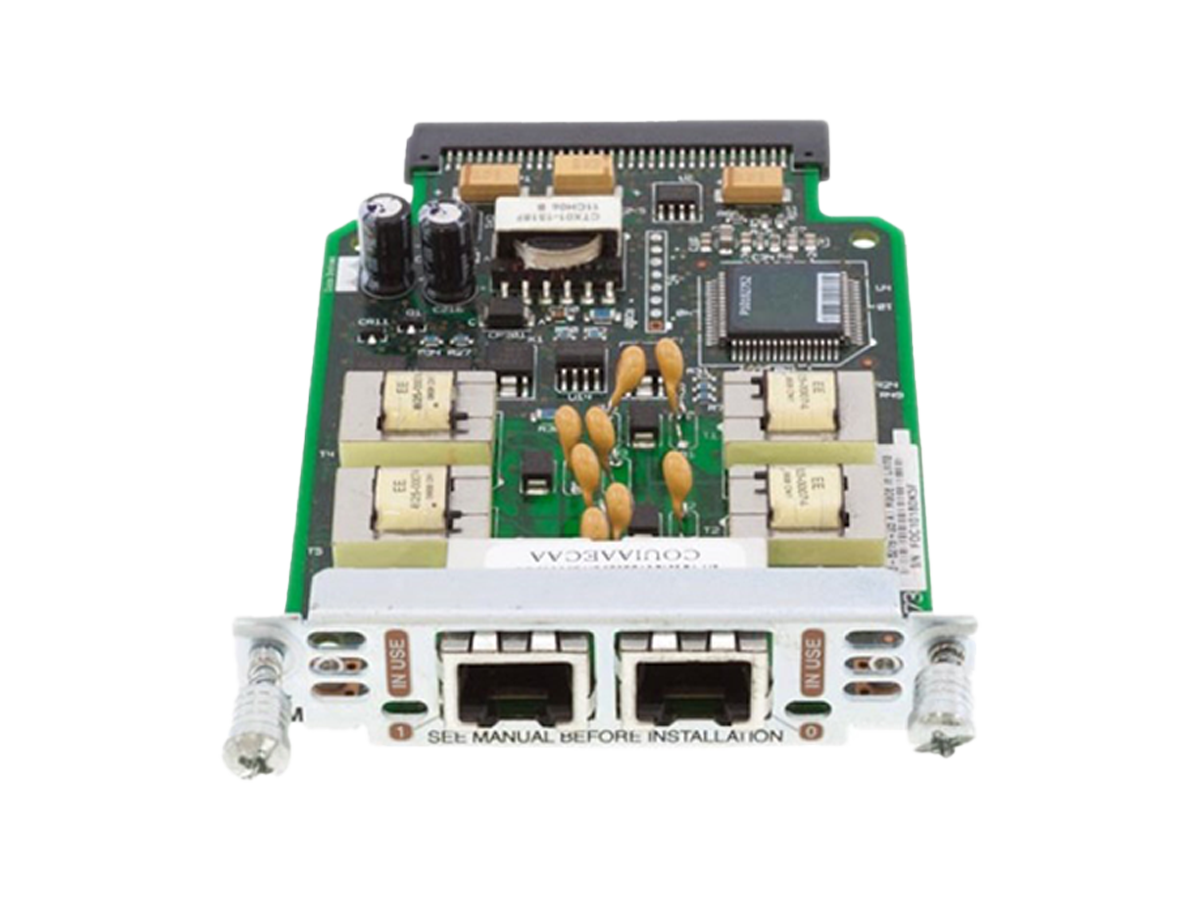

VIC2-2E/M - Cisco UCS Virtual Interface Card

Model: VIC2-2E/M

Detail: Two-port Voice Interface Card - E and M

Condition: USED

Shipping: DHL, FedEx, UPS, etc

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

General Information
Manufacturer:	Cisco
Product ID:	VIC2-2E/M
Product Description:	Two-port Voice Interface Card - EandM
Product Type:	Voice Interface Card (VIC)
Marketing Information
An Ear and Mouth (E&M) interface is used to support tie-line facilities or signals between telephone switches. The E&M voice interface card (VIC) is mostly used to integrate VoIP with the legacy voice solution, connecting the Cisco router to a PBX.
Technical Information
Application/Usage:	Voice
Interfaces/Ports
Interfaces/Ports:	2 x E&M WAN
Interfaces/Ports Details:	2 x RJ-45 E&M WAN
Management & Protocols
Protocols:	MGCP
Reliability
MTBF:	1825192 Hour
Environmental Conditions
Temperature:	32°F (0°C) to 104°F (40°C) Operating
	-13°F (-25°C) to 158°F (70°C) Storage
Humidity:	5% to 85% Non-condensing Relative Humidity Operating
	5% to 95% Non-condensing Relative Humidity Non-operating
Miscellaneous
Additional Information:	Use Cisco CallManager version 3.3(3) for MGCP support E-Lead Current Limit: 100 mA M-Lead Sensitivity: > 3 mA Pulse Distortion: < 2 percent "Plus" feature set support Connections: Supports two-wire and four-wire E&M signaling types I, II, III, and V via RJ-45/RJ-48S connectors Signaling Modes: Immediate Delay dial Wink start Address Signaling Formats: In-band DTMF Out-of-band pulse (10/20 pps)
System Requirements:	Supported Platforms & Minimum IOS Versions: 3745 - 12.2(15)ZJ 3725 - 12.2(15)ZJ 3660 Series - 12.2(15)ZJ 2691 - 12.2(15)ZJ 2600XM Series - 12.2(15)ZJ 1760 - 12.2(15)ZL 1751 - 12.2(15)ZL
Compatibility:	NM-HD-1V Network Module NM-HD-2V Network Module NM-HD-2VE Network Module Supported Platforms: 3745 3725 3660 Series 2691 2600XM Series 1760 1751
Certifications & Standards:	Compliance: FCC Class B device CE Safety Conformance: UL 1950

Q&A

What accessories are available for VIC2-2E/M?

Standard accessories include E and M signaling cables, available through authorized Cisco distributors.

How to troubleshoot common issues with VIC2-2E/M?

Common issues can be resolved by checking connection integrity and ensuring proper configuration in the router settings.

What are the distinct characteristics of VIC2-2E/M compared to other models?

The VIC2-2E/M specifically supports E and M signaling, making it unique for certain voice applications.

How compatible is the VIC2-2E/M with other Cisco products?

The VIC2-2E/M is compatible with a wide range of Cisco ISR routers, ensuring seamless integration into your network.

What is the VIC2-2E/M designed for?

The VIC2-2E/M is designed for connecting Cisco routers to external E&M voice interfaces, facilitating voice integration.

How does the VIC2-2E/M interface card enhance system integration?

It allows for seamless integration of voice services within existing network infrastructures, improving efficiency and system capabilities.

Can the VIC2-2E/M be used in any Cisco router?

No, it must be used in Cisco routers that have compatible voice interface card slots to ensure functionality and compatibility.

What are the key features of the VIC2-2E/M?

The card features two ports for E&M voice, offering high-density voice integration capability for small to medium-sized networks.

Are there alternative products to the VIC2-2E/M?

Yes, Cisco offers a range of voice interface cards and modules for different network sizes and requirements, such as the VIC3 models.

What are typical applications of the VIC2-2E/M?

Typical applications include small enterprise voice connectivity, remote office setups, and voice protocol conversions.

How is the VIC2-2E/M installed in a router?

Installation involves inserting the card into a compatible slot on the router, followed by configuration through the router's CLI or GUI.

Does the VIC2-2E/M require software or firmware upgrades?

Firmware upgrades might be necessary to ensure compatibility and optimal performance with newer network standards and technologies.

What troubleshooting steps are common for VIC2-2E/M issues?

Common steps include checking cable connections, verifying configuration settings, and examining compatibility with connected E&M interfaces.

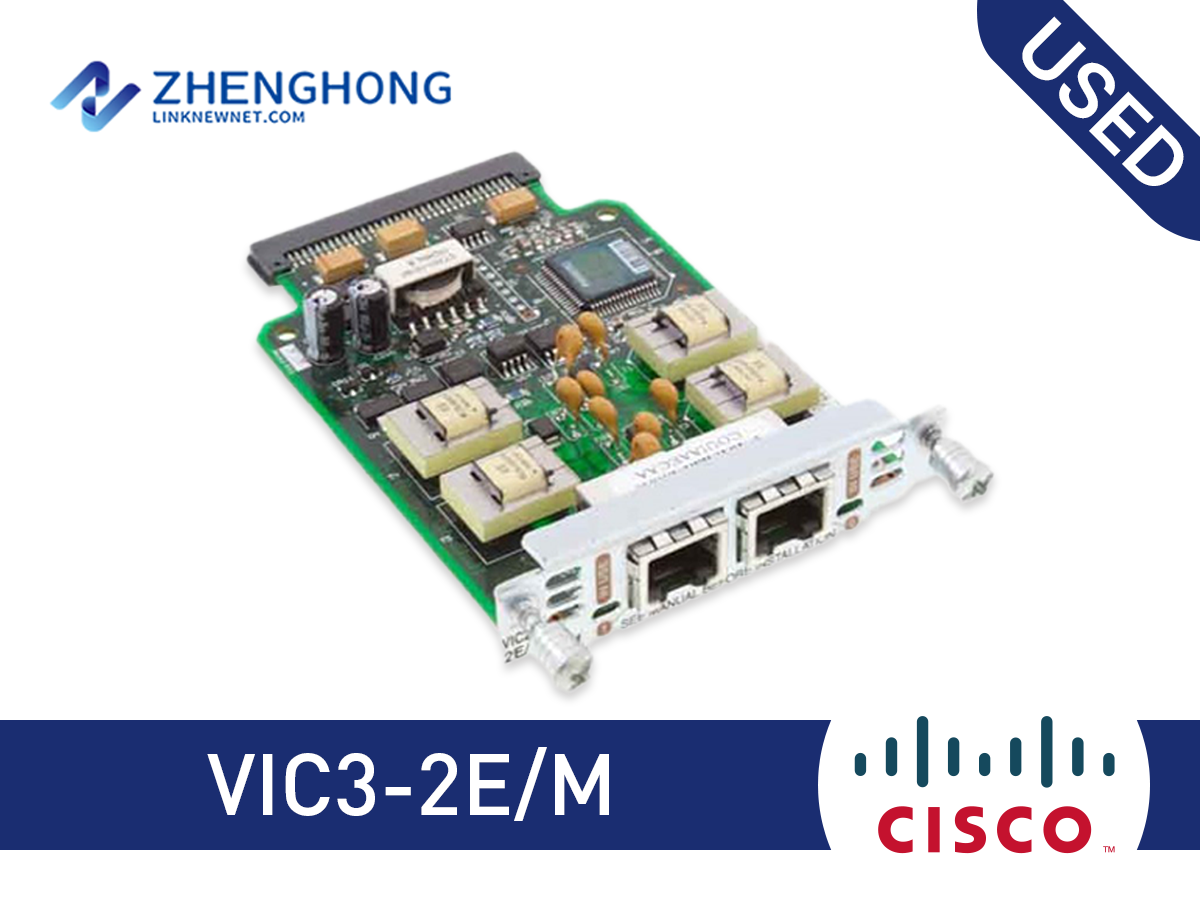

How does the VIC2-2E/M compare with the VIC3-2E/M models?

The VIC3-2E/M offers enhancements like improved voice quality and support for newer protocols, while VIC2-2E/M is suited for basic setups.

What are the main features of VIC2-2E/M?

The VIC2-2E/M is a two-port voice interface card with support for E and M signaling standards.

How to install the VIC2-2E/M card?

The VIC2-2E/M card can be installed in compatible Cisco router slots. Refer to the router's installation guide for detailed instructions.

What application scenarios suit VIC2-2E/M?

The VIC2-2E/M is ideal for enterprise VoIP applications needing integration with traditional telephony systems.

How cost-effective is the VIC2-2E/M?

The VIC2-2E/M is cost-effective as it provides dual ports for voice connectivity, reducing the need for multiple cards.

Does VIC2-2E/M require regular upgrades?

The VIC2-2E/M may need firmware updates which can be obtained from Cisco's official website.

Are there alternative products to VIC2-2E/M?

Alternatives include other Cisco VICs such as the VIC2-4FXO, depending on specific voice interface needs.

What accessories are available for VIC2-2E/M?

Standard accessories include E and M signaling cables, available through authorized Cisco distributors.

How to troubleshoot common issues with VIC2-2E/M?

Common issues can be resolved by checking connection integrity and ensuring proper configuration in the router settings.

What are the distinct characteristics of VIC2-2E/M compared to other models?

The VIC2-2E/M specifically supports E and M signaling, making it unique for certain voice applications.

How compatible is the VIC2-2E/M with other Cisco products?

The VIC2-2E/M is compatible with a wide range of Cisco ISR routers, ensuring seamless integration into your network.
