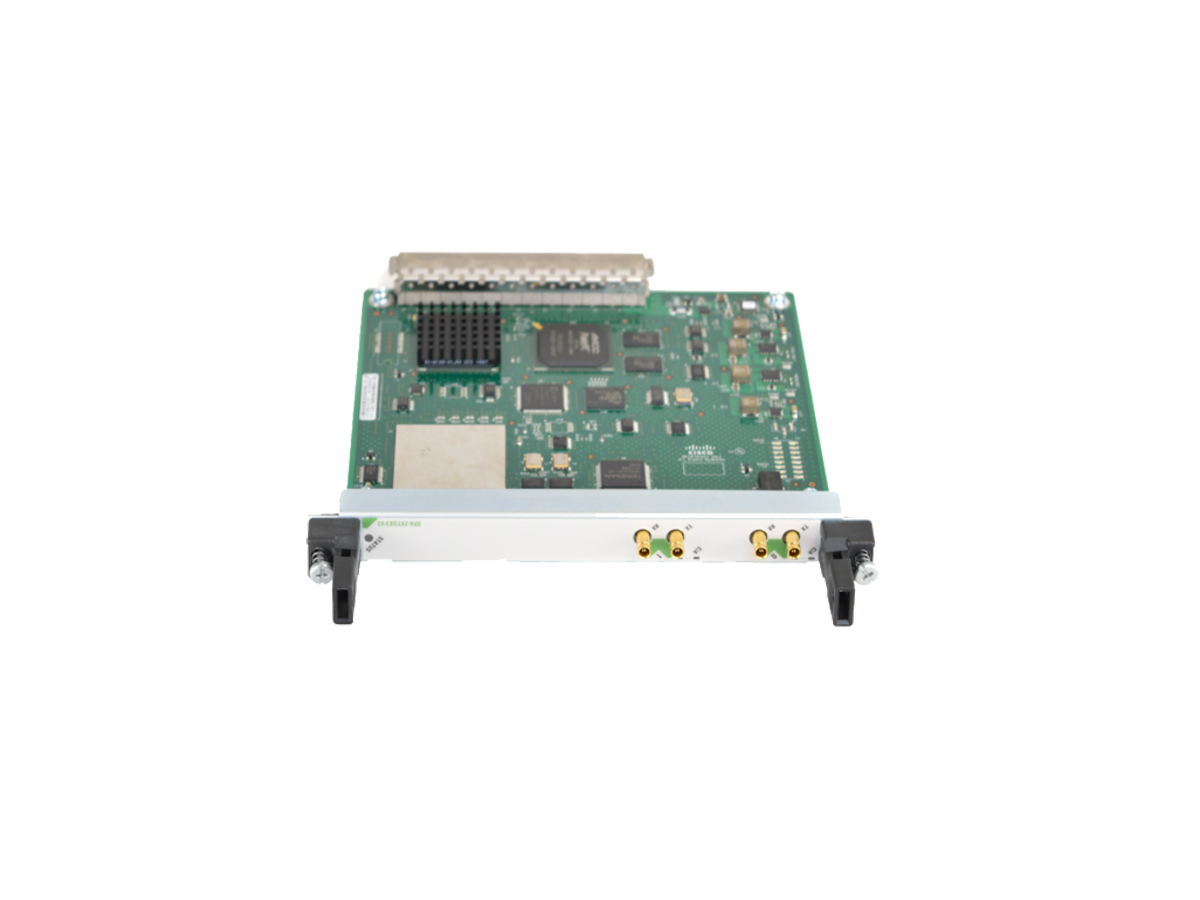

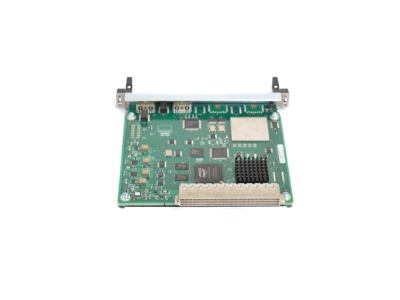

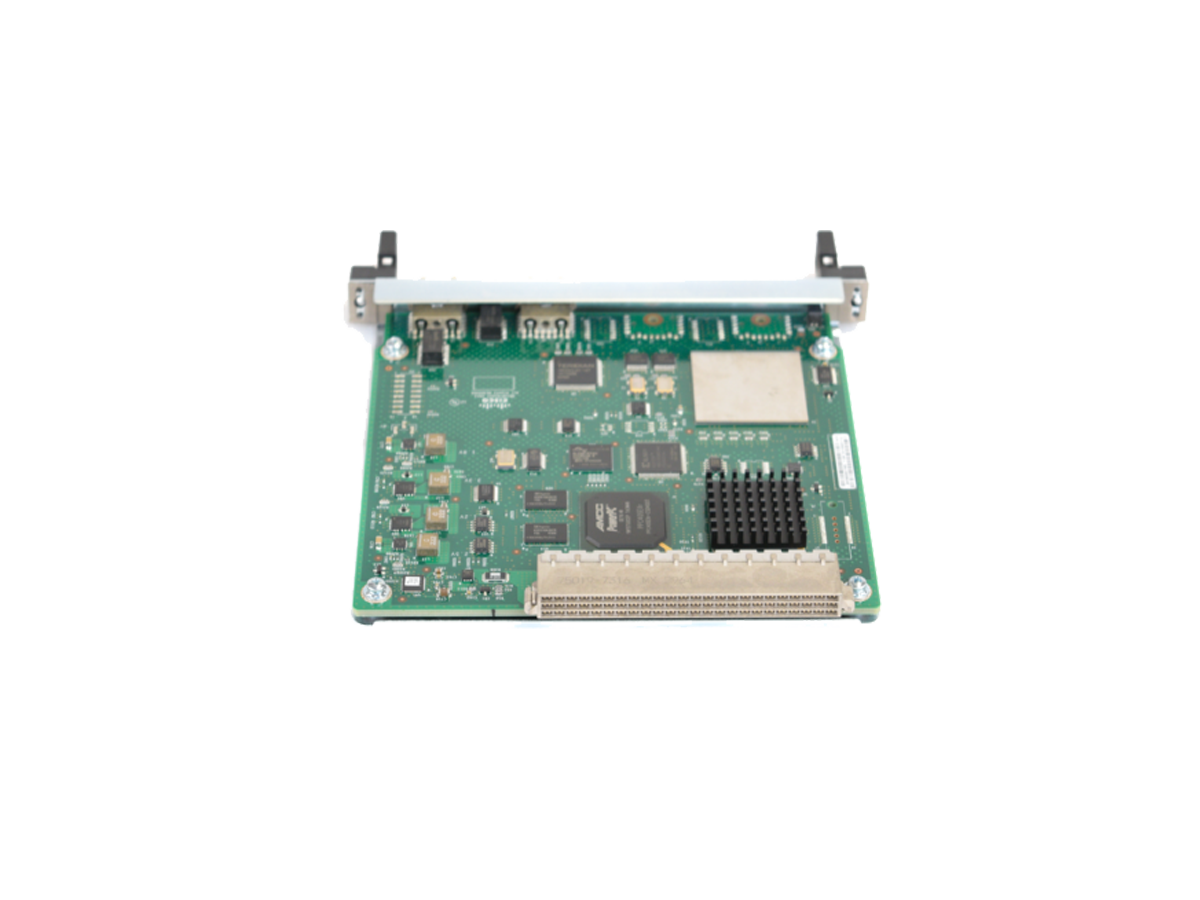

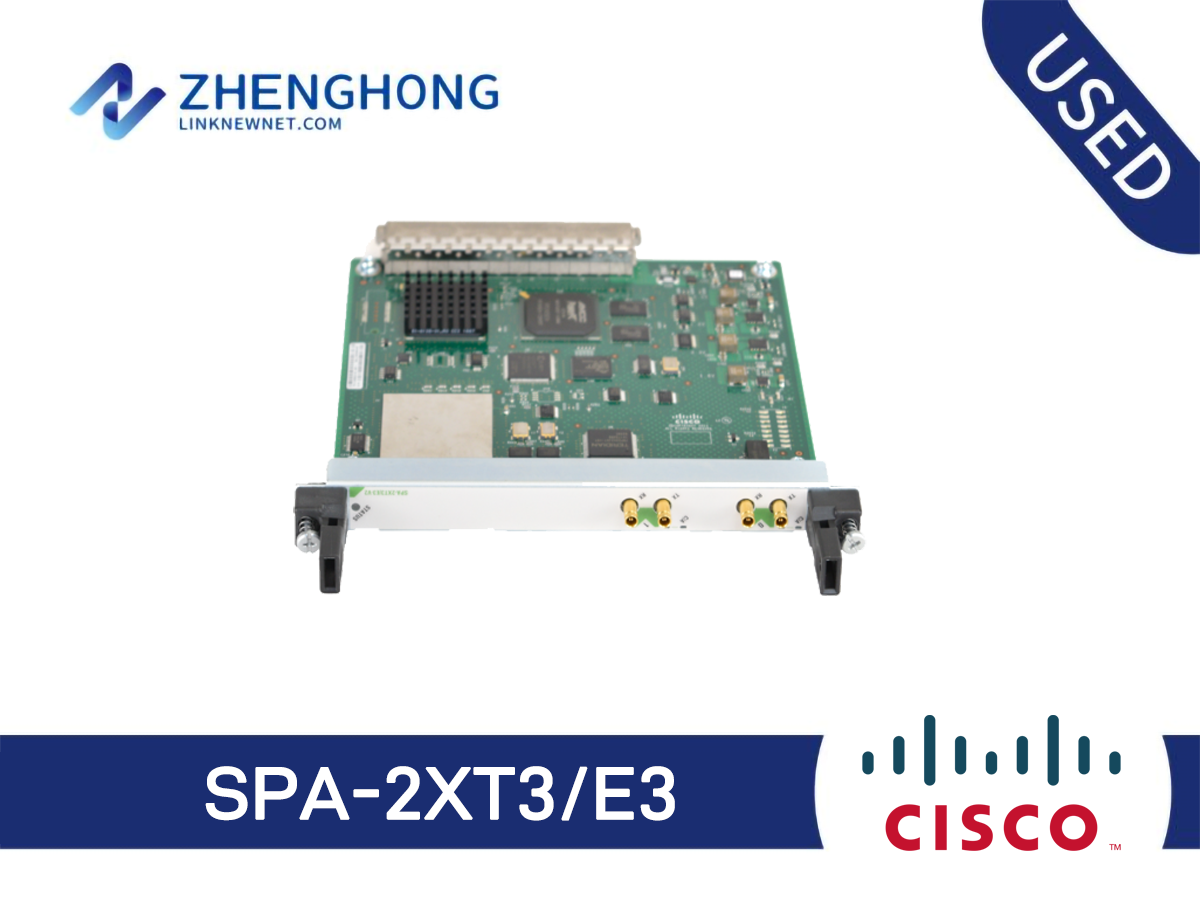

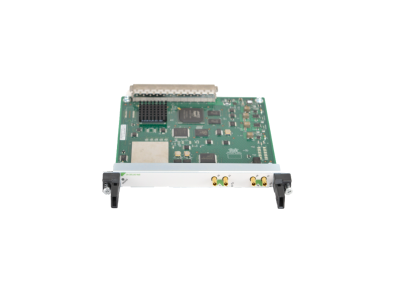

SPA-2XT3/E3 - Cisco ASR 9000 Series Shared Port Adapter

Model: SPA-2XT3/E3

Detail: Cisco ASR 9000 Adapter SPA-2XT3/E3 2-port Clear Channel T3/E3 Shared Port Adapter

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

SPA-2XT3/E3 Specifications
Product compatibility	• Cisco 7304 Router • Cisco 7600 Series Routers • Cisco 12000 Series Routers • Cisco ASR 9000 Series Router • Cisco XR 12000 Series Routers
Port density per SPA	2- and 4-port options
Physical Interface	• 1.0/2.3 RF connector (75-ohm impedance) • 1.0/2.3 RF to BNC adapter cable option
Protocols	Serial encapsulations: • HDLC • PPP, RFC 1662 • Frame Relay, RFC 1490
Features and functions	• Up to 4 independent T3 or E3 ports configurable as either all T3 or all E3 only • Full-duplex connectivity at T3 rate (44.736 MHz) or E3 rate (34.368 MHz) • Subrate and scrambling support of Quick Eagle Networks (formerly Digital Link), Larscom, ADC Kentrox, Adtran, and Verilink DSUs • Internal or network clock selectable per channel • Line and payload loopback capabilities: – Local and remote loopback at the T3 level – Response to embedded loopback commands – Insertion of loopback commands into transmitted signal Bit-error-rate-testing (BERT) pattern generation and detection per channel – Selectable pseudorandom pattern up to 32 bits long, including all 0’s, all 1’s, 215, 220, 220 QuasiRandom Signal Sequence (QRSS), 223, alternating 0’s and 1’s – 32-bit error-count and bit-count registers – Fully independent transmit and receive sections – Detection of test patterns with bit error rates up to 10-2 • 24-hour history maintained for error statistics and failure counts, at 15-minute intervals • 16- and 32-bit cyclic redundancy check (CRC); 16-bit default
T3-specific features	C-bit or M23 framing • Binary 3-zero substitution (B3ZS) line coding • T3 far-end alarm and control (FEAC) channel support • Compliant with T3 pulse mask per ANSI T1.102-1993 • Maintenance data link (MDL) • Line build-out up to 450 feet (135 meters) • Alarm monitoring – Alarm indication signal (AIS) – Loss of signal (LOS) – Out of frame (OOF) – Far-end receive failure (FERF) • Performance data collection – Line coding violation (LCV) – Framing bit errors (F- or M-bit errors) – P-bit error counts – C-bit error counts – Far-end block error (FEBE) counts
E3-specific features	G.751, or G.832 and unframed G.703 framing • High-density bipolar with three zeroes (HDB3) line coding • Compliant with E3 pulse mask • Software-configurable E3 national service bits • Alarm monitoring – Alarm indication signal (AIS) – Loss of signal (LOS) – Out of frame (OOF) – Far-end receive failure (FERF) • Performance data collection – Line coding violation (LCV) – Framing-pattern errors – FEBE counts
Reliability and availability	• OIR • Single SPA software reset
MIBs	RFC 2496 MIB (T3 MIB) and T1.231 MIB
Network management	Simple Network Management Protocol (SNMP)
Physical specifications	• Weight: 0.75 lb (0.34 kg) • Height: 0.8 in. (2.03 cm) (single height) • Width: 6.75 in. (17.15 cm) • Depth: 7.28 in. (18.49 cm)
Power	• 2-port: 7.7W maximum • 4-port: 8.4W maximum
Compliance and agency approvals	CE Marking Safety • UL 60950 • CSA 22.2 No.60950 • IEC 60950 • EN 60950 • AS/NZS 3260 • TS001 EMC • CFR47 Part 15 • ICES 003 • EN55022 • CISPR 22 • AS/NZ 3548 • VCCI • EN55024 • EN50082-1 • EN61000-6-1 Telecom (T3) • ANSI T1 107 • T1 404 • AT&T 54014 Telecom (E3) • G.703 • G.751 • G.832
Environmental specifications	• Operating temperature: 41 to 104°F (5 to 40°C) • Storage temperature: –38 to 150°F (–40 to 70°C) • Operating humidity: 5 to 85% relative humidity • Storage humidity: 5 to 95% relative humidity

Q&A

How can I troubleshoot common issues with the SPA-2XT3/E3 adapter?

Common troubleshooting includes checking firmware compatibility, confirming physical connections, and consulting Cisco support for software issues.

What accessories are available for the SPA-2XT3/E3 adapter?

Accessories include spare mounting brackets, dust covers for unused ports, and compatible cable assemblies for T3/E3 connections.

How does the SPA-2XT3/E3 compare with similar products?

The SPA-2XT3/E3 stands out due to its efficient port density, flexibility, and scalability compared to similar T3/E3 adapters in its category.

Can the SPA-2XT3/E3 adapter be used in other router series?

The SPA-2XT3/E3 is specifically designed for the Cisco ASR 9000 Series Routers, ensuring optimized performance and compatibility.

Learn More

What makes the Cisco ASR 9000 Adapter SPA-2XT3/E3 cost-effective?

The Cisco ASR 9000 Adapter SPA-2XT3/E3 offers high performance with its 2-port Clear Channel T3/E3, ensuring efficient data management and reduced network overheads, making it a cost-effective solution.

What are the main characteristics of the SPA-2XT3/E3?

The SPA-2XT3/E3 features two Clear Channel T3/E3 ports, supporting flexible configuration and high-speed data transmission for robust network performance.

In what application scenarios is the SPA-2XT3/E3 typically used?

The SPA-2XT3/E3 is ideal for service providers and enterprises needing reliable, high-speed T3/E3 transfers for applications such as video streaming, large data transfers, and network backbone support.

How do I install the SPA-2XT3/E3 on my Cisco ASR 9000?

Ensure the ASR 9000 router is powered off, insert the SPA-2XT3/E3 into an available SPA bay, secure it properly, and restart the router to recognize the new adapter.

Does the SPA-2XT3/E3 require any upgrades?

The SPA-2XT3/E3 may require occasional firmware updates to ensure optimal performance, which can be acquired through Cisco's support portal.

Are there alternative products to the SPA-2XT3/E3?

Alternative products to the SPA-2XT3/E3 include other Cisco shared port adapters with similar functionalities, such as the SPA-8XCHT1/E1.

What common troubleshooting steps can I take for the SPA-2XT3/E3?

Basic troubleshooting includes checking the physical connections, ensuring firmware is up-to-date, and verifying the configuration settings in the ASR 9000 router.

What accessories are available for the SPA-2XT3/E3?

Accessories for the SPA-2XT3/E3 include compatible interface cables, rack mounting kits, and additional power supplies for enhanced redundancy.

How does the SPA-2XT3/E3 compare to similar Cisco adapters?

The SPA-2XT3/E3 offers dedicated T3/E3 ports which provide higher reliability and performance compared to adapters with multiple types of interfaces, making it ideal for specific T3/E3 applications.

Can the SPA-2XT3/E3 be used in multi-vendor environments?

Yes, the SPA-2XT3/E3 is designed to work seamlessly in multi-vendor environments, ensuring compatibility and flexibility in various network infrastructures.

How cost-effective is the SPA-2XT3/E3 adapter?

The SPA-2XT3/E3 adapter offers a high-performance, cost-effective solution for network expansion by providing 2-port Clear Channel T3/E3 connectivity.

What are the key features of the Cisco ASR 9000 Adapter SPA-2XT3/E3?

The SPA-2XT3/E3 features 2 ports of Clear Channel T3/E3, offering flexibility, scalability, and robust performance for service providers.

What is the typical application scenario for the SPA-2XT3/E3 adapter?

The SPA-2XT3/E3 is ideal for service providers needing to expand network capacity and support high-speed connections on the Cisco ASR 9000 Series Routers.

How do I install the SPA-2XT3/E3 adapter on a Cisco ASR 9000 Router?

To install the SPA-2XT3/E3 adapter, slot it into any available Shared Port Adapter slot on the Cisco ASR 9000 Router and secure it in place.

Does the SPA-2XT3/E3 adapter require any software upgrades?

The SPA-2XT3/E3 may require specific Cisco IOS XR software versions; ensure your system is updated to the latest compatible release.

Are there alternative products to the SPA-2XT3/E3 for the Cisco ASR 9000 Router?

Alternatives include other SPA modules like the SPA-1XCHSTM1/OC3, depending on the required port types and network specifications.

How can I troubleshoot common issues with the SPA-2XT3/E3 adapter?

Common troubleshooting includes checking firmware compatibility, confirming physical connections, and consulting Cisco support for software issues.

What accessories are available for the SPA-2XT3/E3 adapter?

Accessories include spare mounting brackets, dust covers for unused ports, and compatible cable assemblies for T3/E3 connections.

How does the SPA-2XT3/E3 compare with similar products?

The SPA-2XT3/E3 stands out due to its efficient port density, flexibility, and scalability compared to similar T3/E3 adapters in its category.

Can the SPA-2XT3/E3 adapter be used in other router series?

The SPA-2XT3/E3 is specifically designed for the Cisco ASR 9000 Series Routers, ensuring optimized performance and compatibility.
