SPA-1XCHSTM1/OC3 - Cisco ASR 9000 Series Shared Port Adapter

Model: SPA-1XCHSTM1/OC3

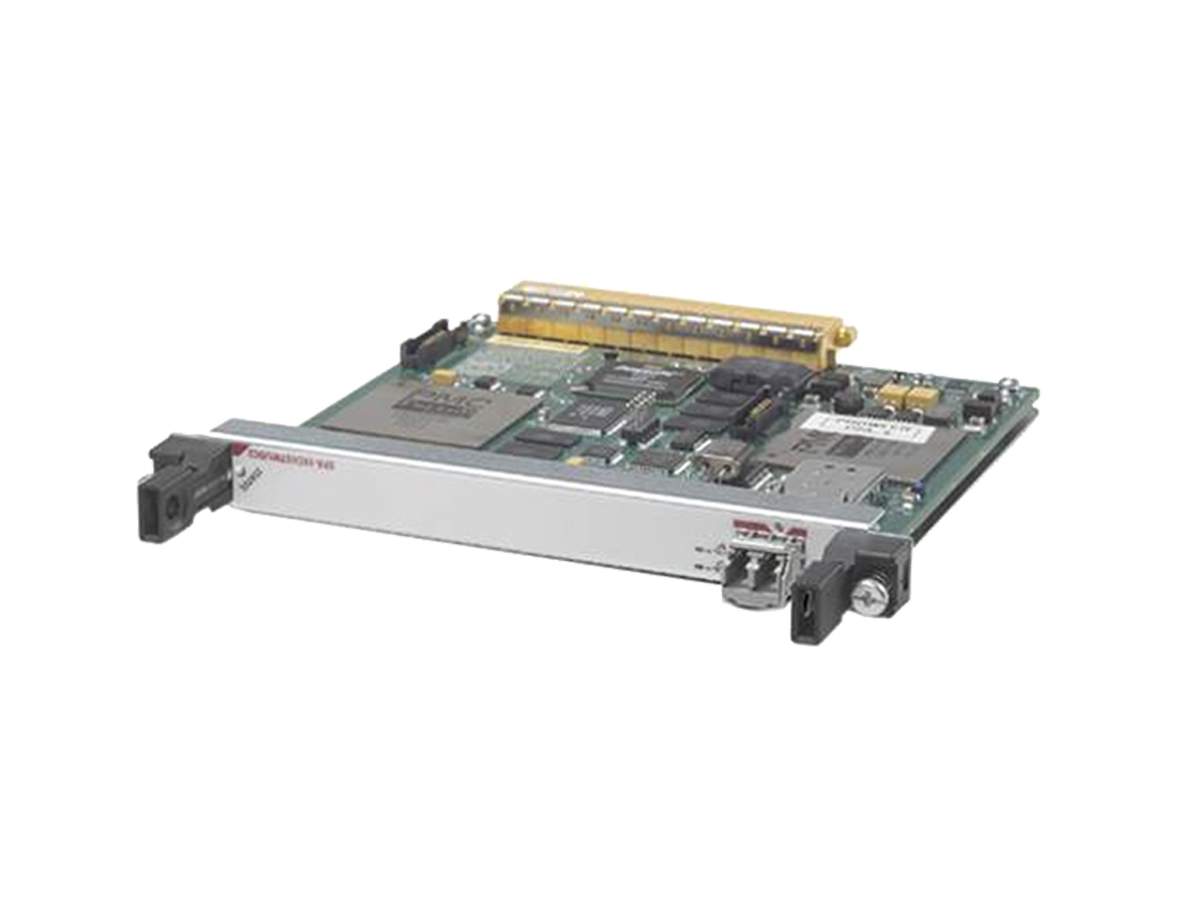

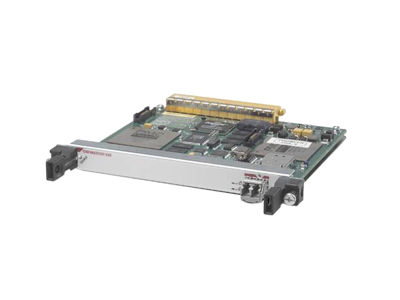

Detail: Cisco ASR 9000 Adapter SPA-1XCHSTM1/OC3 1-port Channelized STM-1/OC-3c to DS0 Shared Port Adapter

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

SPA-1XCHSTM1/OC3 Specifications
Product compatibility	· Cisco 7600 Series Routers · Cisco ASR 1000 Series Routers · Cisco ASR 9000 Series Routers
Minimum software version	· Cisco 7600 Series Routers: Cisco IOS® Software Release 15.4(2)S and Cisco IOS XE Software Release 3.12.0.0S · Cisco ASR 1000 Series Routers with Cisco IOS XE Software Releases 3.12.0,3.11.2, and 3.10.3 · Cisco ASR 9000 Series Routers with Cisco IOS XR Software Release 5.2.0
Protocols	Serial encapsulations: · High-Level Data Link Control (HDLC) · Point-to-Point Protocol (PPP), RFC 1662 · Frame Relay, RFC 1490 Multilink support (bundle limit dependent on number of links per bundle; maximum of 12 links per bundle): · Multilink PPP (MLPPP), RFC 1990 · Link fragmentation and interleaving (LFI) over Frame Relay (FRF.12) and MLPPP Networking protocols: · IPv4/IPv6
Cards, ports, and slots	1 port
Connectivity	OC-3/STM-1 Small Form-Factor Pluggable (SFP) optics module (refer to optical parameters in Table 2)
Features and functions	Up to 84 T1 (or 3 T3) or 63 E1 (or 3 E3) ports Up to 1022 n x DS-0 channels (where n is 1 to 24) with no T3 ports configured Up to 400 n x DS-0 channels (where n is 1 to 24) with one or more T3 ports configured Support for Channelized OC-3 to T1, Channelized STM-1 to E1, clear channel T3/E3, subrate T3/E3, full-rate T1, clear channel E1, and Channelized T1/E1 SONET multiplexing: · OC-3 <-> STS-3 <-> STS-1 <-> VTG <-> VT1.5 <-> T1 <-> N x DS-0 · OC-3 <-> STS-3 <-> STS-1 <-> T3 <-> T1 <-> N x DS-0 · OC-3 <-> STS-3 <-> STS-1 <-> T3 · OC-3 <-> STS-3 <-> STS-1 <-> T3 <-> E1 <-> n x DS-0 SDH multiplexing: · STM-1 <-> AUG <-> AU-4 <-> VC-4 <-> TUG-3 <-> TUG-2 <-> TU-12 <-> VC-12 <-> E1 <-> n x DS-0 · STM-1 <-> AUG <-> AU-4 <-> VC-4 <-> TUG-3 <-> TU-3 <-> VC-3 <-> T3/E3 · Internal or line-derived (loop) clocking, independently selectable on each T1 or E1 tributary Loopback capabilities: · Local and remote loopback at the T3/T1 level · Network loopback at the STM-1/OC-3, T3/E3, and T1/E1 levels · Response to embedded loopback commands · Insertion of loopback commands into transmitted signal · Bit error rate testing (BERT) pattern generation and detection per channel · Programmable pseudorandom pattern up to 32 bits in length · T3/E3: All 0s, all 1s, 215, 220, 220 QRSS, 223, alternating 0s and 1s, 1-in-8, and 3-in-24 · T1/E1: All 0s, all 1s, 211, 215, 220, 220 QRSS, 223, alternating 0s and 1s, 1-in-8, and 3-in-24 · 32-bit error-count and bit-count registers · Detection of test patterns with bit error rates up to 10-2 · 24-hour history maintained for error statistics and failure counts, at 15-minute intervals · 16- and 32-bit cyclic redundancy check (CRC); 16-bit default SONET/SDH-specific features: · Compliance with G.707, G.783, G.784, G.957, G.958, and GR-253 · Supported SONET/SDH alarm and signal events: ◦ Signal failure bit error rate (SF-BER) ◦ Signal degrade bit error rate (SD-BER) ◦ Signal label payload construction (C2) ◦ Path trace byte (J1) · Section ◦ Loss of signal (LoS) ◦ Loss of frame (LoF) ◦ Error counts for B1 Line · Line alarm indication signal (LAIS) · Line remote defect indication (LRDI) · Line remote error indication (LREI) · Error counts for B2
	Path · Path alarm indication signal (PAIS) · Path remote defect indication (PRDI) · Path remote error indication (PREI) · Error counts for B3 · Loss of pointer (LOP) · New pointer events (NEWPTR) · Positive stuffing event (PSE) · Negative stuffing event (NSE) · Path unequipped indication signal (PUNEQ) · Path payload mismatch indication signal (PPLM) T3-specific features: · Channelized T3 with 28 DS-1 lines or 21 E1 lines multiplexed into a T3 · Unchannelized T3 supporting subrate and scrambling formats for Digital Link, ADC/Kentrox, Larscom, Adtran, and Verilink data service units (DSUs) · C-bit or M23/M13 framing · Maintenance data link (MDL) · T3 far-end alarm and control (FEAC) channel support · Alarm monitoring · Alarm indication signal (AIS) · Out of frame (OOF) · Far-end receive failure (FERF) · Performance data collection: ◦ Framing bit errors (FERR) (F- or M-bit errors) ◦ P-bit error counts (path-parity errors) ◦ C-bit error counts ◦ Far-end block error (FEBE) counts E3-specific features: · G.751 framing · Alarm monitoring · AIS · OOF · FERF · Performance data collection: ◦ Framing pattern errors ◦ BIP-8 error counts (path-parity errors) ◦ FEBE counts · T1-specific features: ◦ D4 Super Frame (SF) or Extended Super Frame (ESF) framing ◦ ANSI T1.403 and AT&T TR 54016 Facility Data Link (FDL) support ◦ Alarm monitoring ◦ AIS ◦ OOF ◦ Far-end alarm failure (yellow or distant alarm) Performance data collection: · CRC/bit errors · Framing bit errors · Line errored seconds · Far-end errored seconds · Far-end severely errored seconds · Far-end unavailable seconds E1-specific features: · CRC4 or non-CRC4 framing in conformance with ITU-T G.703 and G.704 · Alarm monitoring · AIS · OOF · Remote alarm indication (RAI) · Performance data collection · CRC/bit errors · Framing bit errors · FEBE
Reliability and availability	OIR Field-replaceable SFP optics modules Support for both 1 + 1 SONET Automatic Protection Switching (APS) and SDH Linear Multiplexer Section Protection (MSP) protocols Single SPA software reset
MIBs	RFC 2558 MIB (SONET/SDH) RFC 2495 MIB (T1/E1) RFC 2496 MIB (T3/E3)
Network management	Simple Network Management Protocol (SNMP)
Physical specifications	Weight: 0.75 lb (0.34 kg) Height: 0.8 in. (2.03 cm) Width: 6.75 in. (17.15 cm) Depth: 7.28 in. (18.49 cm)
Regulatory compliance	CE marking Safety: UL/CSA/IEC/EN 60950-1, IEC/EN 60825 Laser Safety, AS/NZS 60950, FDA Code of Federal Regulations Laser Safety EMC: FCC Part 15 Class A, ICES 003 Class A, AS/NZS 3548 Class A, CISPR 22 Class B (up to 1GHz), EN55022 Class B (up to 1GHz), VCCI Class A, BSMI Class A, EN 300 386 Telecommunications Network Equipment (EMC), EN50082-1/EN61000-6-1 Generic Immunity Standard, EN55022 Information Technology Equipment (Emissions), EN55024 Information Technology Equipment (Immunity), IEC/EN61000-3-2 Power Line Harmonics, IEC/EN61000-3-3 Voltage Fluctuations and Flicker, IEC/EN61000-4-2 Electrostatic Discharge Immunity (8kV contact, 15kV air), IEC/EN61000-4-3 Radiated Immunity (10V/m), IEC/EN61000-4-4 Electrical Fast Transient Immunity (2kV power, 1kV signal), IEC/EN61000-4-5 Surge AC Port (4kV CM, 2kV DM), IEC/EN61000-4-5 Surge Signal Port (1kV), IEC/EN61000-4-5 Surge DC Port (1kV), IEC/EN61000-4-6 Immunity to Conducted Disturbances (10Vrms), IEC/EN61000-4-8 Power Frequency Magnetic Field Immunity (30A/m), IEC/EN61000-4-11 Voltage Dips, Short Interruptions, and Voltage Variations, GR-1089-CORE NEBS EMC and Safety, GR-63-CORE NEBS Physical Protection, SR-3580 NEBS Criteria Levels (Level 3) Telecom (OC3): GR-253 Telecom (STM-1): G.783, G.957
Environmental Specifications	Operating temperature: 41 to 104°F (5 to 40°C) Storage temperature: -38 to 150°F (-40 to 70°C) Operating humidity: 5 to 85% relative humidity Storage humidity: 5 to 95% relative humidity
