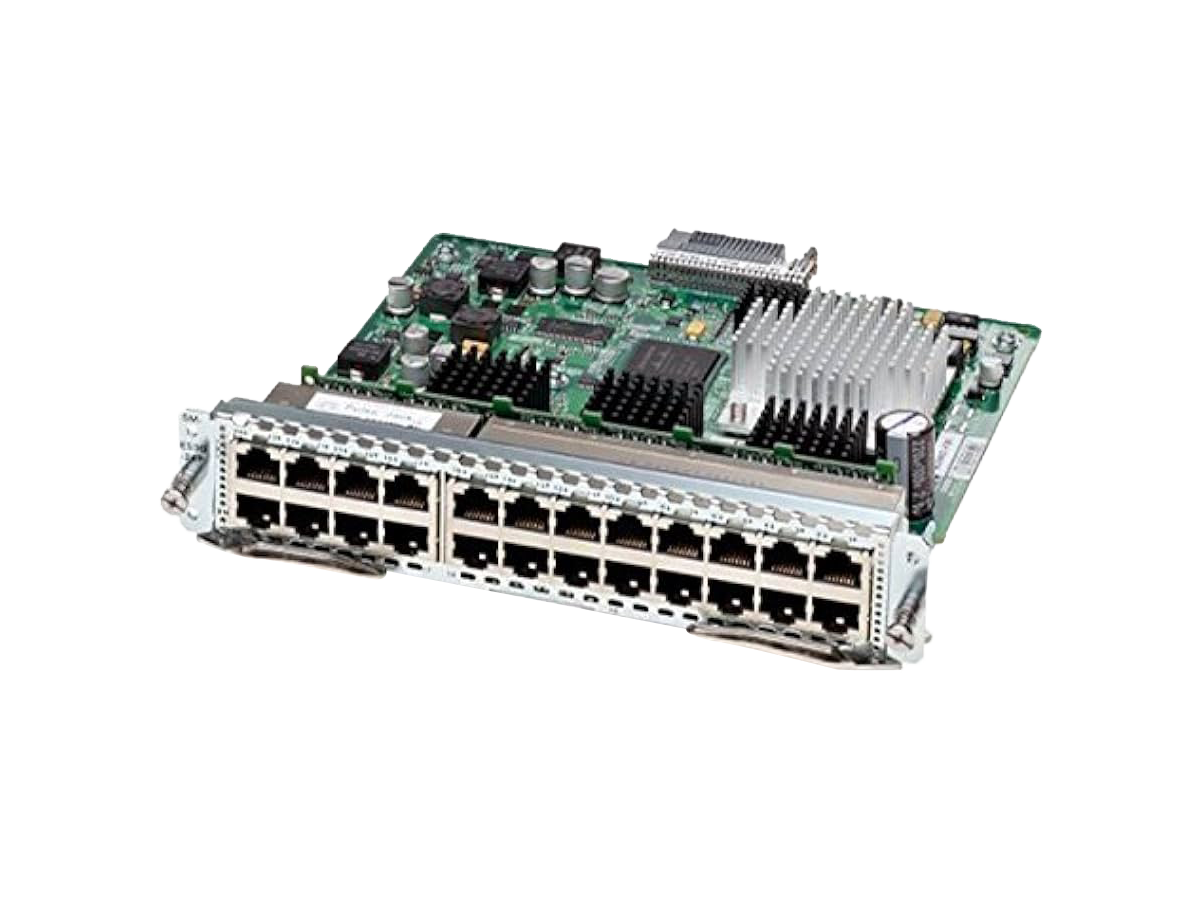

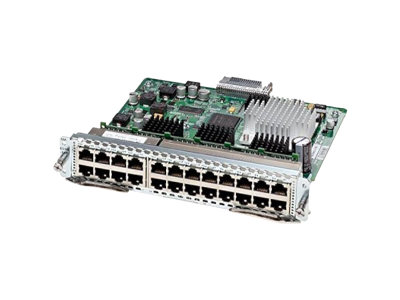

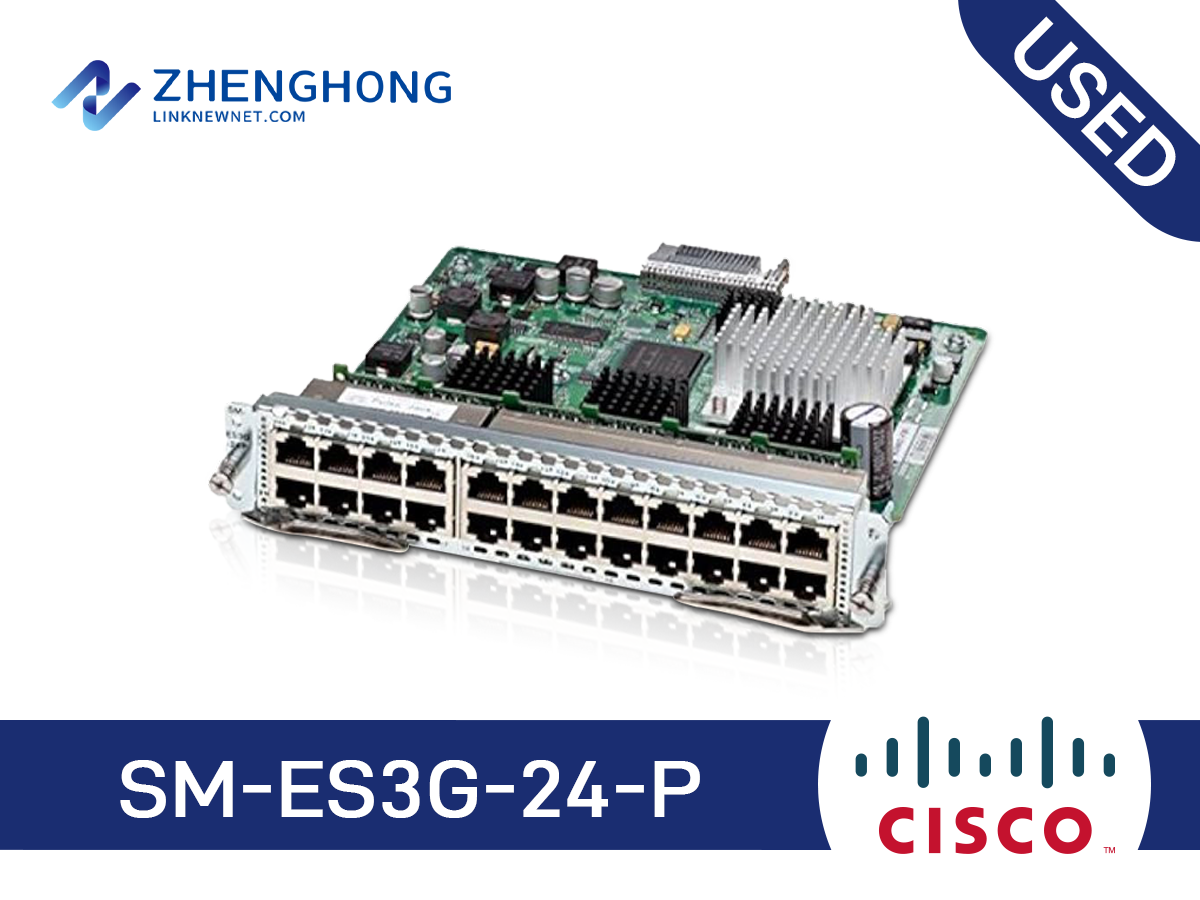

SM-ES3G-24-P - Cisco Services-Ready Engine Modules|LinkNewNet

VIC-4FXS/DID - Cisco UCS Virtual Interface Card

Model: VIC-4FXS/DID

Detail: 4 port FXS or DID VIC

Condition: USED

List Price: $108 Price: $65

Price is not finalPlease contact if any inquiry.

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

General Information
Manufacturer:	Cisco
Product ID:	VIC-4FXS/DID
Product Description:	4 port FXS or DID VIC
Product Type:	Voice Interface Card (VIC)
Marketing Information
The 4-port high-density FXS/DID VIC can support up to 4 foreign-exchange-station (FXS) ports for directly connecting phones or fax machines, or it can be used to connect up to four direct-inward-dial (DID) analog trunks, providing customers the flexibility they need for their unique business environment. Each port on the 4-Port FXS/DID VIC is selectable for use in either FXS or DID mode. The 4-Port FXS/DID VIC is the same size as the existing two-port voice interface cards (VICs), allowing it to slide into either WIC/VIC slot or VIC slot in Cisco 1751 and 1760. The VIC-4FXS/DID in the Cisco 1700 is used to connect analog phones or fax machines. The long-distance calls between small enterprise branch offices and headquarters are carried by IP network, while the local calls are carried by PSTN, which also provide backup to the IP network.
Technical Information
Application/Usage:	Voice
Interfaces/Ports
Interfaces/Ports:	4 x FXS/DID
Interfaces/Ports Details:	4 x RJ-11 FXS/DID
Reliability
MTBF:	2131306 Hour
Miscellaneous
Additional Information:	For Cisco 2600XM, 2691, 3640, 3660, and 3700 platforms, only FXS functionality is supported For the VIC-4FXS/DID, the Cisco 1751 and 1760 platforms are the only places where both the DID functionality and FXS functionality of the card are supported Voice & Fax Integration Caller ID support A maximum of eight REN loads can be supported on each 4-port FXS/DID VIC Minimum Feature Sets: IP/VOX PLUS Ringing frequencies: 20 Hz, 50 Hz Tone disconnect supervision: DID-Power denial (caller party control, far-end disconnect) Signaling Formats: DID mode: Immediate, delay dial, wink start FXS mode: Groundstart and loopstart Address Signaling formats: In-band dual tone multifrequency (DTMF) Out-of-band pulse (10/20 pps)
System Requirements:	Supported Platforms & Minimum IOS Versions: 3845 - 12.3(11)T 3825 - 12.3(11)T 3745 - 12.2(15)ZJ 3725 - 12.2(15)ZJ 3660 series - 12.2(15)ZJ 2691 - 12.2(15)ZJ 2600XM Series - 12.2(15)ZJ 1760 - 12.2(8)YN 1751 - 12.2(15)ZL
Compatibility:	Supported Platforms: 3845 3825 3745 3725 3640 3660 series 2691 2600XM Series 1760 1751 Supported Carrier Modules: 2600XM: NM-1V, NM-2V, NM-HD-1V, NM-HD-2V, NM-HD-2VE, NM-HDV2-1T1/E1, NM-HDV2-2T1/E1 3640, 3660: NM-1V, NM-2V, NM-HD-1V, NM-HD-2V, NM-HD-2VE 2691, 3725, 3745: NM-1V, NM-2V, NM-HD-1V, NM-HD-2V, NM-HD-2VE, NM-HDV2, NM-HDV2-1T1/E1, NM-HDV2-2T1/E1
Certifications & Standards:	Compliance: FCC Class B device CE Safety Conformance: UL1950

Q&A

Q Does the VIC-4FXS/DID need to be upgraded regularly?

A The VIC-4FXS/DID usually does not need frequent upgrades. However, ensure your router's firmware is up-to-date for optimal performance and compatibility.

Q Are there alternative products to the VIC-4FXS/DID?

A Yes, alternatives include other Cisco voice interface cards, such as the VIC2 series, depending on the specific requirements and router compatibility.

Q What troubleshooting steps are common with the VIC-4FXS/DID?

A Common troubleshooting includes checking cable connections, verifying configuration settings, and ensuring firmware is up-to-date. Use "show" commands to diagnose issues.

Q What accessories are recommended for the VIC-4FXS/DID module?

A Recommended accessories include compatible RJ-11 cables for connecting to analog devices, as well as a Cisco router that supports VIC modules.
