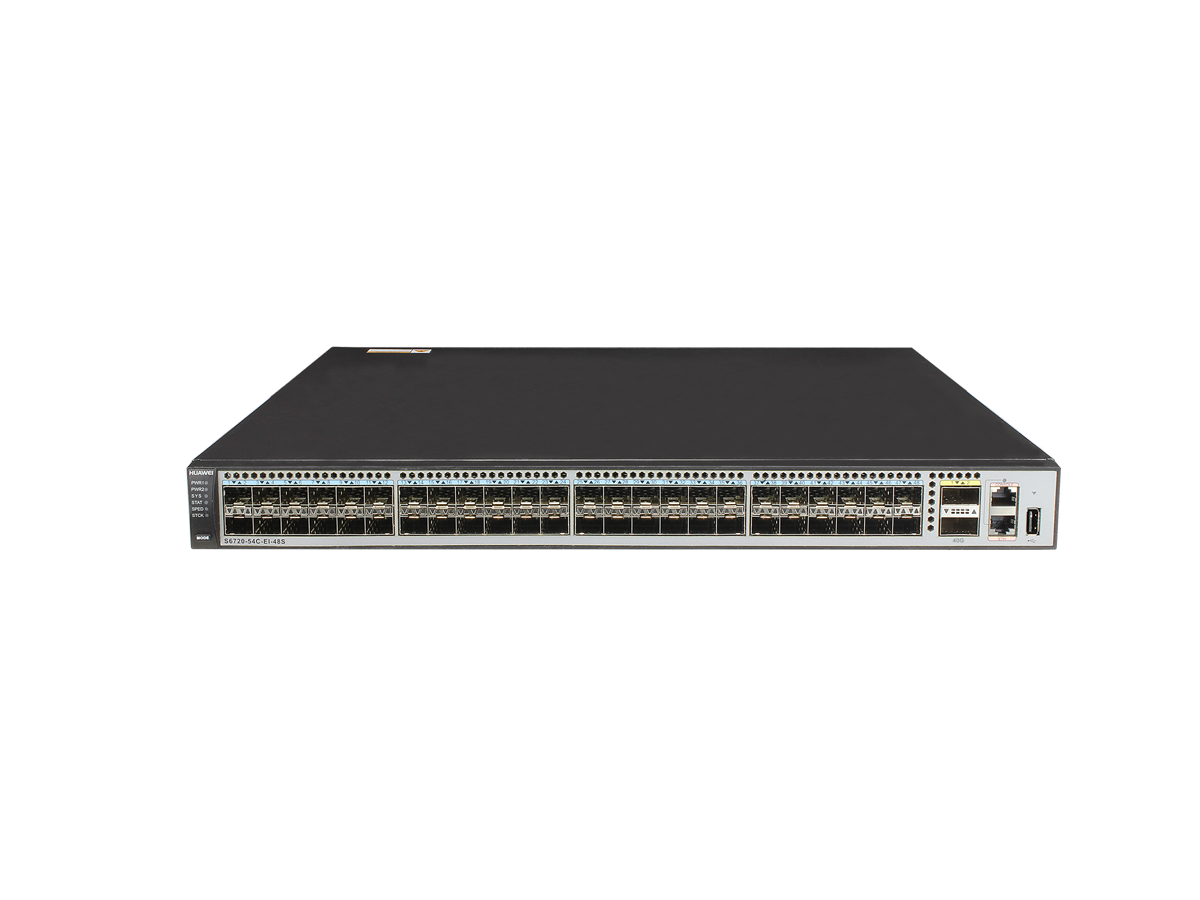

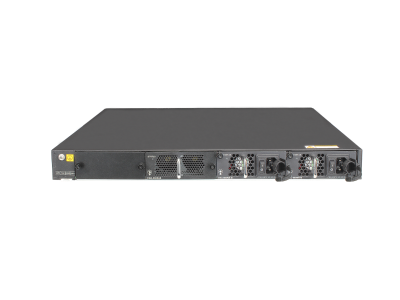

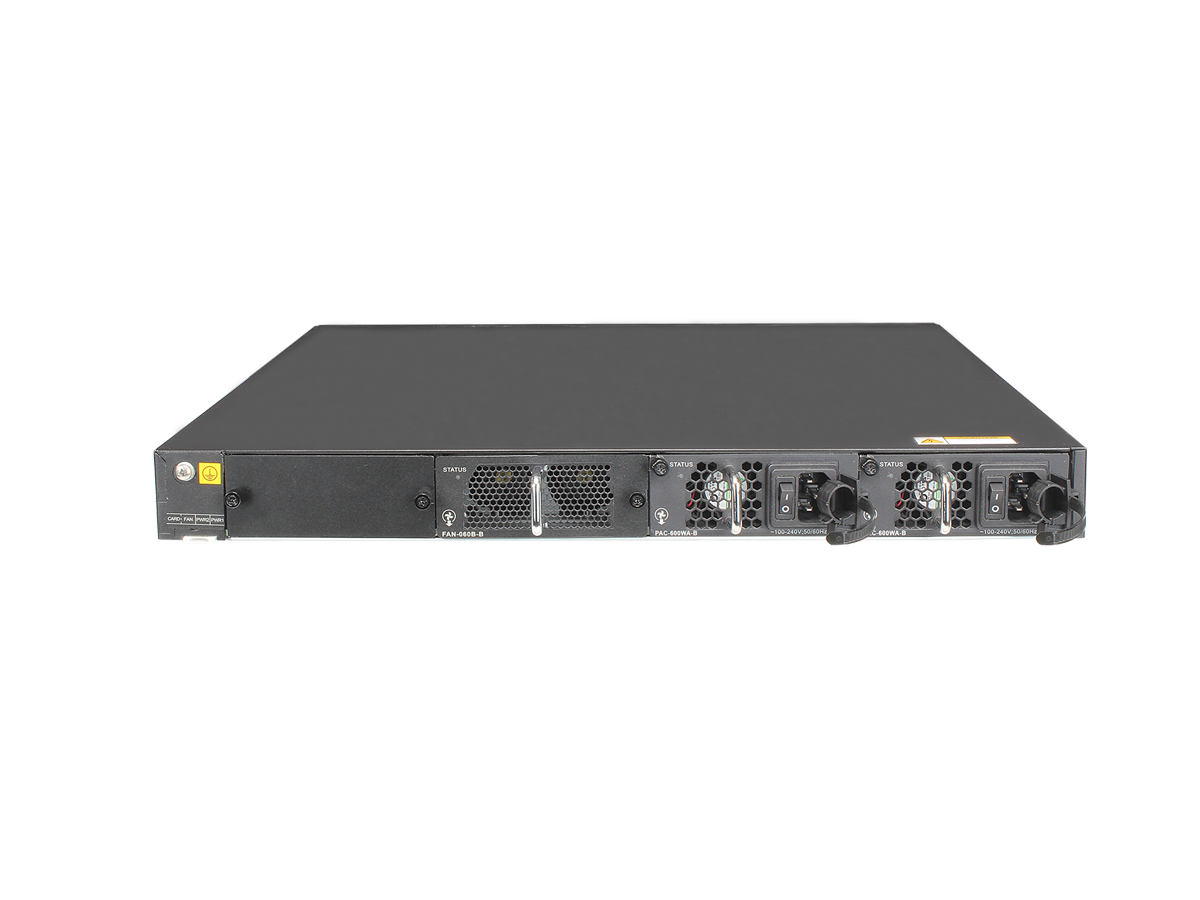

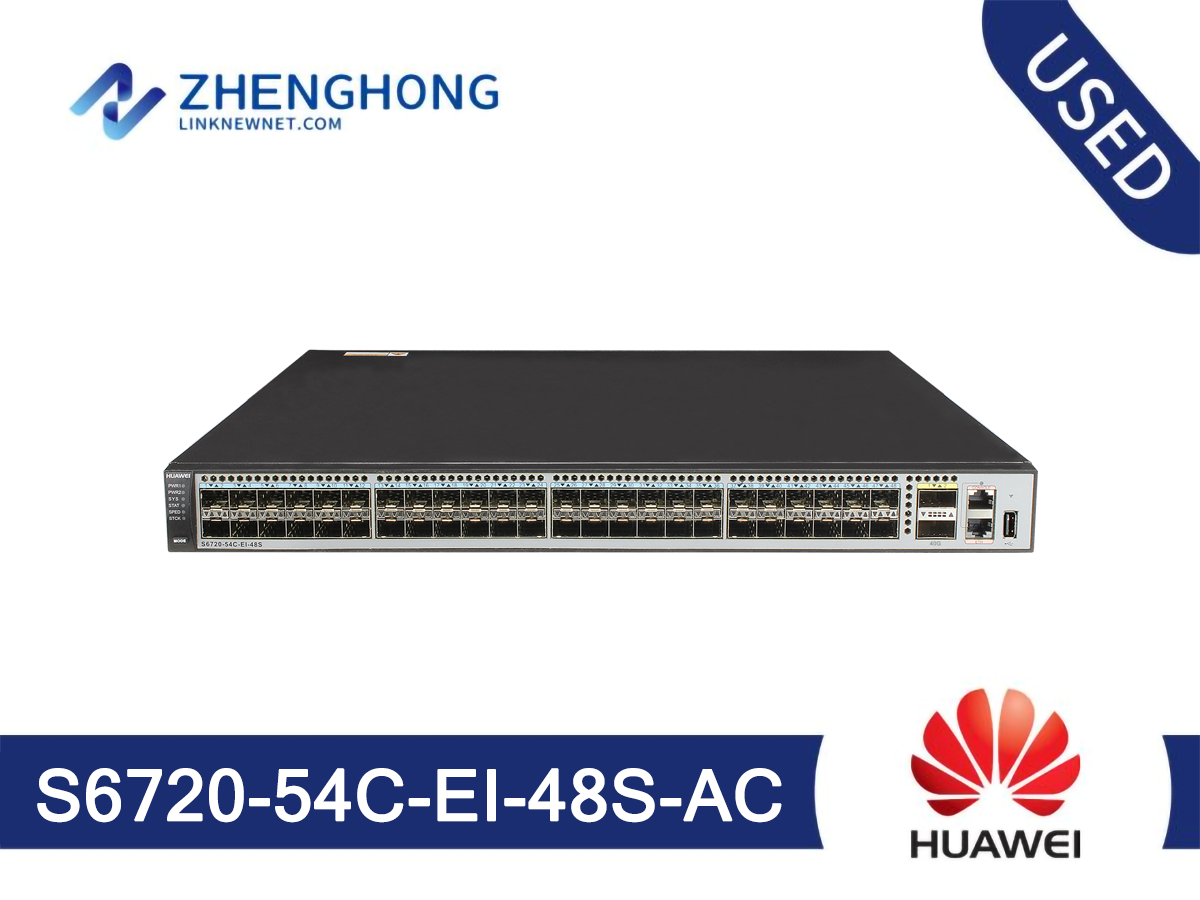

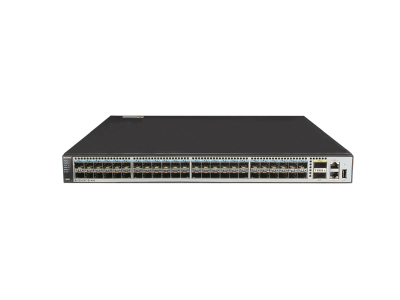

Huawei S6700 Series Switches S6720-54C-EI-48S-AC|LinkNewNet

S6720-54C-EI-48S-AC Specifications
Fixed Ports	48 × 10 GE SFP+, 2 x 40 GE QSFP+ ports
Extended Slot	One extended slot for 4 x 40 GE QSFP+ interface card
MAC Address Table	288K MAC address entries MAC address learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses
VLAN	4K VLANs Guest VLAN and voice VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN Mapping QinQ and selective QinQ
IPv4 Routing	Static routing, RIPv1, RIPv2, ECMP, and URPF OSPF, IS-IS, and BGP VRRP Policy-based routing Routing policy
IPv6 Routing	Static route RIPng OSPFv3 BGP4+ ISISv6
IPv6 Features	Neighbor Discovery (ND) PMTU IPv6 ping, IPv6 tracert, and IPv6 Telnet 6to4 tunnel, ISATAP tunnel, and manually configured tunnel ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type MLD v1/v2 snooping
Multicast	Static Layer 2 multicast MAC address MAC-based multicast forwarding IGMP snooping and IGMP fast leave Multicast VLAN MLD snooping IGMP proxy Controllable multicast Port-based multicast traffic statistics IGMP v1/v2/v3 PIM-SM, PIM-DM, and PIM-SSM MSDP MVPN
QoS/ACL	Rate limiting on packets sent and received by an interface Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on ports
MPLS	MPLS, MPLS VLL, L3VPN
VPLS	Martini VPLS
Reliability	STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover SEP ERPS (G.8032v2) BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM E-Trunk
Security	User privilege management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface, and VLAN Port isolation, port security, and sticky MAC Blackhole MAC address entries Limit on the number of learned MAC addresses 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication and TACACS authentication SSH v2.0 Hypertext Transfer Protocol Secure (HTTPS) CPU defense Blacklist and whitelist
Super Virtual Fabric (SVF)	Working as the parent node to vertically virtualize downlink switches as one device for management, supports two-layer clients architecture Support as a client node to be managed by SVF parent
Management and Maintenance	iStack (using service ports as stack ports) MAC Forced Forwarding (MFF) Virtual cable test Ethernet OAM (IEEE 802.3ah and 802.1ag) Local port mirroring and Remote Switched Port Analyzer (RSPAN), allowing an observing port to forward packets Remote configuration and maintenance using Telnet SNMP v1/v2c/v3 RMON Web NMS System logs and alarms of different levels GVRP MUX VLAN
Operating Environment	Operating temperature: 0m to 1,800m: 0°C to 45°C; 1,800m to 5,000m: 1°C decrease for every 220m increase in altitude Relative humidity: 5% to 95% (non-condensing)
Input Voltage	AC: Rated voltage range: 100V to 240V, 50 Hz/60 Hz Maximum voltage range: 90V to 264V, 50 Hz/60 Hz
Dimensions (W x D x H)	442 mm x 420 mm x 44.4 mm
Typical Power Consumption	AC: without subcard: 190W with subcard: 209W

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales.

Whatsapp(+86 18038172140) or Skype/Email:cs@linknewnet.com

0 Review(s)

S6720S-32X-LI-32S-AC

S6720S-32X-LI-32S-AC, Huawei S6700 Series Switches

0 Review(s)

S6730-H24X4Y4C

S6730-H24X4Y4C, Huawei S6700 Series Switches

0 Review(s)

S6730-H28Y4C

S6730-H28Y4C, Huawei S6700 Series Switches

0 Review(s)

S6730S-H24X6C-A

S6730S-H24X6C-A, Huawei S6700 Series Switches

0 Review(s)

S6720S-S52X-A

S6720S-S52X-A (52 Gigabit SFP +, AC power supply, front maintenance)

0 Review(s)

S6720S-S24S28X-A

S6720S-S24S28X-A (24 Gigabit SFP, 28 Gigabit SFP +, AC power supply, front maintenance)

0 Review(s)

S6735-S48X6C

S6735-S48X6C (48 gigabits SFP +, 6 100Ge QSFP28, no power)

0 Review(s)

S6735-S24X6C

S6735-S24X6C (24 10,000 Gigabits SFP +, 6 100Ge QSFP28, no power)

Q&A

Questions & Answers

How to Configure Rate Limit on S6720-54C-EI-48S-AC?

When you configure rate limit, the following configuration is recommended: Set the CIR, CBS, and PBS values but not the PIR value. CBS = 200 x CIR PBS = 2 x CBS = 2 x 200 x CIR = 400 x CIR The CIR value is expressed in kbit/s, and the CBS and PBS values are expressed in bytes. Set the rate limit for outgoing packets on the interface to 10 Mbit/s. [HUAWEI] interface ethernet 0/0/1 [HUAWEI-Ethernet0/0/1] qos lr outbound cir 10240 cbs 2048000 Set the rate limit for incoming packets on the interface to 10 Mbit/s. [HUAWEI] interface ethernet 0/0/1 [HUAWEI-Ethernet0/0/1] qos lr inbound cir 10240 cbs 2048000

How Do I Choose Single-mode and Multi-mode Optical Modules?

Multi-mode optical modules are applicable to short-distance transmission, while single-mode optical modules are applicable to long-distance transmission. Single-mode optical modules will be widely used in future.

Does the Switch Support PoE?

No, it doesn't. If the model name of a switch contains PWR or PWH, this switch supports the PoE function.

Does the S6720-54C-EI-48S-AC Support the Optical Modules of Other Vendors?

The 6700 switches can use only the certificated optical modules. If an uncertificated optical module is used, an error may occur and Huawei is not responsible for it.

Learn More

Does the S6720-54C-EI-48S-AC on Which vlan-mapping and vlan-stacking Are Configured Support remark 8021p?

The S6700 supports remark 8021p.

Does this S6720-54C-EI-48S-AC support stack function?

Yes.

Can theS6720-54C-EI-48S-AC Use AC and DC Power Supply Simultaneously?

In V100R006C01 and later versions, the S6700 cannot use AC and DC power supply simultaneously. In versions prior to V200R005C00, the S6700-EI cannot use AC and DC power supply simultaneously. In V200R005C00, the S6700-EI can use AC and DC power supply simultaneously.

How Do I Check Default Configurations on an Interface?

In V200R001C00 and later versions, run the display this include-default command in the interface view. All configurations including default configurations on the interface are displayed.

After the shutdown and undo shutdown Commands Are Used on a Trunk Member Interface of an S6700, Traffic Is Interrupted. Why?

When the shutdown and undo shutdown commands are used on a trunk member interface of an S6700, the trunk bandwidth changes. The ifnet sends a port rate change event. MSTP responds to the event and delivers the Block flag to the outbound port. As a result, the outbound port cannot forward traffic. After 15s, MSTP delivers the forward flag to the port. Traffic can be forwarded. When the shutdown and undo shutdown commands are used on a trunk member interface of an S6700, traffic is interrupted for 15s.

What is the Typical Power Consumption of S6720-54C-EI-48S-AC?

AC: without subcard: 190W with subcard: 209W
