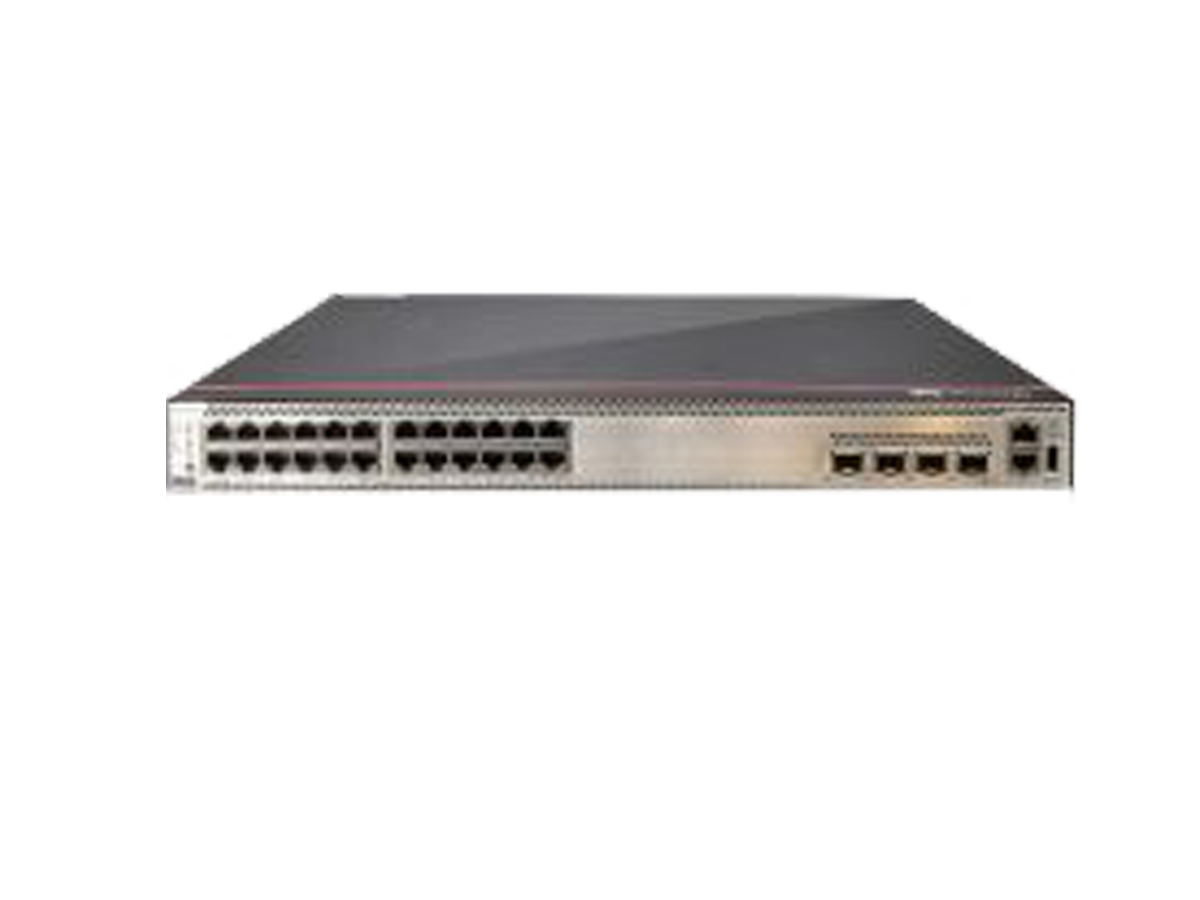

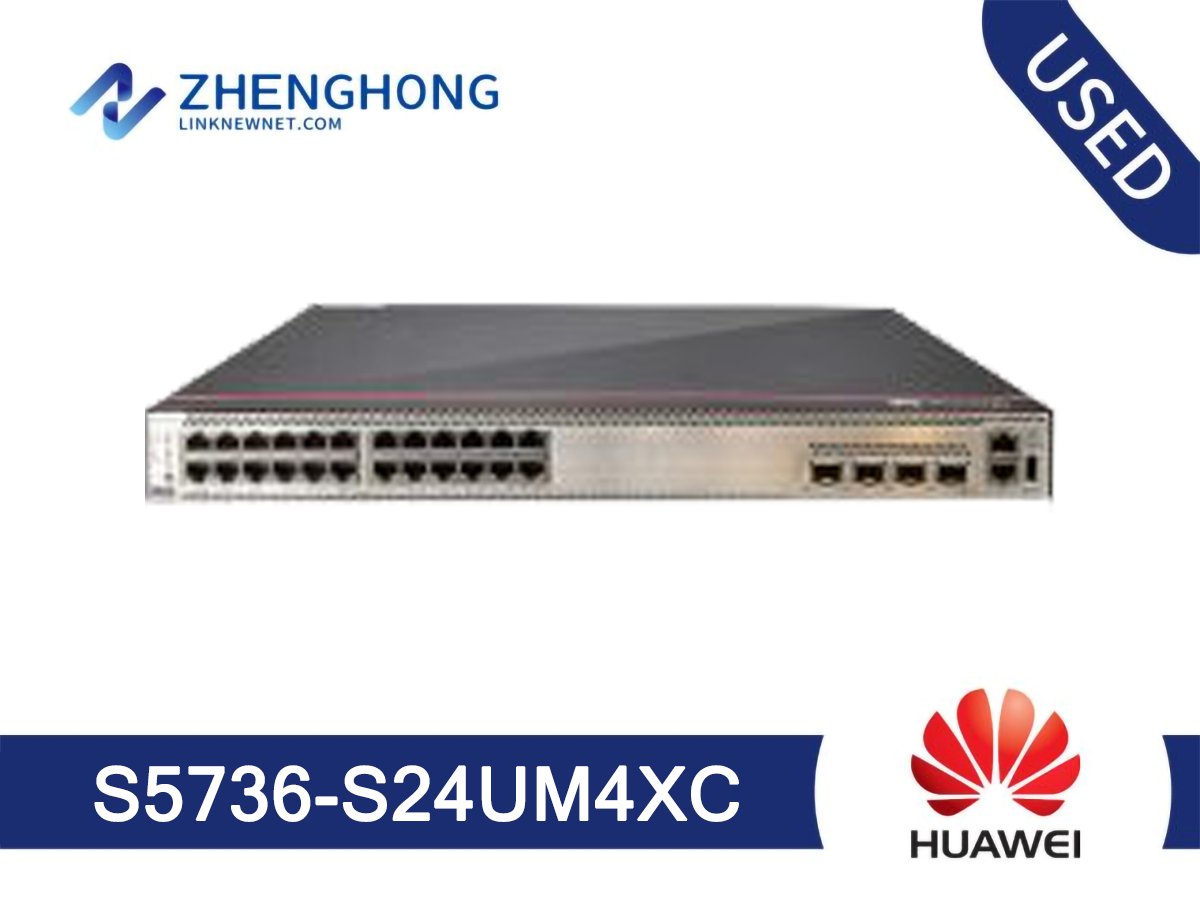

Huawei S5700 Series Switches S5736-S24UM4XC

Item

Specification

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.40 in. x 17.64 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

150mm × 710mm × 560mm (5.90 in. x 27.95 in. x 22.05 in.)

Chassis height [U]

1 U

Typical power consumption [W]

117 W

Typical heat dissipation [BTU/hour]

399.22 BTU/hour

Maximum power consumption [W]

• Without PoE: 176 W (without cards)

• Full PoE load: 1967 W (PoE: 1791 W, without cards)

Maximum heat dissipation [BTU/hour]

• Without PoE: 600.53 (without cards)

• Full PoE load: 6711.60 (without cards)

MTBF [year]

59.44 year

MTTR [hour]

2 hour

Availability

>0.99999

Noise at normal temperature (acoustic power) [dB(A)]

70.1 dB(A)

Noise at normal temperature (acoustic pressure) [dB(A)]

58.1 dB(A)

Number of card slots

1

Number of power slots

2

Number of fans modules

2

Redundant power supply

1+1

Pluggable AC and DC power modules can be used together in the same switch.

Long-term operating temperature [°C(°F)]

-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

Short-term operating temperature [°C(°F)]

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met:

• The operating temperature can exceed 45°C (113°F) for a maximum of 96 consecutive hours in a year.

• The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours.

• The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year.

If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur.

Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.

Storage temperature [°C(°F)]

-40°C to +70°C (-40°F to +158°F)

Long-term operating relative humidity [RH]

5% to 95%, noncondensing

• AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC; 50/60 Hz

• High-voltage DC input: 240 V DC

• DC input: –48 V DC to –60 V DC

• AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz

• High-voltage DC input: 190 V DC to 290 V DC

• DC input: –38.4 V DC to –72 V DC
