Huawei S5700 Series Switches S5730-48C-PWR-SI-AC|LinkNewNet

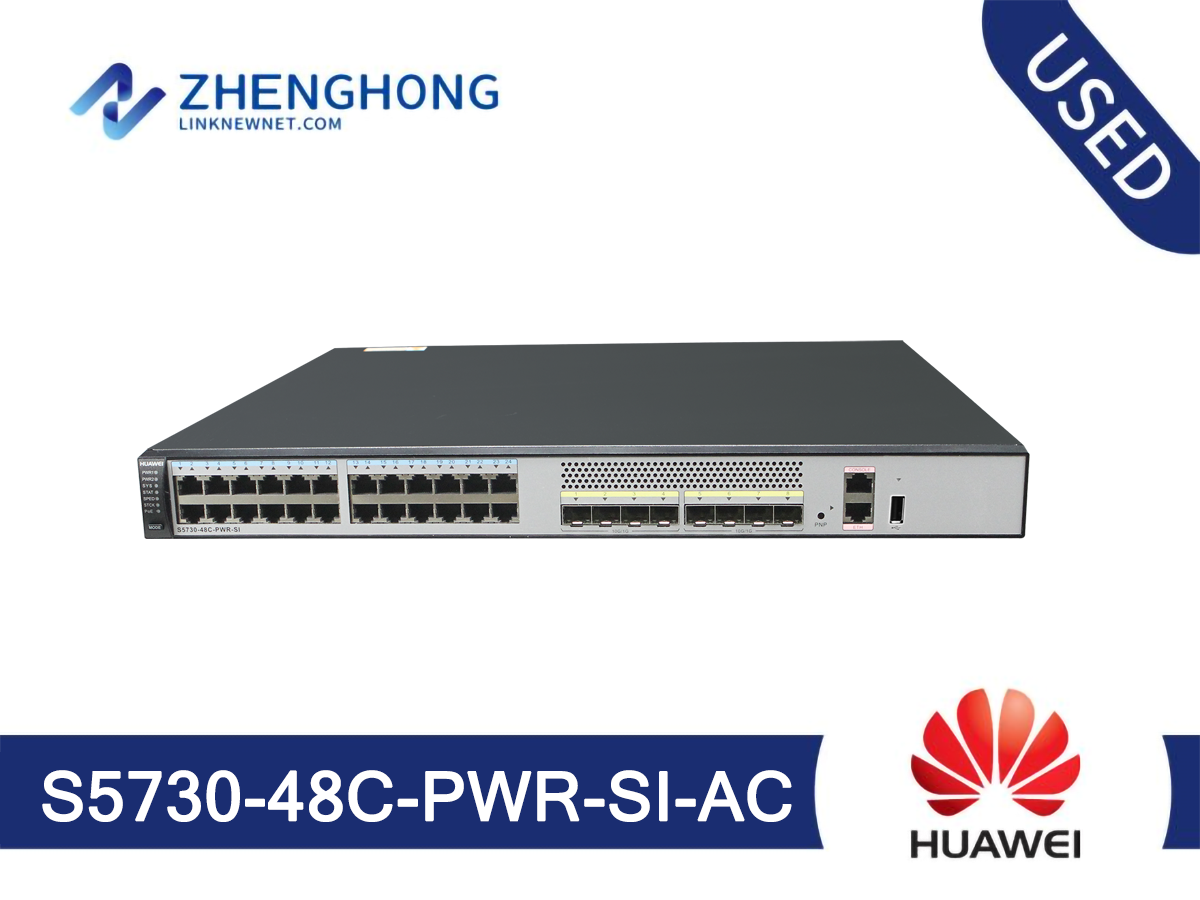

Huawei S5700 Series Switches S5730-48C-PWR-SI-AC

Model: S5730-48C-PWR-SI-AC

Detail: S5730-48C-PWR-SI Bundle (24 x Ethernet 10/100/1,000 ports, 8 x 10 Gig SFP+, PoE+, with 1 interface slot, with 500W AC power supply)

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

S5730-48C-PWR-SI-AC Specification
Ports	24 x Ethernet 10/100/1,000 ports; 8 x 10 Gig SFP+
Slots	One extended slot that supports an interface card: 4 x 40 GE QSFP+ interface card
Power Supply	One 500W AC power supply equipped by default
Forwarding performance	240 Mpps
Switching capacity	680 Gbit/s
PoE	Supported
Memory (RAM)	1 GB
Mean time between failures (MTBF)	46.8 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±7 kV
Dimensions (W x D x H)	442.0 mm x 420.0 mm x 44.4 mm (17.4 in. x 16.5 in. x 1.74 in.)
Weight (including packaging materials)	8.3 kg (18.3 lb)
Stack ports	Any 10GE SFP+ or 40GE QSFP+ ports Ports on the 2-port QSFP+ rear stack card
RTC	Supported
RPS	Not supported
PoE	Supported
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 57.4 dB(A)
Relative humidity	5% to 95%, noncondensing
Flash	512 MB in total. To view the available flash memory size, run the display version command.
Power supply surge protection	Using 500 W AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using 650 W DC power modules: ±2 kV in differential mode, ±4 kV in common mode

Q&A

Q What is the default IP address of Huawei s5720 switch?

A Only the S5720HI, S5720EI, S6720EI, and S6720S-EI support switching between Layer 2 and Layer 3 modes. A primary IP address is configured for the interface. By default, the IP address 192.168. 1.253 255.255.

Q How to reset Huawei S5700 switch?

A Pressing and Holding the PNP Button to Restore Factory Settings. For a device that has the PNP button, you can press and hold the PNP button for more than 6 seconds to restore the device to factory settings and restart the device.

Q How do I reset the password on my Huawei s5720 switch?

A Perform the following operations:

Connect the PC to the switch through the console port on the switch. ...

Start the terminal emulation software on the PC. ...

Restart the switch. ...

Select Clear password for console user on the BootROM/BootLoad menu to clear the console port login password.
