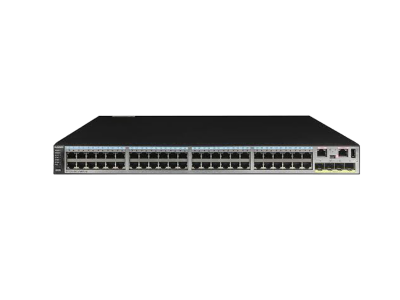

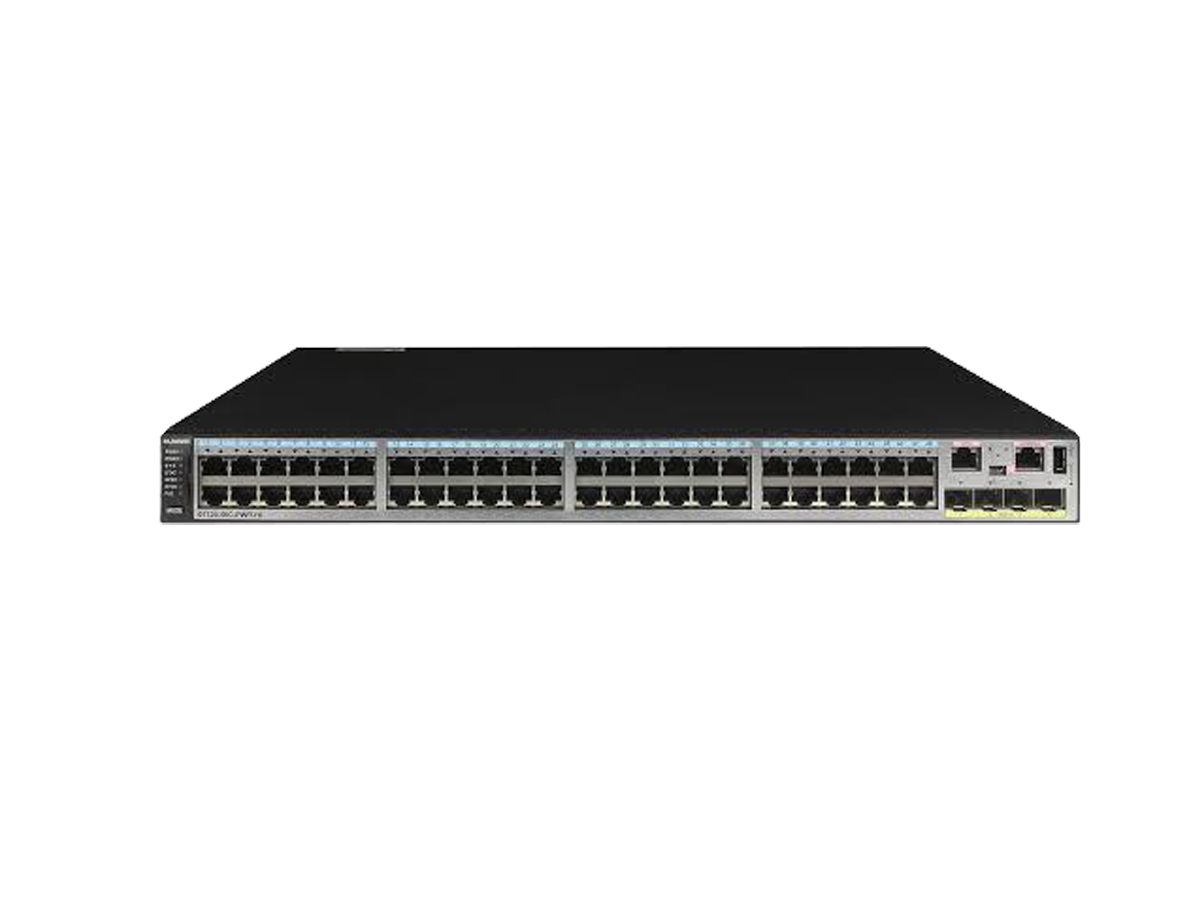

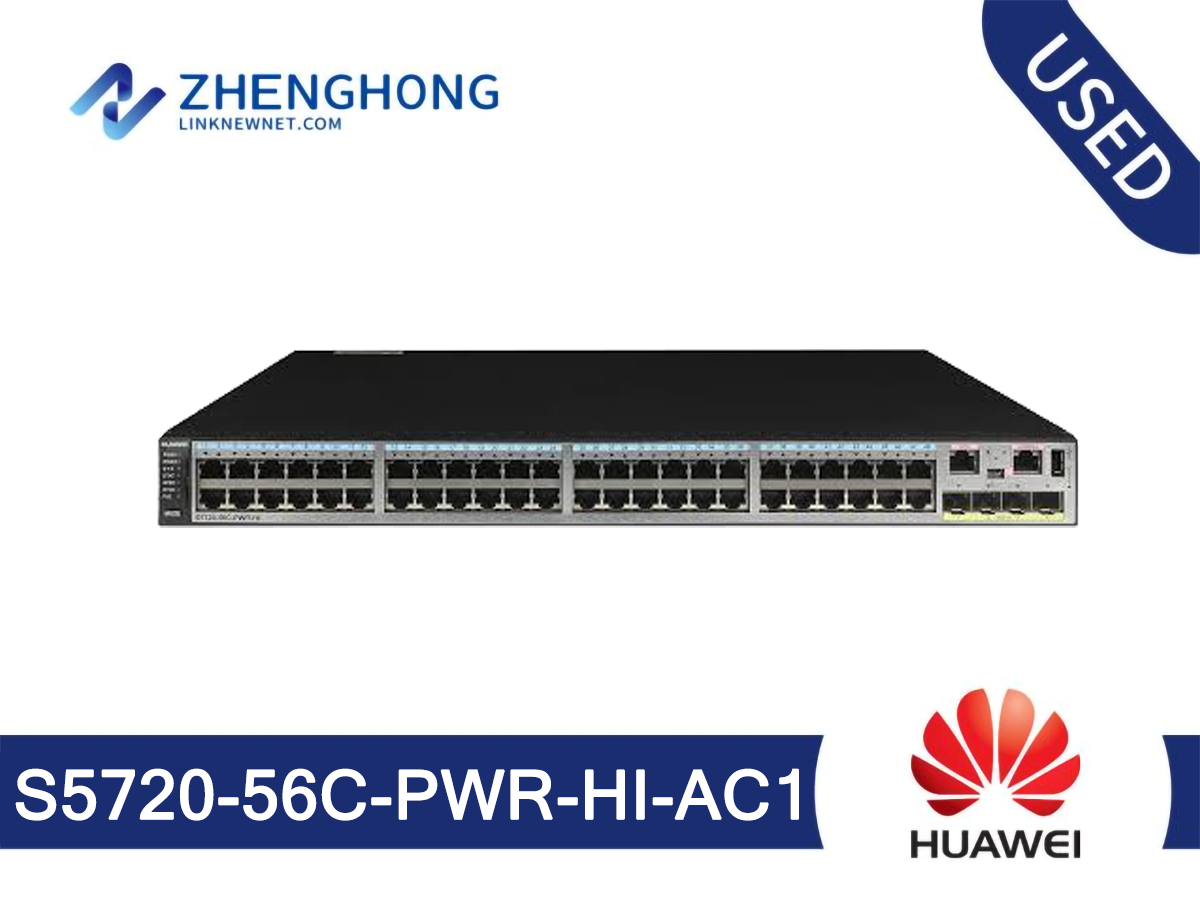

Huawei S5700 Series Switches S5720-56C-PWR-HI-AC1|LinkNewNet

Huawei S5700 Series Switches S5720-56C-PWR-HI-AC1

Model: S5720-56C-PWR-HI-AC1

Detail: S5720-56C-PWR-HI Bundle(48 Ethernet 10/100/1000 POE+ ports,4 10 Gig SFP+,with 2 interface slots,with 580W AC power supply)

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

S5720-56C-PWR-HI-AC1 Specification
Fixed Ports	48 x 10/100/1,000 Base-T, 4 x 10 GE SFP+
Extended Slots	One port extended slot with optional subcard 4 x 10 GE SFP+ One slot reserved for the stack card
IP Routing	Static routes, RIPv1/v2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and routing policy
OAM	EFM OAM CFM OAM Y.1731 performance monitoring
Input Voltage	AC rated voltage: 100V to 240V, 50 Hz/60 Hz Maximum voltage range: 90V to 264V, 47 Hz/63 Hz
Power Consumption	Without PD: < 188.74W, With PD: < 1,739W (device: 299W, PD: 1,440W)
Super Virtual Fabric (SVF)	Working as the parent node to vertically virtualize downlink switches and APs as one device for management Supports a two-layer client architecture
iPCA	Directly coloring service packets to collect real-time statistics on the number of lost packets and packet loss ratio Collection of statistics on the number of lost packets and packet loss ratio at network and device levels
Operating Environment	Operating temperature: 0°C to 45°C Relative humidity: 5% to 95% (non-condensing)
Dimensions (W x D x H)	442.0 mm x 420.0 mm x 44.4 mm When a 1,150W power module is installed, it extrudes out from the chassis. Therefore, the total depth of the switch changes to 507 mm

Q&A

Q What is the default IP address of Huawei s5720 switch?

A Only the S5720HI, S5720EI, S6720EI, and S6720S-EI support switching between Layer 2 and Layer 3 modes. A primary IP address is configured for the interface. By default, the IP address 192.168. 1.253 255.255.

Q How to reset Huawei S5700 switch?

A Pressing and Holding the PNP Button to Restore Factory Settings. For a device that has the PNP button, you can press and hold the PNP button for more than 6 seconds to restore the device to factory settings and restart the device.

Q How do I reset the password on my Huawei s5720 switch?

A Perform the following operations:

Connect the PC to the switch through the console port on the switch. ...

Start the terminal emulation software on the PC. ...

Restart the switch. ...

Select Clear password for console user on the BootROM/BootLoad menu to clear the console port login password.
