Huawei S5700 Series Switches S5700-52C-PWR-EI-AC|LinkNewNet

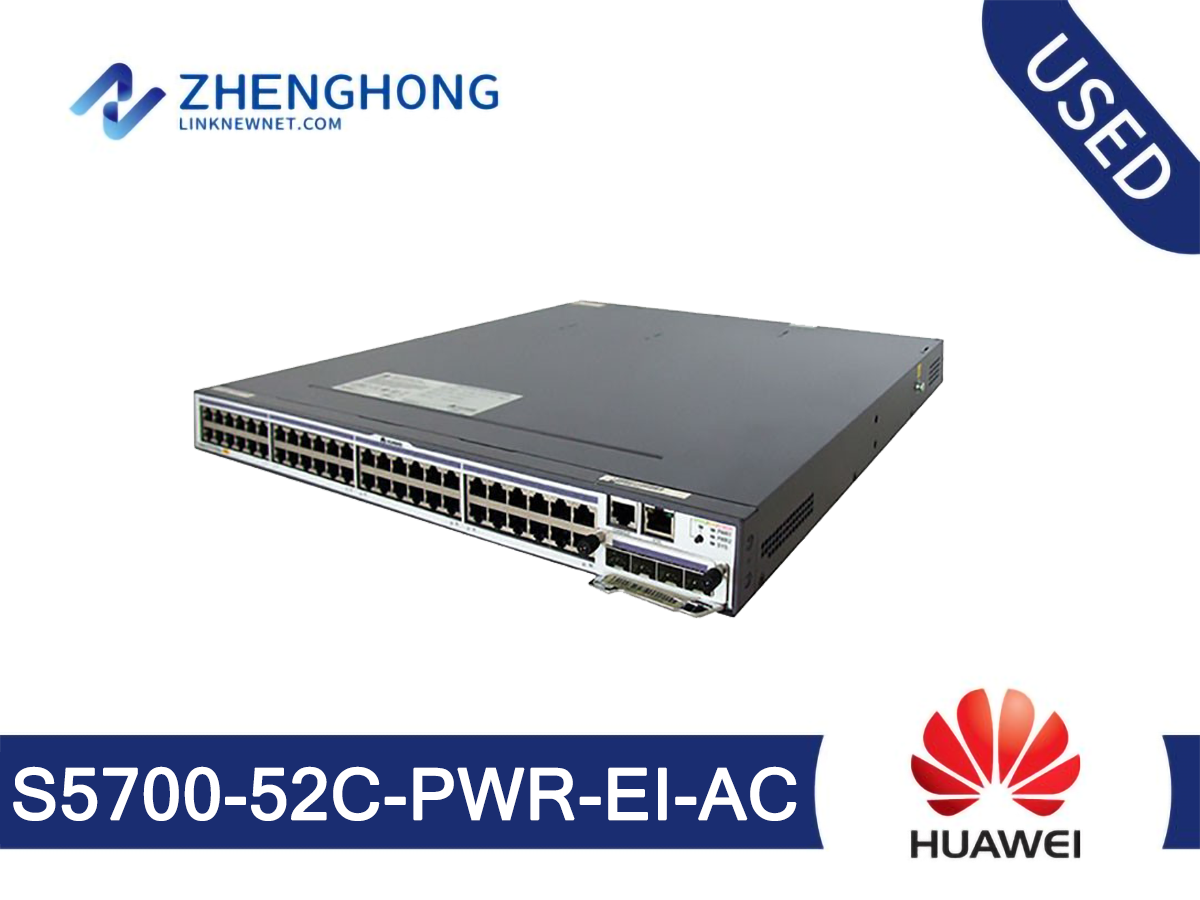

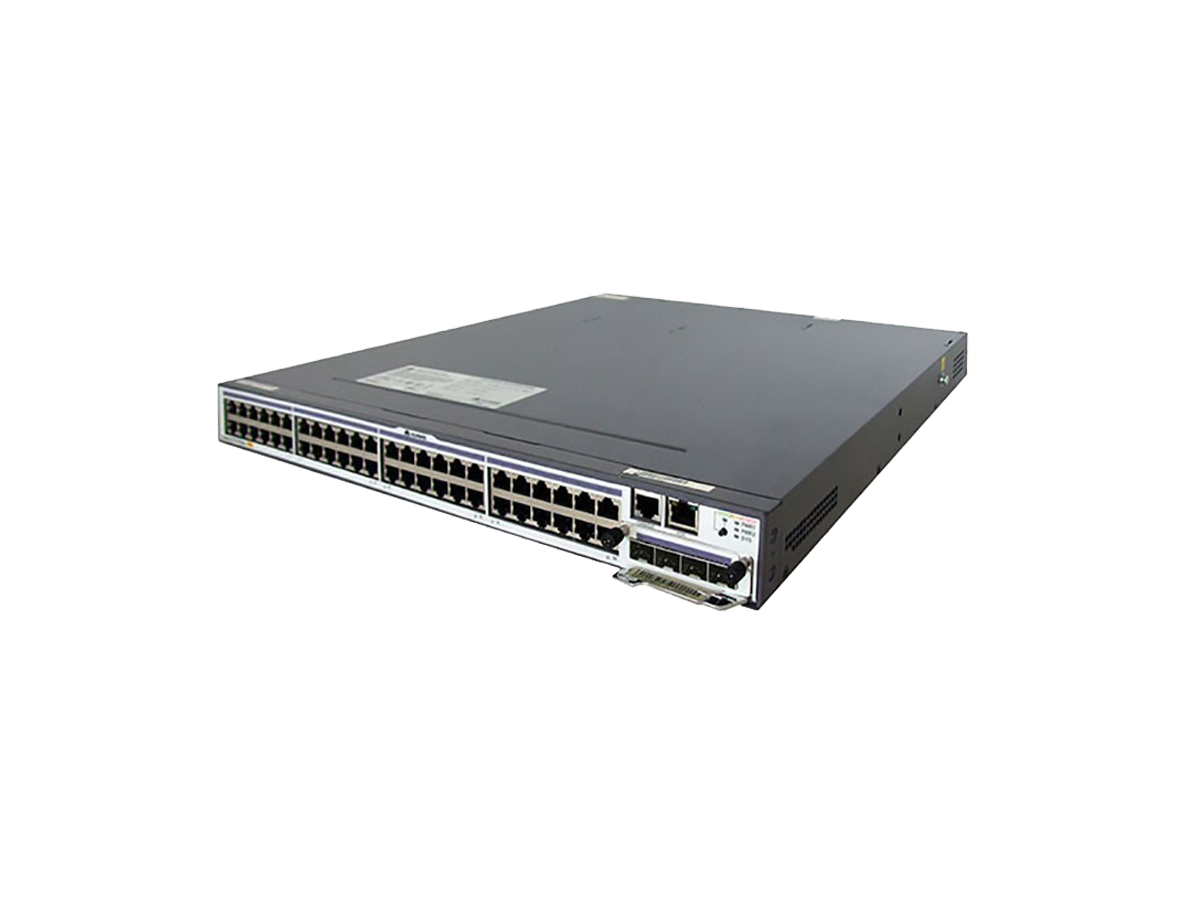

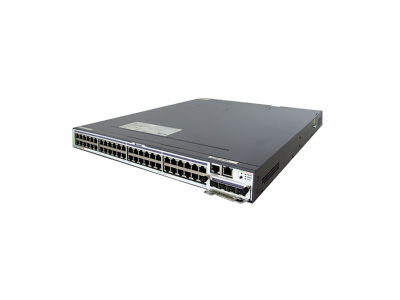

Huawei S5700 Series Switches S5700-52C-PWR-EI-AC

Model: S5700-52C-PWR-EI-AC

Detail: S5700-52C-PWR-EI-AC(48 Ethernet 10/100/1000 PoE+ ports, with 500W AC power supply)

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

Item		S5700(S)-LI/S5710-LI*	S5700-SI*	S5700-EI/S5710-EI/S5720-EI*	S5700-HI/S5710-HI/S5720-HI*
Fixed port	LI	S5700-10P-LI-AC/S5700-10P-PWR-LI-AC: 8 × 10/100/1000Base-T,2 × 1000Base-X SFP
		S5700(S)-28P-LI/S5700-28P-PWR-LI/ S5700-28P-LI-BAT/S5700-28P-LI-4AH: 24 × 10/100/1000Base-T, 4 × 1000Base-X SFP
		S5700-28P-LI-24S-BAT/S5700-28P-LI-24S-4AH: 28 × 1000Base-X,4 of which are dual-purpose 10/100/1000 or SFP, 4 × 1000Base-X
		S5700-28TP-LI-AC/S5700-28TP-PWR-LI-AC/S5701-28TP-PWR-LI-AC: 24× 10/100/1000Base-T, 2×1000Base-X SFP and 2 dual-purpose 10/100/1000 or SFP
		S5700-28X-LI/S5700-28X-PWR-LI-AC/ S5701-28X-LI-AC: 24 × 10/100/1000Base-T, 4 × 10GE SFP+
		S5700-28X-LI-24S-AC/S5700-28X-LI-24S-DC/ S5701-28X-LI-24S-AC: 28x1000Base-X,4 of which are dual-purpose 10/100/1000 or SFP,4 × 10GE SFP+
		S5700(S)-52P-LI/S5700-52P-PWR-LI: 48 × 10/100/1000Base-T, 4 × 1000Base-X SFP
		S5700-52X-LI/S5700-52X-PWR-LI-AC: 48 × 10/100/1000Base-T, 4 × 10GE SFP+
		S5700-52X-LI-48CS-AC:48x1000Base-X(CSFP) or 24 × 1000Base-X, 4 of which are dual-purpose 10/100/1000 or Base-X(CSFP), 4 × 10GE SFP+
	SI	S5700-24TP-SI/S5700-24TP-PWR-SI/S5700-28C-SI/S5700-28C-PWR-SI:24 × 10/100/1000Base-T, 4 of which are dual-purpose 10/100/1000 or SFP
		S5700-26X-SI-12S-AC: 12 × 10/100/1000BASE-T,12×100/1000Base-X,2 × 10GE SFP+
		S5700-48TP-SI/S5700-48TP-PWR-SI: 48 × 10/100/1000Base-T, 4 of which are dual-purpose 10/100/1000 or SFP
		S5700-52C-SI/S5700-52C-PWR-SI: 48 × 10/100/1000Base-T
	EI	S5700-28C-EI/S5700-28C-PWR-EI: 24 × 10/100/1000Base-T
		S5700-52C-EI/S5700-52C-PWR-EI: 48 × 10/100/1000Base-T
		S5700-28C-EI-24S: 20 × 100/1000Base-X, 4 × GE Combo
		S5710-28C-EI/S5710-28C-PWR-EI-AC: 20 x 10/100/1000Base-T, 4 × GE Combo, 4 × 10GE SFP+
		S5710-52C-EI/S5710-52C-PWR-EI/S5710-52C-PWR-EI-AC: 48 x 10/100/1000Base-T, 4 × 10GE SFP+
		S5720-32P-EI-AC: 24×10/100/1000Base-T, 4×100/1000Base-X SFP, 4 Gig SFP
		S5720-52P-EI-AC:48×10/100/1000Base-T, 4 Gig SFP
		S5720-36C-EI-AC/S5720-36C-PWR-EI-AC: 28×10/100/1000Base-T(4GE Combo SFP), 4×10 GE SFP+
		S5720-36C-EI-28S-AC:28×100/1000Base-X SFP(4GE Combo), 4×10GE SFP+
		S5720-36PC-EI-AC: 28×10/100/1000Base-T(4GE Combo SFP), 4 Gig SFP
		S5720-56C-EI-AC/S5720-56C-PWR-EI-AC/S5720-56C-PWR-EI-AC1:48×10/100/1000Base-T, 4×10GE SFP+
		S5720-56C-EI-48S-AC: 48×100/1000Base-X SFP, 4×10GE SFP+
		S5720-56PC-EI-AC: 48×10/100/1000Base-T, 4 Gig SFP
		S5720-32X-EI-AC: 24×10/100/1000 Base-T, 4×100/1000Base-X SFP, 4×10 GE SFP+
		S5720-32X-EI-24S-AC: 24×100/1000Base-X SFP, 4×10/100/1000Base-T, 4×10GE SFP+
		S5720-50X-EI-AC : 46 ×10/100/1000Base-T, 4×10GE SFP+
		S5720-50X-EI-46S-AC: 46 ×100/1000Base-X SFP, 4×10GE SFP+
		S5720-52X-EI-AC: 48×10/100/1000Base-T, 4×10GE SFP+
	HI	S5700-28C-HI: 24 × 10/100/1000Base-T
		S5700-28C-HI-24S: 24 × 100/1000Base-X
		S5710-108C-PWR-HI: 48 × 10/100/1000BASE-T, 8 × 10GE SFP+
		S5720-32C-HI-24S-AC: 24×100/1000Base-X ,8 of which are dual-purpose 10/100/1000 or SFP, 4×10GE SFP+
		S5720-56C-HI-AC/S5720-56C-PWR-HI-AC: 48×10/100/1000Base-T, 4×10GE SFP+
MAC address table		IEEE 802.1d compliance
		MAC address learning and aging
		Static, dynamic, and blackhole MAC address entries
		Packet filtering based on source MAC addresses
		MAC address entries: S5700S-LI series: 8K, S5700-LI/S5700-SI series: 16K, S5700-EI series: 32K, S5720-EI series: 64K, S5700-HI series: S5700-HI: 32K, S5710-HI: 456K, S5720-HI: 128K
VLAN		4K VLANs
		Guest VLAN and voice VLAN
		GVRP
		MUX VLAN
		VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
		1:1 and N:1 VLAN Mapping
		SuperVLAN(supported by the S5700-SI/S5700-EI/S5700-HI series)
Ring protection		RRPP ring topology and RRPP multi-instance
		Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
		SEP
		ERPS(G.8032)(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series)
		STP, RSTP, and MSTP
		BPDU protection, root protection, and loop protection
		BPDU Tunnel
Reliability		Ethernet OAM (IEEE 802.3ah and 802.1ag)
		ITU-Y.1731
		DLDP
		LACP
		E-Trunk(supported by the S5700-SI/S5700-EI/S5700-HI series)
		BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM (supported by the S5700-EI/S5700-HI series)
MPLS features		MPLS L3VPN
		MPLS L2VPN(VPWS/VPLS)
		MPLS-TE
		MPLS QoS
		Notes: supported by S5710-EI, S5700-HI and S5710-HI
IP routing		Static routing
		RIPv1, RIPv2 and RIPng,ECMP(supported by the S5700-SI/S5700-EI/S5700-HI series)
		OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4+ (supported by the S5700-EI/S5700-HI series)
IPv6 features		Neighbor Discovery (ND)
		Path MTU (PMTU)
		IPv6 ping, IPv6 tracert, and IPv6 Telnet
		ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
		MLD v1/v2 snooping
		6to4 tunnel, ISATAP tunnel, and manually configured tunnel(supported by the S5700-SI/S5700-EI/S5700-HI series)
Multicast		IGMP v1/v2/v3 snooping and IGMP fast leave
		Multicast forwarding in a VLAN and multicast replication between VLANs
		Multicast load balancing among member ports of a trunk
		Controllable multicast
		Port-based multicast traffic statistics
		IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by the S5700-EI/S5700-HI series)
QoS/ACL		Rate limiting on packets sent and received by an interface
		Packet redirection
		Port-based traffic policing and two-rate three-color CAR
		Eight queues on each port
		WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
		WRED (supported by the S5710-EI and S5700-HI)
		Re-marking of the 802.1p priority and DSCP priority
		Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID
		Rate limiting in each queue and traffic shaping on ports
Security		User privilege management and password protection
		DoS attack defense, ARP attack defense, and ICMP attack defense
		Binding of the IP address, MAC address, interface, and VLAN
		Port isolation, port security, and sticky MAC
		MFF
		Blackhole MAC address entries
		Limit on the number of learned MAC addresses
		802.1x authentication and limit on the number of users on an interface
		AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
		SSH v2.0
		Hypertext Transfer Protocol Secure (HTTPS)
		CPU defense
		Blacklist and whitelist
Operating environment		Operating temperature: 0℃–50℃
Operating environment		Relative humidity: 10%–90% (non-condensing)
Input voltage		AC:
		Rated voltage range: 100 V to 240 V AC, 50/60 Hz
		Maximum voltage range: 90 V to 264 V AC, 47/63 Hz
		DC:
		Rated voltage range: –48 V to –60 V, DC
		Maximum voltage range: –36 V to –72 V DC
		Note: PoE-support switches do not use DC power supplies.
Dimensions (W x D x H)		S5700-10P-LI-AC:250 x 180 x 43.6 mm
		S5700-10P-PWR-LI-AC:320 x 220 x 43.6 mm
		S5700-28P-LI/S5700-28TP-LI-AC/S5700-28X-LI/S5700-28X-LI-24S/S5700-24TP-SI/S5700-28C-HI/S5700-28C-HI-24S/ S5701-28X-LI-AC/ S5701-28X-LI-24S-AC/ S5700-52X-LI-48CS-AC: 442 x 220 x 43.6 mm
		S5700-28P-PWR-LI/S5700-28TP-PWR-LI-AC/S5701-28TP-PWR-LI-AC/S5700-52P-LI/S5700-52P-PWR-LI/S5700-28X-PWR-LI-AC/S5700-52X-LI/S5700-52X-PWR-LI-AC/ S5700-26X-SI-12S-AC/S5700-28P-LI-BAT/S5700-28P-LI-4AH/S5700-28P-LI-24S-BAT/S5700-28P-LI-24S-4AH: 442 x 310 x 43.6 mm
		S5710-108C-PWR-HI: 442x470.0x87.2
		Others: 442 x 420 x 43.6 mm
Powerconsumption		S5700-10P-LI-AC<11.5W
		S5700-10P-PWR-LI-AC<139W
		S5700-28P-LI<25W	S5700-24TP-SI<40W	S5700-28C-EI<60W	S5700-28C-HI<76W
		S5700S-28P-LI<25W	S5700-26X-SI-12S-AC<42.3W	S5700-28C-EI-24S<63W	S5700-28C-HI-24S<80W
		S5700-28TP-LI-AC<26.4W	S5700-48TP-SI<64W	S5700-52C-EI<88W	S5710-108C-PWR-HI<1680W (PoE:1440W)
		S5700-28TP-PWR-LI-AC<469.7W(PoE:370W)	S5700-28C-SI<56W	S5710-28C-EI<100W	S5710-108C-PWR-HI<1680W (PoE:1440W)
		S5701-28TP-PWR-LI-AC<238.7W(PoE:185W)	S5700-52C-SI<78W	S5710-52C-EI<165W	S5720-32C-HI-24S-AC<172.7W
		S5700-52P-LI<52W	S5700-24TP-PWR-SI<455W(PoE: 370W)	S5700-28C-PWR-EI<842W (PoE: 740W)	S5720-56C-HI-AC<183.3W
		S5700S-52P-LI<52W	S5700-48TP-PWR-SI<907W (PoE: 740W)	S5700-28C-PWR-EI<842W (PoE: 740W)	S5720-56C-PWR-HI-AC: without PD: <188.74W, with PD: <1739W(device: 299W, PD: 1440W)
		S5700S-52P-LI<52W	S5700-48TP-PWR-SI<907W (PoE: 740W)	S5700-52C-PWR-EI<930W (PoE: 740W)
		S5700-28P-PWR-LI<436.5W (PoE: 370W)		S5700-52C-PWR-EI<930W (PoE: 740W)
				S5710-28C-PWR-EI-AC<942W
				S5710-52C-PWR-EI/S5710-52C-PWR-EI-AC: < 1043W with two 580W AC supplies(PoE:740W), or <1625W with two 1150W AC supplies(PoE:1440W)
				S5720-32P-EI-AC <50.7W
				S5720-52P-EI-AC <60.3W
		S5700-52P-PWR-LI<464.5W (PoE: 370W)		S5720-36C-EI-AC <75.8W
				S5720-36C-PWR-EI-AC : without PD: <78W, with PD: <864.3W(PoE:740W)
				S5720-36PC-EI-AC<74.6W
				S5720-36C-EI-28S-AC<83.9W
		S5700-28X-LI<42W		S5720-56C-EI-AC<86.9W
		S5700-28X-LI-24S<54W		S5720-56C-PWR-EI-AC: without PD: <91.6W, with PD:<889.4W(PoE:740W)
		S5700-28X-PWR-LI-AC <448.8W (PoE: 370W)		S5720-56C-PWR-EI-AC1: without PD: <91.6W, with PD:<1564.8W(PoE:1440W)
		S5700-52X-LI<61W		S5720-56PC-EI-AC<85.7W
		S5700-52X-PWR-LI-AC <479.3W (PoE: 370W)		S5720-56C-EI-48S-AC<104W
		S5700-28P-LI-BAT/S5700-28P-LI-4AH<23W		S5720-32X-EI-AC <51.9W
		S5700-28P-LI-24S-BAT/S5700-28P-LI-24S-4AH<34.1W		S5720-32X-EI-24S-AC<58.9W
		S5700-52X-LI-48CS-AC<79.9W		S5720-50X-EI-AC<55.3W
		S5701-28X-LI-AC <39.5W		S5720-50X-EI-46S-AC<81.5W
		S5701-28X-LI-24S-AC<60W		S5720-52X-EI-AC <61.5W

Q&A

Q What is the difference between Cisco and Huawei?

A Huawei uses only open standard protocols whereas Cisco uses a mixture of open and proprietary.

Q What is a Huawei switch?

A Using intelligent, multi-layer switching technology, Huawei's Ethernet switches provide High-Definition (HD) video stream transmission, elastic cloud computing, IPv6-capable hardware, integrated security protection, and Hierarchical Quality of Service (HQoS)-based refined services.

Q How do I connect my Huawei switch to my computer?

A Connect the DB9 female connector of the console cable to the serial port (COM) on the PC, and connect the RJ45 connector to the console port on the switch. Configure terminal emulation software and log in to the Switch. Configure basic information for the Switch.
